Page 1689 of 1903

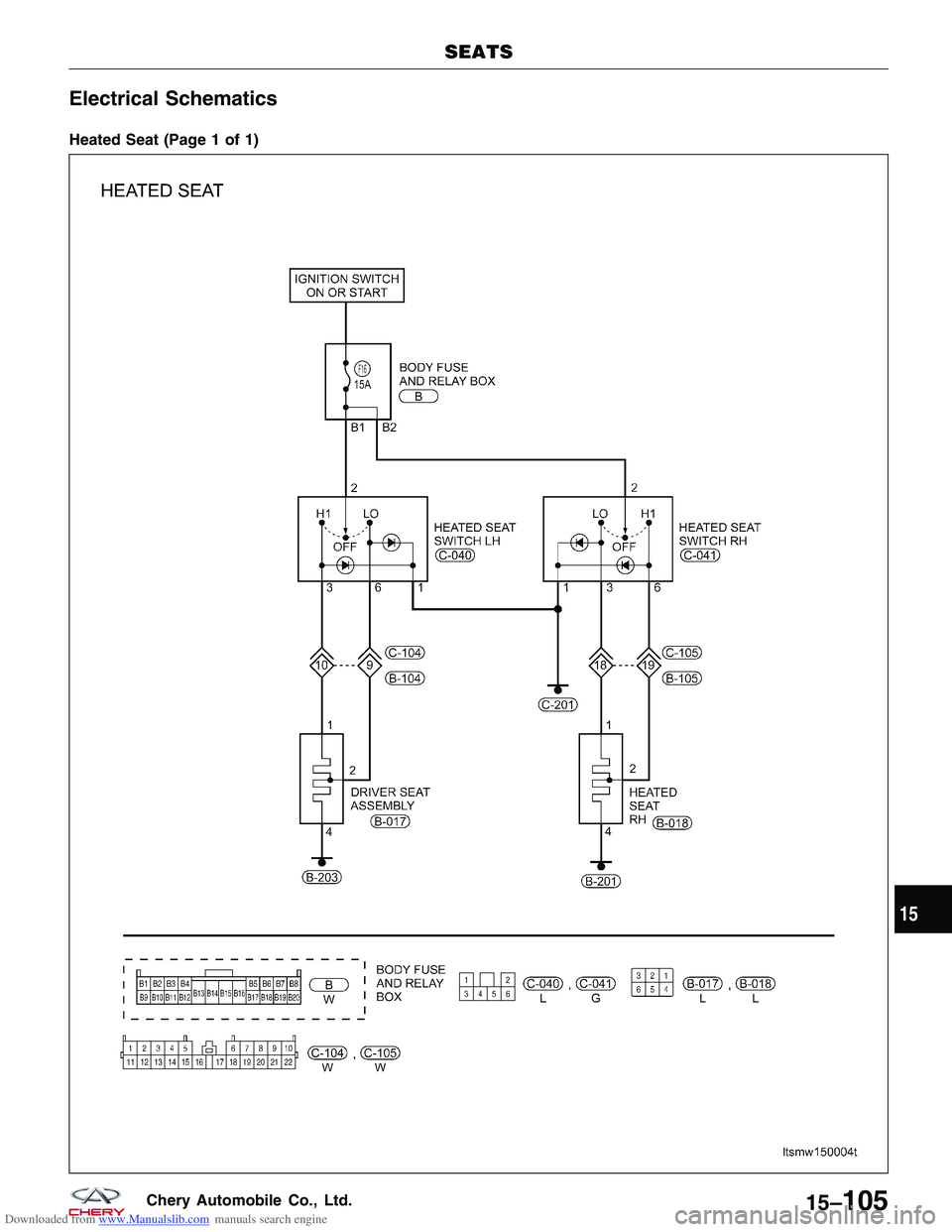

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics
Heated Seat (Page 1 of 1)
SEATS
LTSMW150004T
15
15–105Chery Automobile Co., Ltd.
Page 1690 of 1903

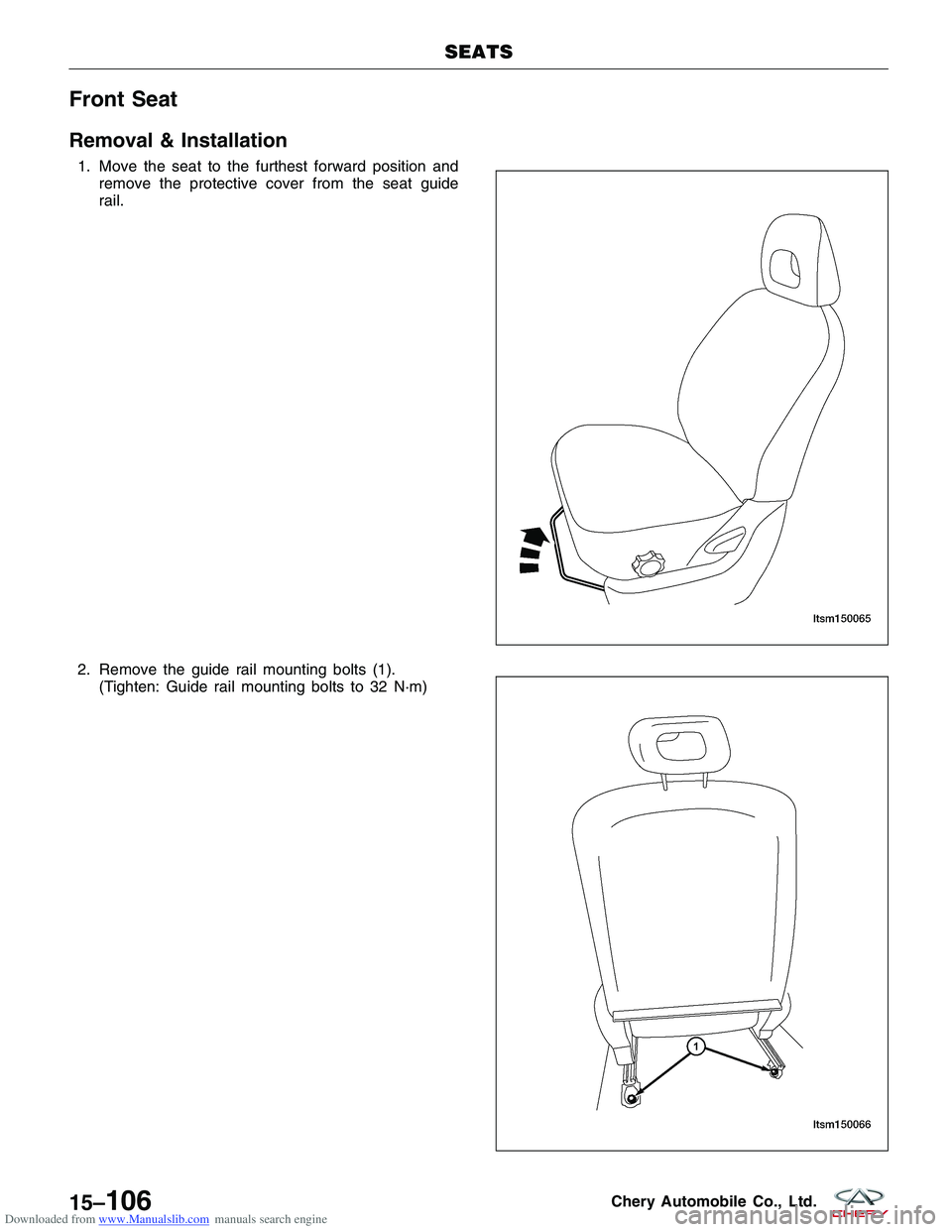

Downloaded from www.Manualslib.com manuals search engine Front Seat
Removal & Installation
1. Move the seat to the furthest forward position andremove the protective cover from the seat guide
rail.
2. Remove the guide rail mounting bolts (1). (Tighten: Guide rail mounting bolts to 32 N·m)
SEATS
LTSM150065
LTSM150066
15–106Chery Automobile Co., Ltd.
Page 1691 of 1903

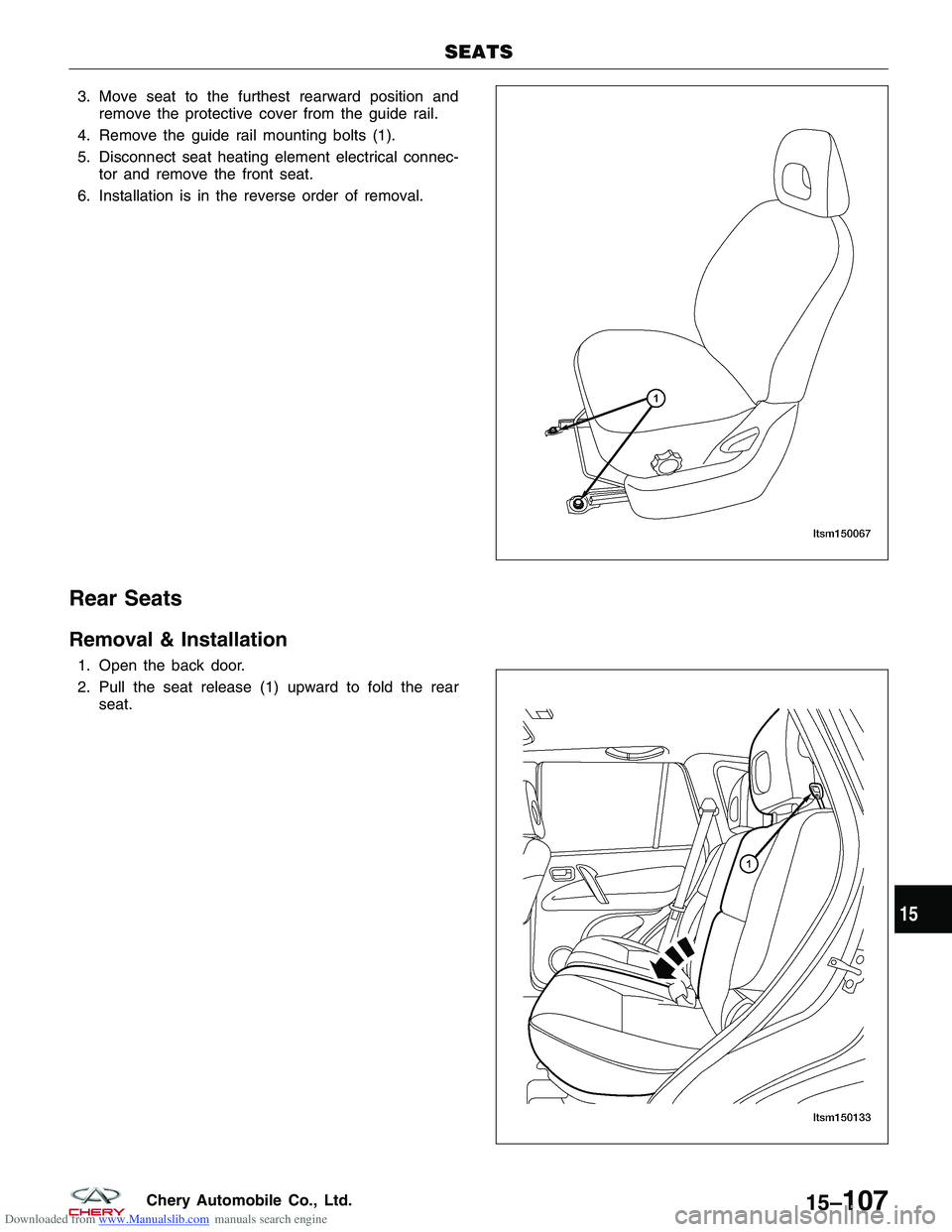

Downloaded from www.Manualslib.com manuals search engine 3. Move seat to the furthest rearward position andremove the protective cover from the guide rail.
4. Remove the guide rail mounting bolts (1).
5. Disconnect seat heating element electrical connec- tor and remove the front seat.
6. Installation is in the reverse order of removal.
Rear Seats
Removal & Installation
1. Open the back door.
2. Pull the seat release (1) upward to fold the rear seat.
SEATS
LTSM150067
LTSM150133
15
15–107Chery Automobile Co., Ltd.
Page 1692 of 1903

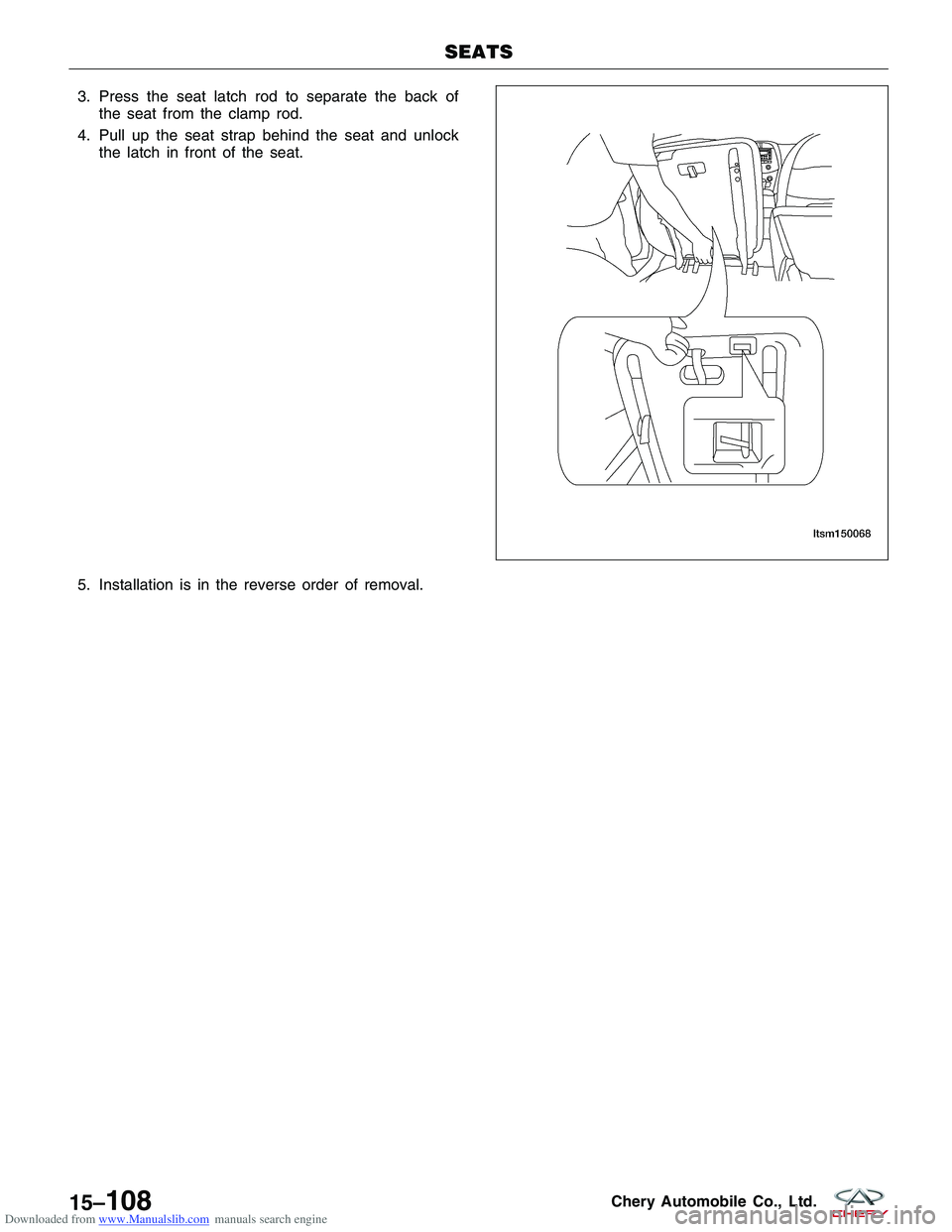

Downloaded from www.Manualslib.com manuals search engine 3. Press the seat latch rod to separate the back ofthe seat from the clamp rod.
4. Pull up the seat strap behind the seat and unlock the latch in front of the seat.
5. Installation is in the reverse order of removal.
SEATS
LTSM150068
15–108Chery Automobile Co., Ltd.
Page 1693 of 1903

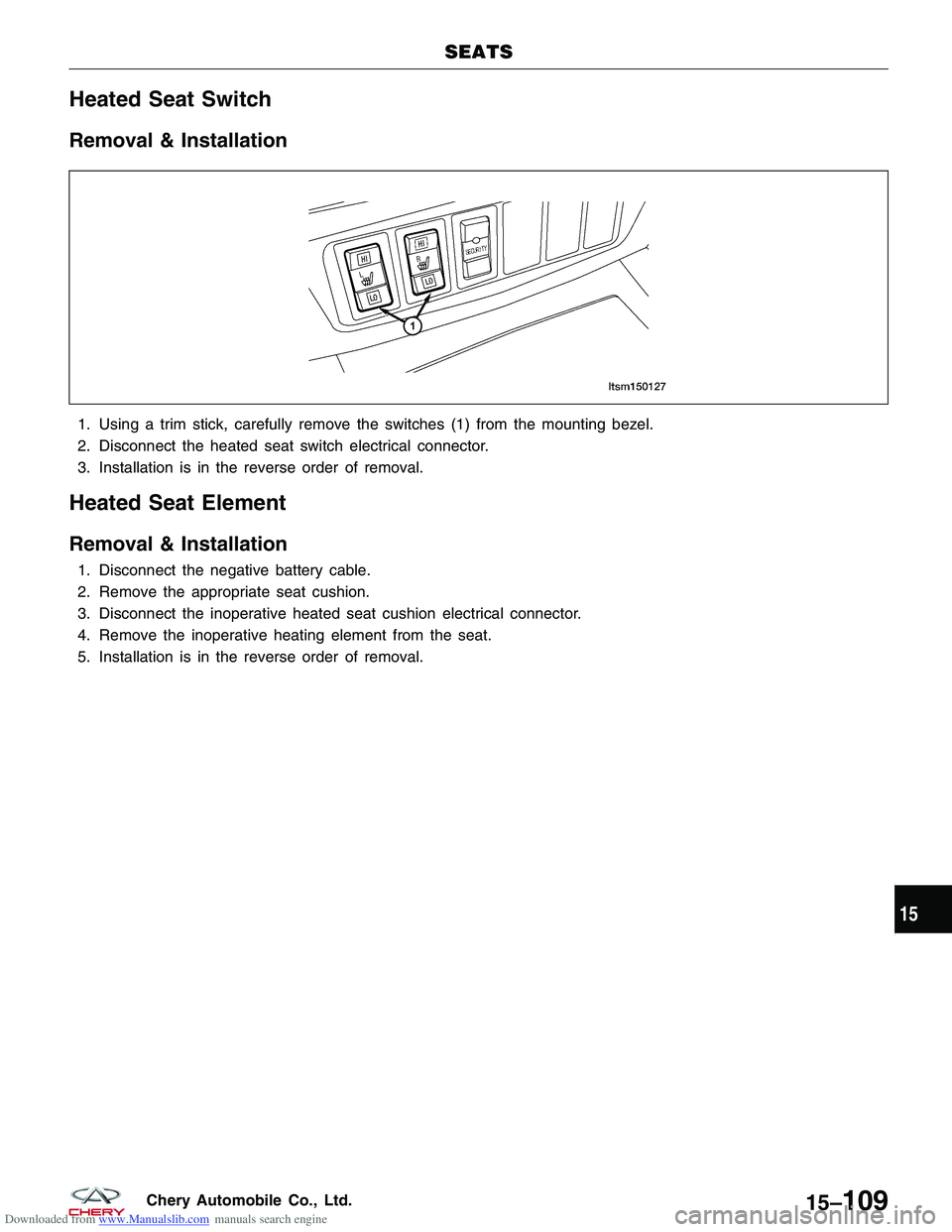

Downloaded from www.Manualslib.com manuals search engine Heated Seat Switch
Removal & Installation
1. Using a trim stick, carefully remove the switches (1) from the mounting bezel.
2. Disconnect the heated seat switch electrical connector.
3. Installation is in the reverse order of removal.
Heated Seat Element
Removal & Installation
1. Disconnect the negative battery cable.
2. Remove the appropriate seat cushion.
3. Disconnect the inoperative heated seat cushion electrical connector.
4. Remove the inoperative heating element from the seat.
5. Installation is in the reverse order of removal.
SEATS
LTSM150127
15
15–109Chery Automobile Co., Ltd.
Page 1694 of 1903

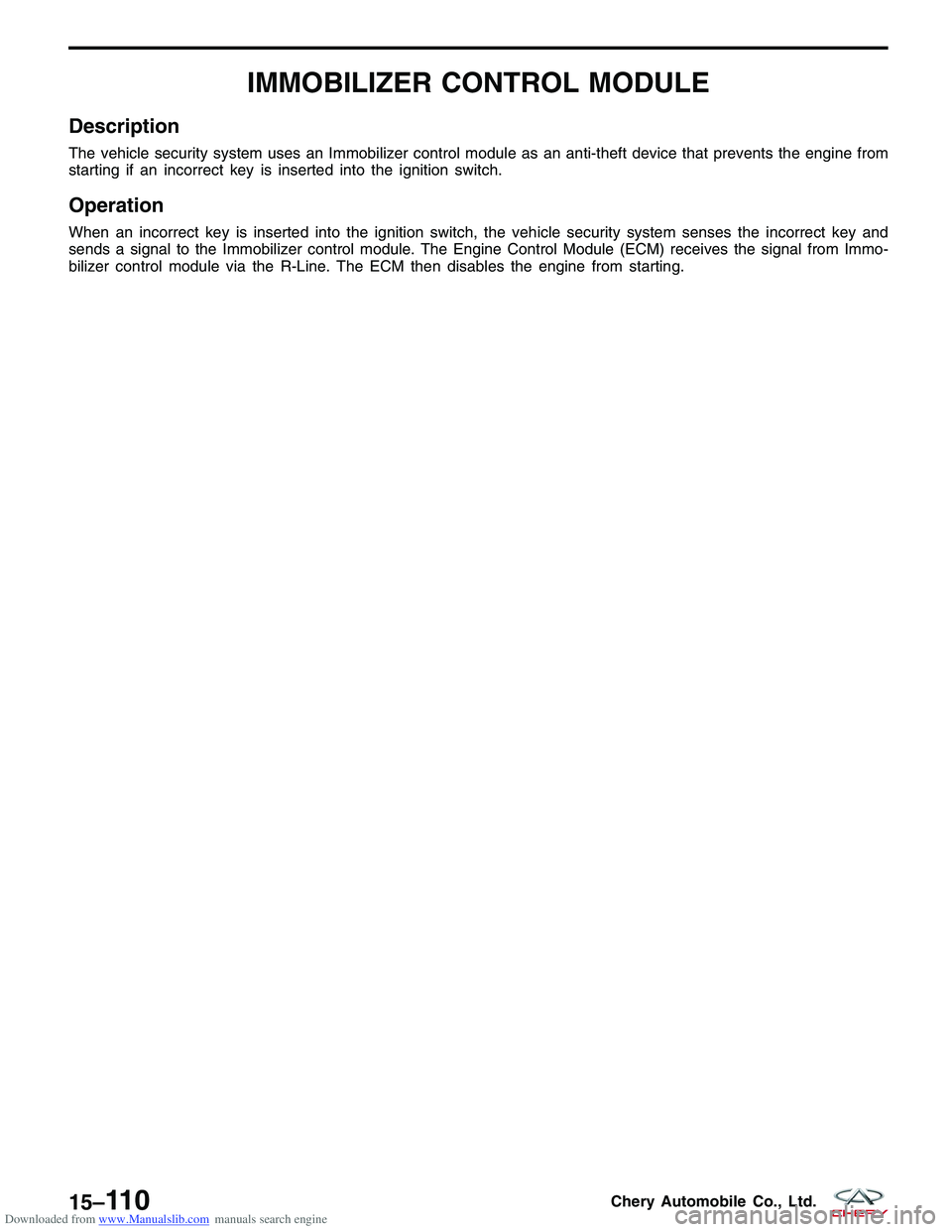

Downloaded from www.Manualslib.com manuals search engine IMMOBILIZER CONTROL MODULE
Description
The vehicle security system uses an Immobilizer control module as an anti-theft device that prevents the engine from
starting if an incorrect key is inserted into the ignition switch.
Operation
When an incorrect key is inserted into the ignition switch, the vehicle security system senses the incorrect key and
sends a signal to the Immobilizer control module. The Engine Control Module (ECM) receives the signal from Immo-
bilizer control module via the R-Line. The ECM then disables the engine from starting.
15–11 0Chery Automobile Co., Ltd.
Page 1695 of 1903

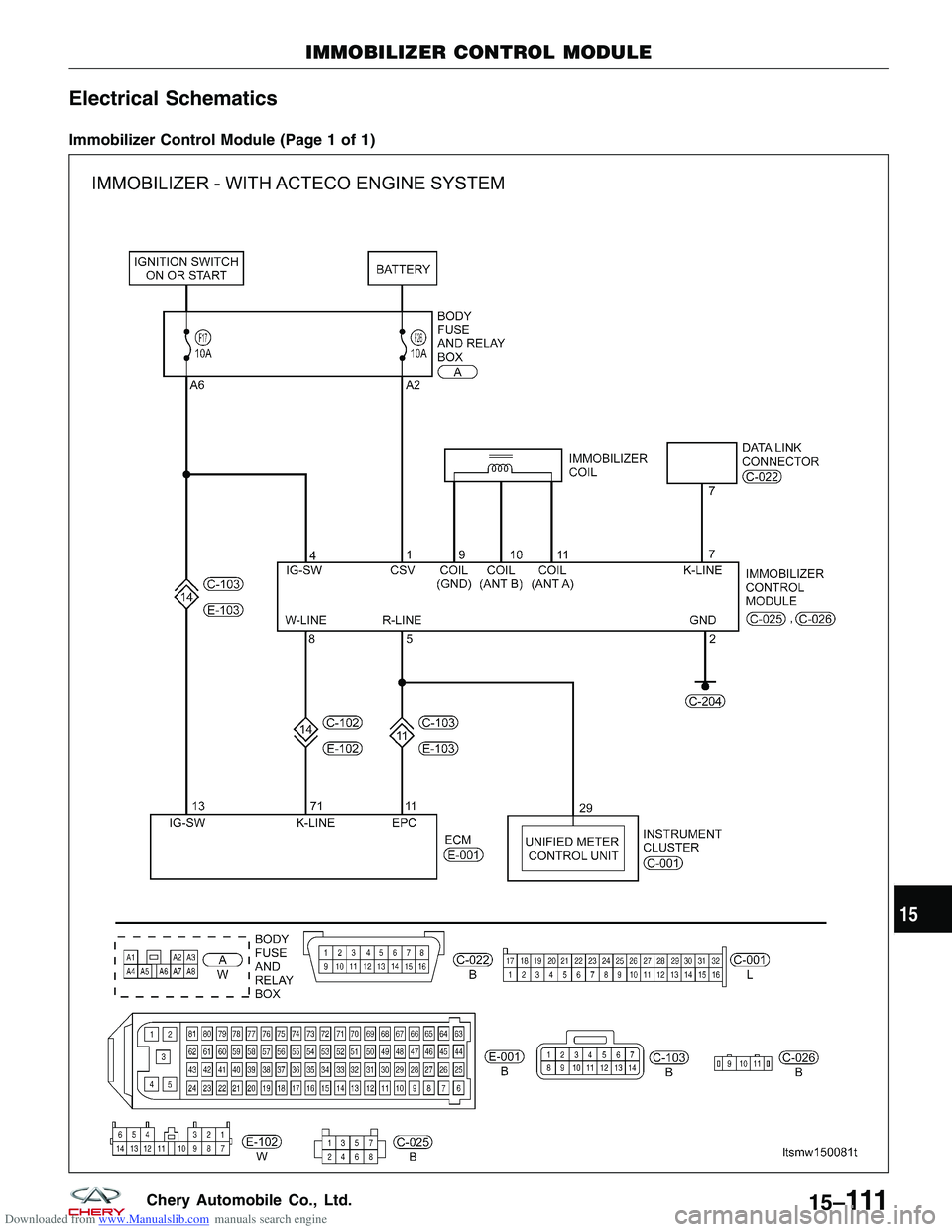

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics
Immobilizer Control Module (Page 1 of 1)
IMMOBILIZER CONTROL MODULE
LTSMW150081T
15
15–111Chery Automobile Co., Ltd.
Page 1696 of 1903

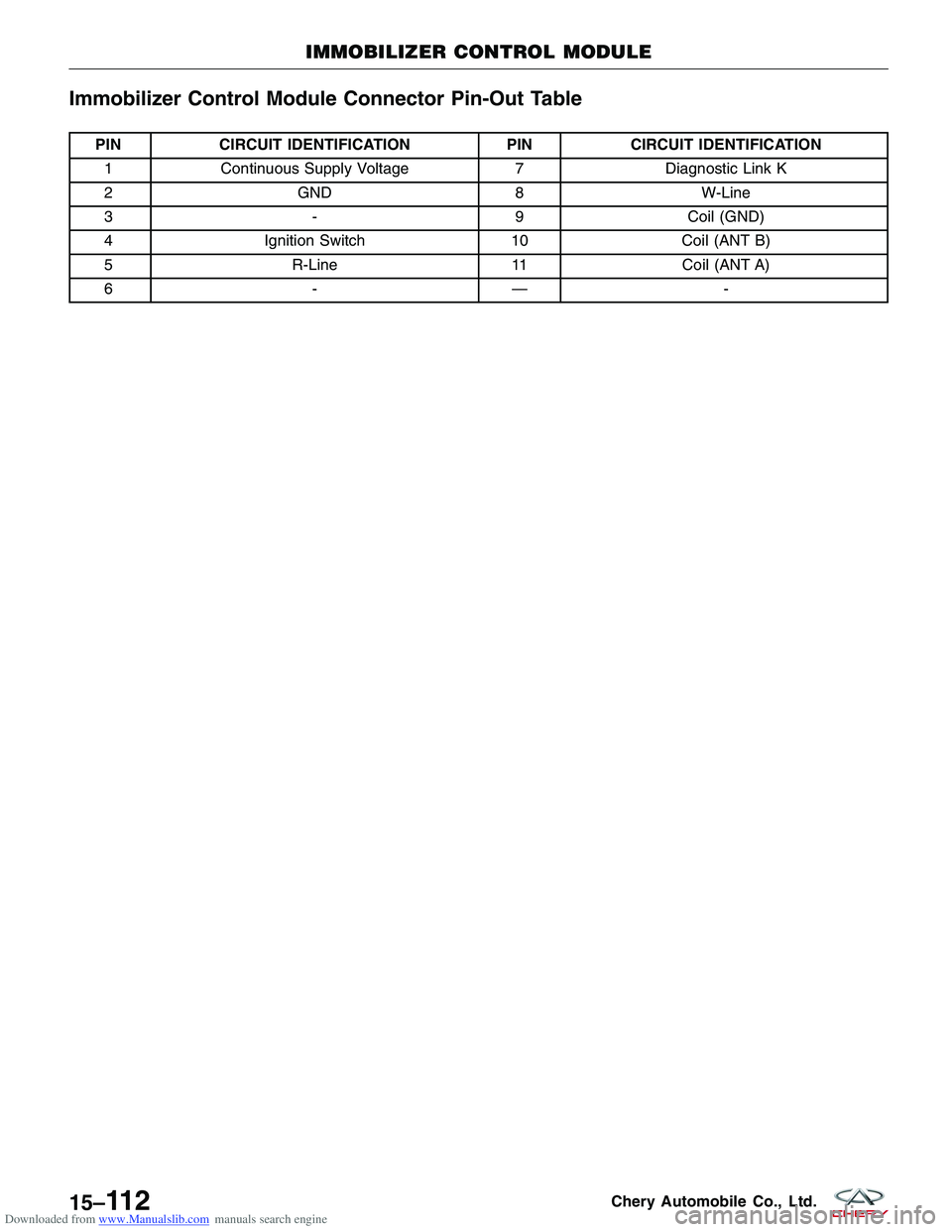

Downloaded from www.Manualslib.com manuals search engine Immobilizer Control Module Connector Pin-Out Table
PINCIRCUIT IDENTIFICATION PINCIRCUIT IDENTIFICATION
1 Continuous Supply Voltage 7Diagnostic Link K
2 GND 8W-Line
3 -9Coil (GND)
4 Ignition Switch 10Coil (ANT B)
5 R-Line 11Coil (ANT A)
6-—-
IMMOBILIZER CONTROL MODULE
15–11 2Chery Automobile Co., Ltd.
