2009 CHERY TIGGO engine

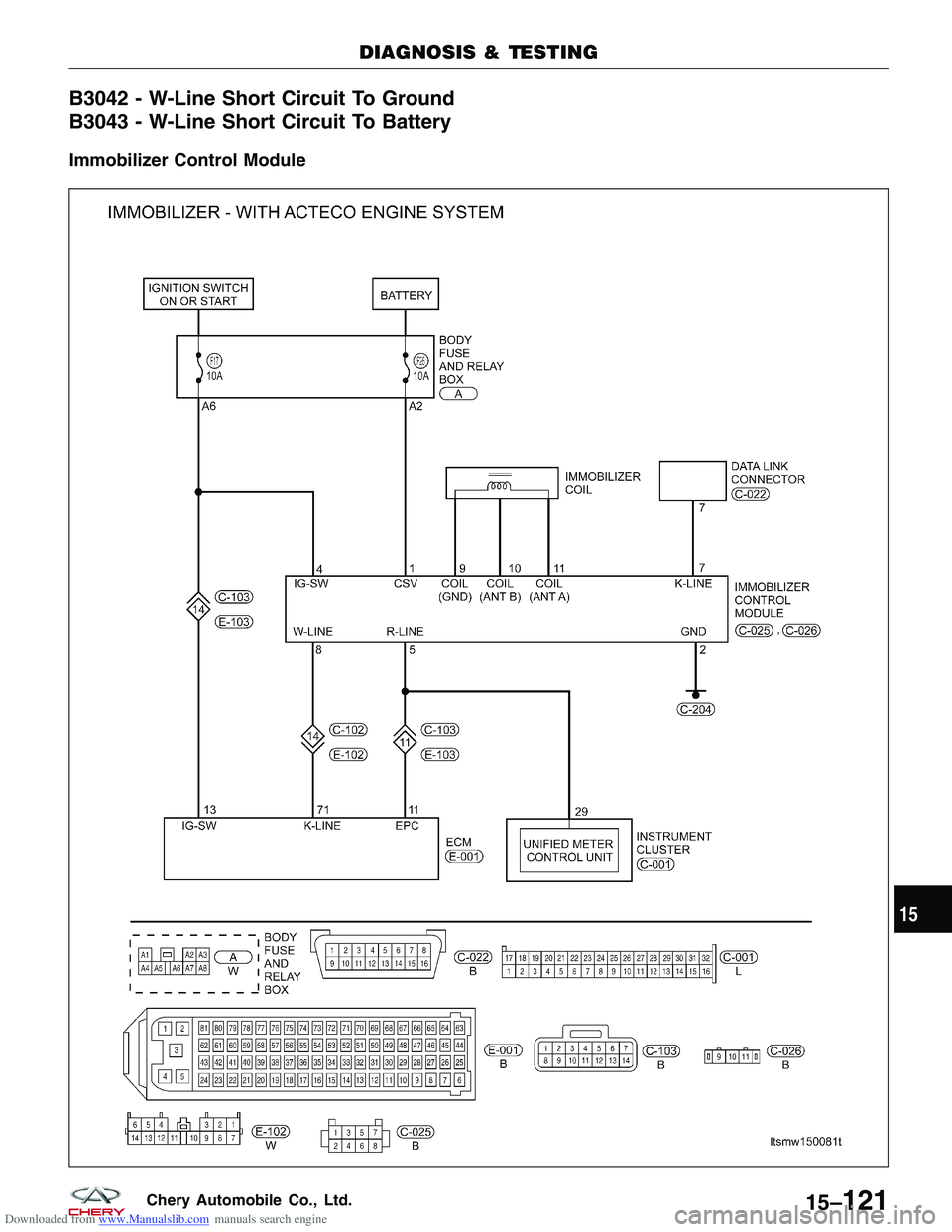

Downloaded from www.Manualslib.com manuals search engine B3042 - W-Line Short Circuit To Ground
B3043 - W-Line Short Circuit To Battery
Immobilizer Control Module
DIAGNOSIS & TESTING
LTSMW150081T
15
15–121Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSE
B3042 W-line short circuit
to ground
Ignition switch: ON The Immobilizer
control module
detects a short
ground condition on
the W-Line for at
least 3 seconds.
•
Harness or
connectors
• Immobilizer control
module
• ECM
B3043 W-Line short circuit
to battery The Immobilizer
control module
detects a short
battery condition on
the W-Line for at
least 3 seconds.•
Harness or
connectors
• Immobilizer control
module
• ECM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on, with the scan tool, view and erase stored DTCs in the Immobilizer control module.
• Try to start the engine.
• Turn ignition switch off, and wait a few seconds, then turn the ignition switch on.
• With the scan tool, view active DTCs in the Immobilizer control module.
• If the DTC is detected, the condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 15 Body & Accessories for more information).
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
Diagnostic Procedure
1.CHECK GROUND CONNECTION
• Turn ignition switch off.
• Loosen and retighten ground screws on the body (See Ground Inspection in Section 15 Body & Accessories).
• Inspect ground connection C-204 mounting position (See Vehicle Wiring Harness Layout - Main Harness in
Section 16 Wiring).
Is the ground connection OK?
Ye s>>Go to the next step.
No
>>Repair or replace ground connection.
2.CHECK IMMOBILIZER CONTROL MODULE DTC
• With the scan tool, view DTCs in the Immobilizer control module. Refer to DTC confirmation procedure.
Is the warning light flashing and DTC B3042 or B3043 present?
Ye s>>Go to the next step.
No
>>The conditions that caused this code to set are not present at this time (See Diagnostic Help in Sec-
tion 15 Body & Accessories).
DIAGNOSIS & TESTING
15–122Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 3.CHECK ENGINE CONTROL MODULE (ECM) ELECTRICAL CONNECTOR
• Turn ignition switch off.
• Disconnect the Engine Control Module (ECM) elec-
trical connector E-001 (1).
• Inspect the electrical connector for damage.
Is the electrical connector OK?
Ye s>>Go to the next step.
No
>>Repair or replace the electrical connector
as necessary.
4.CHECK IMMOBILIZER CONTROL MODULE ELECTRICAL CONNECTOR
• Disconnect the Immobilizer control module electrical
connectors C-025 and C-026 (1).
• Inspect the electrical connector for damage.
Is the electrical connector OK?
Ye s>>Go to the next step.
No
>>Repair or replace the electrical connector
as necessary.
DIAGNOSIS & TESTING
LTSMD030077
LTSMD150019
15
15–123Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 5.CHECK IMMOBILIZER CONTROL MODULE AND ECM COMMUNICATION CIRCUIT
• For DTC B3042, check the resistance of W-Line between the Immobilizer control module connector C-025, pin
8 and ground.
IMMOBILIZER
CONTROLMODULE
TERMINAL TERMINAL RESULT
8
Ground Continuity
should not exist
• For DTC B3043, turn ignition switch on, check voltage between the Immobilizer control module connector
C-025, pin 8 and ground.
IMMOBILIZER
CONTROLMODULE
TERMINAL TERMINAL RESULT
8
Ground12 V should not
exist
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair the circuits fault as necessary.
6.REPLACE AND PROGRAM THE IMMOBILIZER CONTROL MODULE
• Replace and program the Immobilizer control module with the X-431.
• Reconnect all disconnected electrical harness connectors.
• With the X-431 scan tool, view the DTCs in the Immobilizer control module.
Is DTC B3042 or B3043 present again?
Ye s>>Go to the next step.
No
>>The system is now operating properly.
The DTC was caused by Immobilizer control module.
DIAGNOSIS & TESTING
15–124Chery Automobile Co., Ltd.

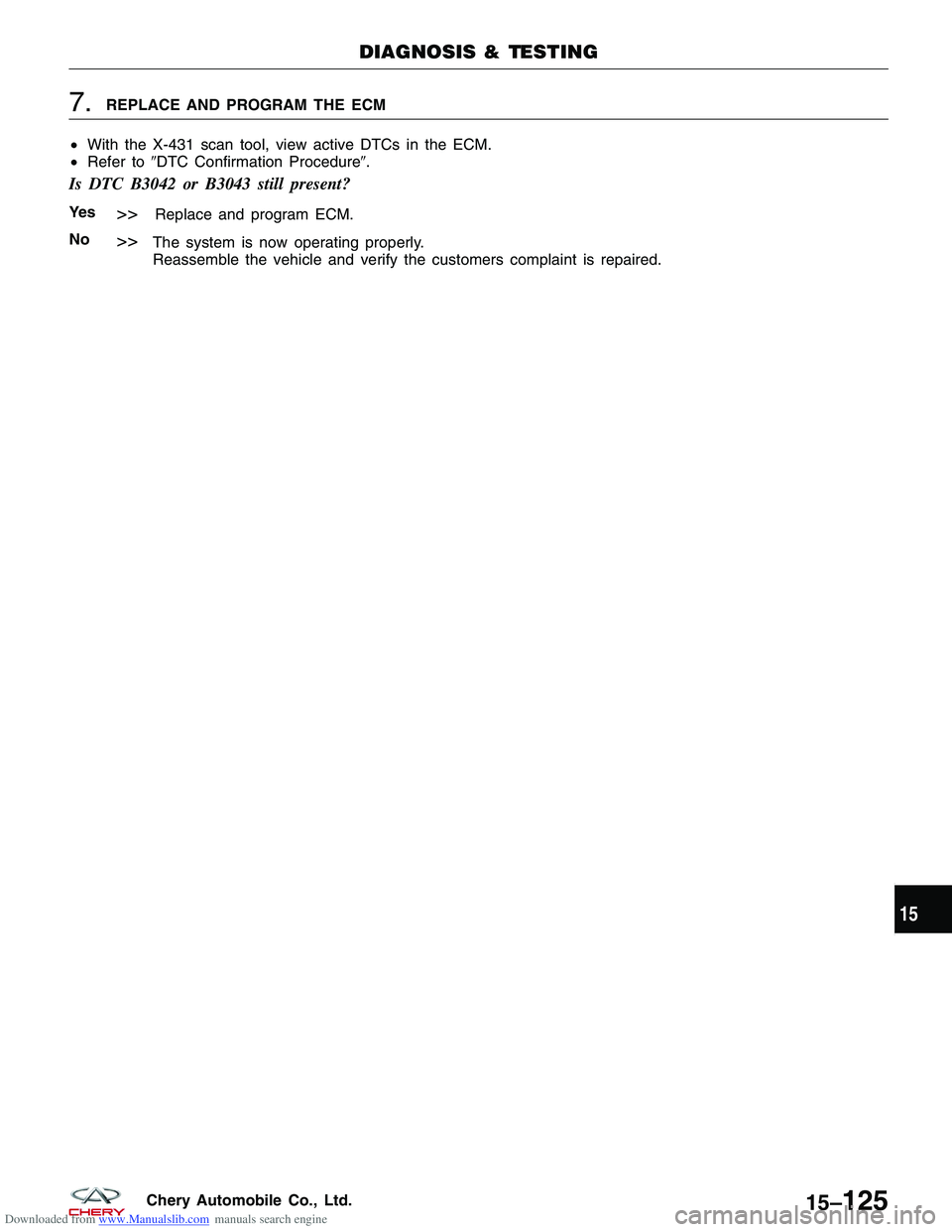

Downloaded from www.Manualslib.com manuals search engine 7.REPLACE AND PROGRAM THE ECM
• With the X-431 scan tool, view active DTCs in the ECM.
• Refer to DTC Confirmation Procedure.
Is DTC B3042 or B3043 still present?
Ye s>>Replace and program ECM.
No
>>The system is now operating properly.
Reassemble the vehicle and verify the customers complaint is repaired.
DIAGNOSIS & TESTING
15
15–125Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine B3050 - Relay External Line Short Circuit To Ground Or Open Circuit, Relay External
Line Malfunction
B3053 - Relay External Line Short Circuit To Battery
DIAGNOSIS & TESTING
LTSMW150081T
15–126Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine On Board Diagnostic Logic
•Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION DTC SET
CONDITION POSSIBLE CAUSE
B3050 Relay external line
short circuit to
ground or open
circuit, relay external line malfunction Ignition switch: ON The Immobilizer
control module
detects a short to
ground condition on
the W-Line for at
least 3 seconds. •
Harness or
connectors
• Immobilizer control
module
B3053 Relay external line
short circuit to battery Ignition switch: ON The Immobilizer
control module
detects a short to
battery condition on
the relay external
line. •
Harness or
connectors
• Immobilizer control
module
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on, with the scan tool, view and erase stored DTCs in the Immobilizer control module.
• Try to start the engine.
• Turn ignition switch off, and wait a few seconds, then turn ignition switch on.
• With the scan tool, view active DTCs in the Immobilizer control module.
• If the DTC is detected, the condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 15 Body & Accessories for more information).
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
DIAGNOSIS & TESTING
15
15–127Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK GROUND CONNECTION
• Turn ignition switch off.
• Loosen and retighten ground screws on the body (See Ground Inspection in Section 15 Body & Accessories).
• Inspect ground connection C-204 mounting position (See Vehicle Wiring Harness Layout - Main Harness in
Section 16 Wiring).
Is the ground connection OK?
Ye s>>Go to the next step.
No
>>Repair or replace ground connection.
2.CHECK IMMOBILIZER CONTROL MODULE DTC
• With the scan tool, view DTCs in the Immobilizer control module. Refer to DTC confirmation procedure.
Is DTC B3050 or B3053 present?
Ye s>>Go to the next step.
No
>>The condition that caused the DTC to set is currently not present (See Diagnosis & Testing Diagnostic
Help in Section 15 Body & Accessories).
3.CHECK IMMOBILIZER CONTROL MODULE ELECTRICAL CONNECTOR
• Turn ignition switch off.
• Disconnect the Immobilizer control module electrical
connectors C-025 (1).
• Inspect the electrical connector for damage.
Is the electrical connector OK?
Ye s>>Go to the next step.
No
>>Repair or replace the electrical connector
as necessary.
DIAGNOSIS & TESTING
LTSMD150019
