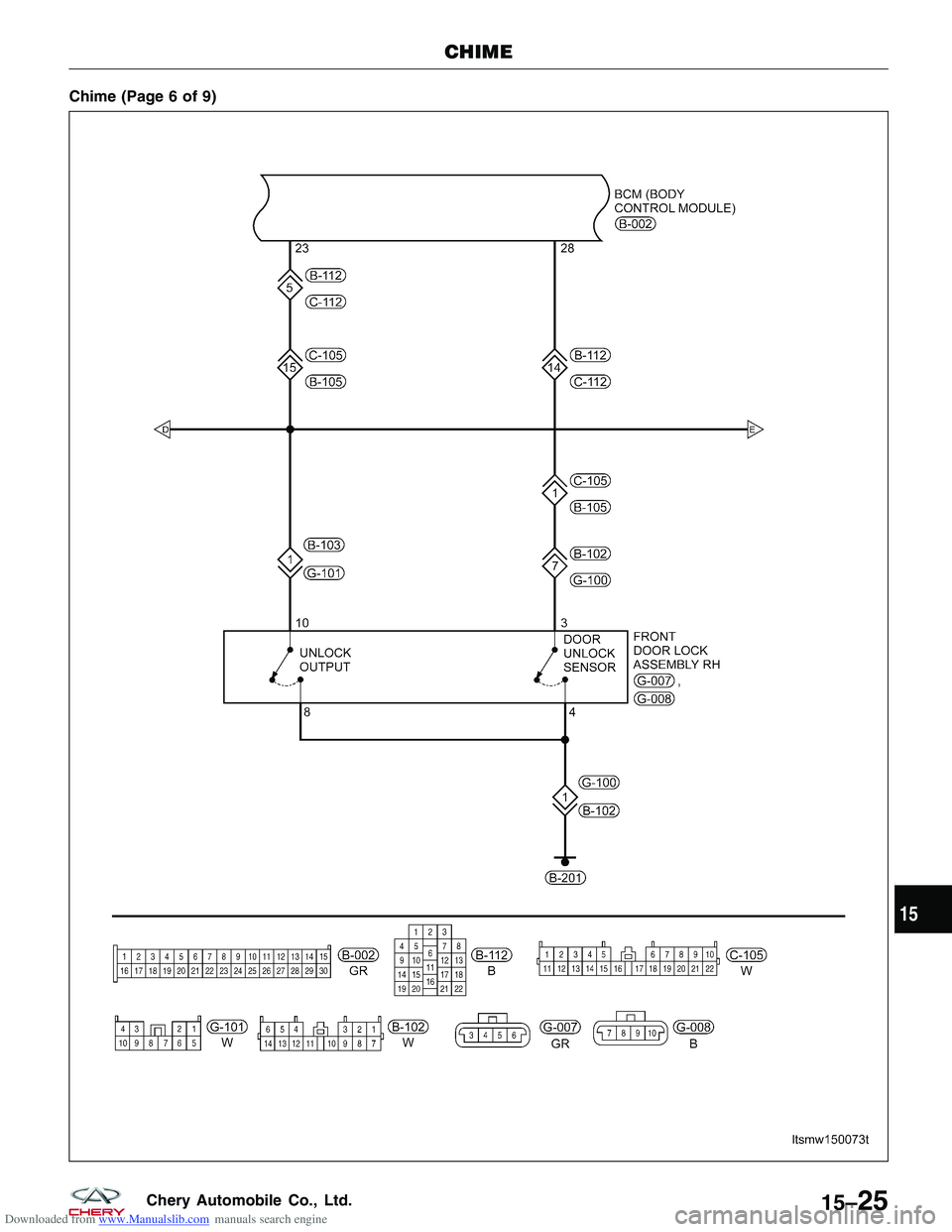

Downloaded from www.Manualslib.com manuals search engine Chime (Page 6 of 9)
CHIME
LTSMW150073T
15
15–25Chery Automobile Co., Ltd.

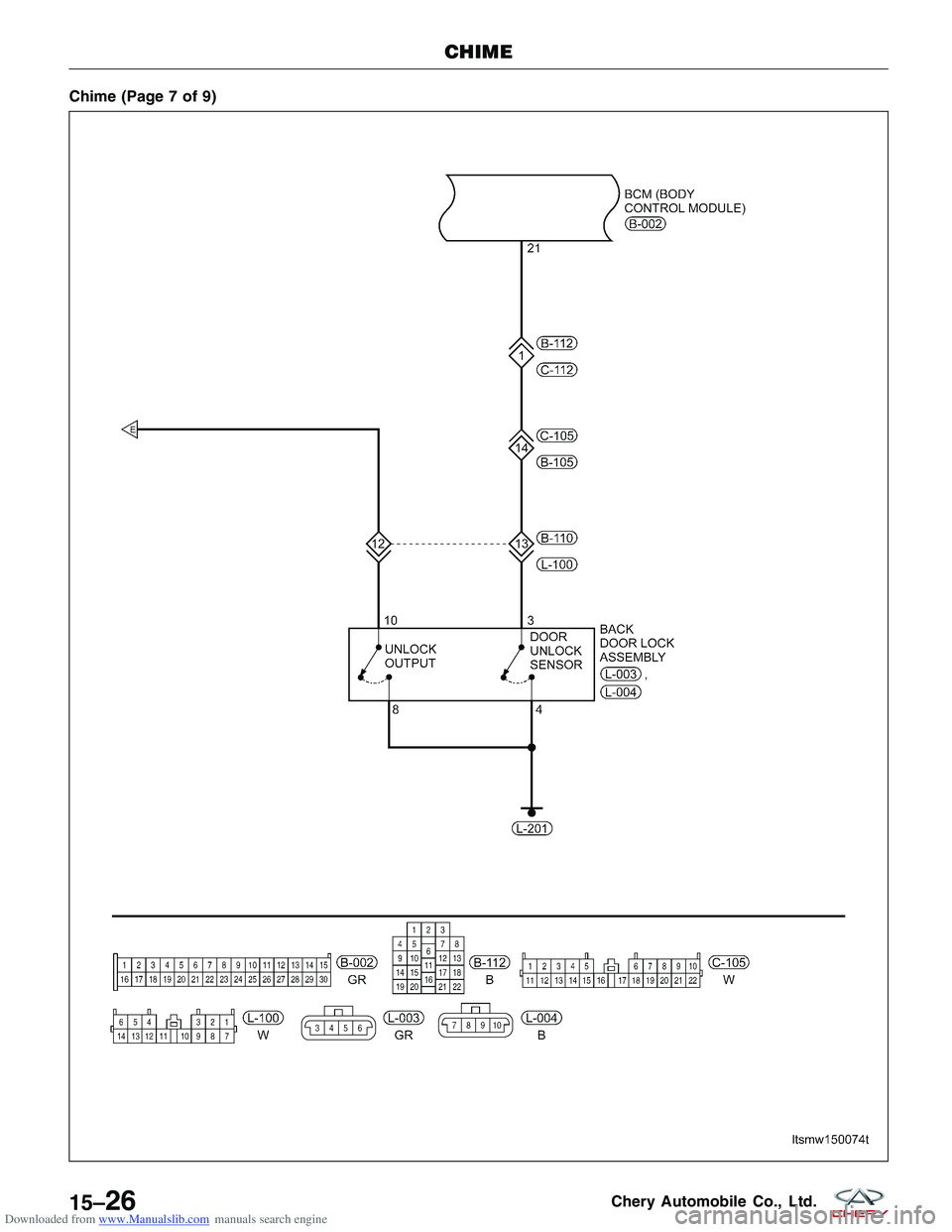

Downloaded from www.Manualslib.com manuals search engine Chime (Page 7 of 9)
CHIME
LTSMW150074T
15–26Chery Automobile Co., Ltd.

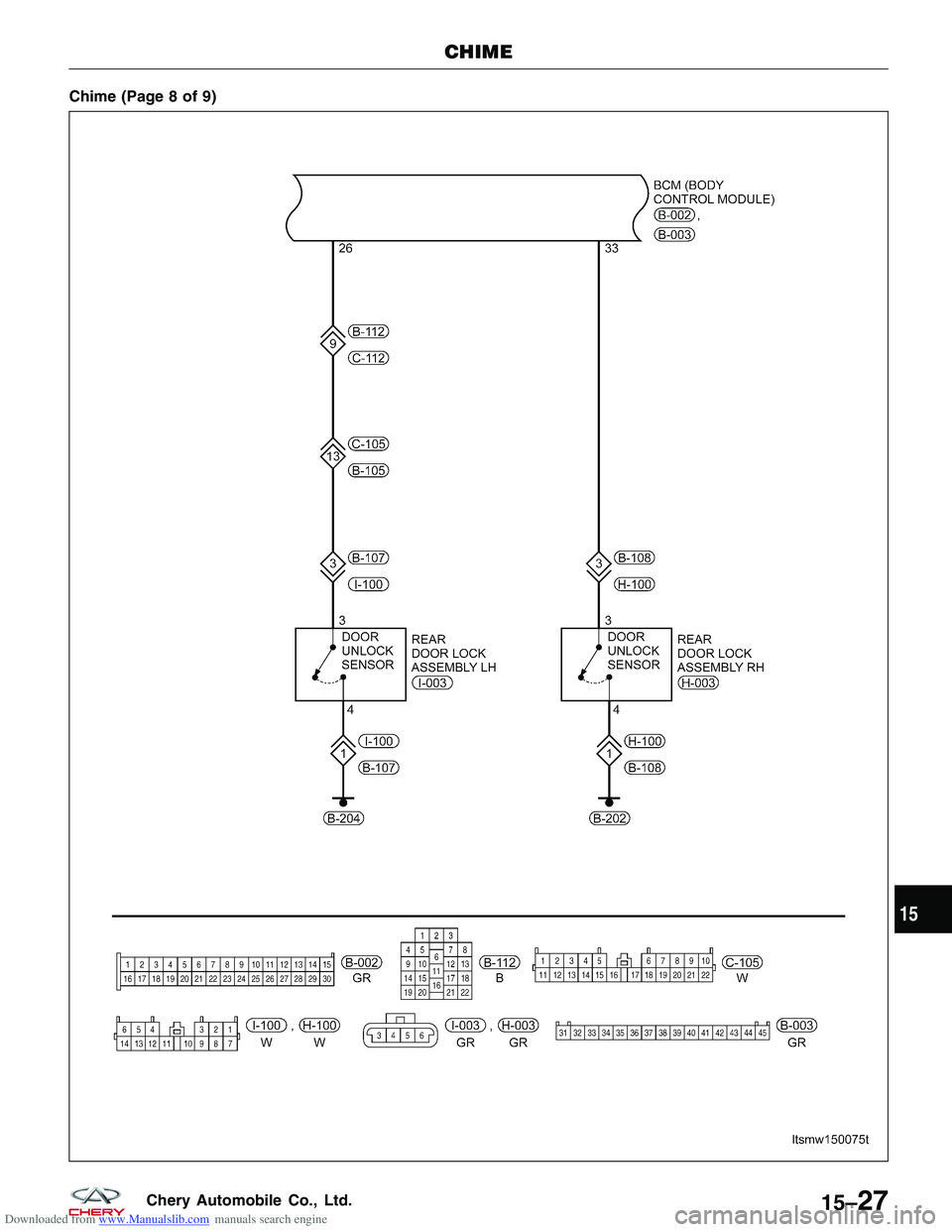

Downloaded from www.Manualslib.com manuals search engine Chime (Page 8 of 9)
CHIME
LTSMW150075T
15
15–27Chery Automobile Co., Ltd.

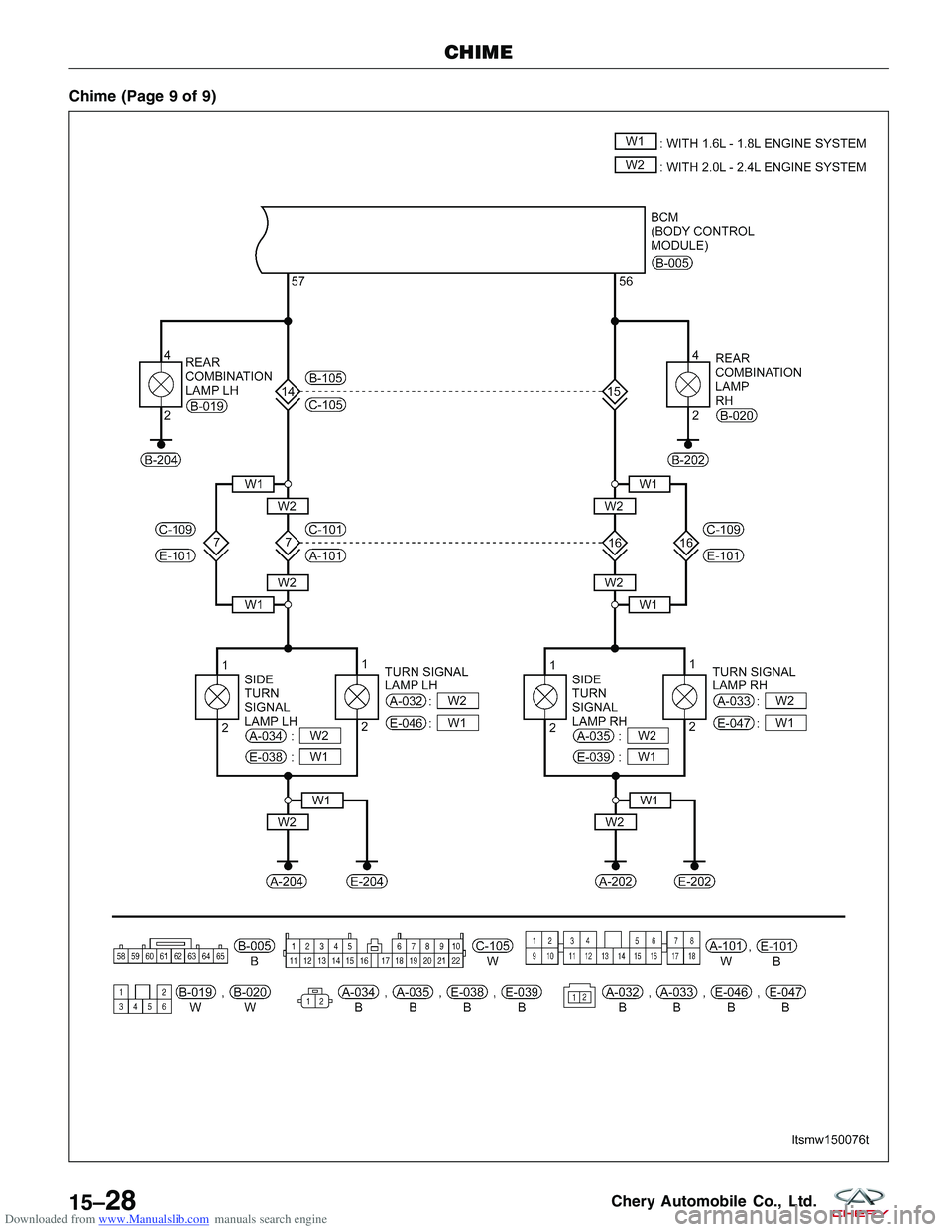

Downloaded from www.Manualslib.com manuals search engine Chime (Page 9 of 9)
CHIME
LTSMW150076T
15–28Chery Automobile Co., Ltd.

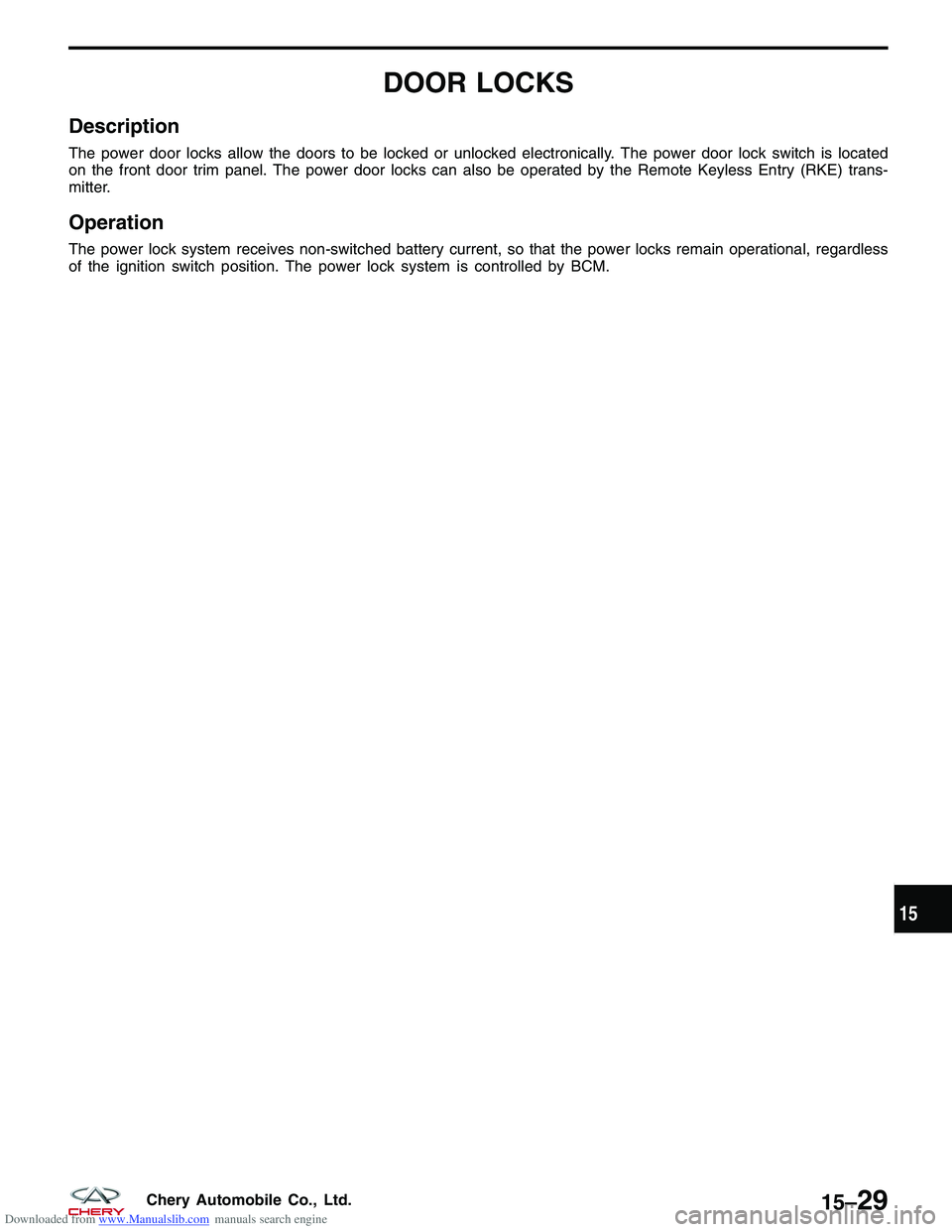

Downloaded from www.Manualslib.com manuals search engine DOOR LOCKS
Description
The power door locks allow the doors to be locked or unlocked electronically. The power door lock switch is located
on the front door trim panel. The power door locks can also be operated by the Remote Keyless Entry (RKE) trans-
mitter.
Operation
The power lock system receives non-switched battery current, so that the power locks remain operational, regardless
of the ignition switch position. The power lock system is controlled by BCM.
15
15–29Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics
Power Door Lock System (Page 1 of 5)
DOOR LOCKS
LTSMW150051T
15–30Chery Automobile Co., Ltd.

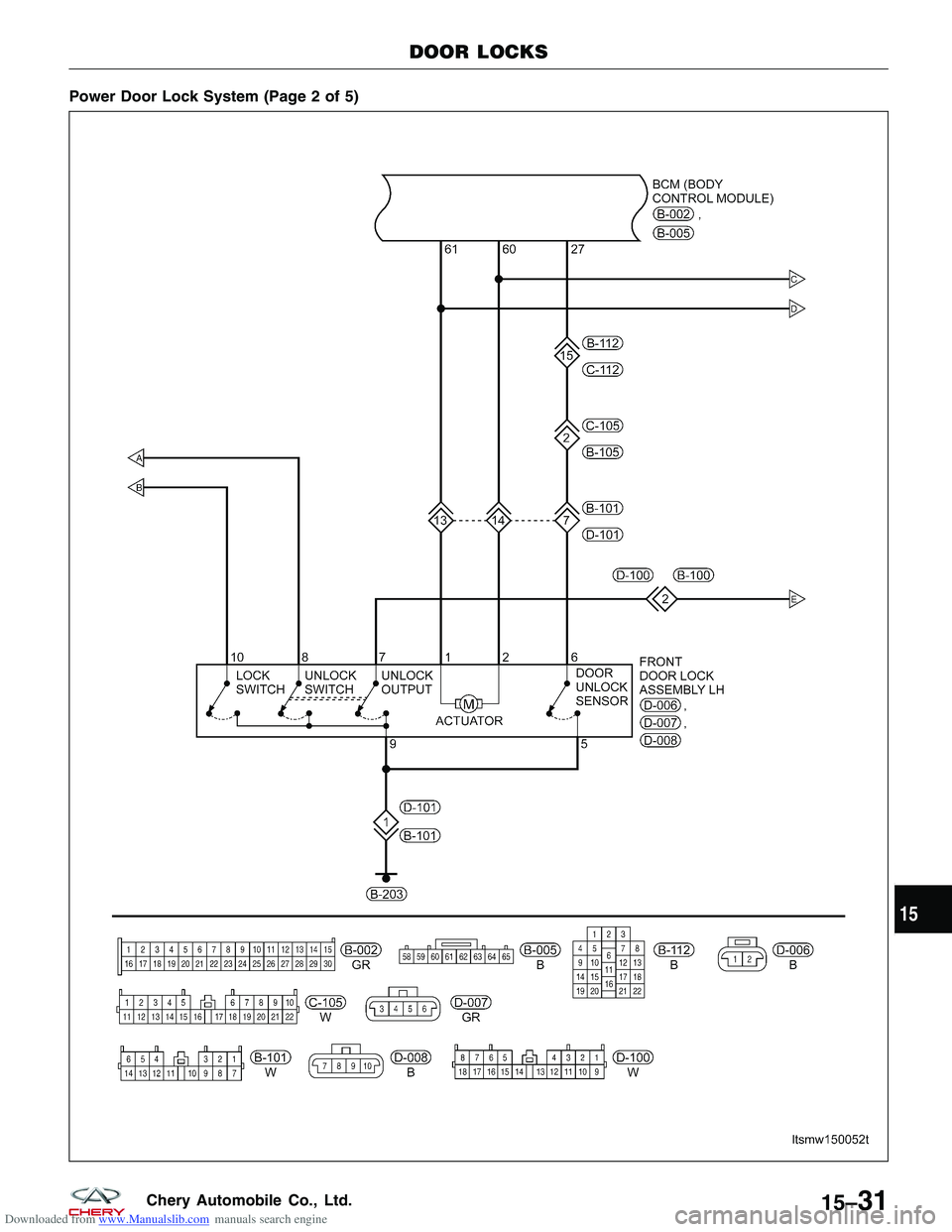

Downloaded from www.Manualslib.com manuals search engine Power Door Lock System (Page 2 of 5)
DOOR LOCKS
LTSMW150052T
15
15–31Chery Automobile Co., Ltd.

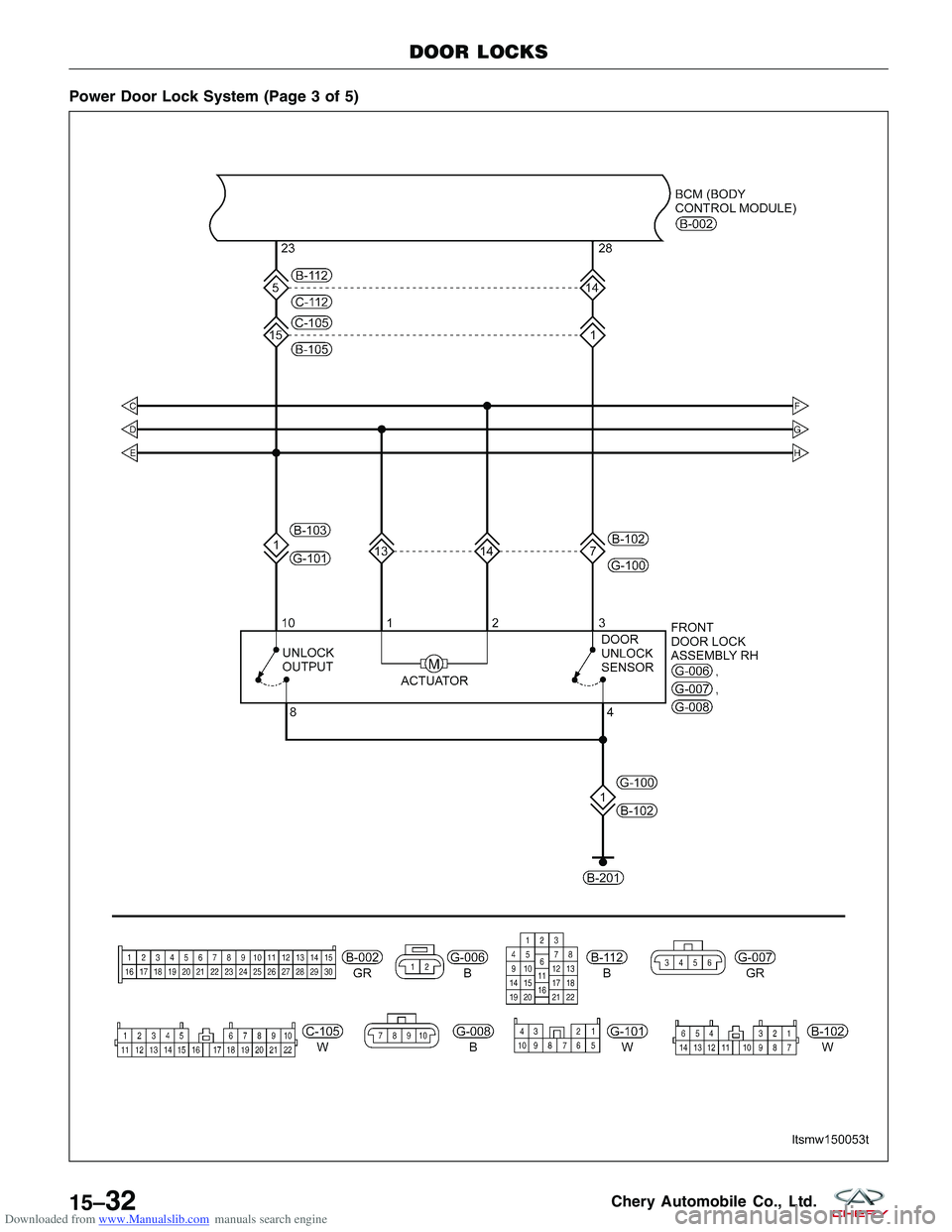

Downloaded from www.Manualslib.com manuals search engine Power Door Lock System (Page 3 of 5)
DOOR LOCKS
LTSMW150053T
15–32Chery Automobile Co., Ltd.
