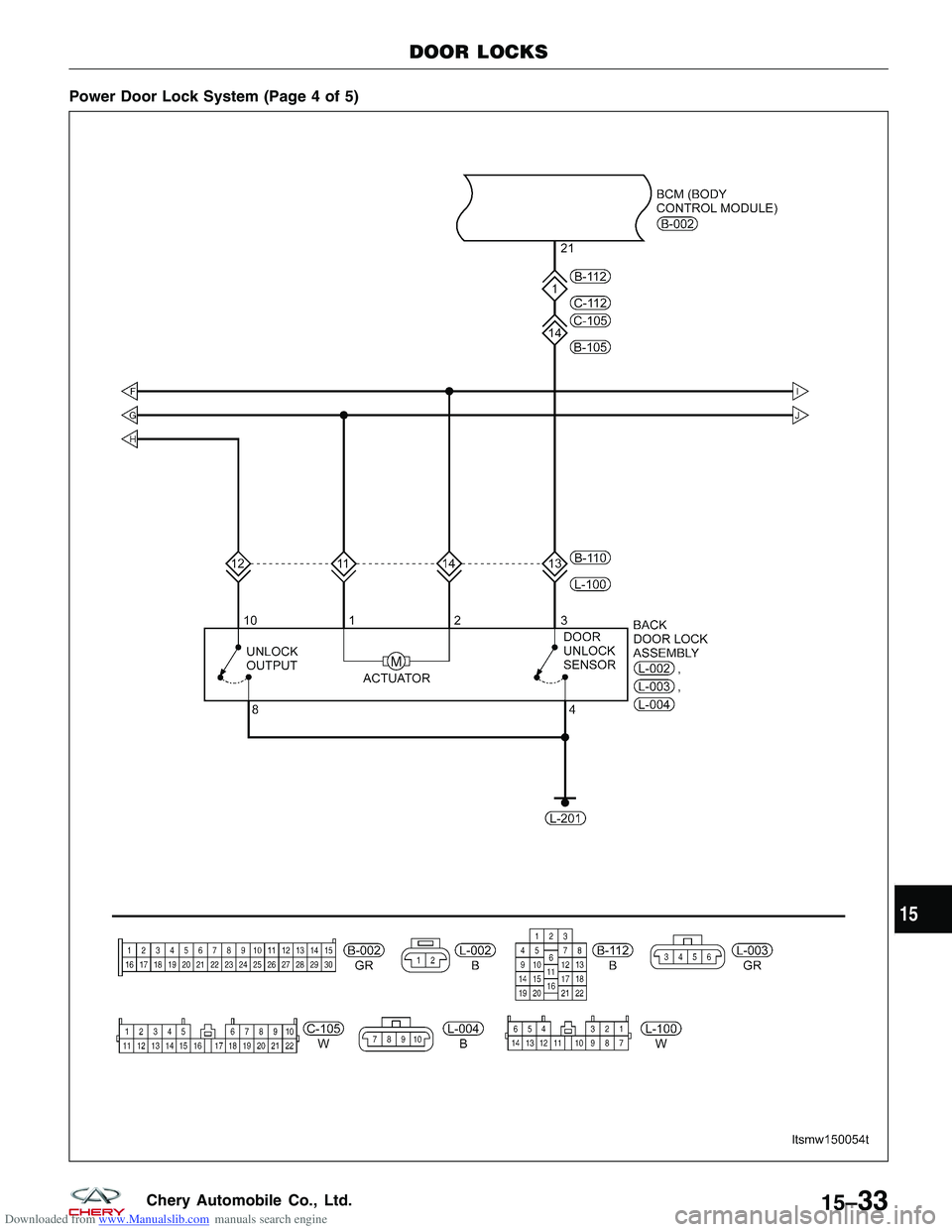

Downloaded from www.Manualslib.com manuals search engine Power Door Lock System (Page 4 of 5)
DOOR LOCKS
LTSMW150054T
15
15–33Chery Automobile Co., Ltd.

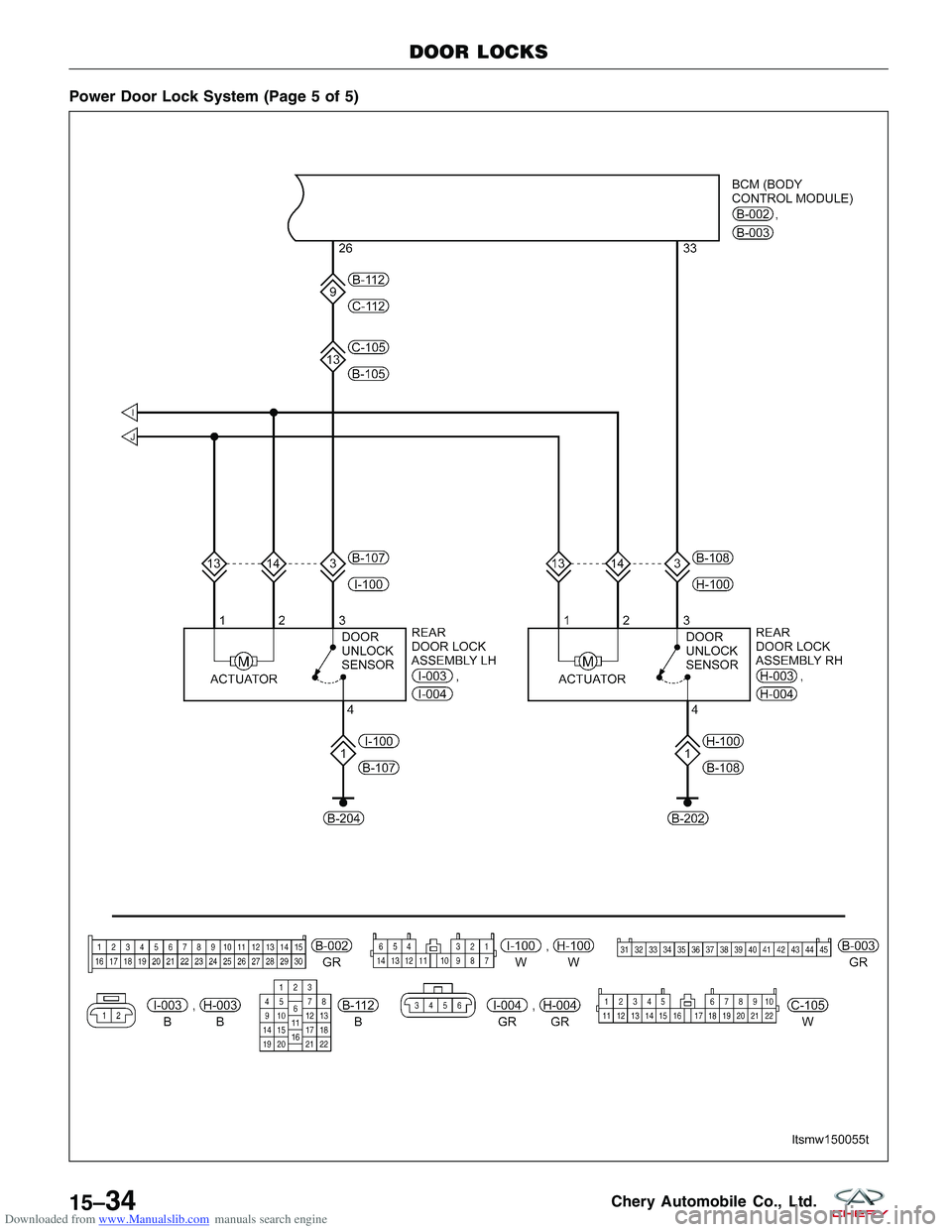

Downloaded from www.Manualslib.com manuals search engine Power Door Lock System (Page 5 of 5)
DOOR LOCKS
LTSMW150055T
15–34Chery Automobile Co., Ltd.

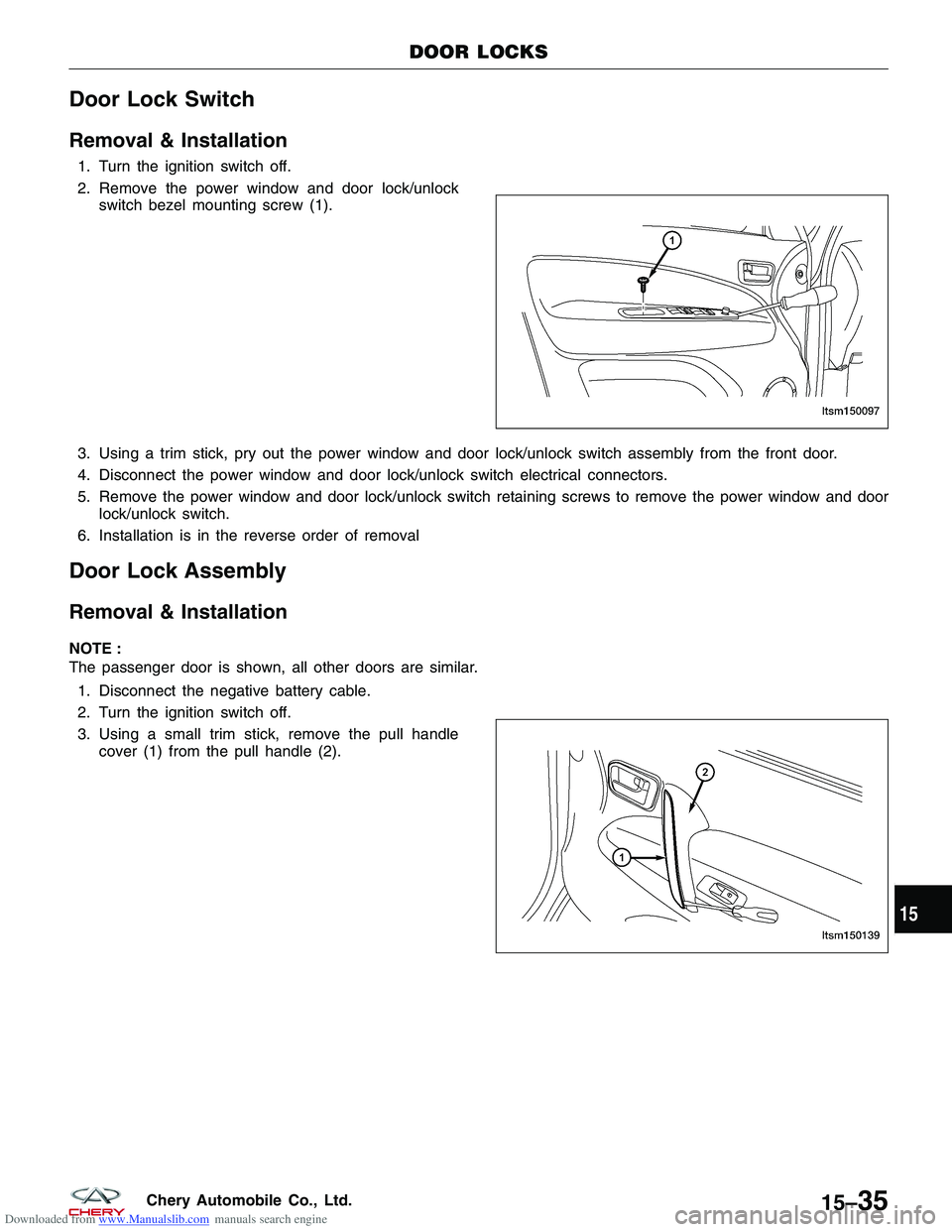

Downloaded from www.Manualslib.com manuals search engine Door Lock Switch
Removal & Installation
1. Turn the ignition switch off.
2. Remove the power window and door lock/unlockswitch bezel mounting screw (1).
3. Using a trim stick, pry out the power window and door lock/unlock switch assembly from the front door.
4. Disconnect the power window and door lock/unlock switch electrical connectors.
5. Remove the power window and door lock/unlock switch retaining screws to remove the power window and door lock/unlock switch.
6. Installation is in the reverse order of removal
Door Lock Assembly
Removal & Installation
NOTE :
The passenger door is shown, all other doors are similar.
1. Disconnect the negative battery cable.
2. Turn the ignition switch off.
3. Using a small trim stick, remove the pull handle cover (1) from the pull handle (2).
DOOR LOCKS
LTSM150097
LTSM150139
15
15–35Chery Automobile Co., Ltd.

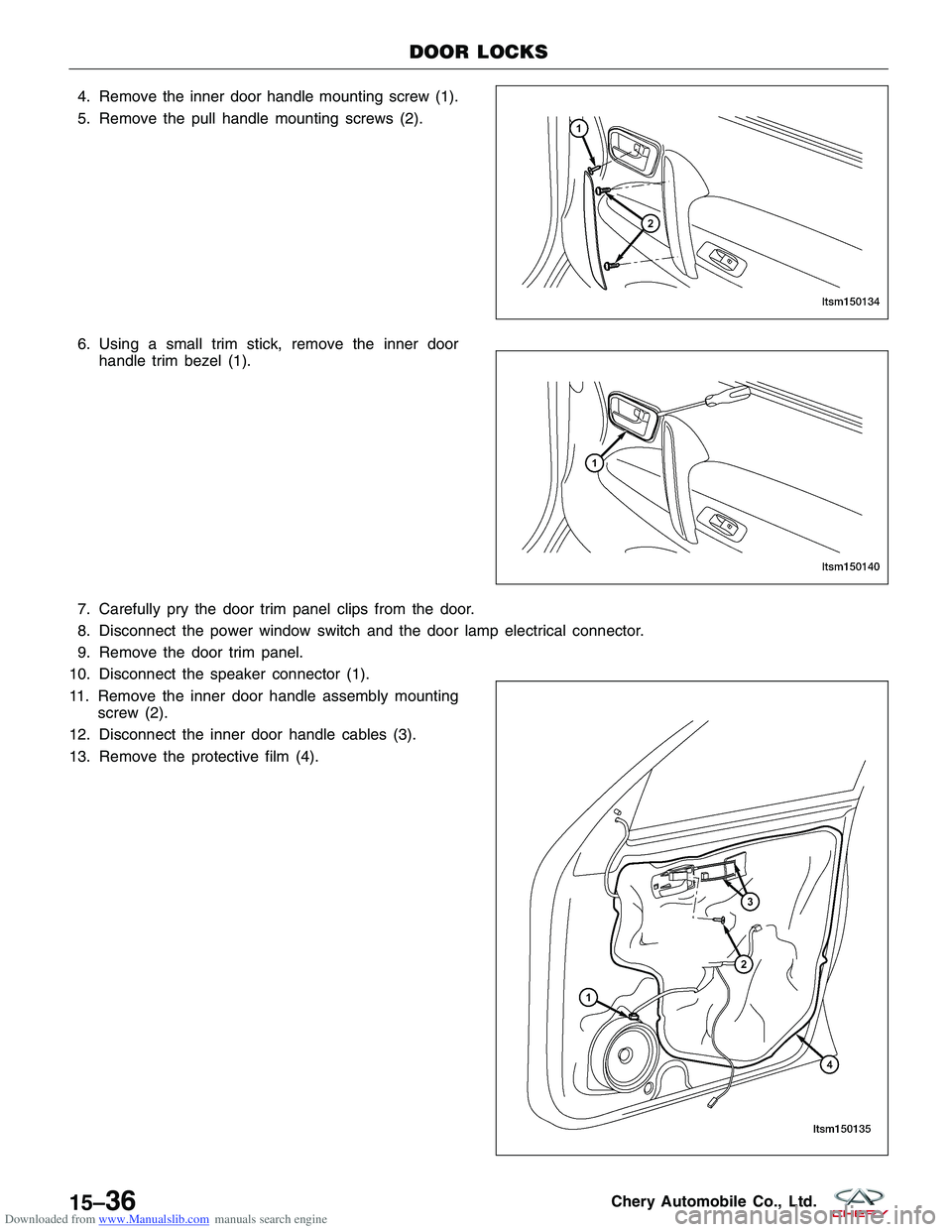

Downloaded from www.Manualslib.com manuals search engine 4. Remove the inner door handle mounting screw (1).
5. Remove the pull handle mounting screws (2).
6. Using a small trim stick, remove the inner doorhandle trim bezel (1).
7. Carefully pry the door trim panel clips from the door.
8. Disconnect the power window switch and the door lamp electrical connector.
9. Remove the door trim panel.
10. Disconnect the speaker connector (1).
11. Remove the inner door handle assembly mounting screw (2).
12. Disconnect the inner door handle cables (3).
13. Remove the protective film (4).
DOOR LOCKS
LTSM150134
LTSM150140
LTSM150135
15–36Chery Automobile Co., Ltd.

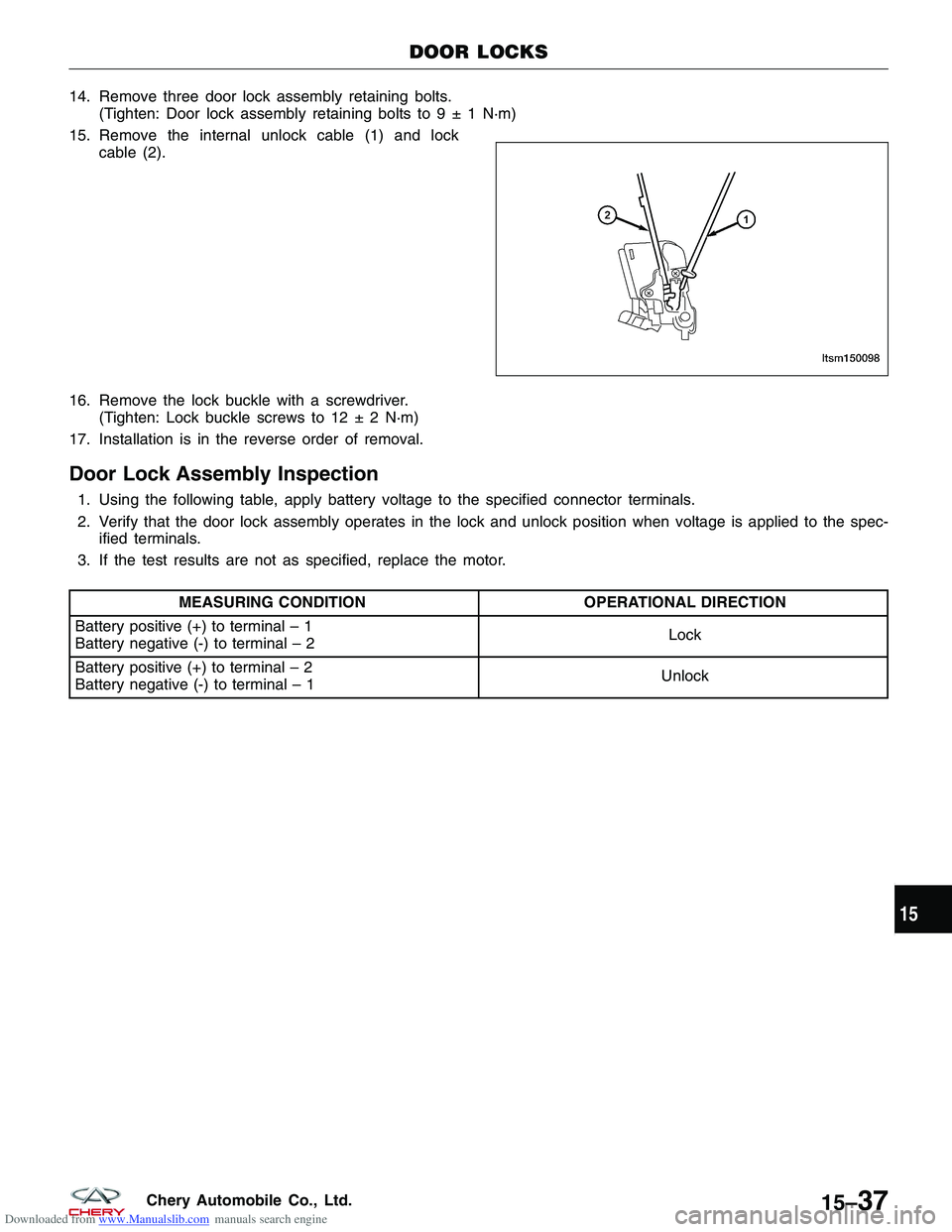

Downloaded from www.Manualslib.com manuals search engine 14. Remove three door lock assembly retaining bolts.(Tighten: Door lock assembly retaining bolts to9±1N·m)
15. Remove the internal unlock cable (1) and lock cable (2).
16. Remove the lock buckle with a screwdriver. (Tighten: Lock buckle screws to 12 ± 2 N·m)
17. Installation is in the reverse order of removal.
Door Lock Assembly Inspection
1. Using the following table, apply battery voltage to the specified connector terminals.
2. Verify that the door lock assembly operates in the lock and unlock position when voltage is applied to the spec- ified terminals.
3. If the test results are not as specified, replace the motor.
MEASURING CONDITION OPERATIONAL DIRECTION
Battery positive (+) to terminal – 1
Battery negative (-) to terminal – 2 Lock
Battery positive (+) to terminal – 2
Battery negative (-) to terminal – 1 Unlock
DOOR LOCKS
LTSM150098
15
15–37Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine BODY CONTROL MODULE - BCM
Description
The Body Control Module (BCM) is located behind the glove box. The BCM controls many electrical components and
systems for the vehicle electrical system. The BCM is the primary hub that controls functions such as internal and
external lighting, power windows and power door locks.
Operation
The Body Control Module (BCM) uses hard wired inputs from various sensors and switches. The sensors and
switches are located throughout the vehicle.
The following components are inputs to the BCM:
•Key switch
• Rear defroster switch
• Hazard lamp switch
• Power window switches
• Power door lock switches
• Seat belt switch
• Vehicle speed
• Door ajar switches
• Turn signal switch
The following components are outputs from the BCM:
• Key lamp
• Stop lamp relay
• Rear defroster grid
• Courtesy lamps
• Power window motor
• Power door lock motor
• Turn signal lamps
FUSE NO. AMPERAGE RATING FUNCTION
1 30 AFront Fog
2 20 ACNT Lock
3 30 A Spare
4 15 A Spare
5 25 A Spare
6 30 AFront WIN
LTSM150130
15–38Chery Automobile Co., Ltd.

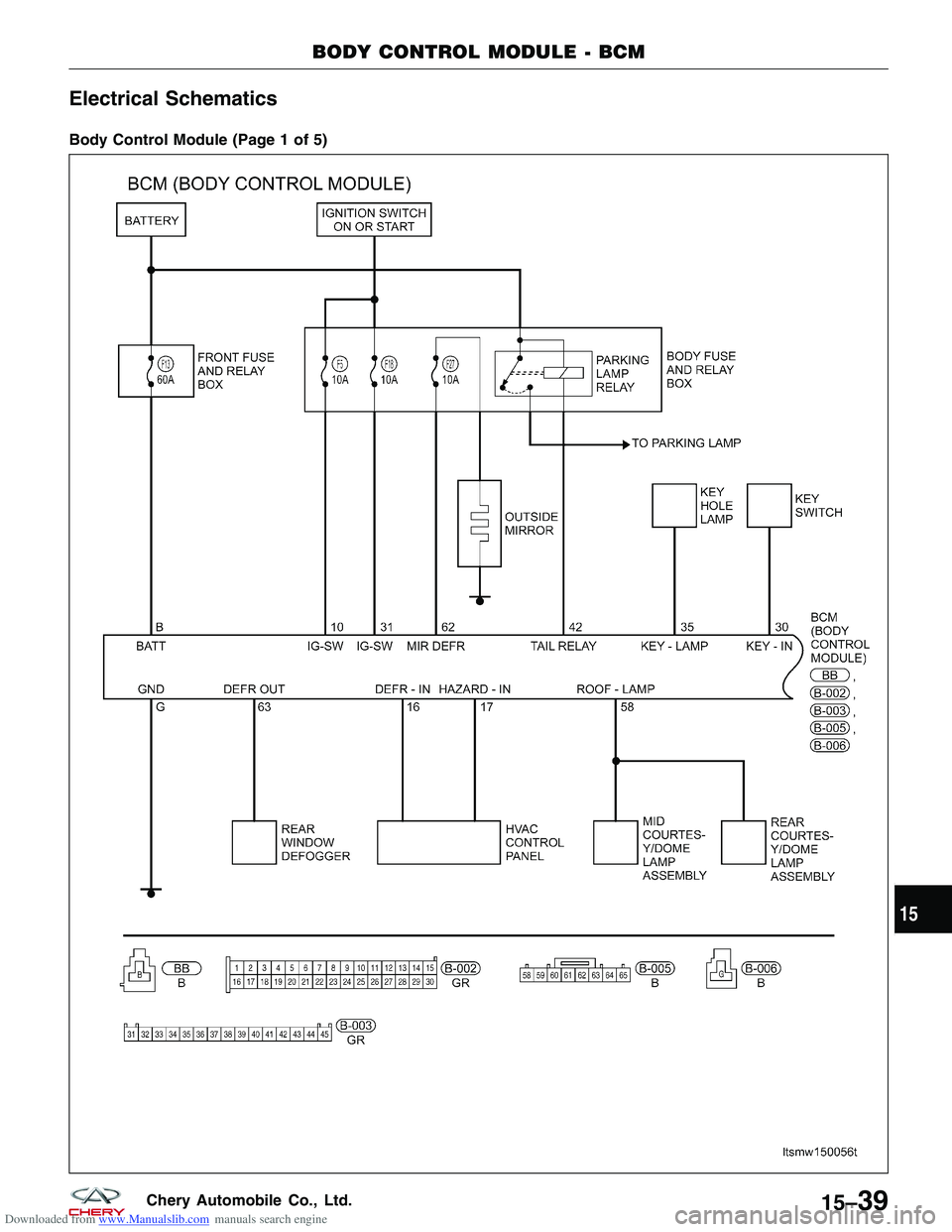

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics
Body Control Module (Page 1 of 5)
BODY CONTROL MODULE - BCM
LTSMW150056T
15
15–39Chery Automobile Co., Ltd.

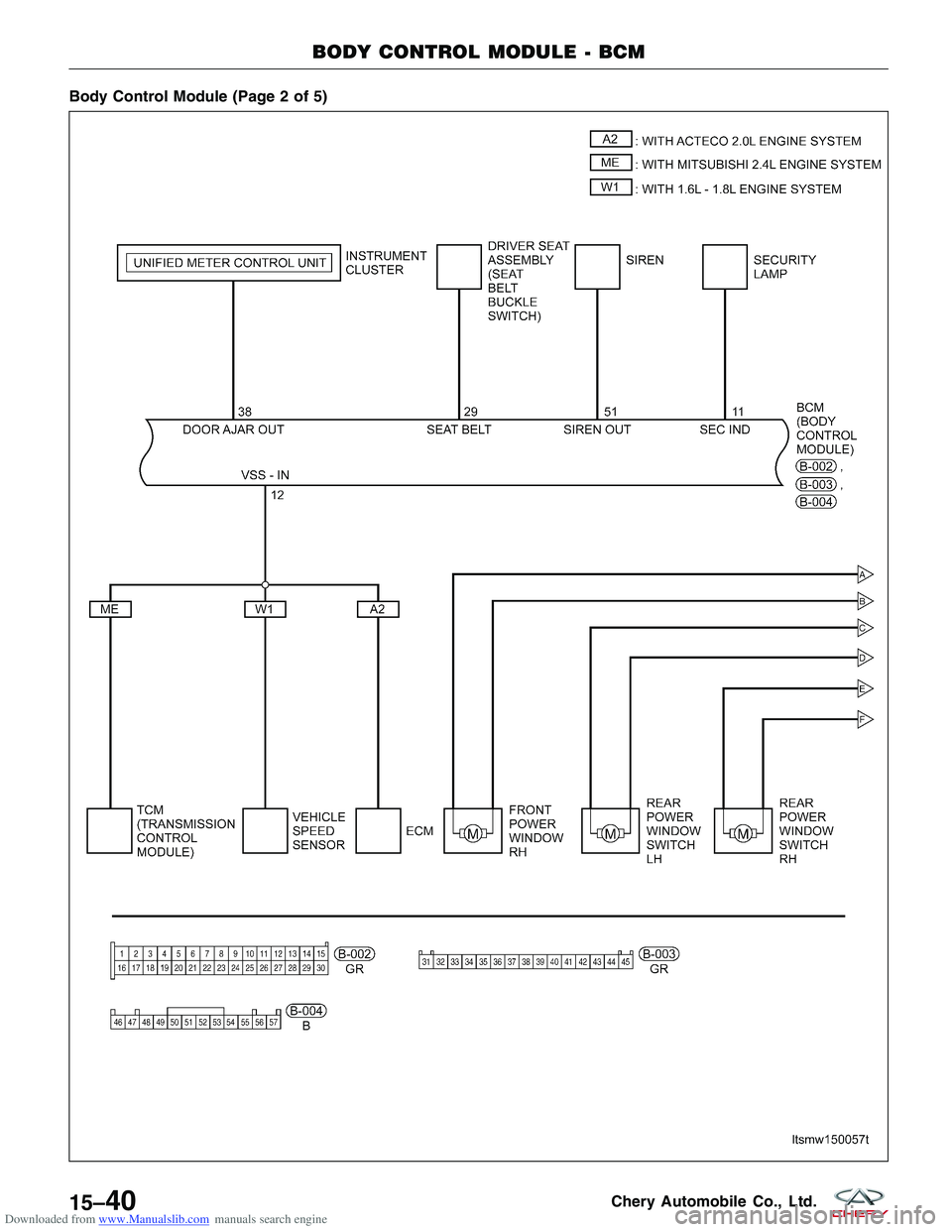

Downloaded from www.Manualslib.com manuals search engine Body Control Module (Page 2 of 5)
BODY CONTROL MODULE - BCM
LTSMW150057T
15–40Chery Automobile Co., Ltd.
