Page 1625 of 1903

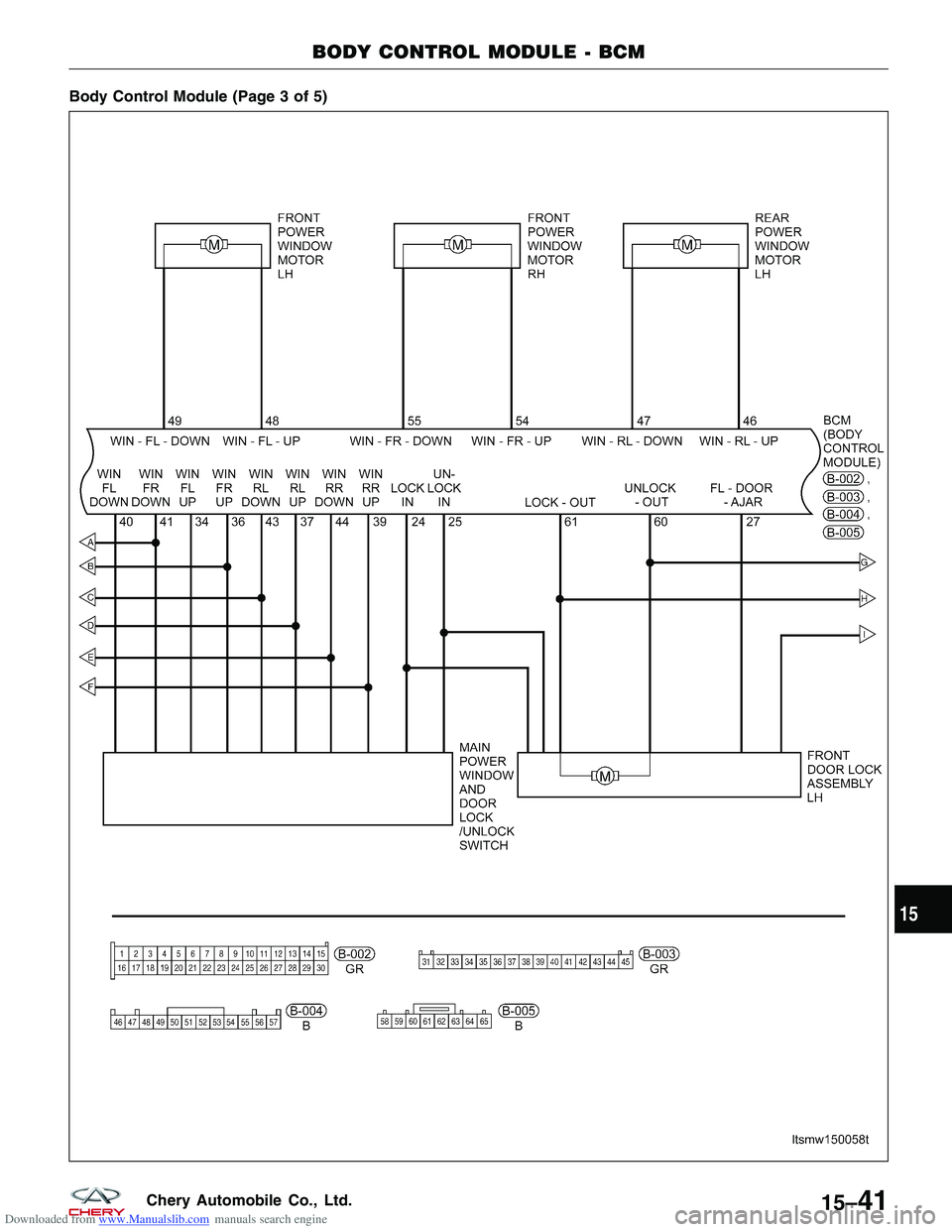

Downloaded from www.Manualslib.com manuals search engine Body Control Module (Page 3 of 5)
BODY CONTROL MODULE - BCM
LTSMW150058T
15
15–41Chery Automobile Co., Ltd.
Page 1626 of 1903

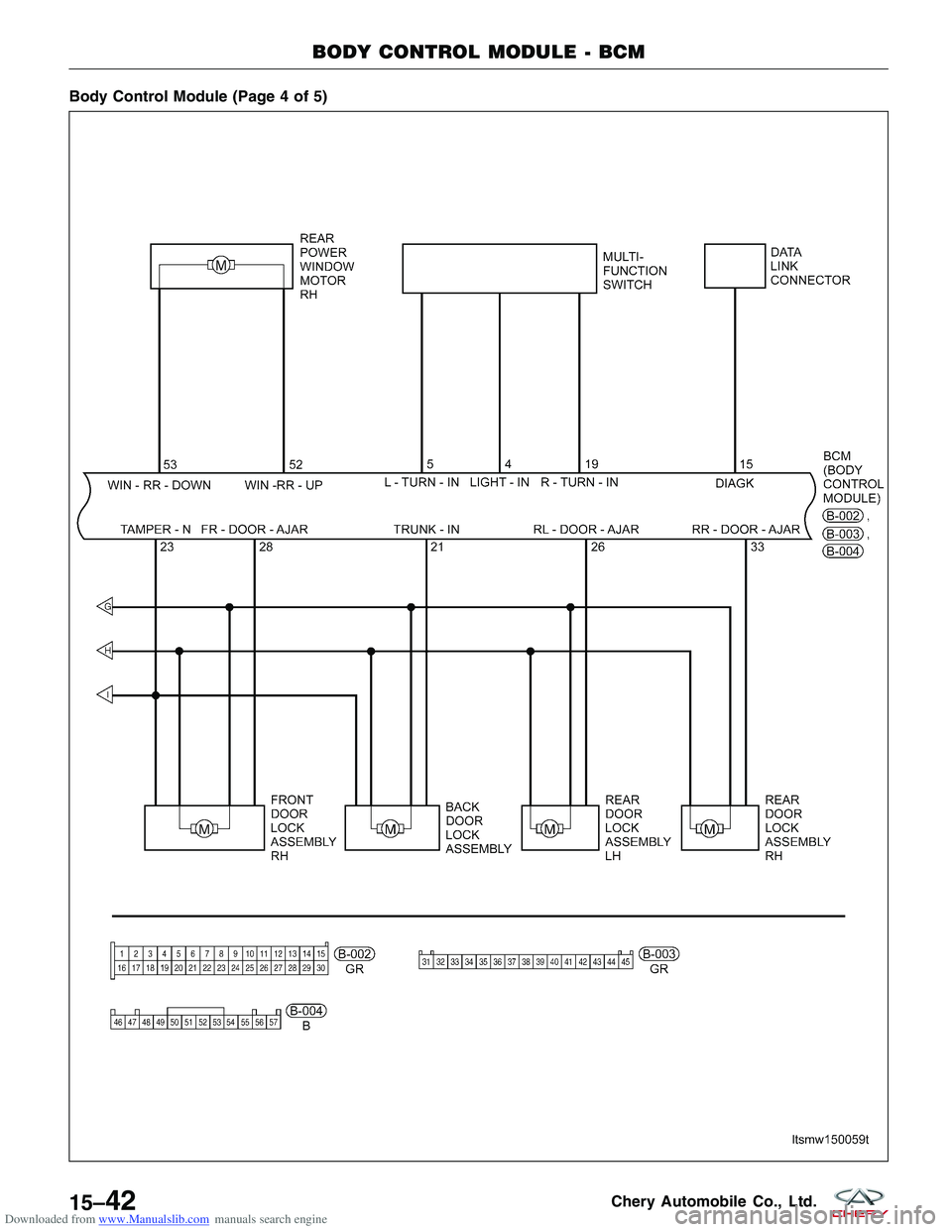

Downloaded from www.Manualslib.com manuals search engine Body Control Module (Page 4 of 5)
BODY CONTROL MODULE - BCM
LTSMW150059T
15–42Chery Automobile Co., Ltd.
Page 1627 of 1903
Downloaded from www.Manualslib.com manuals search engine Body Control Module (Page 5 of 5)
BODY CONTROL MODULE - BCM
LTSMW150060T
15
15–43Chery Automobile Co., Ltd.
Page 1628 of 1903

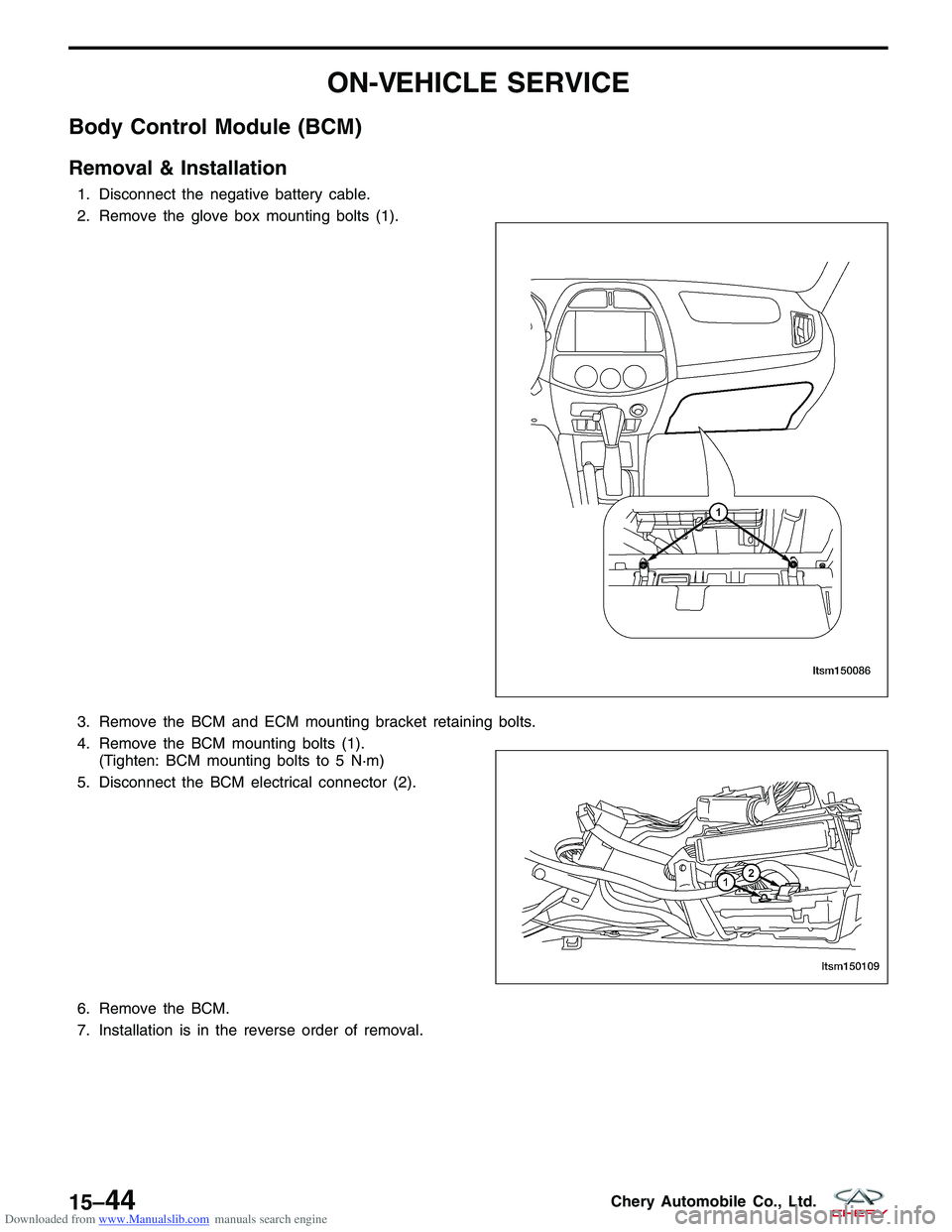

Downloaded from www.Manualslib.com manuals search engine ON-VEHICLE SERVICE
Body Control Module (BCM)
Removal & Installation
1. Disconnect the negative battery cable.
2. Remove the glove box mounting bolts (1).
3. Remove the BCM and ECM mounting bracket retaining bolts.
4. Remove the BCM mounting bolts (1).(Tighten: BCM mounting bolts to 5 N·m)
5. Disconnect the BCM electrical connector (2).
6. Remove the BCM.
7. Installation is in the reverse order of removal.
LTSM150086
LTSM150109
15–44Chery Automobile Co., Ltd.
Page 1629 of 1903

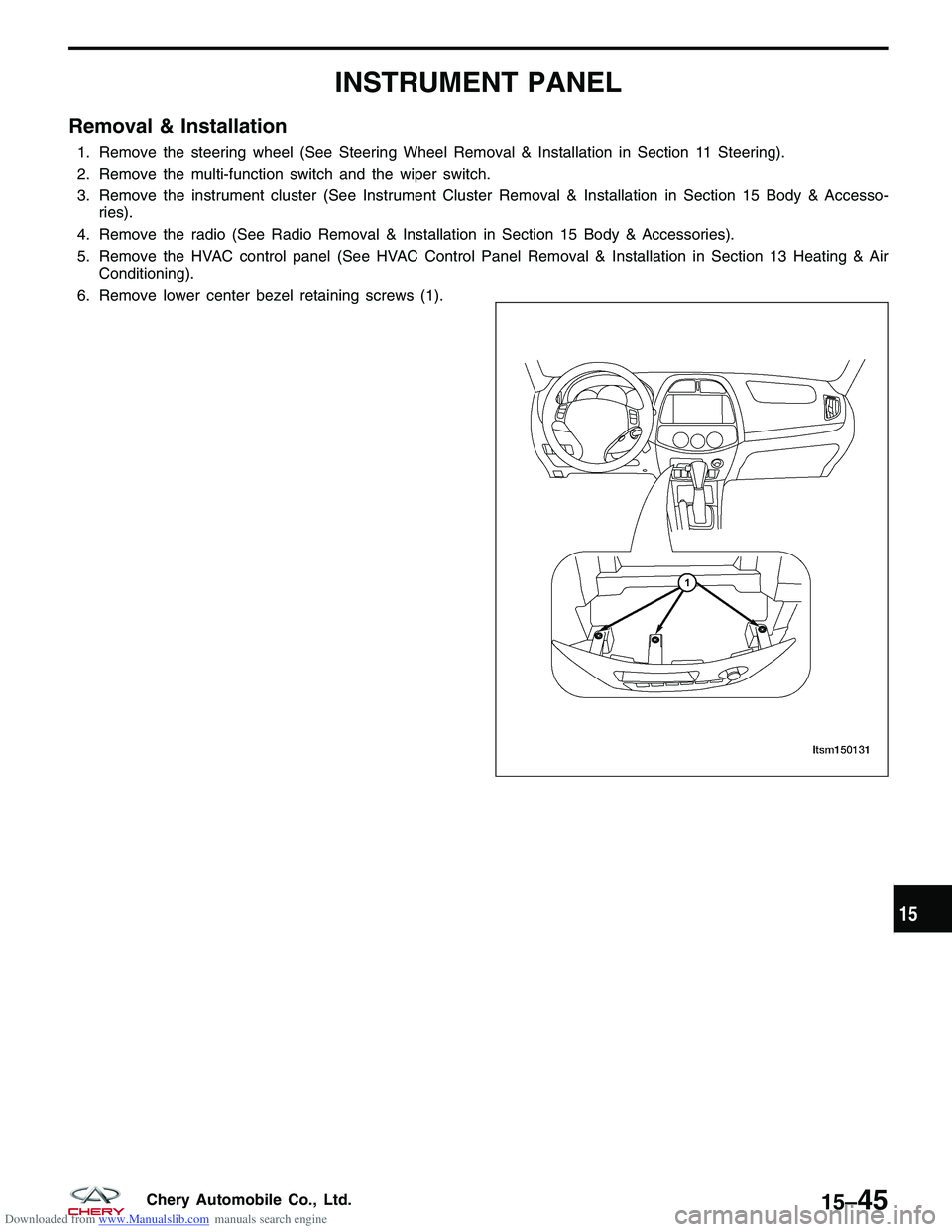

Downloaded from www.Manualslib.com manuals search engine INSTRUMENT PANEL
Removal & Installation
1. Remove the steering wheel (See Steering Wheel Removal & Installation in Section 11 Steering).
2. Remove the multi-function switch and the wiper switch.
3. Remove the instrument cluster (See Instrument Cluster Removal & Installation in Section 15 Body & Accesso-ries).
4. Remove the radio (See Radio Removal & Installation in Section 15 Body & Accessories).
5. Remove the HVAC control panel (See HVAC Control Panel Removal & Installation in Section 13 Heating & Air Conditioning).
6. Remove lower center bezel retaining screws (1).
LTSM150131
15
15–45Chery Automobile Co., Ltd.
Page 1630 of 1903

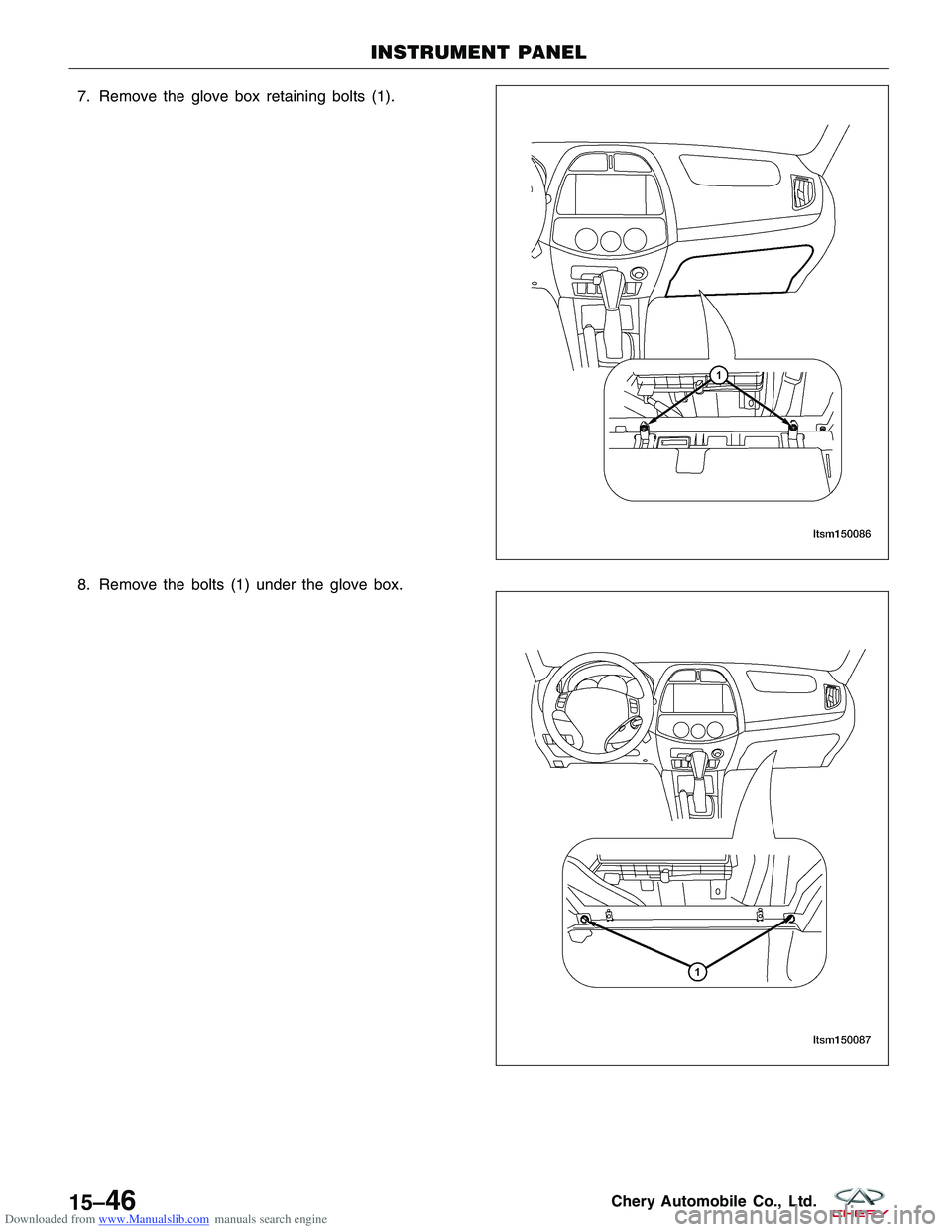

Downloaded from www.Manualslib.com manuals search engine 7. Remove the glove box retaining bolts (1).
8. Remove the bolts (1) under the glove box.
INSTRUMENT PANEL
LTSM150086
LTSM150087
15–46Chery Automobile Co., Ltd.
Page 1631 of 1903

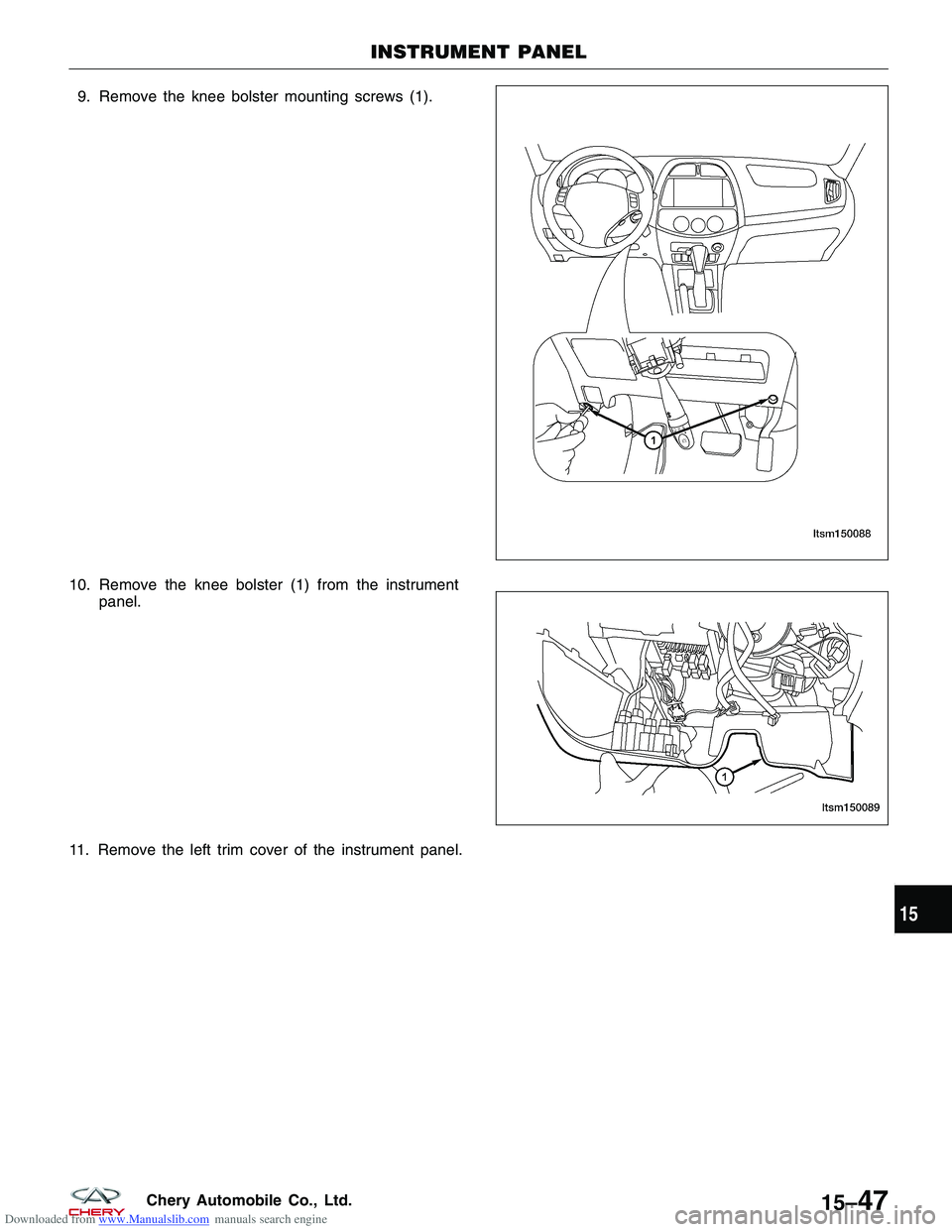

Downloaded from www.Manualslib.com manuals search engine 9. Remove the knee bolster mounting screws (1).
10. Remove the knee bolster (1) from the instrument panel.
11. Remove the left trim cover of the instrument panel.
INSTRUMENT PANEL
LTSM150088
LTSM150089
15
15–47Chery Automobile Co., Ltd.
Page 1632 of 1903

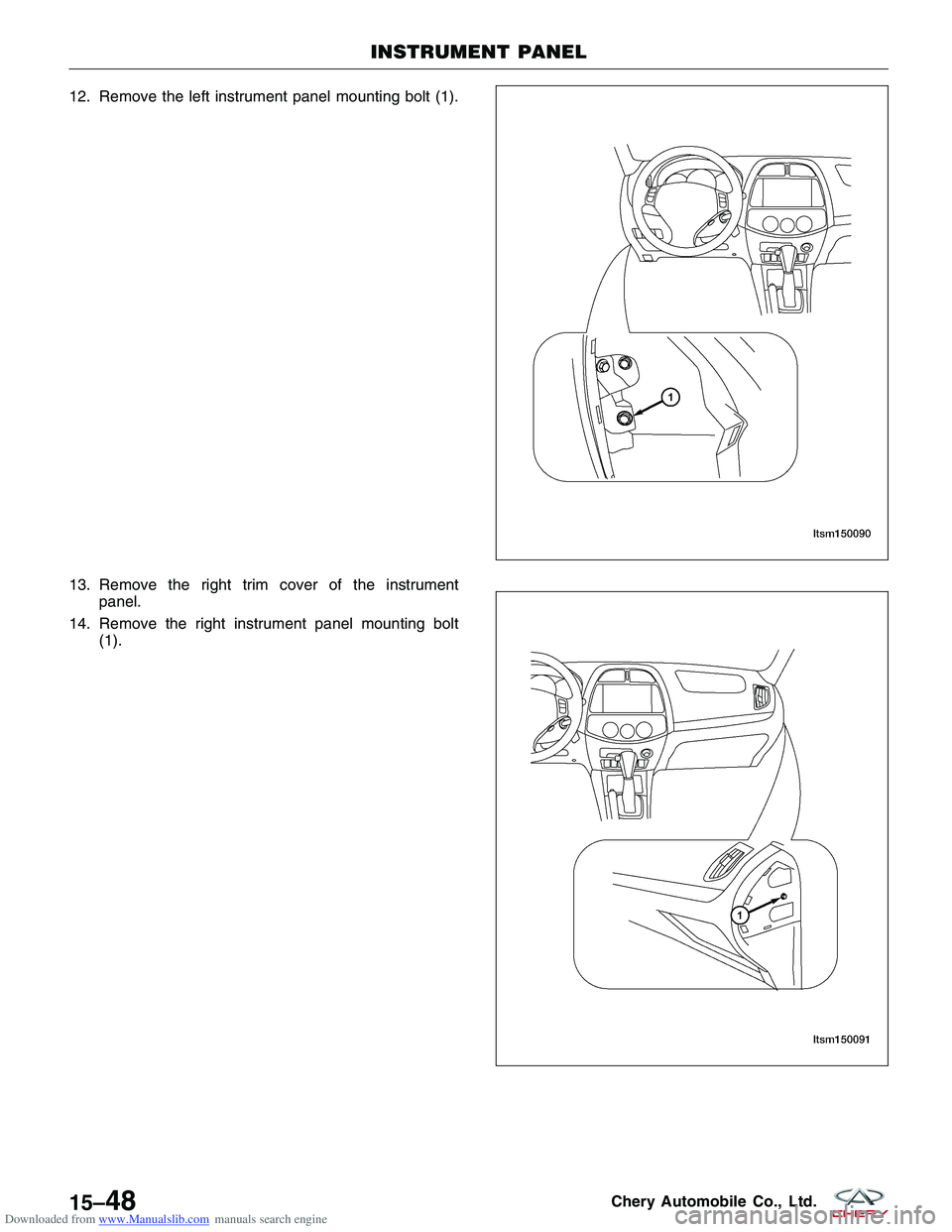

Downloaded from www.Manualslib.com manuals search engine 12. Remove the left instrument panel mounting bolt (1).
13. Remove the right trim cover of the instrumentpanel.
14. Remove the right instrument panel mounting bolt (1).
INSTRUMENT PANEL
LTSM150090
LTSM150091
15–48Chery Automobile Co., Ltd.
