192IN AN EMERGENCY
45
45
41
41
41
CONSUMERS FUSE AMPERE FIGURE
Fuse wiring
Luggage compartment power socket
Passenger compartment fan
Power socket on tunnel
Passenger/driver-side door mirror demister,
Demister on front jets, Heated windscreen relay coil
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 192

IN AN EMERGENCY193
4
RECHARGING THE BATTERY
IMPORTANT The battery recharging procedure is provided as an ex-
ample only. Contact an Alfa Romeo Authorised Services to carry
out this operation.
We recommend recharging the battery slowly for approximately
24 hours at low amperage. A prolonged recharge might damage
the battery. Charge the battery as follows:
❍disconnect the battery negative terminal;
❍connect the charger leads to the battery terminals, observing
the polarity;
❍turn on the charger;
❍when you have finished, turn the charger off before discon-
necting the battery;
❍reconnect battery negative terminal.
LIFTING THE CAR
If you need to lift the car contact an Alfa Romeo Authorised Services,
which will be equipped with a workshop lift.
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 193

194IN AN EMERGENCY
TOWING THE CAR
The tow ring provided with the car is housed in the tool box in
the luggage compartment.
ATTACHING THE TOW HOOK
Release cap A, remove tow ring B from its housing in the tool box
and tighten it fully on to the front (fig. 46) or rear (fig. 47) thread-
ed pin.
Before beginning the tow, turn the ignition key
to MAR and then to STOP, without extracting it
When the key is removed, the steering wheel lock
automatically activates. making it impossible to turn the
wheels.
fig. 46A0J0038mfig. 47A0J0039m
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 194

IN AN EMERGENCY195
4
The power brakes and the electrical power steer-
ing will not work while the car is being towed. More
effort on the brake pedal and steering wheel will
therefore be required. Do not use wires for towing. Do not
jerk. Be careful not to damage parts in contact with the
car while towing. Respect the specific rules of the Highway
Code when towing the car, specifically in relation to the
towing device and conduct on the road. Do not start the
engine while towing the car. Clean the threaded seat care-
fully before fastening the hook. Make sure that the hook
is fully fastened in the seat before towing the vehicle.The front and rear tow hooks must only be used
for emergency situations on the road. THE vehi-
cle may be towed for short distances when a ded-
icated device is used in compliance with the Highway Code
(rigid bar), in order to move the vehicle on the road in
preparation for towing by a tow truck Tow hooks MUST
NOT be used to tow vehicles off the road or where there
are obstacles and/or for towing operations using cables
or other non-rigid devices. Respecting the above condi-
tions, towing must only take place with two vehicles (one
towing, the other towed) travelling as far as possible in
alignment along the same centreline.
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 195

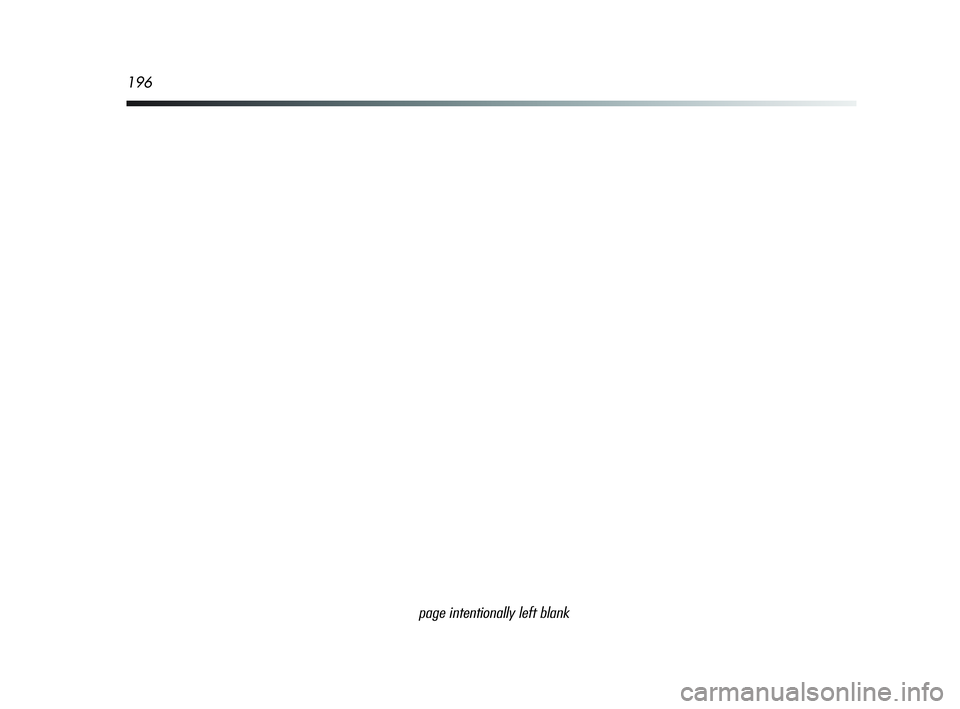

196
page intentionally left blank
159-196 Alfa MiTo GB 12-11-2008 15:46 Pagina 196

CARE AND MAINTENANCE197
5
Scheduled maintenance ...................................................................... 198
Scheduled servicing plan ..................................................................... 199
Periodic checks .................................................................................. 203
Demanding use of the car .................................................................... 203
Checking fluid levels ........................................................................... 204
Air filter/pollen filter/diesel filter.......................................................... 211
Battery.............................................................................................. 211
Wheels and tyres ............................................................................... 213
Windscreen/rearscreen wipers ............................................................. 214
Bodywork.......................................................................................... 217
Interiors............................................................................................. 219
197-220 Alfa MiTo GB 12-11-2008 15:42 Pagina 197

198CARE AND MAINTENANCE
SCHEDULED MAINTENANCE
Correct maintenance is essential for ensuring long car life under the
best conditions.
Alfa Romeo has prepared a series of checks and service opera-
tions to be carried out every 30,000 kilometres (for petrol ver-
sions) or every 35,000 kilometres (for diesel versions).
In between these services it is still necessary to adhere to the in-
structions in the Scheduled Service Plan (e.g. regularly check the
fluid levels and tyre pressure etc.).
Scheduled Service operations should be carried out at an
Alfa Romeo Authorised Service Provider according to a set time
schedule. If, during each operation, in addition to the ones pro-
grammed, the need arises for further replacements or repairs, these
may be carried out only with the explicit agreement of the Cus-
tomer.
If your car is used frequently for towing, the interval between one
service operation and the next should be reduced.IMPORTANT NOTES❍At 2000 km from the next service operation the display will
show a message.
❍Scheduled Service operations are required by the manufactur-
er. Failure to carry them out may invalidate the warranty.
❍It is advisable to inform your Alfa Romeo Authorised Service
Provider of any small faults without waiting for the next sched-
uled service.
197-220 Alfa MiTo GB 12-11-2008 15:42 Pagina 198

CARE AND MAINTENANCE199
5
SCHEDULED SERVICING PLAN
PETROL VERSIONS
Thousands of kilometres
Check tyre condition/wear and adjust pressure if required
Check lighting system operation (headlights, direction indicators, hazard lights, passenger
compartment lights, boot lights, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check the position/wear of the windscreen/rearscreen wiper blades
Check condition and wear of front disc brake pads and
brake pad wear indication
Check rear disc brake pad condition and wear
Visually inspect the condition of: bodywork, underbody
protection, pipes and hoses (exhaust - fuel - brakes),
rubber parts (gaiters, sleeves, bushes, etc.)
Check cleanliness of locks, bonnet and boot, and
cleanliness and lubrication of linkages
Check and top up, if required, fluid levels
(engine coolant, brake/hydraulic clutch fluid, windscreen washer fluid, battery fluid, etc)
Check the handbrake lever travel and adjust it, if necessary
Check timing belt condition
Visually inspect condition of auxiliary drive belt/s
Check tension and adjust auxiliary drive belt (versions with heater system)30 60 90 120 150 180
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●
●●
●●
