24GETTING TO KNOW YOUR CAR
Display of selected driving mode
(“Alfa dna” system) (where provided)
On versions equipped with a “Reconfigurable multifunctional Dis-
play” a message + symbol associated with the selected driving
mode - “DYNAMIC”, “NORMAL” or “ALL WEATHER” - is shown.
A warning message is shown on the display if one of these dri-
ving modes is not available.
On versions equipped with a “Multifunctional display” a letter (d
or a) associated with the selected driving mode is shown togeth-
er with a dedicated message.
Rear fog lights (amber)
This warning light comes on when the rear fog lights
are turned on.4
Front fog lights (green)
This warning light comes on when the front fog lights
are turned on.5
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 24

GETTING TO KNOW YOUR CAR25
1
Dipped beam headlights (green)
This warning light comes on when the dipped beam
headlights are turned on.
Side lights (green)
This warning light comes on when the side lights are
turned on.
Follow me home (green)
This warning light comes on (together with a message in the dis-
play), when this device is used.
3
2
Main beam headlights (blue)
This warning light comes on when the main beam head-
lights are turned on.1
Left direction indicator (green)
This warning light comes on when the direction indi-
cator control lever is moved downwards and when the
hazard warning light button is pressed.
Right direction indicator (green)
This warning light comes on when the direction indi-
cator control lever is moved upwards and when the haz-
ard warning light button is pressed.
R
E
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 25

26GETTING TO KNOW YOUR CAR
DISPLAY
The car may be equipped with the multifunctional display/multi-
functional reconfigurable display which, in accordance with the set-
tings made, can display useful information when driving.
MULTIFUNCTIONAL DISPLAY “STANDARD”
SCREEN fig. 6
The following information is shown on the display:
A. Date
B. Odometer (covered km or miles).
C. Driving mode selected via “ALFA dna” (dynamic vehicle con-
trol system) (where provided)
– d = Dynamic
– n = Normal
– a = All Weather
D. Clock (always displayed, even with ignition key removed and
the doors closed)
E. Outdoor temperature
F. Headlight alignment position (with dipped beam headlights on
only).
G. Scheduled servicing deadline
With the ignition key removed, when a door is opened/closed, the
display is activated and shows the time and total mileage (in km
or miles) for a few seconds.
fig. 6A0J1222g
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 26

GETTING TO KNOW YOUR CAR27
1
RECONFIGURABLE MULTIFUNCTIONAL DISPLAY
“STANDARD” SCREEN fig. 7
The following information is shown on the display:
A. Time
B. Partial mileage (in Km or miles)
C. Odometer (distance travelled in kilometres/miles)
D. Car conditions (e.g. doors open, ice on road, etc.)
E. Headlight alignment position (with dipped beam headlights on
only).
F. Outdoor temperatureOn some versions when the “DYNAMIC” driving mode is select-
ed, the display shows the turbine pressure fig. 8.
fig. 7A0J1223gfig. 8A0J0195m
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 27

28GETTING TO KNOW YOUR CAR

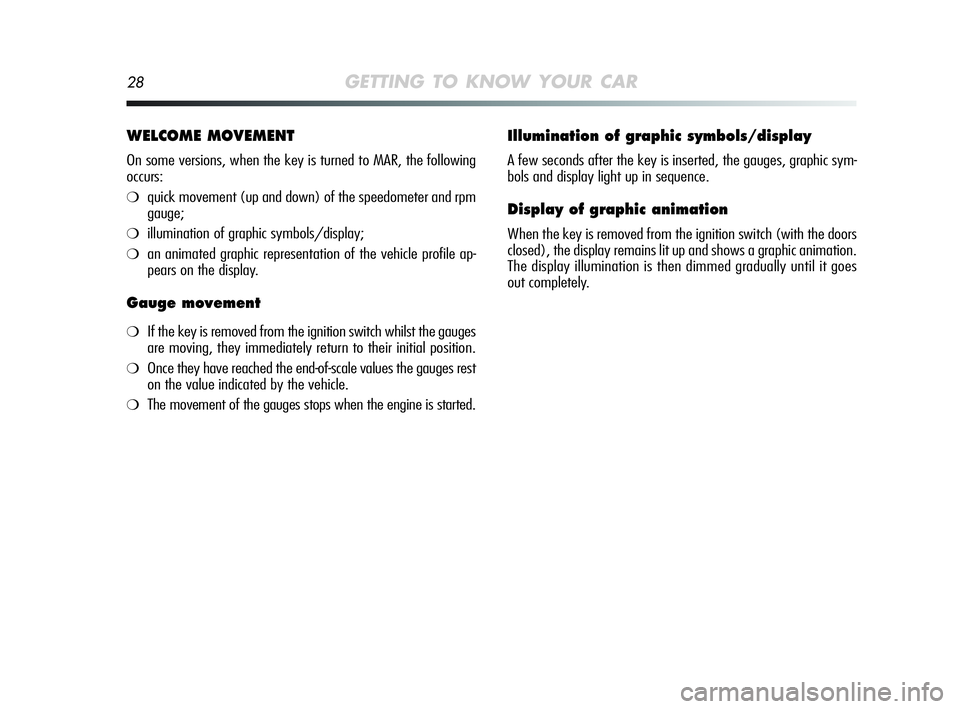

WELCOME MOVEMENT
On some versions, when the key is turned to MAR, the following
occurs:
❍quick movement (up and down) of the speedometer and rpm
gauge;
❍illumination of graphic symbols/display;
❍an animated graphic representation of the vehicle profile ap-
pears on the display.
Gauge movement
❍If the key is removed from the ignition switch whilst the gauges
are moving, they immediately return to their initial position.
❍Once they have reached the end-of-scale values the gauges rest
on the value indicated by the vehicle.
❍The movement of the gauges stops when the engine is started.
Illumination of graphic symbols/display
A few seconds after the key is inserted, the gauges, graphic sym-
bols and display light up in sequence.
Display of graphic animation
When the key is removed from the ignition switch (with the doors
closed), the display remains lit up and shows a graphic animation.
The display illumination is then dimmed gradually until it goes
out completely.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 28

GETTING TO KNOW YOUR CAR29
1

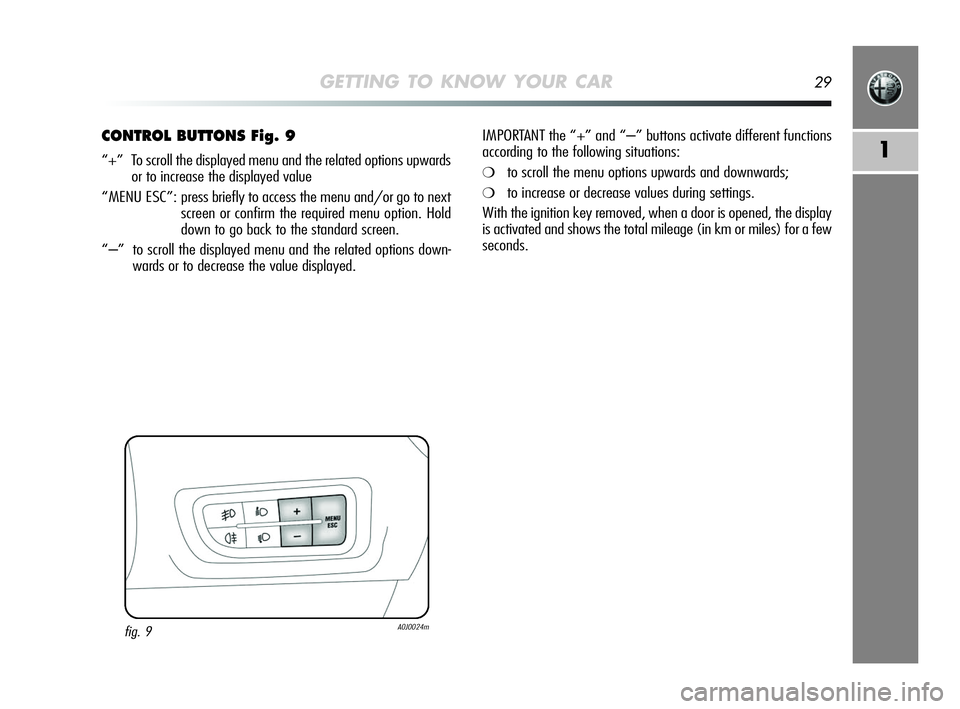

CONTROL BUTTONS Fig. 9
“+” To scroll the displayed menu and the related options upwards
or to increase the displayed value
“MENU ESC”: press briefly to access the menu and/or go to next
screen or confirm the required menu option. Hold
down to go back to the standard screen.
“–” to scroll the displayed menu and the related options down-
wards or to decrease the value displayed.IMPORTANT the “+” and “–” buttons activate different functions
according to the following situations:❍to scroll the menu options upwards and downwards;
❍to increase or decrease values during settings.
With the ignition key removed, when a door is opened, the display
is activated and shows the total mileage (in km or miles) for a few
seconds.
fig. 9A0J0024m
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 29

30GETTING TO KNOW YOUR CAR
SETUP MENU
The menu comprises a series of items which can be selected us-
ing the + and – buttons to access the different selection and set-
ting operations (setup) given in the following paragraphs. Some
items also have a sub-menu. The setup menu can be activated by
briefly pressing the MENU ESC button.The menu includes the following items:
– MENU
– SPEED BEEP
– HEADL. SENSOR (where provided)
– RAIN SENSOR (where provided)
– TRIP B DATA
– SET TIME
– SET DATE
– FIRST PAGE (where provided)
– SEE RADIO
– AUTOCLOSE
– UNITS
– LANGUAGE
– BUZZER VOLUME
– BUTTON VOL.
– BELT BUZZER
– SERVICE
– PASSENGER BAG
– DAY LIGHTS
– COURTESY LIGHTS
– EXIT MENU
NOTE On vehicles equipped with radio-navigation systems (where
provided), some menu items are shown on the navigator display.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 30

GETTING TO KNOW YOUR CAR31
1

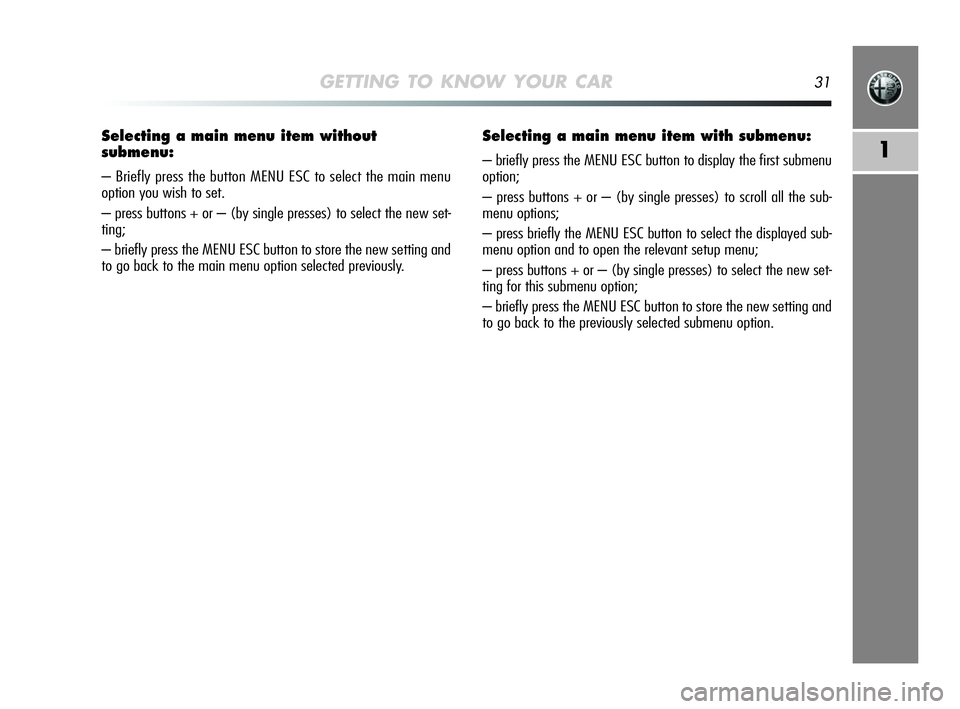

Selecting a main menu item without
submenu:
– Briefly press the button MENU ESC to select the main menu
option you wish to set.
– press buttons + or – (by single presses) to select the new set-
ting;
– briefly press the MENU ESC button to store the new setting and
to go back to the main menu option selected previously.
Selecting a main menu item with submenu:
– briefly press the MENU ESC button to display the first submenu
option;
– press buttons + or – (by single presses) to scroll all the sub-
menu options;
– press briefly the MENU ESC button to select the displayed sub-
menu option and to open the relevant setup menu;
– press buttons + or – (by single presses) to select the new set-
ting for this submenu option;
– briefly press the MENU ESC button to store the new setting and
to go back to the previously selected submenu option.
