2009 Alfa Romeo MiTo technical specifications

TECHNICAL DATA227
6
FUEL SYSTEM
TRANSMISSION
Modifications or repairs to the fuel feed system that are not carried out properly or do not take the system’s tech-
nical specifications into account can cause malfunctions leading to the risk of fire.
1.4 Petrol 1.4 Turbo Petrol 1.6 JTDM- 1.6 JTDM
Fuel systemElectronically-controlled
Multipoint phased
sequential electronic injection
with turbo and intercoolerMultijet “Common Rail” direct
electronic injection with turbo
and intercoolerPhased sequential electronic
Multipoint injection
with detonation control
Five forward gears plus reverse with synchronisers
for forward gears
Self-adjusting with pedal without idle stroke
FrontSix forward gears plus reverse with synchronisers
for forward gears
Self-adjusting with pedal without idle stroke
Front
1.4 Turbo Petrol 120HP 1.4 Petrol - 1.4 Turbo Petrol 155HP
1.3 JTDM- 1.6 JTDM
Gearbox
Clutch
Drive
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 227

TECHNICAL DATA229
6
WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass tyres. All ap-
proved tyres are listed in the Log Book.
IMPORTANT In the event of discrepancies between the information
provided in this Owner’s handbook and the Log book, consider
the specifications shown in the log book only.
Respect the prescribed size to ensure safety of the car when mov-
ing. Fit tyres of the same make and type on all wheels.
IMPORTANT Do not use inner tubes with Tubeless tyres.
SMALL SPARE WHEEL
Pressed steel rim Tubeless tyre.
READING TYRE MARKINGS fig. 4
Example: 195/55 R 16 91 V
195 = Nominal width (S, distance in mm between sidewalls).
55 = Height/width ratio (H/S) in percentage.
R = Radial tyre.
16 = Rim diameter in inches (Ø).
91 = Load rating (capacity).
V = Maximum speed rating.
fig. 4A0J0139m
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 229

Synthetic-based oil, grade SAE 5W-40 ACEA C3.
FIAT 9.55535-S2 Classification
Synthetic-based oil, grade SAE 5W-30
FIAT 9.55535-S1 Classification
TECHNICAL DATA237
6
For diesel engines, in emergency cases where genuine products are not available, lubricants with min. performance
ACEA C2; are acceptable. If this is the case, the best engine performance is not guaranteed. We recommend replacing the lubricant as soon as possi-
ble at an Alfa Romeo Authorised Service Provider.
The use of products with characteristics that are not up to ACEA C3 and ACEA C2 standard could cause engine damage not covered by the warranty.
SELENIA StAR P.E.
Contractual Technical
Reference N
°F603.C07
SELENIA WR P.E.
Contractual Technical
Reference N
°F510.D07
According to
Scheduled
Servicing Plan
According to
Scheduled
Servicing Plan
FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND SPECIFICATIONS
Use Fluid qualitative specifications Fluids and lubricants Interval
and lubricants for correct original replacement
vehicle operation
Lubricants
for petrol
engines
Lubricants for
diesel engines
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 237

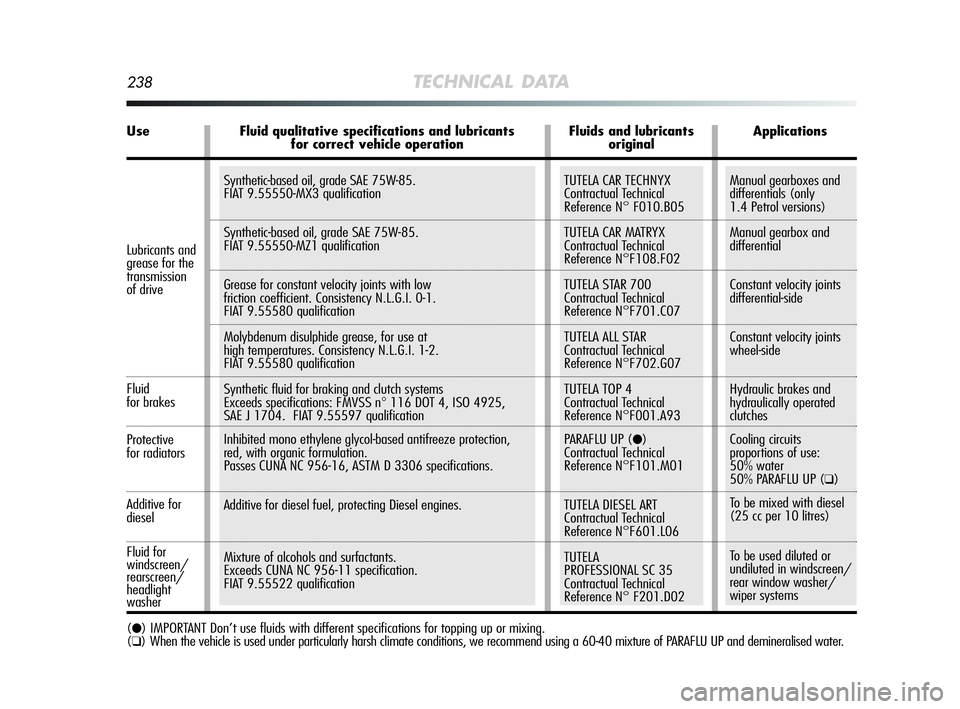

Synthetic-based oil, grade SAE 75W-85.
FIAT 9.55550-MX3 qualification
Synthetic-based oil, grade SAE 75W-85.
FIAT 9.55550-MZ1 qualification
Grease for constant velocity joints with low
friction coefficient. Consistency N.L.G.I. 0-1.
FIAT 9.55580 qualification
Molybdenum disulphide grease, for use at
high temperatures. Consistency N.L.G.I. 1-2.
FIAT 9.55580 qualification
Synthetic fluid for braking and clutch systems
Exceeds specifications: FMVSS n
°116 DOT 4, ISO 4925,
SAE J 1704. FIAT 9.55597 qualification
Inhibited mono ethylene glycol-based antifreeze protection,
red, with organic formulation.
Passes CUNA NC 956-16, ASTM D 3306 specifications.
Additive for diesel fuel, protecting Diesel engines.
Mixture of alcohols and surfactants.
Exceeds CUNA NC 956-11 specification.
FIAT 9.55522 qualification
Manual gearboxes and
differentials (only
1.4 Petrol versions)
Manual gearbox and
differential
Constant velocity joints
differential-side
Constant velocity joints
wheel-side
Hydraulic brakes and
hydraulically operated
clutches
Cooling circuits
proportions of use:
50% water
50% PARAFLU UP (
❑)
To be mixed with diesel
(25 cc per 10 litres)
To be used diluted or
undiluted in windscreen/
rear window washer/
wiper systems
238TECHNICAL DATA
Fluid
for brakes
Protective
for radiators
Additive for
diesel
TUTELA CAR TECHNYX
Contractual Technical
Reference N° F010.B05
TUTELA CAR MATRYX
Contractual Technical
Reference N°F108.F02
TUTELA STAR 700
Contractual Technical
Reference N°F701.C07
TUTELA ALL STAR
Contractual Technical
Reference N°F702.G07
TUTELA TOP 4
Contractual Technical
Reference N°F001.A93
PARAFLU UP (
●)
Contractual Technical
Reference N°F101.M01
TUTELA DIESEL ART
Contractual Technical
Reference N°F601.L06
TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference N° F201.D02 Fluid for
windscreen/
rearscreen/
headlight
washer Lubricants and
grease for the
transmission
of drive Use Fluid qualitative specifications and lubricants Fluids and lubricants Applications
for correct vehicle operation original
(●) IMPORTANT Don’t use fluids with different specifications for topping up or mixing.
(❑) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLU UP and demineralised water.
221-240 Alfa MiTo GB 12-11-2008 15:43 Pagina 238

242INDEX
Headlights.................................... 105
Heating/climate control system ....... 64
Hill Holder system .......................... 108
Identification data ......................... 222
In an emergency ............................ 159
Installing a navigation system (wiring) 116
Instrument panel and instruments .....8-244
Interior equipment .......................... 89
Interiors (cleaning) ......................... 219
Isofix (standard seat)...................... 141
Jacking the car.............................. 193
Keys ........................................... 47
Knowing your car............................ 5
Load limiters ................................ 131
Main beam headlights
– activation ................................ 77
– bulb replacement ...................... 176
Menu ........................................... 32
Menu options ................................ 32
MSR (system) ............................... 110
Number plate lights
– bulb replacement ...................... 179
Oddment compartment .................. 89
Oil engine ..................................... 209
Paint .......................................... 217
Parking........................................ 152
Performance ................................. 234
Power windows ............................. 96
Pretensioners................................ 130
Protecting the environment .............. 126
Puddle lights
– bulb replacement ...................... 183
Radio transmitters and cellular phones .. 117
Radio wiring system ....................... 115
Rear fog lights
– activation ................................ 87
– bulb replacement ...................... 179
Rear screen wiper
– activation ................................ 79
– brushes ................................... 213
– sprays..................................... 213
Rear view mirrors ........................... 61
Reversing light
– bulb replacement ...................... 179
Roof rack/ski rack ......................... 104
S.B.R. system............................... 129
Safe lock (device)........................... 51
Safety.......................................... 127
Seat belts ..................................... 128
Seats ........................................... 56
Sensors
– automatic headlights ................. 76
– rain ........................................ 80
– parking ................................... 117
Service Plan .................................. 199
– regular checks .......................... 203
Setting off and driving ....................149
Sidebags...................................... 145
Sidelights/daytime lights
– activation ................................ 76
– bulb replacement .................176-178
Snow chains ................................. 158
Starting the engine ....................150-160
Start-up device .............................. 55
Steering....................................... 228
Steering lock ................................. 56
Steering wheel (adjustment) ........... 60Storing the car ............................... 158
Sun visors ..................................... 91
Supplementary heater..................... 75
Suspension................................... 228
Symbols....................................... 46
T.P.M.S. (system) ......................... 120
Technical data ............................... 221
Third brake light ............................. 179
Top speeds .................................... 234
Towing the car ............................... 194
Towing trailers ............................... 156
TPMS system ................................ 120
Transmission ................................. 227
Trip Computer ................................ 42
Tyre marking ................................. 229
– inflation pressures .................... 232
Tyres
– standard ................................. 231
– snow tyres .............................. 157
– correct reading of ...................... 229
VDC (system) .............................. 108
Warning lights on panel ................ 12
Weights ........................................ 235
Wheel replacement ........................ 161
Wheel rims
– correct reading ......................... 230
Wheels
– bulb replacement ...................... 161
– technical specifications .............. 229
Wheels and tyres ........................... 213
Window cleaning............................ 79
Windows (cleaning) ....................... 218
Windscreen wiper
– activation ................................ 79
– brushes ................................... 214
241-248 Alfa MiTo GB 12-11-2008 15:44 Pagina 242
