2009 Alfa Romeo MiTo Owner handbook (in English)

144SAFETY
KNEE AIRBAG ON DRIVER’S SIDE fig. 17
This is located in a dedicated compartment under the steering wheel.
It provides additional protection in the event of a frontal impact.
fig. 17A0J0056m
To deactivate the air bags see chapter “1” para-
graph “Menu Items”.
Deactivating the passenger-side front Air
Bag and Side Bag
When carrying a chid on the front seat, deactivate the passenger-
side front Air Bag and Side Bag. With the air bags deactivated, the
“warning light is lit in the instrument panel.
127-148 Alfa MiTo GB 12-11-2008 15:41 Pagina 144

SAFETY145
2
SIDE AIRBAGS
(SIDE BAG - WINDOW BAG)
The car is fitted with front side bags for driver and passenger for
protecting the chest, and window bags for protecting front and rear
passengers’ heads.
FRONT SIDE BAGS fig. 18
These are comprised of two types of bag located in the front back
rests, which protect the chest area of passengers in the event of
a side impact of medium-high severity.
HEAD PROTECTION SIDE AIR BAGS
(WINDOW BAGS) fig. 19
These are comprised of two “curtain” bags located behind the side
cover of the roof and protected by dedicated covers. They protect
the heads of the front passengers in the event of a side impact.
The airbags are not deployed in the event of side impact of low
severity (for which the restraining action of the seat belts is suffi-
cient). It is therefore always necessary to wear seat belts.
In the event of a side impact, the system provides best protection
if the passenger sits on the seat in a correct position, thus allow-
ing correct window bag deployment.
fig. 18A0J0103mfig. 19A0J0051m
127-148 Alfa MiTo GB 12-11-2008 15:41 Pagina 145

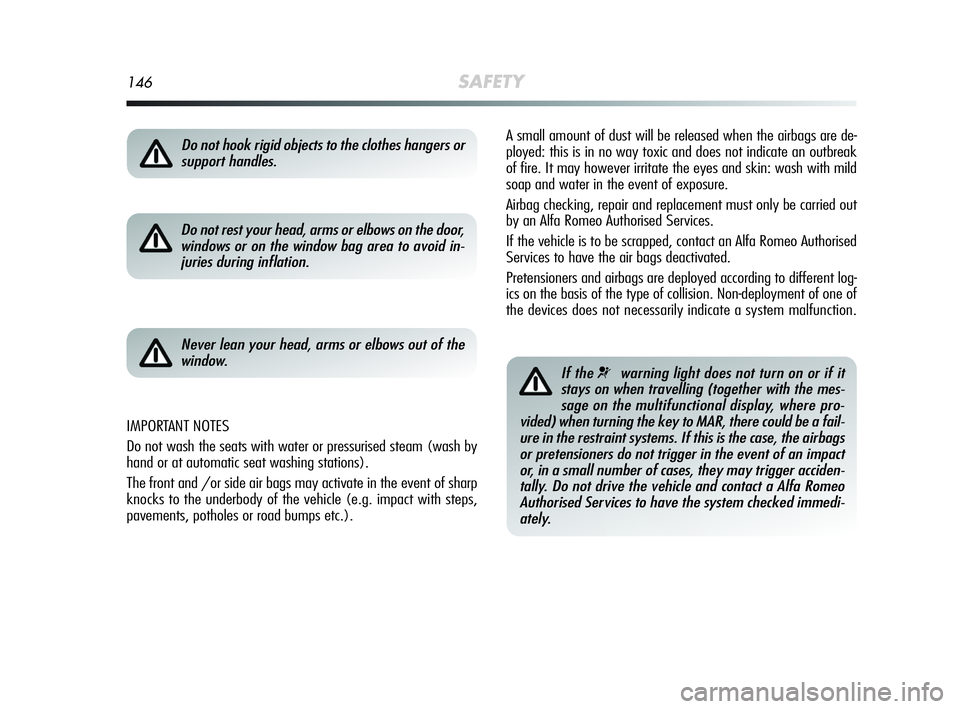

146SAFETY
A small amount of dust will be released when the airbags are de-
ployed: this is in no way toxic and does not indicate an outbreak
of fire. It may however irritate the eyes and skin: wash with mild
soap and water in the event of exposure.
Airbag checking, repair and replacement must only be carried out
by an Alfa Romeo Authorised Services.
If the vehicle is to be scrapped, contact an Alfa Romeo Authorised
Services to have the air bags deactivated.
Pretensioners and airbags are deployed according to different log-
ics on the basis of the type of collision. Non-deployment of one of
the devices does not necessarily indicate a system malfunction.Do not hook rigid objects to the clothes hangers or
support handles.
Do not rest your head, arms or elbows on the door,
windows or on the window bag area to avoid in-
juries during inflation.
Never lean your head, arms or elbows out of the
window.
IMPORTANT NOTES
Do not wash the seats with water or pressurised steam (wash by
hand or at automatic seat washing stations).
The front and /or side air bags may activate in the event of sharp
knocks to the underbody of the vehicle (e.g. impact with steps,
pavements, potholes or road bumps etc.).
If the ¬warning light does not turn on or if it
stays on when travelling (together with the mes-
sage on the multifunctional display, where pro-
vided) when turning the key to MAR, there could be a fail-
ure in the restraint systems. If this is the case, the airbags
or pretensioners do not trigger in the event of an impact
or, in a small number of cases, they may trigger acciden-
tally. Do not drive the vehicle and contact a Alfa Romeo
Authorised Services to have the system checked immedi-
ately.
127-148 Alfa MiTo GB 12-11-2008 15:41 Pagina 146

SAFETY147
2
The expiry dates of the pyrotechnic charge and spi-
ral contact are shown in the plate installed inside
the glove compartment. Refer to an Alfa Romeo
Authorised Services when it’s time to replace them.
Do not travel with objects on your lap, in front of
your chest, or between your lips (e.g. pipes, pen-
cils, etc.) In the event of a crash with airbag acti-
vation, you may be seriously injured.
If someone tries to steal or damage your car, and
in the event of floods, have the air bag system
checked by an Alfa Romeo Authorised Services.
With the ignition key inserted and turned to MAR,
even if the engine is off, the air bags can activate
also with the car at a standstill, if it is hit by an-
other vehicle. For this reason, children must never sit on
the front seat, even if the car is not moving. Please re-
member that if the key is inserted and turned to the STOP
position, no safety device (airbag or pretensioner) acti-
vates following a collision. Non-deployment in such cas-
es must not be considered a sign of malfunction.
When the ignition key is turned to MAR, the “
warning light turns on (front airbag on passenger’s
side enabled) and blinks for a few seconds as a re-
minder that the passenger airbag will activate in the event
of a collision. Then it turns off.
The front airbags deploy in the event of more se-
vere collisions than those required for deploying
the pretensioners. For collisions in the range be-
tween the two thresholds, it is normal for only the pre-
tensioners to be activated.
127-148 Alfa MiTo GB 12-11-2008 15:41 Pagina 147

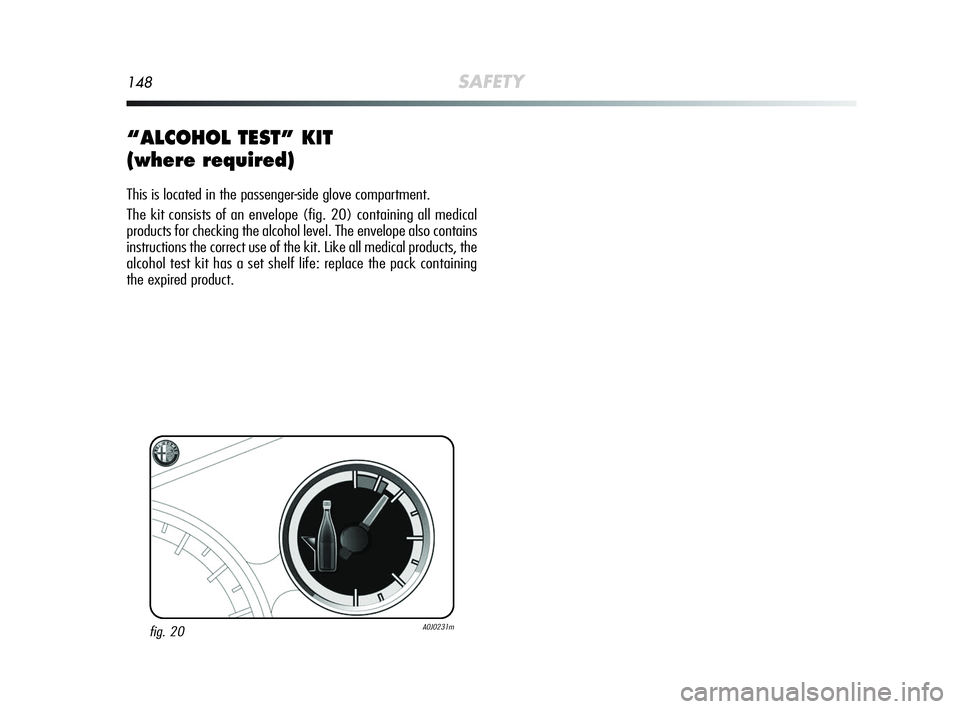

148SAFETY
“ALCOHOL TEST” KIT
(where required)
This is located in the passenger-side glove compartment.
The kit consists of an envelope (fig. 20) containing all medical
products for checking the alcohol level. The envelope also contains
instructions the correct use of the kit. Like all medical products, the
alcohol test kit has a set shelf life: replace the pack containing
the expired product.
fig. 20A0J0231m
127-148 Alfa MiTo GB 12-11-2008 15:41 Pagina 148

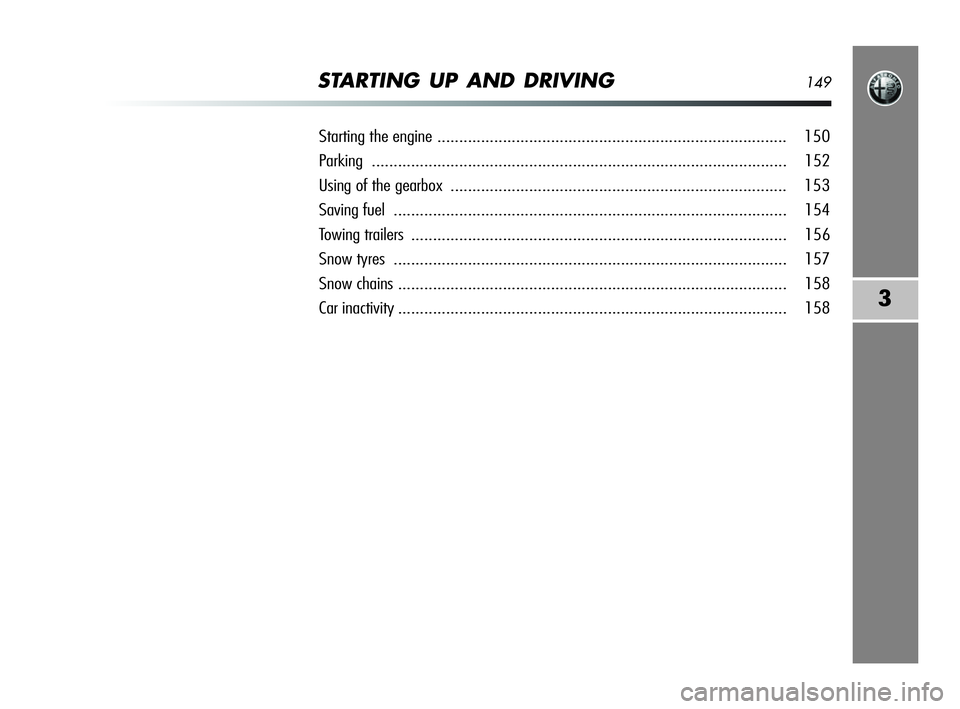

STARTING UP AND DRIVING149
3
Starting the engine................................................................................ 150
Parking............................................................................................... 152
Using of the gearbox............................................................................. 153
Saving fuel .......................................................................................... 154
Towing trailers ...................................................................................... 156
Snow tyres .......................................................................................... 157
Snow chains ......................................................................................... 158
Car inactivity......................................................................................... 158
149-158 Alfa MiTo GB 12-11-2008 15:41 Pagina 149

150STARTING UP AND DRIVING
STARTING THE ENGINE
STARTING PROCEDURE FOR PETROL VERSIONS
Proceed as follows:
❍engage the handbrake and place the gearbox in neutral;
❍press the clutch pedal down to the floor without touching the
accelerator;
❍turn the ignition key to AVV and let it go the moment the en-
gine starts.
IMPORTANT NOTES
❍If the engine does not start on the first attempt, turn the igni-
tion key to STOP before repeating the operation.
❍If, when the ignition key is on MAR, the Ywarning light (or
symbol in the display) remains lit together with the
Uwarn-
ing light, turn the key to STOP and then back to MAR; if the
warning light remains on, try using the other keys provided
with the car. If you are still unable to start the engine carry
out the emergency starting procedure (see “Emergency Start-
up” in chapter 4) and contact an Alfa Romeo Authorised Ser-
vice Provider.
❍Never leave the ignition key on MAR when the engine is off.
PROCEDURE FOR DIESEL VERSIONS
Proceed as follows:
❍engage the handbrake and place the gearbox in neutral;
❍turn the ignition key to MAR: the mandYwarning lights
(or symbol in the display) will come on;
❍wait for the warning light (or symbol in the display) to go
out;
❍press the clutch pedal down to the floor without touching the
accelerator;
❍turn the ignition key to AVV as soon as the mwarning light
goes out. Waiting too long will waste the work done by the
glow plugs. Release the key as soon as the engine starts.
If warning light mblinks for 60 seconds after
starting or during prolonged cranking, this indi-
cates a fault in the glow plug pre-heating system.
Use the car normally if the engine starts and contact an
Alfa Romeo Authorised Services provider as soon as pos-
sible.
149-158 Alfa MiTo GB 12-11-2008 15:41 Pagina 150

STARTING UP AND DRIVING151
3
In the initial period of use, it is advisable to avoid
placing the car under excessive stress (for instance
excessive acceleration, extended travel at maxi-
mum speed, sharp braking etc.).
Is is dangerous to let the engine run in enclosed
spaces. The engine depletes oxygen and discharges
carbon dioxide, carbon monoxide and other toxic
gases.
Remember that the servo brake and electric pow-
er steering are not operational until the engine has
been started, therefore more effort than usual is
required on the brake pedal and steering wheel.
Avoid jump starting the engine by pushing, towing
or driving downhill. These manoeuvres may dam-
age the catalytic converter.
When the engine is off, do not leave the key in
the ignition switch turned to MAR to avoid drain-
ing the battery.
HOW TO WARM UP THE ENGINE AFTER IT HAS
JUST STARTED (petrol and diesel engines)
Proceed as follows:
❍drive off slowly, letting the engine turn at medium speed. Do
not accelerate abruptly;
❍do not demand maximum performance for the first few kilo-
metres. Wait until the engine coolant gauge starts moving.
149-158 Alfa MiTo GB 12-11-2008 15:41 Pagina 151
