2009.5 Peugeot 3008 Dag Owner's Manual

265
TRIP COMPUTER/VEHICLE PARAMETERS
TRIP COMPUTER
- The "vehicle" tab: The range, the current consumption and the distance remaining. - The "1" (trip 1) tab with: The average speed, the average consumption and the distance travelled calculated over route "1". - The "2" (trip 2) tab with the same functions for a second route.
Range: displays the distance which can travelled with the remaining displays the distance which can travelled with the remaining fuel detected in the tank, basd on the average cons umption over the fuel detected in the tank, basd on the average consumption over the last few miles (kilometres). This displayed value may vary signifi cantly following a change in the This displayed value may vary signifi cantly following a change in the vehicle speed or the relief of the route. When the range falls below 20 miles (30 km), dashe s are displayed. When the range falls below 20 miles (30 km), dashes are displayed. After fi lling with at least 5 litres of fuel, the range is recalculated and After fi lling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km). If, whilst driving, dashes are displayed continuou sly in place of the If, whilst driving, dashes are displayed continuously in place of the digits, contact a PEUGEOT dealer.
Current fuel consumption: only calculated and displaydisplayed above20 mph (30 km/h).
Average fuel consumption: this is the average fuel consumption this is the average fuel consumption since the last trip computer zero reset.
Distance travelled: calculated since the last trip computer zero calculated since the last trip computer zero reset.
Distance remaining to the destination: calculated wited with reference to the fi nal destination, entered by the user. If guidance is activated, to the fi nal destination, entered by the user. If guidance is activated, the navigation system calculates it as a current va lue.
Average speed: this is the average speed calculated since the last this is the average speed calculated since the last trip computer zero reset (ignition on).
Each press of the button at the end of the wiper s talk ditalk displays the different trip computer information in succession, according to the different trip computer information in succession, according to the screen.
A FEW DEFINITIONS

266
09

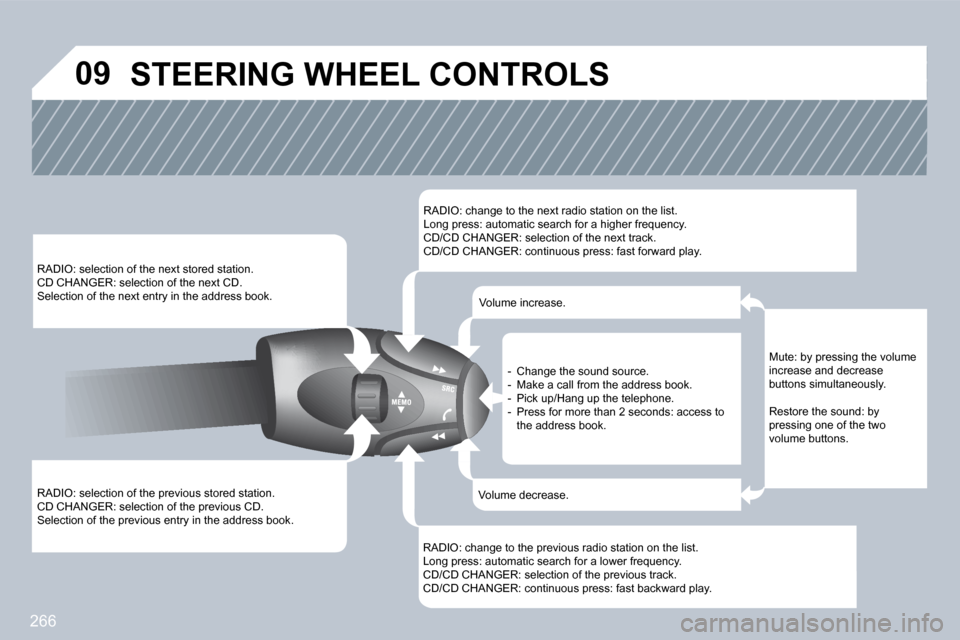

RADIO: selection of the previous stored station. CD CHANGER: selection of the previous CD. Selection of the previous entry in the address book.
RADIO: selection of the next stored station. CD CHANGER: selection of the next CD. Selection of the next entry in the address book.
RADIO: change to the next radio station on the list. Long press: automatic search for a higher frequency. CD/CD CHANGER: selection of the next track. CD/CD CHANGER: continuous press: fast forward play.
RADIO: change to the previous radio station on the list. Long press: automatic search for a lower frequency. CD/CD CHANGER: selection of the previous track. CD/CD CHANGER: continuous press: fast backward play.
- Change the sound source. - Make a call from the address book. - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the address book.
Volume increase.
Volume decrease.
Mute: by pressing the volume increase and decrease buttons simultaneously.
Restore the sound: by pressing one of the two volume buttons.
STEERING WHEEL CONTROLS

267
10
12332
1
2
3
1
2
4
1
2
3
4
3
3
3
3
2
2
2
2
4
4
4
4
4
3
3
3
3
3
2
3
2
2
3
3
3
4
4
4
4
4
3
3
3
3

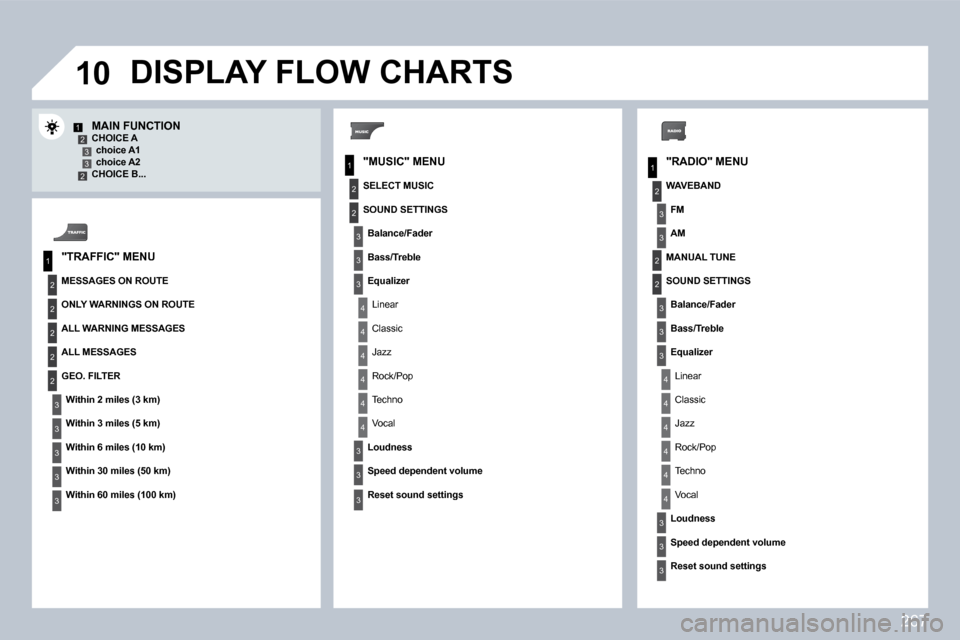

MAIN FUNCTION CHOICE A choice A1 choice A2 CHOICE B...
DISPLAY FLOW CHARTS
"RADIO" MENU "MUSIC" MENU
"TRAFFIC" MENU
MESSAGES ON ROUTE
ONLY WARNINGS ON ROUTE
ALL WARNING MESSAGES
ALL MESSAGES
GEO. FILTER
Within 2 miles (3 km)
Within 3 miles (5 km)
Within 6 miles (10 km)
Within 30 miles (50 km)
Within 60 miles (100 km)
SELECT MUSIC
SOUND SETTINGS
Balance/Fader
Bass/Treble
Equalizer
Linear
Classic
Jazz
Rock/Pop
Techno
Vocal
Loudness
Speed dependent volume
Reset sound settings
WAVEBAND
FM
AM
MANUAL TUNE
SOUND SETTINGS
Balance/Fader
Bass/Treble
Equalizer
Linear
Classic
Jazz
Rock/Pop
Techno
Vocal
Loudness
Speed dependent volume
Reset sound settings

268
1
2
4
2
3
4
2
3
4
4
4
4
4
4
4
4
4
4
4
3
3
3
3
24
4
4
3
3
3
3
4
4
4
2
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
2
3
2
3
ROUTE OPTIONS
Route type
Fast route
Short route
Optimized route
STOPOVERS
Add stopover
Address input
Navigate HOME
Choose from address book
Choose from last destinations
Rearrange route
Replace stopover
Delete stopover
Recalculate
Fast route
Short route
Optimized route
"NAVIGATION" MENU
ABORT GUIDANCE/RESUME GUIDANCE
DESTINATION INPUT
Address input
Country
City
Street
House number
Start route guidance
Postal code
Save to address book
Intersection
City district
Geo position
Map
Navigate HOME
Choose from address book
Choose from last destinations
POI SEARCH
POI nearby
POI near destination
POI in city
POI in country
POI near route
Route dynamics
Traffi c independent
Semi-dynamic
Avoidance criteria
Avoid motorways
Avoid toll roads
Avoid ferries
Recalculate
TMC STATION INFORMATION
Settings
Navi volume
POI categories on Map

269
1
2
3
4
1
2
3
4
2
3
4
2
2
2
3
4
4
4
4
2
3
3
3
2
3
3
3
3
3
3
3
3
3
3
3
2
3
4
4
4
4
4
3
2
4
3
2
4
4
4
4
3
4
4
4
3
3
3
"PHONE" MENU "SETUP" MENU
DIAL NUMBER
DIAL FROM ADDRESS BOOK
CALL LISTS
CONNECT PHONE
Search phone
Phones connected
Disconnect phone
Rename phone
Delete pairing
Delete all pairings
Show details
SETTINGS
Select ring tone
Phone/Ring tone volume
Enter mailbox number
SYSTEM LANGUAGE
Deutsch
English
Español
Français
Italiano
Nederlands
Polski
Portuguese
DATE & TIME
Set date & time
Date format
Time format
DISPLAY
Brightness
Colour
Pop titanium
Toffee
Blue steel
Technogrey
Dark blue
Map colour
Day mode for map
Night mode for map
Auto. Day/Night for map
VEHICLE
Vehicle information
Alert log
Status of functions
UNITS
Temperature
Celsius
Fahrenheit
Metric/Imperial
Kilometres (Consumption: l/100)
Kilometres (Consumption: km/l)
Miles (Consumption: MPG)
SYSTEM
Factory reset
Software version
Automatic scrolling

270
sound quality between the different audio sources (radio, CD, CD changer...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "Linear" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD, CD changer...).
The CD is ejected automatically or is not played by the player.
- Check that the CD is inserted in the player the right way up. - Check the condition of the CD: the CD cannot be played if it is too damaged. - Check the content in the case of a recorded CD: consult the advice in the "Audio" section. - The audio equipment's CD player does not play DVDs. - Due to inadequate quality, certain recorded CDs will not be played by the audio system. - The CD changer does not play MP3 CDs.
The CD is inserted upside down, is unplayable, doe s not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
The CD player sound is poor. Insert good quality CDs and store them in suitable conditions. The CD used is scratched or of poor quality.
The audio equipment settings (bass, treble, ambien ces) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.

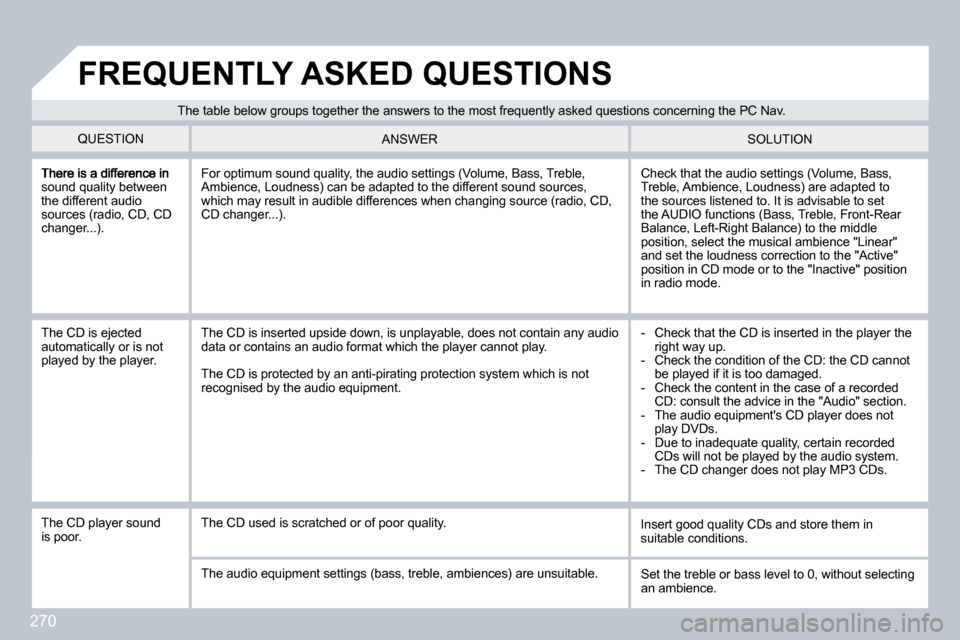

The table below groups together the answers to the most frequently asked questions concerning the PC Nav.
QUESTION SOLUTION ANSWER
FREQUENTLY ASKED QUESTIONS

271
SOLUTION ANSWER
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
Activate the "RDS" function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the "RDS" function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.

272
QUESTION SOLUTION ANSWER
The "TA" box is ticked. However, certain traffi c jams along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive the traffi c information. Wait until the traffi c information is being received correctly (displaying of the traffi c information symbols on the map).
In certain countries, only major routes (motorways , ...) are listed for the traffi c information.
The time taken to calculate a route sometimes seems longer than usual.
This phenomenon is normal. The system is dependent on the traffi c information available.
The performance of the system may slow down tempor arily if a CD is being copied onto the Jukebox at the same time as a route is being calculated.
Wait until the CD has been copied or stop the copying before starting the guidance function.
The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes to receive more than 4 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least 4 satellites (long press on the SETUP button, then select "GPS coverage").
Depending on the geographical environment (tunnel, ...) or the weather, the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is dependent on the conditions of reception of the GPS signal.
The route calculation is not successful. The exclusion criteria may confl ict with the current location (exclusion of toll roads on a toll motorway). Check the exclusion criteria.
There is a long waiting time after inserting a CD or SD card.
When a new medium is inserted, the system reads a certain amount of data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my Bluetooth telephone. The telephone's Bluetooth function may be deactiva ted or the equipment may not be visible. - Check that your telephone's Bluetooth function is activated. - Check that your telephone is visible.
