PRACTICAL INFORMATION
174
Changing side light bulbs (xenon
model)

 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Remove the bulb by pulling and
change it.
To refi t, carry out these operations in re-
verse order. Changing foglamp bulbs
You can also contact a
PEUGEOT dealer to have
these bulbs changed. Consult a PEUGEOT dealer.

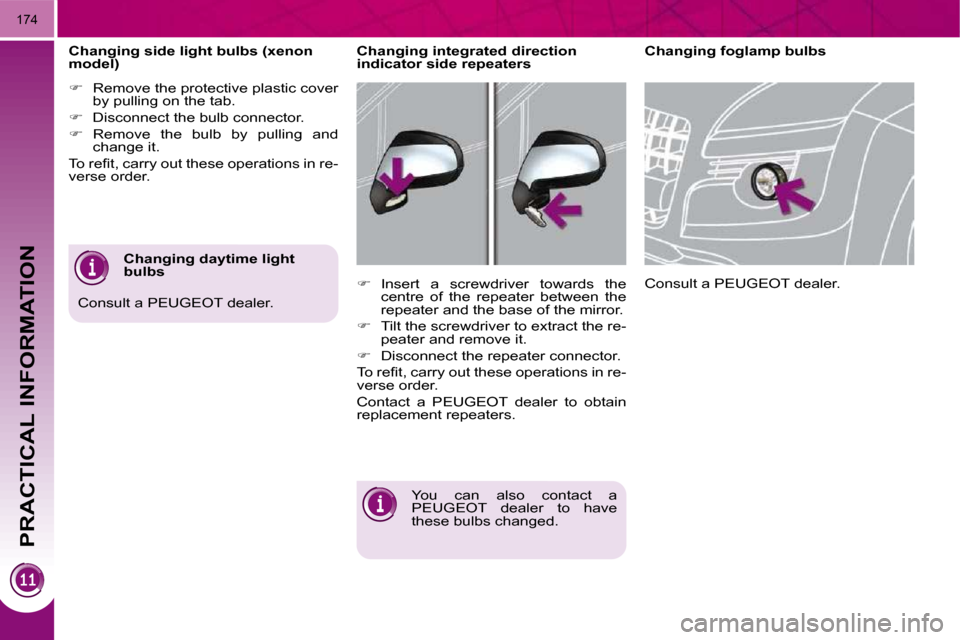

 Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

 Tilt the screwdriver to extract the re-
peater and remove it.

 Disconnect the repeater connector.
To refi t, carry out these operations in re-
verse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters.
Changing integrated direction
indicator side repeaters
Changing daytime light
bulbs
Consult a PEUGEOT dealer.

PRACTICAL INFORMATION
175
Rear lights

1. Brake/side lights (P21-5W).

2. Reversing lights (P21W).

3. Direction indicators
(PY21W-21W).

4. Side lights (P5-5W).

5. Fog lamps (P21W). Changing brake/side light, reversing
light and direction indicator bulbs

 Press the six tabs and remove the
bulb holder.

 Remove the plastic cover.

 Remove the two light fi xing nuts.

 Extract the light carefully from the
outside.

 Disconnect the light connector.

 Turn the bulb a quarter of a turn and
change it.
To refi t, carry out these operations in re-
verse order.

PRACTICAL INFORMATION
176
Changing the third brake light bulb Changing the number plate light
bulbs (W5-5W)

 Insert a thin screwdriver into one of
the outer holes of the lens.

 Push it outwards to unclip.

 Remove the lens.

 Pull the bulb and change it.
Changing side light bulbs (boot) Changing fog lamp b
ulbs

 Open the boot.

 Remove the plastic fl ap using a
screwdriver.

 Remove the light fi xing nut.

 Turn the bulb a quarter of a turn and
change it.
To refi t, carry out these operations in re-
verse order.
 Reach under the bumper.

 Turn the bulb a quarter of a turn and
change it.
Consult a PEUGEOT dealer.

PRACTICAL INFORMATION
177
PEUGEOT will not accept
responsibility for the cost in-
curred in repairing your vehicle
or for rectifying malfunctions resulting
from the installation of accessories
not supplied and not recommended
by PEUGEOT and not installed in ac-
cordance with its instructions, in particu-
lar when the combined consumption
of all of the additional equipment con-
nected exceeds 10 milliamperes. Installing electrical
accessories
Your vehicle's electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer.
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
The extraction pliers and the spare fus-
es are installed on the back of the fascia
fuse box cover.
To gain access to them:

 remove the cover completely,

 remove the pliers. Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.

 Identify the faulty fuse by checking
the condition of its fi lament.

 Use the special pliers to extract the
fuse from its housing.

 Always replace the faulty fuse with a
fuse of the same rating.

 Check the correspondence between
the number etched on the box, the
rating etched on the fu(se and the
tables below.
Correct Incorrect

PRACTICAL INFORMATION

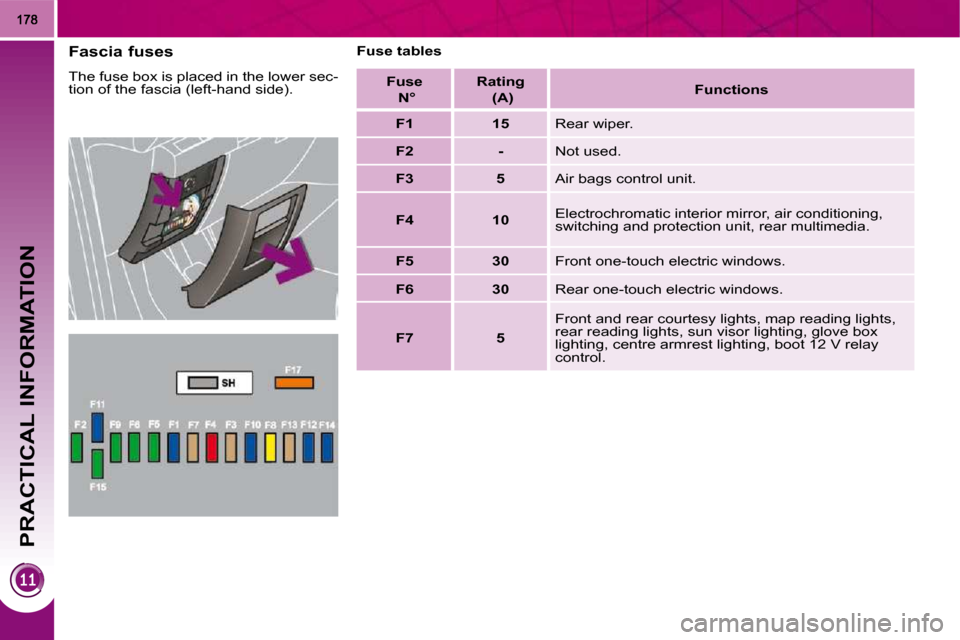

Fascia fuses
The fuse box is placed in the lower sec-
tion of the fascia (left-hand side). Fuse tables
Fuse N° Rating
(A) Functions

F1 15 Rear wiper.

F2 - Not used.

F3 5 Air bags control unit.

F4 10 Electrochromatic interior mirror, air conditioning,
switching and protection unit, rear multimedia.

F5 30 Front one-touch electric windows.

F6 30 Rear one-touch electric windows.

F7 5 Front and rear courtesy lights, map reading lights,
rear reading lights, sun visor lighting, glove box
lighting, centre armrest lighting, boot 12 V relay
control.

PRACTICAL INFORMATION
179

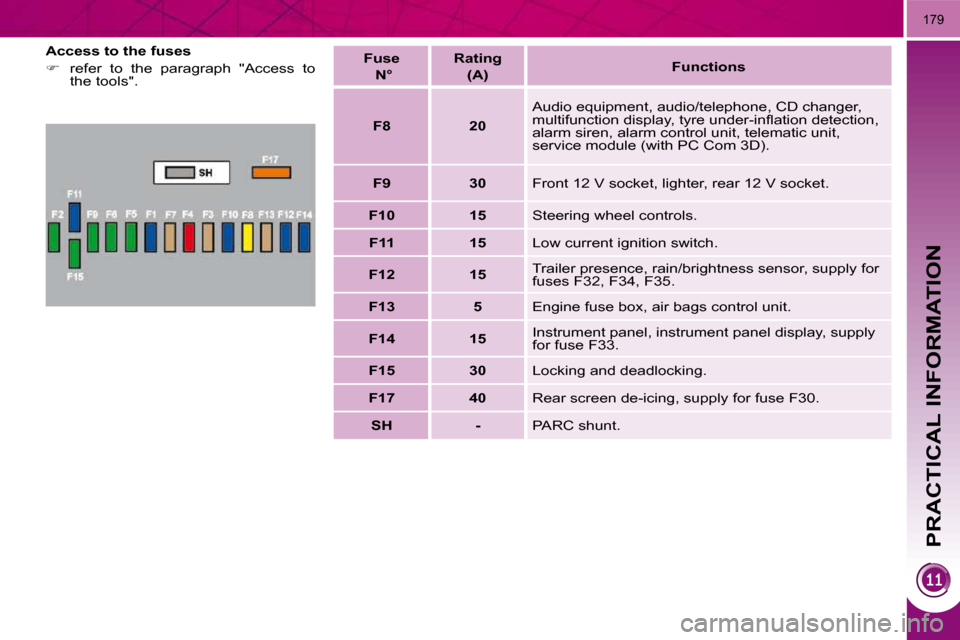

Access to the fuses

 refer to the paragraph "Access to
the tools". Fuse
N° Rating
(A) Functions

F8 20 Audio equipment, audio/telephone, CD changer,
multifunction display, tyre under-infl ation detection,
alarm siren, alarm control unit, telematic unit,
service module (with PC Com 3D).

F9 30 Front 12 V socket, lighter, rear 12 V socket.

F10 15 Steering wheel controls.

F11 15 Low current ignition switch.

F12 15 Trailer presence, rain/brightness sensor, supply for
fuses F32, F34, F35.

F13 5 Engine fuse box, air bags control unit.

F14 15 Instrument panel, instrument panel display, supply
for fuse F33.

F15 30 Locking and deadlocking.

F17 40 Rear screen de-icing, supply for fuse F30.

SH - PARC shunt.

PRACTICAL INFORMATION
180

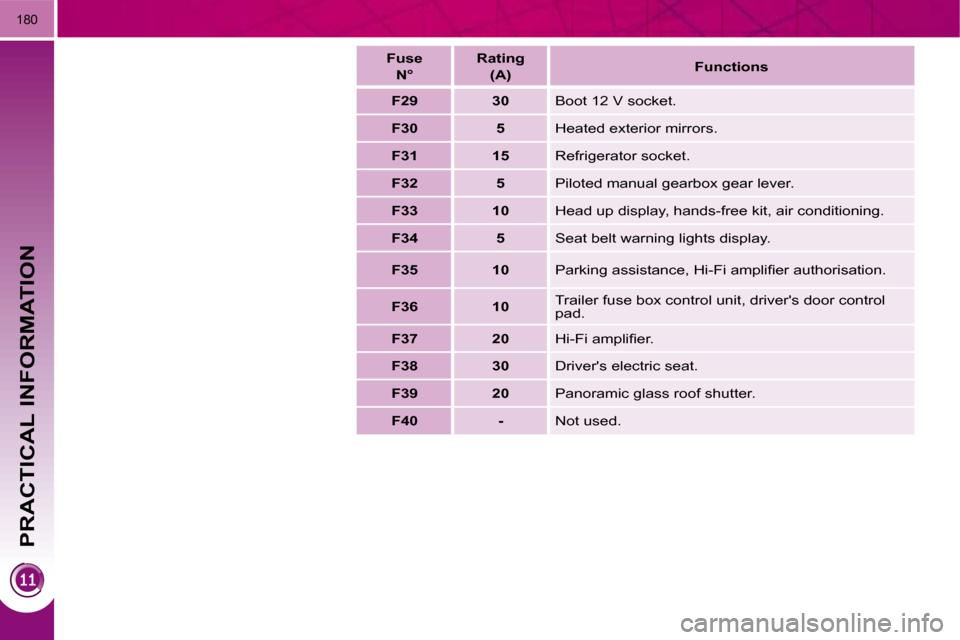

Fuse N° Rating
(A) Functions

F29 30 Boot 12 V socket.

F30 5 Heated exterior mirrors.

F31 15 Refrigerator socket.

F32 5 Piloted manual gearbox gear lever.

F33 10 Head up display, hands-free kit, air conditioning.

F34 5 Seat belt warning lights display.

F35 10 Parking assistance, Hi-Fi amplifi er authorisation.

F36 10 Trailer fuse box control unit, driver's door control
pad.

F37 20 Hi-Fi amplifi er.

F38 30 Driver's electric seat.

F39 20 Panoramic glass roof shutter.

F40 - Not used.

PRACTICAL INFORMATION
181
Engine compartment fuses
The fuse box is placed in the engine
compartment near the battery (left-hand
side).
Access to the fuses

 Unclip the cover.

 Change the fuse (see correspond-
ing paragraph).

 When you have fi nished, close the
cover carefully to guarantee the
sealing of the fuse box. Fuse table
Fuse N° Rating
(A) Functions

F1 20 Engine control unit supply, injection pump and EGR
solenoid valves (2 l HDI 16V), injectors (2 l HDI
16V).

F2 15 Horn.

F3 10 Front/rear wash-wipe.

F4 10 Daytime lights.

F5 15 Purge canister, turbine discharge and Turbo
pressure regulation solenoid valves (1.6 l THP 16V),
oil vapour heater (1.6 l THP 16V), diesel heater
(1.6 l HDI 16V).

F6 10 Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), "distance alert", engine
coolant level detector, mirror adjustment control.

F7 10 Power steering control unit, automatic gearbox,
directional headlamps height adjustment motor.

F8 20 Starter control.

F9 10 Clutch and brake pedal switches.

F10 30 Engine control unit actuators (petrol: ignition coils,
solenoid valves, oxygen sensors, injectors, heaters,
fuel pump, controlled thermostat) (Diesel: solenoid
valves, heaters).

F11 40 Air conditioning blower.
