PRACTICAL INFORMATION
167
CHANGING A WHEEL
The tools are installed in the boot under
the fl oor.
To gain access to them:

 open the boot,

 place the movable boot fl oor at an
angle (refer to the "Layout" sec-
tion),

 raise the fl oor,

 secure it by hooking its cord on the
hook on the rear shelf support,

 remove the polystyrene storage
box,

 unclip by pulling upwards then re-
move the box containing the tools.
Access to the tools
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.

 To make the operation easier, re-
move the movable boot fl oor,

 unscrew the yellow central bolt,
With the JBL bass box

 remove the bass box disconnecting
the electrical harness,

 remove the polystyrene storage
box.

PRACTICAL INFORMATION
167
CHANGING A WHEEL
The tools are installed in the boot under
the fl oor.
To gain access to them:

 open the boot,

 place the movable boot fl oor at an
angle (refer to the "Layout" sec-
tion),

 raise the fl oor,

 secure it by hooking its cord on the
hook on the rear shelf support,

 remove the polystyrene storage
box,

 unclip by pulling upwards then re-
move the box containing the tools.
Access to the tools
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.

 To make the operation easier, re-
move the movable boot fl oor,

 unscrew the yellow central bolt,
With the JBL bass box

 remove the bass box disconnecting
the electrical harness,

 remove the polystyrene storage
box.

PRACTICAL INFORMATION
168
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.

1. Wheelbrace.
Permits removal of the wheel trim and removal of the wheel fi xing
bolts.

2. Jack with integral handle.
Permits raising of the vehicle.

3. "Bolt cover" tool.
Permits removal of the bolt pro- tectors (covers) on alloy wheels.

4. Centring guide.
Permits the refi tting of an alloy wheel on the hub.
List of tools
Other accessories Wheel with trim

When removing the wheel
,
detach the trim fi rst using the
wheelbrace 1 pulling at the valve
passage hole.

When refi tting the wheel
, refi t the
trim starting by placing its notch fac-
ing the valve and press around its
edge with the palm of your hand.

5. Socket for the anti-theft bolts (lo-
cated in the glove box).
Permits adaptation of the wheel- brace to the special "anti-theft"
bolts.

6. Two chocks to immobilise the ve-
hicle.

7. Removable towing eye.

Refer to "Electric parking brake"
in the "Driving" section.
Refer to the paragraph "Towing
the vehicle".

8. Electric brake emergency release
control.

PRACTICAL INFORMATION
169

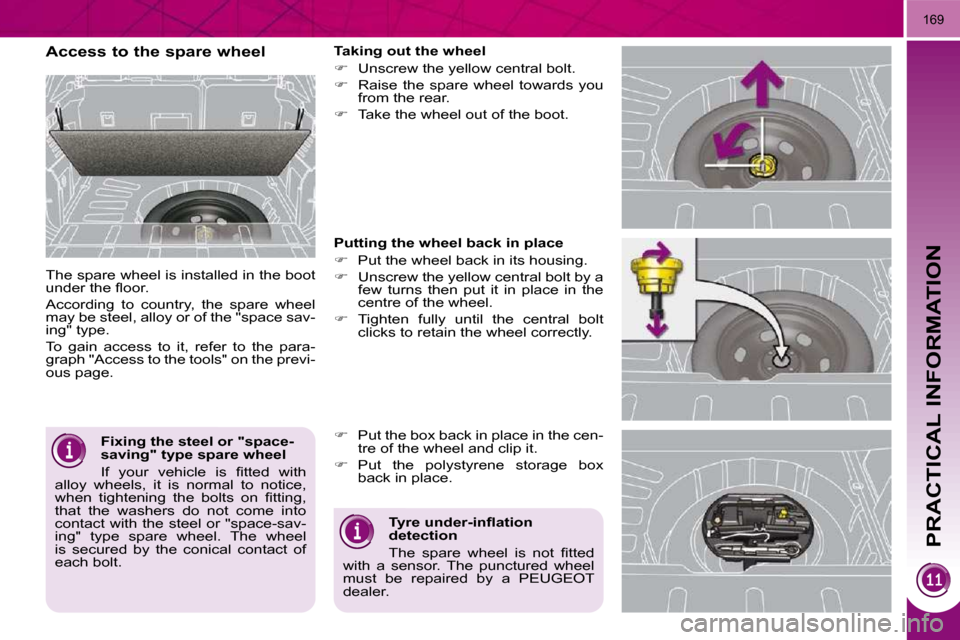

Fixing the steel or "space-
saving" type spare wheel
If your vehicle is fi tted with
alloy wheels, it is normal to notice,
when tightening the bolts on fi tting,
that the washers do not come into
contact with the steel or "space-sav-
ing" type spare wheel. The wheel
is secured by the conical contact of
each bolt.
Access to the spare wheel
The spare wheel is installed in the boot
under the fl oor.
According to country, the spare wheel
may be steel, alloy or of the "space sav-
ing" type.
To gain access to it, refer to the para-
graph "Access to the tools" on the previ-
ous page.
Taking out the wheel

 Unscrew the yellow central bolt.

 Raise the spare wheel towards you
from the rear.

 Take the wheel out of the boot.
Putting the wheel back in place

 Put the wheel back in its housing.

 Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.

 Tighten fully until the central bolt
clicks to retain the wheel correctly.

 Put the box back in place in the cen-
tre of the wheel and clip it.

 Put the polystyrene storage box
back in place.
Tyre under-infl ation
detection
The spare wheel is not fi tted
with a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer.

PRACTICAL INFORMATION
170
Parking the vehicle
Immobilise the vehicle where
it does not block traffi c: the
ground must be level, stable and
non-slippery ground.
Apply the parking brake unless it
has been programmed to automatic
mode, switch off the ignition and en-
gage fi rst gear * to lock the wheels.
Check that the braking warning light
and the P warning light on the park-
ing brake lever come on.
If necessary, place a chock under the
wheel diagonally opposite the wheel
to be changed.
It is imperative that you ensure that
the occupants get out of the vehicle
and wait where they are safe.
Never go underneath a vehicle raised
using a jack; use an axle stand.
Removing the wheel
List of operations

 Remove the chromed bolt cover from
each of the bolts using the tool 3 .

 Fit the anti-theft socket 5 on the
wheelbrace 1 to unlock the anti-theft
bolt.

 Unlock the other bolts using the
wheelbrace 1 only.

 Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underframe, which-
ever is closest to the wheel to be
changed.

 Extend the jack 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.

 Raise the vehicle until there is suf-
fi cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.

 Remove the bolts and store them in
a clean place.

 Remove the wheel.
* position R for the piloted manual
gearbox; P for the automatic gear-
box.

PRACTICAL INFORMATION
After changing a wheel
To store the punctured wheel
in the boot correctly, fi rst re-
move the central cover.
When using the "space-saving" type
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer with-
out delay.
Have the punctured wheel repaired
and replace it on the vehicle as soon
as possible.
Fitting the wheel
List of operations

 Put the wheel in place on the hub
using the centring guide 4 .

 Screw in the bolts by hand to the
stop.

 Pre-tighten the anti-theft bolt using
the wheelbrace 1 fi tted with the anti-
theft socket 5.

 Pre-tighten the other bolts using the
wheelbrace 1 only.

 Lower the vehicle fully.

 Fold the jack 2 and detach it.

 Lock the anti-theft bolt using the
wheelbrace 1 fi tted with the anti-
theft socket 5 .

 Lock the other bolts using the wheel-
brace 1 only.

 Refi t the chromed bolt covers on
each of the bolts.

 Store the tools in the box.

PRACTICAL INFORMATION
172
Risk of electrocution
Xenon bulbs (D1S-35W) must
be replaced by a PEUGEOT
dealer.
CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb without the use of
tools.
Model with halogen lights

1. Direction indicators (HP24-24W).

2. Dipped headlamps (H7-55W).

3. Main beam headlamps (H7-55W).

4. Daytime lights (HP24-24W).

5. Fog lamps (PS24-24W).

6. Side lights (W5-5W).
1. Direction indicators (HP24-24W).

2. Dipped/main beam headlamps
(D1S-35W).

3. Daytime/side lights (P21/5W).

4. Fog lamps (PS24-24W).
Model with xenon lights a
nd
directional headlamps In some climatic conditions
(e.g. low temperature or hu-
midity), the presence of mist-
ing on the internal surface of the glass
of the headlamps and rear lamps is
normal; it disappears after the lamps
have been on for a few minutes.
The headlamps are fi tted with
polycarbonate glass with a
protective coating:

 do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,

 use a sponge and soapy water,

 when using a high pressure wash-
er on persistent marks, do not di-
rect at the lamps or their outlines
for too long, so as not to damage
their coating and their seals.
Front lamps

 Do not touch the bulb directly with
your fi ngers, use lint-free cloths.
Changing a halogen bulb should only
be done after the headlamp has been
switched off for a few minutes (risk of
serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp.

PRACTICAL INFORMATION
173
Changing main beam headlamp and
side light bulbs
Changing dipped headlamp bulbs

 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Extract the bulb by pulling and
change it.
To refi t, carry out these operations in re-
verse order.
 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Remove the bulb by pulling and
change it.
To refi t, carry out these operations in re-
verse order.
Changing dipped headlamp
and main beam headlamp
bulbs (xenon model)
Consult a PEUGEOT dealer.
Changing direction indicator bulbs
Consult a PEUGEOT dealer.
