2008 TOYOTA PRIUS Owners Manual

5
When trouble arises
417
5-1. Essential information
PRIUS_U_(L/O_0802)
Towing eyelet
ITY51P001
■
Emergency towin g procedure
Release the parking brake.
Put the shift lever in “N”.
Turn the “POWER” switch to ACCESSORY (hybrid system off) or
ON mode hybrid system operating).
CAUTION
■ While towing
● Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelet and the cable or chain.
● If the hybrid system is not running, the power assist for the brakes and
steering will not function, making steering and braking more difficult.
NOTICE
■To prevent causing serious dama ge to the transmission
Never tow this vehicle from the rear with the four wheels on the ground. This
may cause serious damage to the transmission.
STEP1
STEP2
STEP3

418 5-1. Essential information
PRIUS_U_(L/O_0802)
Installing towing eyeletRemove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body, as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.
ITY51P002
STEP1
ITY51P003
STEP2
ITY51P004
STEP3
■Location of the emer gency towing eyelet
 P. 438

5
When trouble arises
419
5-1. Essential information
PRIUS_U_(L/O_0802)
Towing with a sling-type truck
CAUTION
■
Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing. This
may lead to accidents that cause serious injury or even death.
ITY51P005
NOTICE
■To prevent body damage
Do not tow with a sling-type truck, either from the front or rear.

420 5-1. Essential information
PRIUS_U_(L/O_0802)
Towing with a wheel lift-type truckFrom front Release the parking brake.
From rear Use a towing dolly under the
front wheel.
ITY51P006
ITY51P007

5
When trouble arises
421
5-1. Essential information
PRIUS_U_(L/O_0802)
NOTICE
■
To prevent causing serious da mage to the transmission
Never tow this vehicle with any of the wheels in contact with the ground.
■ To prevent damaging the vehicle
● Do not tow the vehicle with the “POWER” switch OFF.
The steering lock mechanism is not strong enough to hold the front wheel
straight.
● When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.

422 5-1. Essential information
PRIUS_U_(L/O_0802)
Using a flat bed truckIf you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie
downs or the vehicle may be
damaged.
ITY51P008

5
When trouble arises
423
5-1. Essential information
PRIUS_U_(L/O_0802)

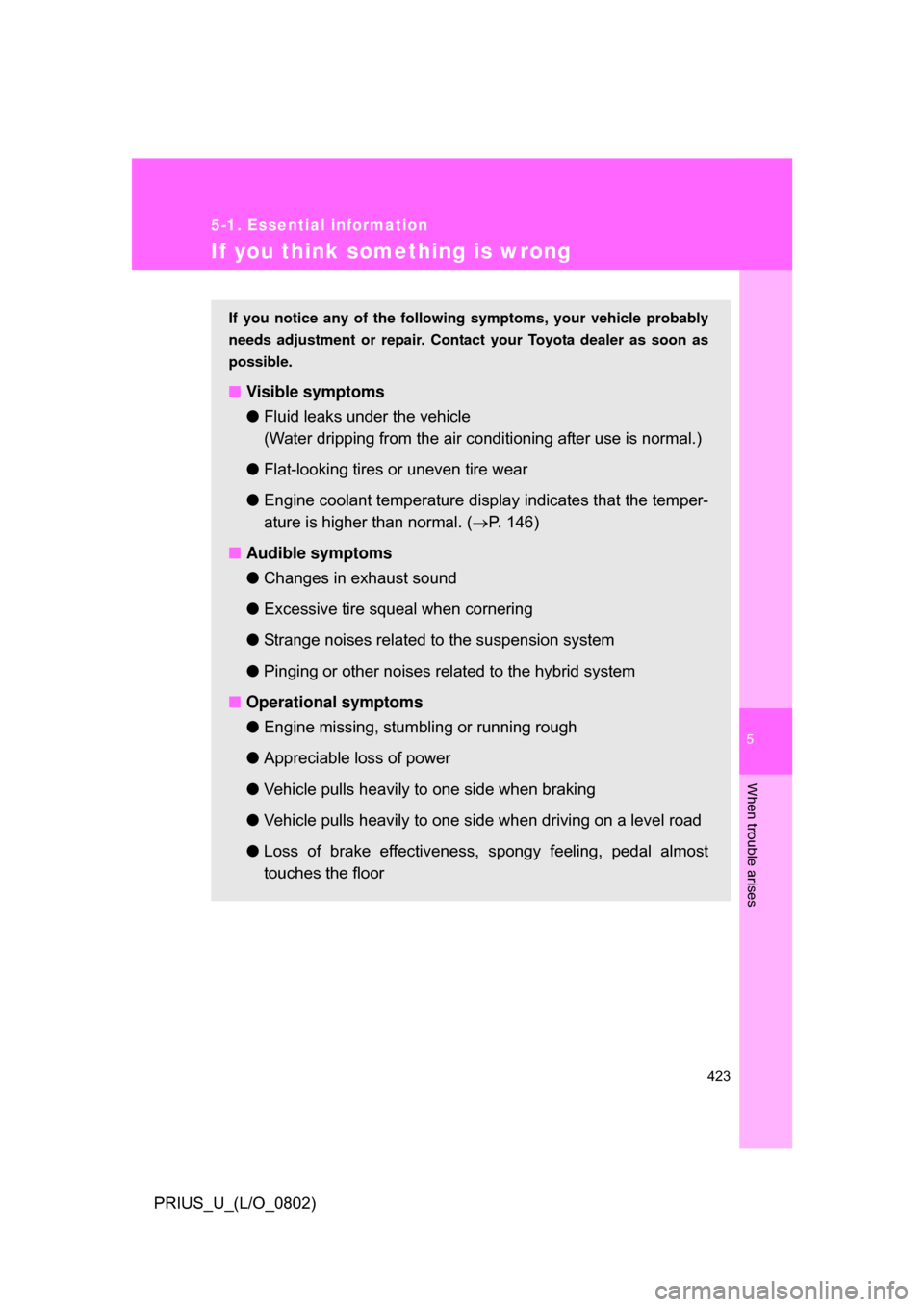

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact your Toyota dealer as soon as
possible.
■ Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air cond itioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature displa y indicates that the temper-
ature is higher than normal. ( P. 146)
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
■ Operational symptoms
●Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, s pongy feeling, pedal almost
touches the floor

424
5-1. Essential information
PRIUS_U_(L/O_0802)
Event data recorder
In a crash or a near car crash eventThe SRS airbag sensor assembly contains the EDR. In a crash or a
near car crash event, this device may record some or all of the follow-
ing information:
● Gasoline engine speed
● Whether the brake pedal was applied or not
● Vehicle speed
● To what extent the accelerator pedal was depressed
● Position of the transmission shift lever
● Whether the driver and front passenger wore seat belts or not
● Driver’s seat position
● SRS airbag deployment data
● SRS airbag system diagnostic data
● Front passenger’s occupant classification
The information above is intended to be used for the purpose of
improving vehicle safety performan ce. Unlike general data recorders,
the EDR does not record sound data such as conversation between
passengers.
Your vehicle has computers that monitor and control certain aspects
of your vehicle. These computers assi st in driving and maintaining
optimal vehicle performance.
Besides storing data useful for tr oubleshooting, there is a system to
record data in a crash or a near car crash event. This is called an
Event Data Recorder (EDR).
