2008 TOYOTA PRIUS Owners Manual

73
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
PRIUS_U_(L/O_0802)

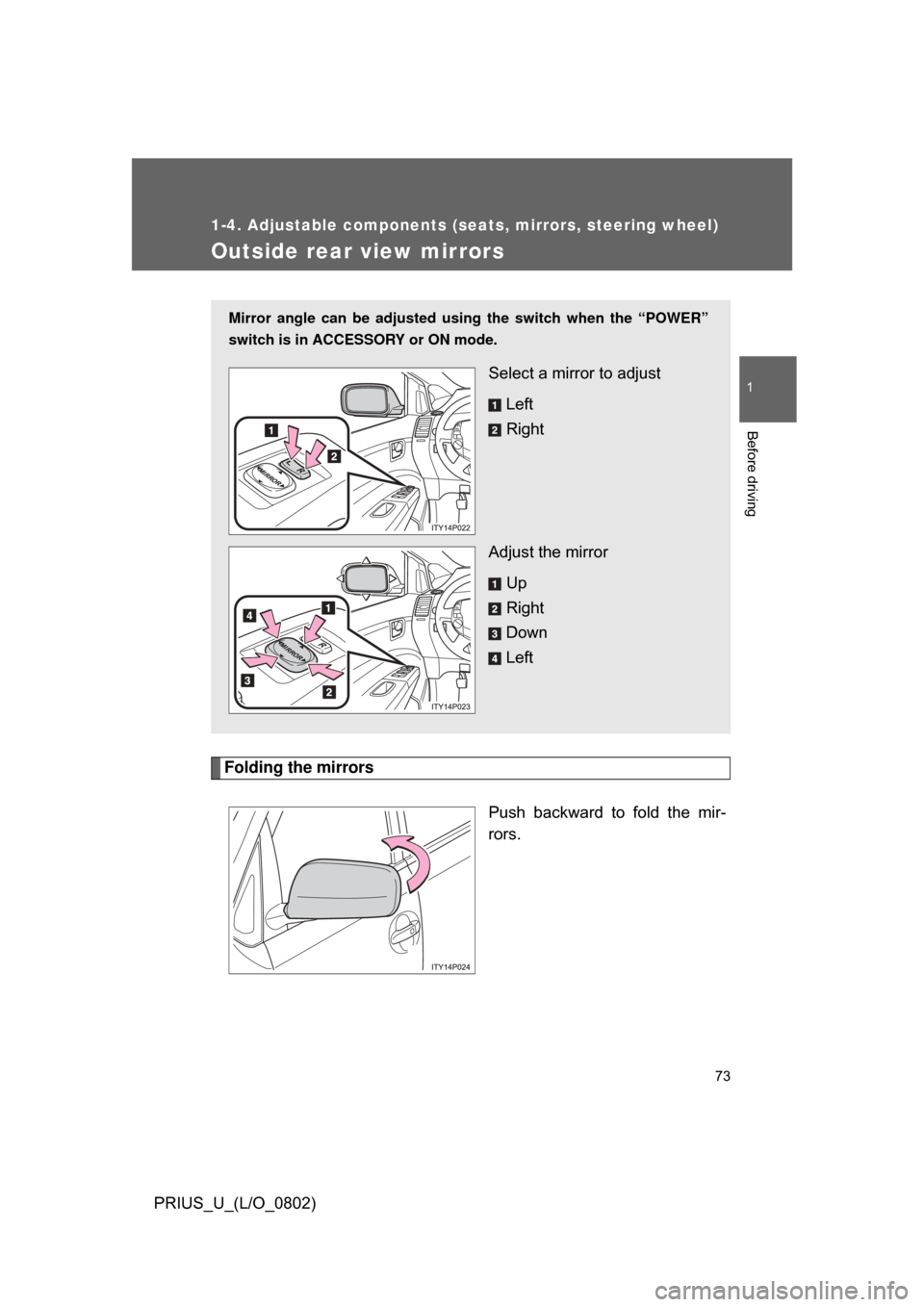

Outside rear view mirrors
Folding the mirrorsPush backward to fold the mir-
rors.
Mirror angle can be adjusted usin g the switch when the “POWER”
switch is in ACCESSORY or ON mode.
Select a mirror to adjust
Left
Right
Adjust the mirror Up
Right
Down
Left

74 1-4. Adjustable components (seats, mirrors, steering wheel)
PRIUS_U_(L/O_0802)
■When the mirrors are fogged up (vehicle with mirror defoggers)
Turn on the mirror heaters to defog the mirrors. (P. 217)
CAUTION
■While driving
Observe the following precautions.
Failing to do so may result in losing control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
● Do not adjust the mirrors.
● Do not drive with the mirrors folded back.
● Before driving, be sure to extend mirrors and make an adjustment prop-
erly.
■ When the mirror h eaters are operating
Do not touch the mirror surface as the mirror surface becomes hot.
And do not touch the mirror surface also when the wiper switch is on at lower
than 77 F (25C) of the outside temperature.
NOTICE
■ If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.

75
1
Before driving
PRIUS_U_(L/O_0802)
1-5. Opening and closing the windows and moon roof

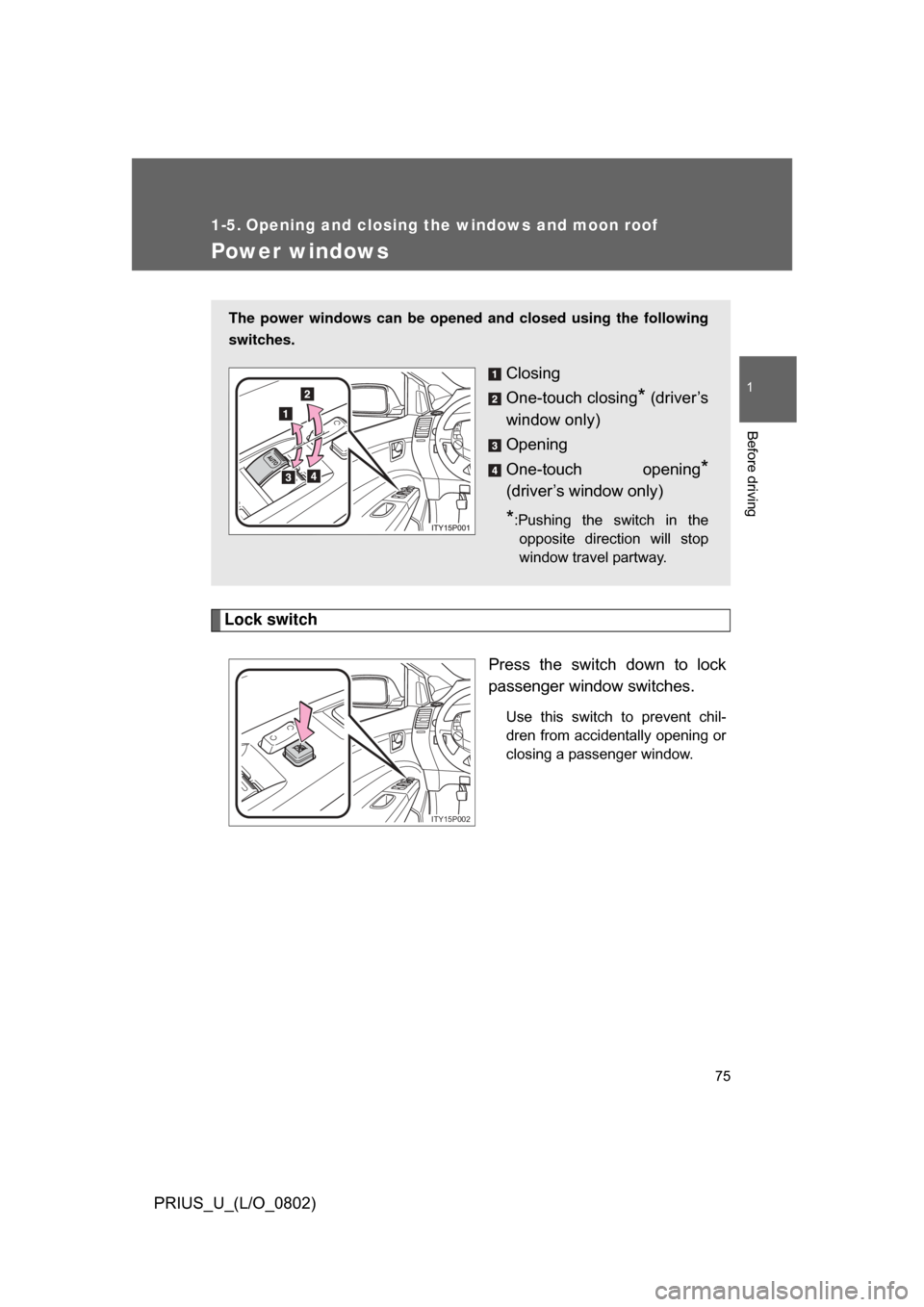

Power windows
Lock switchPress the switch down to lock
passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
The power windows can be opened and closed using the following
switches.
Closing
One-touch closing
* (driver’s
window only)
Opening
One-touch opening
*
(driver’s window only)
*:Pushing the switch in the opposite direction will stop
window travel partway.
ITY15P002

76 1-5. Opening and closing the windows and moon roof
PRIUS_U_(L/O_0802)
■The power windows can be operated when
The “POWER” switch is in ON mode.
■ Operating the power windows after turning the “POWER” switch OFF
The power windows can be operated for approximately 45 seconds even
after the “POWER” switch is switc hed to ACCESSORY mode or turned OFF.
They cannot, however, be operated once the driver’s or front passenger’s
door is opened.
■ Jam protection function (driver’s window only)
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.
■ When the 12 volt battery is disconnected
The power windows must be initialized in order to ensure proper operation.
(driver’s window only)
Open the window halfway.
Fully close the window by pulling the switch up and continue hold-
ing the switch for 1 second.
The indicator on the switch changes from a flashing pattern to being on
when initial settings are complete.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features P. 488)
STEP1
STEP2

77
1-5. Opening and closing the windows and moon roof
1
Before driving
PRIUS_U_(L/O_0802)
CAUTION
■
When closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
■ Jam protection function driver’s window only
● Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the window fully closes.

78
PRIUS_U_(L/O_0802)
1-6. Refueling

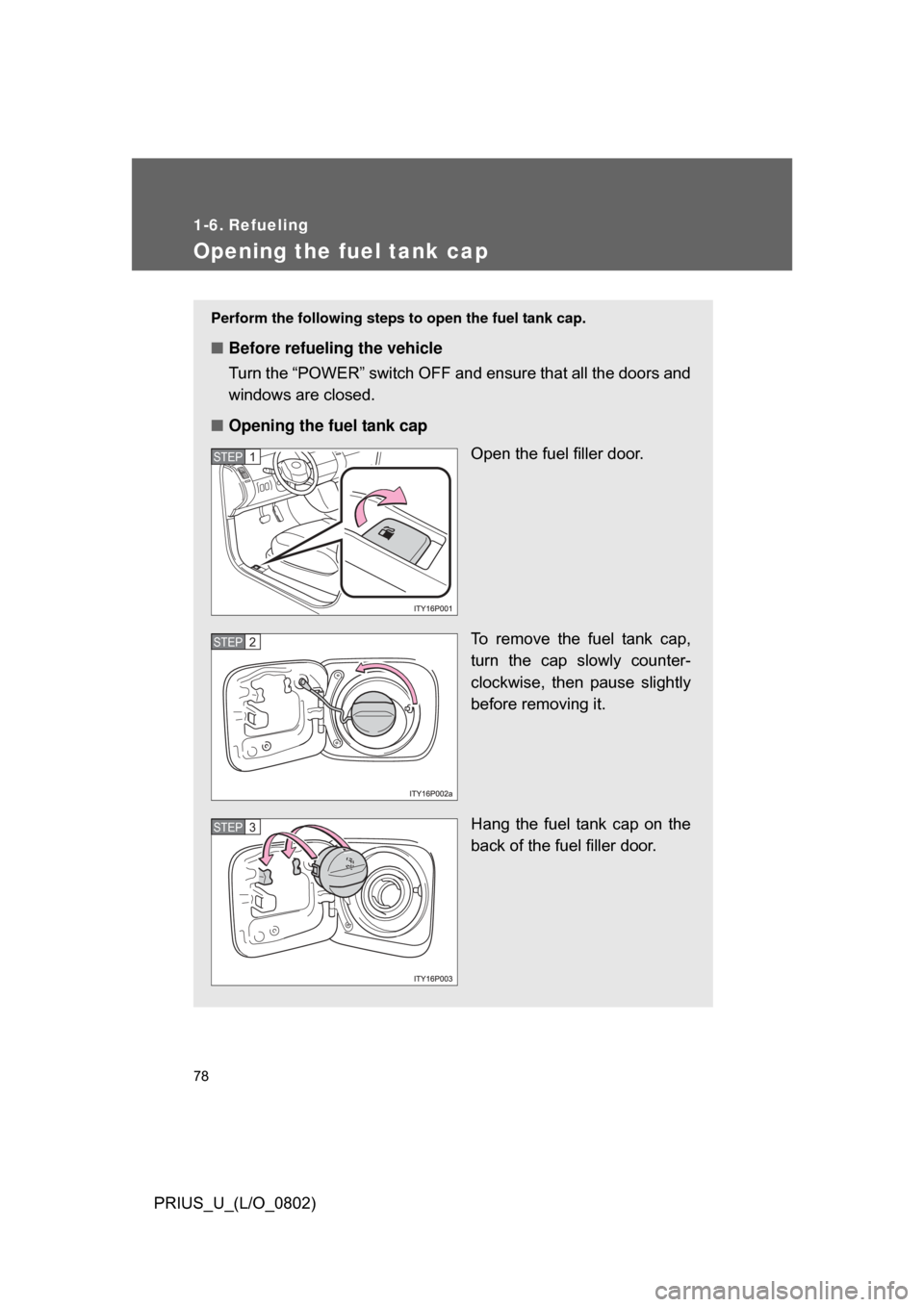

Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
■Before refueling the vehicle
Turn the “POWER” switch OFF and ensure that all the doors and
windows are closed.
■ Opening the fuel tank cap
Open the fuel filler door.
To remove the fuel tank cap,
turn the cap slowly counter-
clockwise, then pause slightly
before removing it.
Hang the fuel tank cap on the
back of the fuel filler door.
STEP1
STEP2
STEP3

79
1-6. Refueling
1
Before driving
PRIUS_U_(L/O_0802)
Closing the fuel tank cap
After refueling, turn the fuel tank
cap clockwise until you hear a
click. The cap will revolve slightly
in the opposite direction once
released.
■ Fuel types
Use unleaded gasoline. (87 Octane Rating [Research Octane Number 91] or
higher)
■ Fuel tank capacity
Approximately 11.9 gal. (45 L, 9.9 Imp. gal.)

80 1-6. Refueling
PRIUS_U_(L/O_0802)
CAUTION
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so, may result in death or serious injury.
● Touch the vehicle or some other metal surface to discharge any static
electricity.
Sparks resulting from discharging static electricity may cause the fuel
vapors to ignite.
● Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.
● Do not allow anyone that has not discharged static electricity from their
bodies to come close to an open fuel tank.
● Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
● Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
■ When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Failure to do so may cause a fire or other incident which may result
in death or serious injury.
NOTICE
■Refueling
Do not spill fuel during refueling.
Failing to do so may damage the vehicle, such as causing the exhaust sys-
tems to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.
