2008 TOYOTA PRIUS Owners Manual

361
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(L/O_0802)

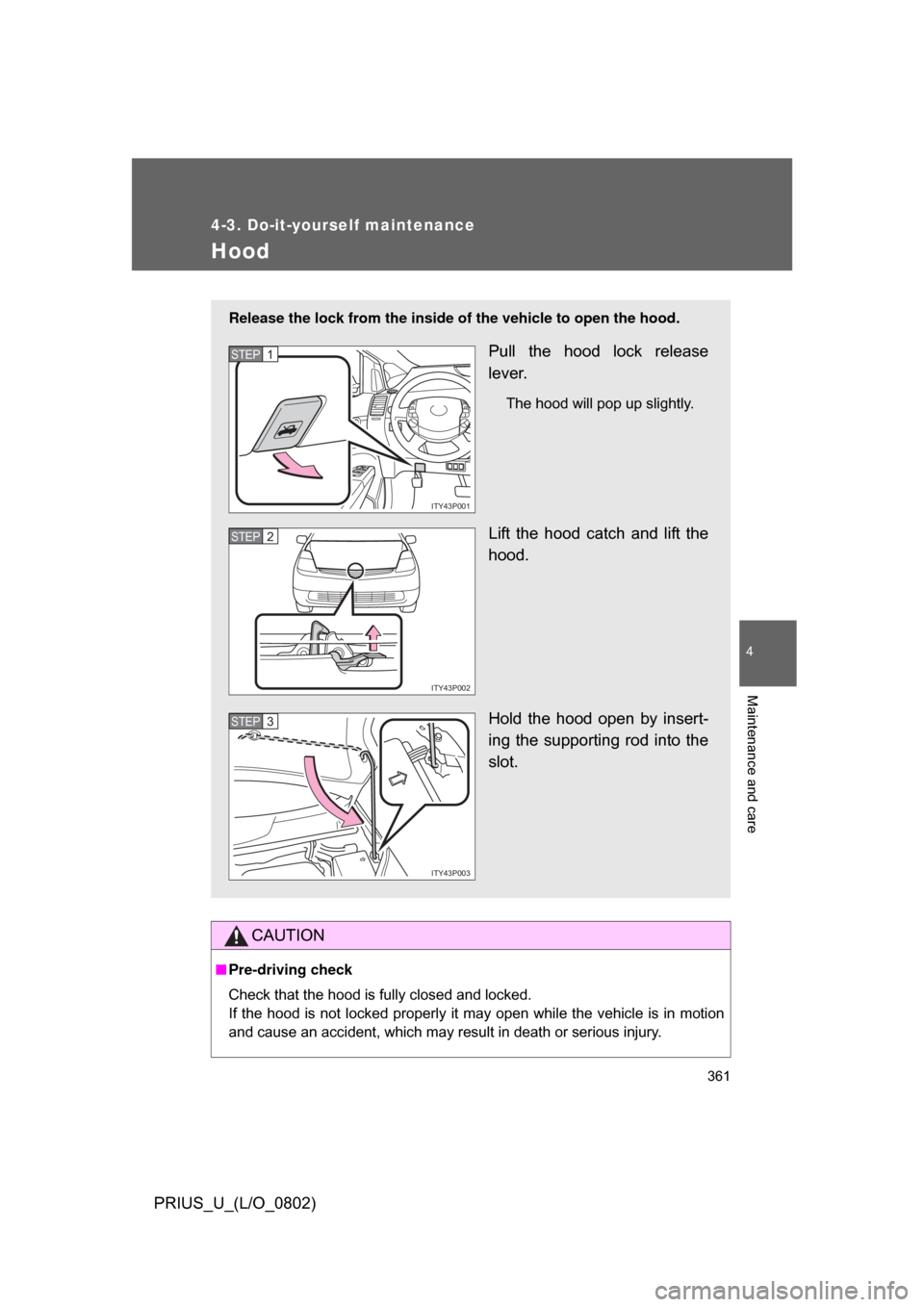

Hood
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
Release the lock from the inside of the vehicle to open the hood.
Pull the hood lock release
lever.
The hood will pop up slightly.
Lift the hood catch and lift the
hood.
Hold the hood open by insert-
ing the supporting rod into the
slot.
ITY43P001
STEP1
ITY43P002
STEP2
STEP3
ITY43P003
STEP3

362
4-3. Do-it-yourself maintenance
PRIUS_U_(L/O_0802)
Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause injury.
Front
Rear
ITY43P005

363
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(L/O_0802)
CAUTION
■
When raising your vehicle
Make sure to observe the following to reduce the possibility of death or seri-
ous injury.
● Do not use the floor jack that was supplied with your vehicle.
● Do not put any part of your body or get underneath the vehicle supported
only by the floor jack.
Always use automotive jack stands or a solid, level, surface.
● Do not start the hybrid system while the vehicle is supported by the floor
jack.
● Stop the vehicle on level firm ground, firmly set the parking brake and push
the “P” position switch.
● Make sure to set the jack properly at the jack point.
Raising the vehicle with an improperly positioned jack will damage the
vehicle and may cause the vehicle to fall off the jack.
● Do not raise the vehicle while someone is in the vehicle.
● When raising the vehicle, do not place any objects on top of or underneath
the jack.
●Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

364
4-3. Do-it-yourself maintenance
PRIUS_U_(L/O_0802)
Engine compar tment
■12 volt battery
 P. 375
Washer fluid tank
( P. 378)
Brake fluid reservoir ( P. 373)
Engine oil filler cap ( P. 367)
Engine coolant reservoir ( P. 371)Inverter coolant reservoir
( P. 371)
Fuse box ( P. 398)
Radiator ( P. 373)
Condenser ( P. 373)
Electric cooling fans
Engine oil level dipstick ( P. 365)

365
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(L/O_0802)
Engine compartment cover
■ Removing the cover
Front
■ Installing the clips
Push up center portion
Insert
Press
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After turning off the hybrid
system, wait a few minutes for the oil to drain back into the
bottom of the engine.
STEP1

366 4-3. Do-it-yourself maintenance
PRIUS_U_(L/O_0802)Hold a rag under the end and
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Wipe the dipstick and reinsert it fully. Low
Full
STEP2
STEP3
STEP4
STEP5
STEP6
ITY43P010

367
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(L/O_0802)
■
Adding engine oil
If the oil level is below or near the low level mark, add engine oil of
the same type as already in the engine.
Make sure to check the oil type
and prepare the items needed
before adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise until you hear a click.
Oil gradeILSAC multigrade engine oil
Oil quantity
(Low  Full) 1.6 qt. (1.5 L, 1.3 Imp. qt.)
Items Clean funnel
STEP1
STEP2
STEP3

368 4-3. Do-it-yourself maintenance
PRIUS_U_(L/O_0802)■
Recommended viscosity
SAE 5W-30 is the best choice for
good fuel economy, and good
starting in cold weather.
*: If SAE 5W-30 oil is not avail-able, SAE 10W-30 oil may be
used. However, it should be
replaced with SAE 5W-30 at the
next oil change.
■ How to read oil container labels
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to
help you select th e oil you should use.
Outside temperature
