2008 TOYOTA PRIUS Owners Manual

233
3-3. Using the audio system
3
Interior features
PRIUS_U_(L/O_0802)
Contact the XM® Listener Care Center at
1-800-967-2346 (U.S.A.) or 1-877-
438-9677 (Canada).
■ Certifications for the radio tuner
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by trying one or more of
the following:
● Reorienting or relocating the receiving antenna.
● Increasing the separation between the equipment and receiver.
● Connecting the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consulting the dealer or an experienc ed radio/TV technician for help.
---
The channel you selected is no longer available.
Wait for about 2 seconds until the radio returns to
the previous channel or “CH001”. If it does not
change automatically, select another channel.

234
3-3. Using the audio system
PRIUS_U_(L/O_0802)

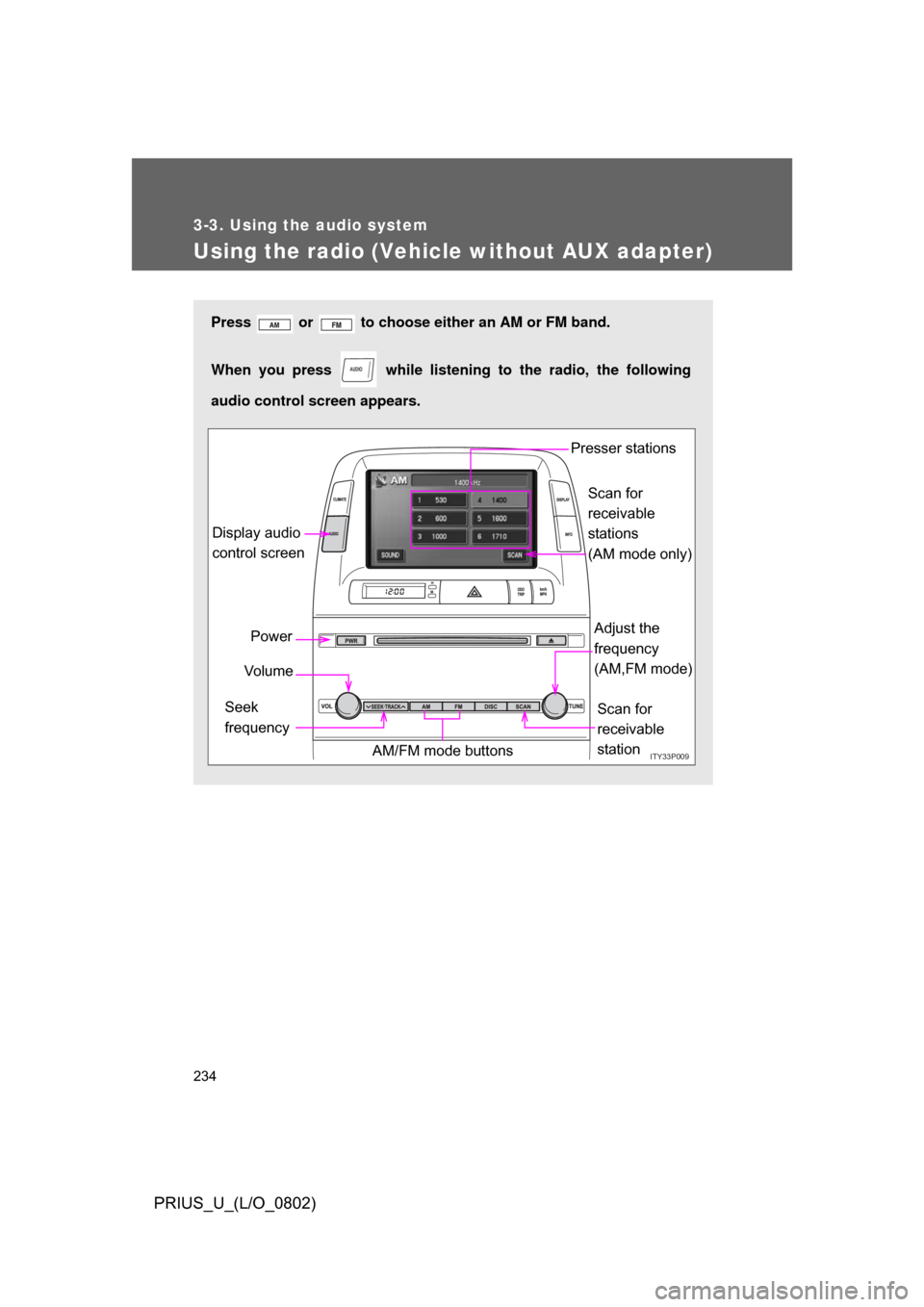

Using the radio (Vehicle without AUX adapter)
Press or to choose either an AM or FM band.
When you press while listening to the radio, the following
audio control screen appears.
AUDIO
ITY33P009
Display audio
control screen
Power
Vo l u m e
Scan for
receivable
station
Seek
frequency Adjust the
frequency
(AM,FM mode)
AM/FM mode buttons Presser stations
Scan for
receivable
stations
(AM mode only)

235
3-3. Using the audio system
3
Interior features
PRIUS_U_(L/O_0802)
Setting station presets
Search for desired stations by turning the
dial or
pressing  or  on .
Touch and hold one of the preset stations (1 - 6) until you hear
a beep.
Scanning radio stations
■ Scanning the preset radio stations
AM station
Touch on the screen or press
until “P SCAN”
appears.
Preset stations will be played for a few seconds each.
When the desired station is reached, touch or press
once again.
FM station
Press until “P SCAN” appears.
When the desired station is reached, press the button once
again.
STEP1TUNE
STEP2
STEP1SCAN
STEP2
SCAN
STEP1SCAN
STEP2

236 3-3. Using the audio system
PRIUS_U_(L/O_0802)■
Scanning all radio stations within range
AM station
Touch on the screen or press .
“SCAN” appears on the screen and all stations with reception will be
played for a few seconds each.
When the desired station is reached, touch or press
once again.
FM station
Press .
“SCAN” appears on the screen and all stations with reception will be
played for a few seconds each.
When the desired station is reached, press the button once
again.
RDS (Radio Data System)
This feature allows your radio to receive station identification informa-
tion and program information (classic al, jazz, etc.) from radio stations
which broadcast this information.
■ Receiving RDS broadcasts
Touch or on the screen.
STEP1SCAN
STEP2
SCAN
STEP1SCAN
STEP2
ITY33P010
STEP1

237
3-3. Using the audio system
3
Interior features
PRIUS_U_(L/O_0802)
The type of program changes each time the button is pressed.
●
ROCK
● EASYLIS (Easy listening)
● CLS/JAZZ (Classical music and Jazz)
● R & B (Rhythm and Blues)
● INFORM (Information)
● RELIGION
● MISC (Miscellaneous)
● ALARM (Emergency messages)
If the system receives no RDS stations, “NO PTY” appears on the display.
When a program is set, “TYPE SEEK” appears.
Touch on the screen or press  or  on .
The radio seeks or scans the station by the relevant program type.
If no radio station of that type is found, “NOTHING” appears on the
screen.
■ Displaying radio text messages
Touch on the screen.
If “MSG” appears on the screen,
a text message may be dis-
played.
STEP2
ITY33P011

238 3-3. Using the audio system
PRIUS_U_(L/O_0802)■
Traffic announcement
Touch on the screen.
“TRAF SEEK” appears on the dis-
play, and the radio will start seek-
ing any station broadcasting
traffic program information.
If no traffic program station is
found, “NOTHING” appears on
the display.
ITY33P028
■When the 12 volt battery is disconnected
All preset stations are erased.
■ Reception sensitivity
● Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
● The radio antenna is mounted on the roof. To maintain clear radio recep-
tion, do not attach metallic window tinting or other metallic objects to the
antenna wire mounted inside the rear window.

239
3-3. Using the audio system
3
Interior features
PRIUS_U_(L/O_0802)
Using the CD player (Vehicle with AUX adapter)
Insert a CD or press with a CD inserted.
When you press while listening to a CD, the following audio
control screen appears.
This illustration is a vehicle equipped with the CD changer.
AUDIO
ITY33P015
Select CD
Display track list
Search playback
CD slot Random playback
Repeat play
Power
Vo l u m e CD eject
Playback
CD load
Display audio
control screen

240 3-3. Using the audio system
PRIUS_U_(L/O_0802)
Loading a CD■ Loading a CD (CD player without changer)
Insert a CD.
■ Loading a single CD (CD player with changer)
Press .
When the indicator changes from flashing amber to green,
insert a CD after the CD player door opens.
■ Loading multiple CDs
Press and hold until you hear a beep.
When the indicator changes from flashing amber to green,
insert a CD after the CD player door opens.
After inserting a CD, wait until the indicator changes from
flashing amber to green, then insert the next CD after the CD
door has opened.
Repeat steps 2 and 3 until you have inserted all CDs.
To cancel the operation, press the or button. If you do
not insert a CD within 15 seconds, loading will be canceled automat-
ically.
Ejecting CDs
■ Ejecting a CD (CD player without changer)
Press and remover the CD.
■ Ejecting a CD (CD player with changer)
To select the CD to be eject ed, touch the desired disc number
(1 - 6) on the screen.
Press and remover the CD.
STEP1
STEP2
STEP1
STEP2
STEP3
STEP1
STEP2
