2008 TOYOTA PRIUS Owners Manual

Page 409 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 409
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(L/O_0802)
Remove the bulb.
■ Parking and front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
IT

Page 410 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 410 4-3. Do-it-yourself maintenance
PRIUS_U_(L/O_0802)■
Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
ITY43P046
STEP1
ITY43P047
STEP2

Page 411 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 411
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(L/O_0802)
■
Back-up lights, tail and  rear side maker lights
Open the back door and remove
the cover.
Turn the bulb base countercl

Page 412 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 412 4-3. Do-it-yourself maintenance
PRIUS_U_(L/O_0802)■
License plate lights
Remove the upper trim board.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Front fog lights
If  the

Page 413 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 413
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(L/O_0802)
■
Condensation build-up on th e inside of the lens
Contact  your  Toyota  dealer  for  more  information  in  the  follo

Page 414 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 414 4-3. Do-it-yourself maintenance
PRIUS_U_(L/O_0802)
CAUTION
■Replacing light bulbs
● Turn  off  the  headlights.  Do  not  attempt  to  replace  the  bulb  immediately
after turning off the hea

Page 415 of 512

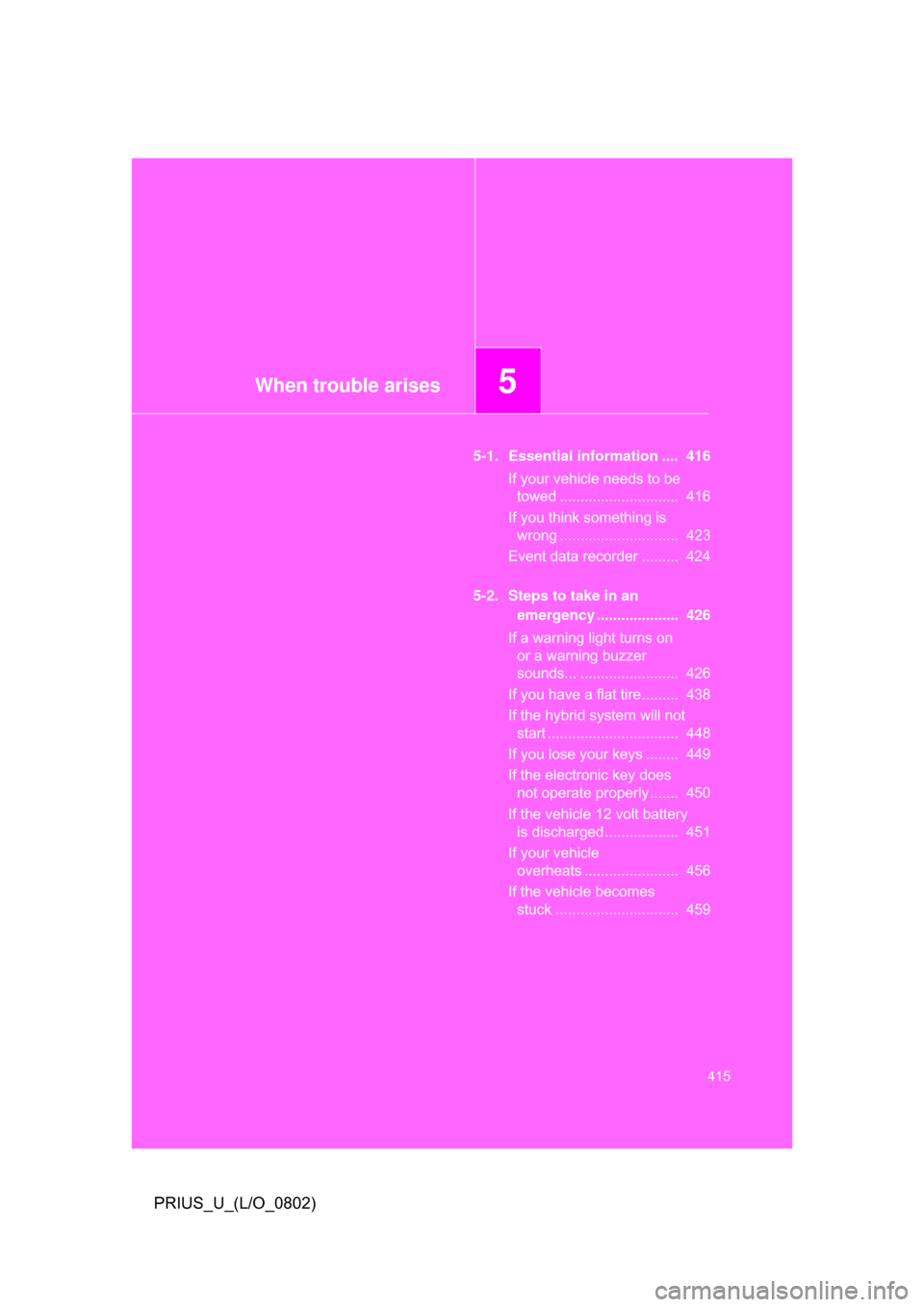

TOYOTA PRIUS 2008 2.G Owners Manual When trouble arises5
415
PRIUS_U_(L/O_0802)
5-1. Essential information ....  416If your vehicle needs to be towed .............................  416
If you think something is  wrong ..................

Page 416 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 416
PRIUS_U_(L/O_0802)
5-1. Essential information
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Toyota dealer before towing.
