2008 TOYOTA MATRIX Owners Manual

’08 MATRIX_U (L/O 0706)
31
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
To operate the moon roof, use the
switch beside the personal light.
The key must be in the “ON” position.
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the rear
side.
The sun shade will be opened together
with the roof.
To close: Push the switch on the front
side.
As a precaution when closing, the roof
stops at the half closed position before
fully closing. Therefore, release the switch
and then push it again to close it com-
pletely.
Tilting operation—
To tilt up: Push the switch on the “UP”
side.
To lower: Push the switch on the opposite
side of the “UP” side.
You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released except to slide open.CAUTION
To avoid death or serious personal
injury, you must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be killed or seri-
ously injured if the vehicle stops
suddenly or if the vehicle is in-
volved in an accident.
Before you close the moon roof,
always make sure there is nobody
around the moon roof. You must
also make sure nobody places his
or her head, hands and other parts
of the body in the roof opening. If
someone’s neck, head or hands get
caught in the closing roof, it could
result in death or serious injury.
When anyone closes the moon roof,
first make sure it is safe to do so.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the moon roof switches and get
trapped in the roof opening. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Never sit on top of the vehicle
around the roof opening.

’08 MATRIX_U (L/O 0706)
32
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

’08 MATRIX_U (L/O 0706)
33
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Occupant restraint systems
Seats34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Fold −down rear seat 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Head restraints 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Seat belts 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS airbags 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Child restraint 67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 3

’08 MATRIX_U (L/O 0706)
34
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a foldeddown seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be killed
or severely injured in the event of
emergency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
death or severe injuries can occur
in the event of emergency braking
or a collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, nonslippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seats—
—Front seat precautions

’08 MATRIX_U (L/O 0706)
35
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Front passenger seat

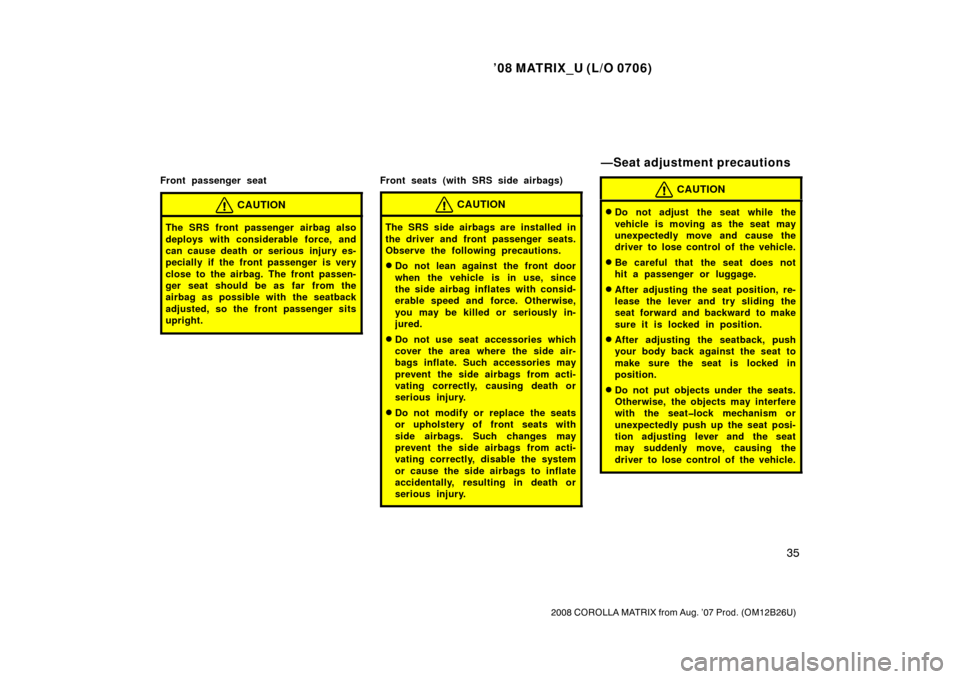

CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of front seats with
side airbags. Such changes may
prevent the side airbags from acti-
vating correctly, disable the system
or cause the side airbags to inflate
accidentally, resulting in death or
serious injury.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
—Seat adjustment precautions

’08 MATRIX_U (L/O 0706)
36
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

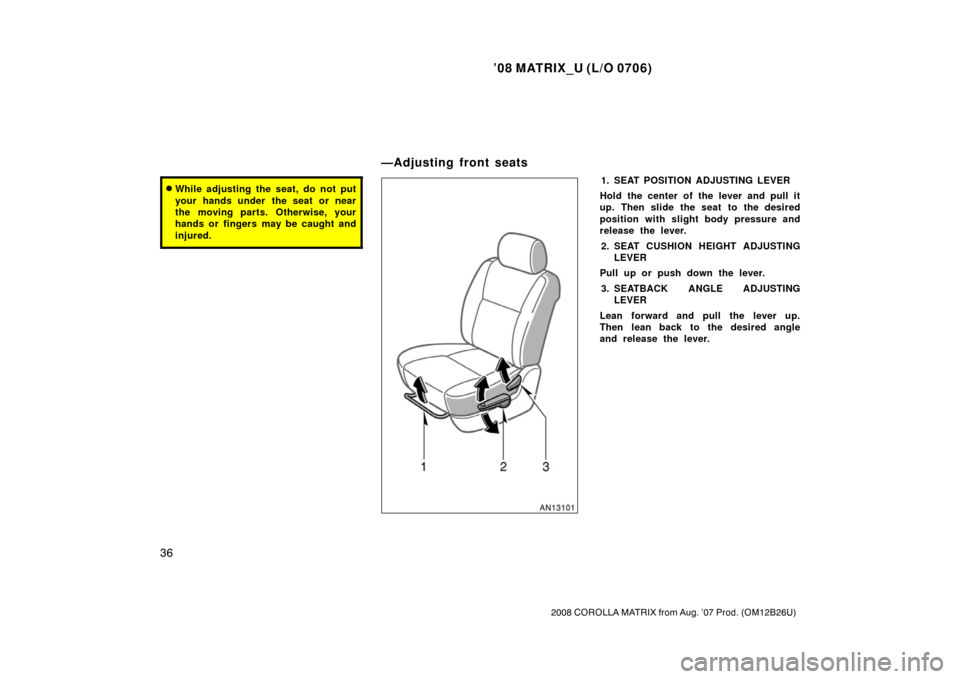

While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and
injured.1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT CUSHION HEIGHT ADJUSTING LEVER
Pull up or push down the lever.
3. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
—Adjusting front seats

’08 MATRIX_U (L/O 0706)
37
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

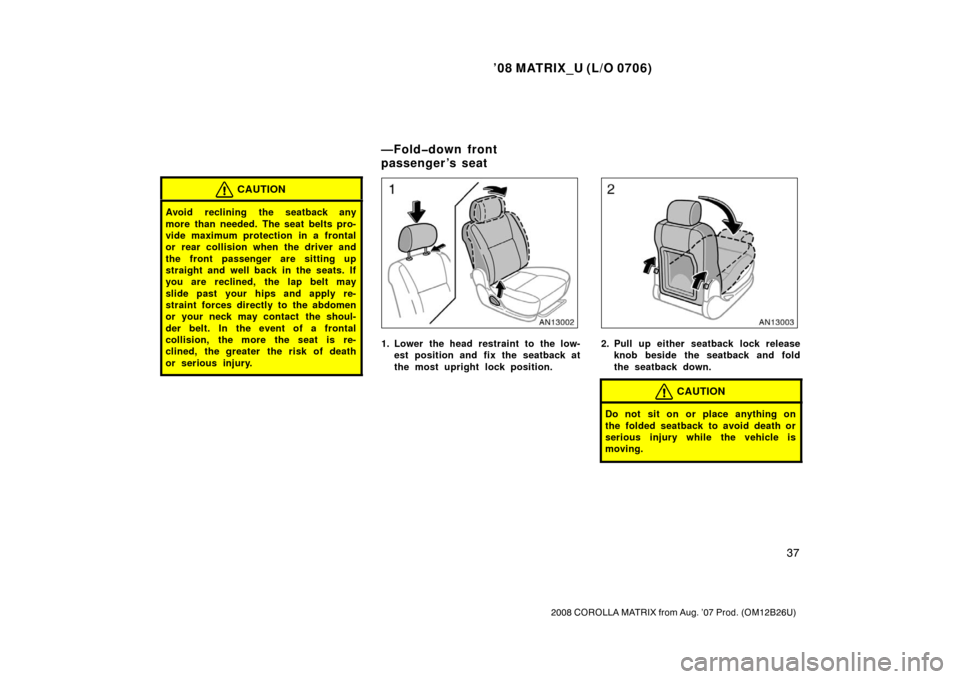

CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.
1. Lower the head restraint to the low-est position and fix the seatback at
the most upright lock position.2. Pull up either seatback lock releaseknob beside the seatback and fold
the seatback down.
CAUTION
Do not sit on or place anything on
the folded seatback to avoid death or
serious injury while the vehicle is
moving.
—Folddown front
passenger ’s seat

’08 MATRIX_U (L/O 0706)
38
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
You can use the front passenger ’s seat-
back as a temporary table only when the
vehicle is stopped.
CAUTION
To avoid death or serious injury:
Do not set up the seatback table
while the vehicle is moving.
Do not sit on the seatback table.
NOTICE
To prevent damage to the seat, avoid
putting heavy loads on the temporary
table.
CAUTION
When returning the seatback to the
upright position, make sure the seat-
back is securely locked by pushing
forward and rearward on the top of
the seatback. Failure to do so will
prevent seat belt from operating prop-
erly.
Lower the head restraints to the lowest
position. Pull up the lock release button
and fold the seatback down.
Each seatback can be folded separately.
This will enlarge the luggage compartment
as far as the seatbacks. See “—Stowage
precautions” on page 211 in Section 2 for
precautions when loading luggage.
Folddown rear seat
