2008 TOYOTA MATRIX Owners Manual

’08 MATRIX_U (L/O 0706)
135
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Under certain circumstances, the cruise
control is temporarily cancelled:
When vehicle speed falls below 40
km/h (25 mph)
When vehicle stability control is acti-
vated
When vehicle speed drops 16 km/h (10
mph) below the set speed, the cruise con-
trol is cancelled and the set speed is
erased from memory.
The “CRUISE” indicator light remains on
to indicate that the system is still in op-
eration.
To turn the cruise control off, press the
“ON −OFF” button. Make sure the
“CRUISE” indicator light is off.
If the cruise control automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESUMING THE CRUISE CONTROL
If the cruise control is temporarily can-
celled, the cruising speed can be resumed
by pushing the lever up in the “+ RES”
direction.
Vehicle speed must be above 40 km/h (25
mph). RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “
− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
On vehicles with automatic transmission,
even if you turn off the overdrive switch
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control lever or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled. CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light flashes
when using the cruise control, press the
“ON
−OFF” button to turn the system off
and then press it again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

’08 MATRIX_U (L/O 0706)
136
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

’08 MATRIX_U (L/O 0706)
137
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

OPERATION OF INSTRUMENTS AND
CONTROLS
Audio system
Reference138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio system operating hints 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 8

’08 MATRIX_U (L/O 0706)
138
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Type 1: AM·FM radio/compact disc player
(with compact disc changer controller)
Type 2: AM·FM radio/compact disc player
with changer
This Section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
You can turn on compact disc player by
inserting compact disc.
The audio system will change to the radio
mode when a compact disc is ejected dur-
ing play.
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM”, “FM1·2” or “DISC” if the
system is already on but you want to
switch from one function to another.
TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange (on some models of
type 2) and bass levels. In fact, different
kinds of music and vocal programs usually
sound better with different mixes of treble,
midrange and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
YOUR RADIO ANTENNA
Your vehicle has a mast type antenna.
To remove the antenna, carefully turn it
counterclockwise.
NOTICE
To prevent damage to the antenna,
make sure it is removed before driv-
ing your Toyota through an automatic
car wash.
Reference
Using your audio system—
—Some basics

’08 MATRIX_U (L/O 0706)
139
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
YOUR COMPACT DISC PLAYER (type 1)
When you insert a disc, gently push it in
with the label side up. The player will play
from track 1 through to the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.
YOUR COMPACT DISC PLAYER WITH
CHANGER (type 2)
When you insert a disc, push the “LOAD”
button, wait for the load/eject status light
to turn green, then gently push the disc
in with the label side up. The player will
play from track 1 through to the end of
the disc. Then it will play from track 1 of
the next disc.
The player is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE
Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc player. Insert only
one compact disc into slot at a
time.
 Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.

’08 MATRIX_U (L/O 0706)
140
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Details of specific buttons, controls and
features are described in the alphabetical
list that follows.
—Controls and features

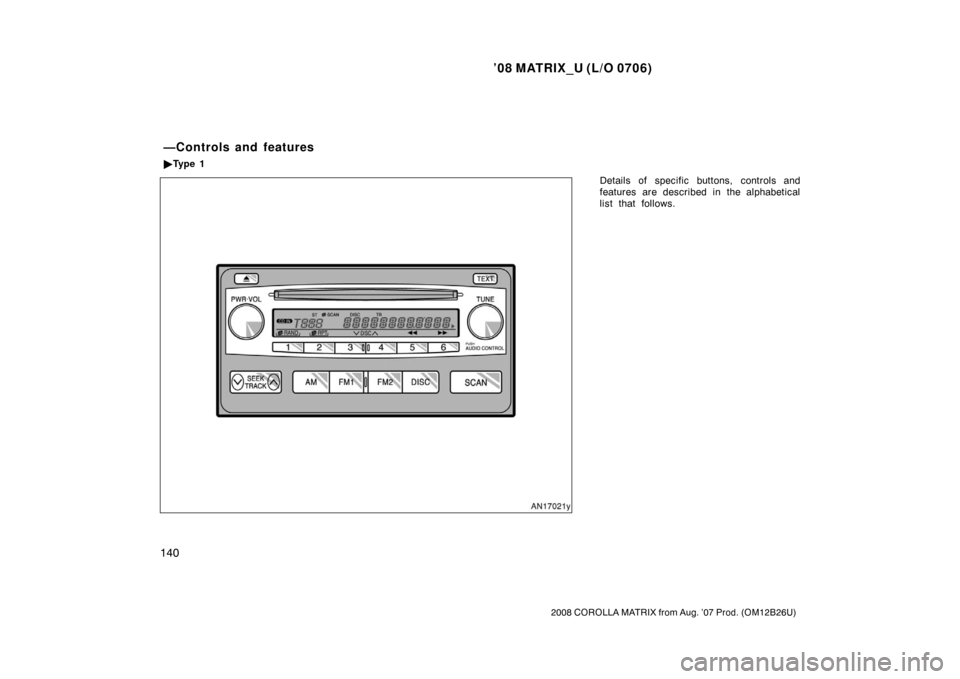

Ty p e 1

’08 MATRIX_U (L/O 0706)
141
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE” or
“SEEK”.) Push and hold down the button
until you hear a beep—this will set the
station to the button. The preset button
number will appear on the display.
To recall a preset station: Push the button
for the station you want. The preset but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button. (The display
will show “AM”, “FM1” or “FM2” when you
push “AM” or “FM” button.)
(Eject button)
Push the compact disc eject button to
eject a compact disc.
(Reverse/Fastforward button)
Push and hold “
” (preset button 6) or
“
” (preset button 5) to fast forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing. AM
Push the “AM” button to turn on the radio
and select the AM band. “AM” will appear
on the display.
AUDIO CONTROL (Tone and sound bal-
ance adjustment function)
Each time you push the “AUDIO
CONTROL” knob, the mode changes. To
adjust the tone and balance, turn the
knob.
BAS: Adjusts low
−pitched tones. The dis-
play ranges from −5 to 5.
TRE: Adjusts high −pitched tones. The dis-
play ranges from −5 to 5.
FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7.
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7.
DISC (Compact disc)
Push the “DISC” button to play a compact
disc.
When the audio system is set into com-
pact disc operation, the display shows the
track, or track and disc number currently
being played. Error messages
If the player malfunctions, your audio sys-
tem will display following error messages.
“WAIT”:
The compact disc player unit
may be too hot. Allow the player to cool
down.
“ERROR 1”: The disc may be dirty, dam-
aged or inserted incorrectly (up −side
down). Clean the disc and re −insert it.
“NO DISC”: The compact disc changer of
separate unit is empty. Insert a disc.
“ERROR 3”: There is a problem inside
the system. Eject the disc or magazine.
Set the disc or magazine again.
“ERROR 4”: Over−current. Ask your
Toyota dealer to inspect.
“CD OPEN”: The compact disc changer
lid of separate unit is open. Close the
compact disc changer lid.
If the malfunction still exists, take your
vehicle to your Toyota dealer.

’08 MATRIX_U (L/O 0706)
142
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
 DISC
With compact disc changer only—
Use these buttons to select a disc you
want to listen to.
Push “ ” (preset button 3) or “ ” (preset
button 4) until the number of the disc you
want to listen appears on the display.
FM
Push the “FM” button to turn on the radio
and select the FM band. “FM1” or “FM2”
will appear on the display. This system
allows you to set twelve FM stations, two
for each of the preset button.
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume. RAND (Random)
There are two random features—you can
either listen to the tracks on one compact
disc in random order, or listen to the
tracks on all the compact discs in the
magazine in random order.
To play the tracks on one disc in random
order:
Quickly push and release “RAND” (preset
button 1). “
” will appear on the
display and the player will perform the
tracks on the disc you are listening to in
random order. To turn off the random fea-
ture, push this button again.
With compact disc changer only—
To play all the tracks in the magazine in
random order:
Push and hold “RAND” (preset button 1)
until you hear a beep. “
” will ap-
pear on the display and the player will
perform all the tracks on all the discs in
the magazine in random order. To turn off
the random feature, push this button
again. RPT (Repeat)
There are two repeat features—you can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” (preset
button 2) while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again.
With compact disc changer only—
Repeating a disc:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the first track on
the disc and replay. To turn off the repeat
feature, push this button again.
