2008 TOYOTA MATRIX Owners Manual

’08 MATRIX_U (L/O 0706)
295
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Light bulbsBulbNo.WTy p e
Interior lights—8D

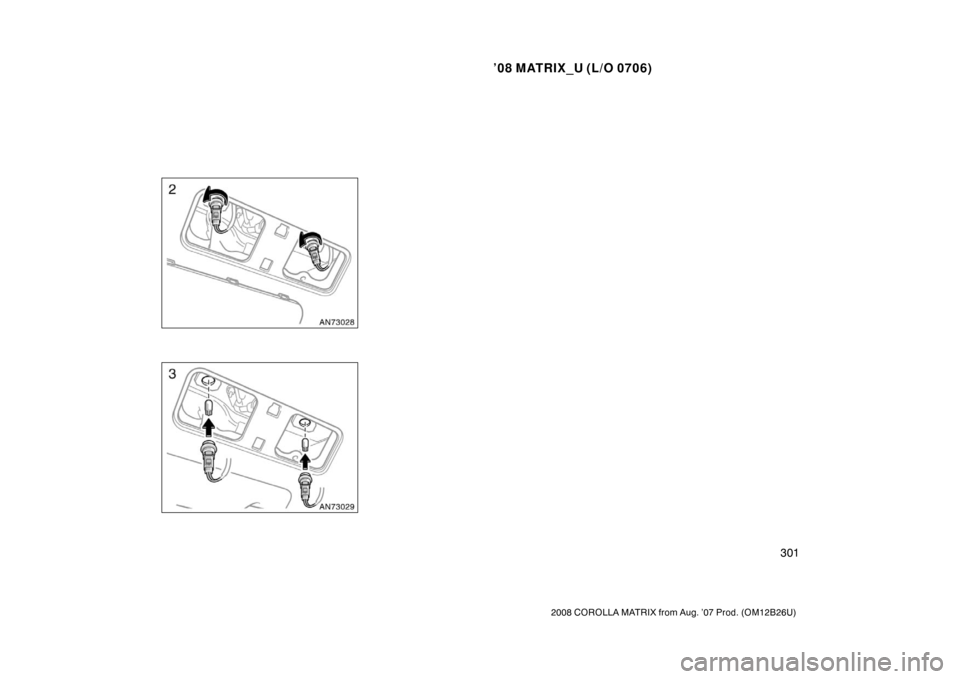

Personal lights
(on the inside
rear view mirror
without compass)
1924.3D
Personal lights
(on the switch
panel of the
electric moon
roof)
—10C
A: HB4 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs
D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber)1. Open the hood. Turn the bulb base counterclockwise to the front of the
vehicle as shown.2. Unplug the connector.
If the connector is tight, wiggle it.
—Headlights (low beam)

’08 MATRIX_U (L/O 0706)
296
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
3. Install a new bulb and connectorinto the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.1. Open the hood. LEFTHAND HEADLIGHT: Remove the
clip and pull out and twist the air
cleaner duct unit as shown.Removing the clip
Installing the clip
—Headlights (high beam)

’08 MATRIX_U (L/O 0706)
297
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
2. Turn the bulb base counterclockwiseto the front of the vehicle.3. Unplug the connector.
If the connector is tight, wiggle it.4. Install a new bulb and connector into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

’08 MATRIX_U (L/O 0706)
298
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
If either the left or right front fog light
bulbs burns out, contact your Toyota
dealer.
NOTICE
Do not try to replace the front fog
light bulbs by yourself. You may dam-
age the vehicle.

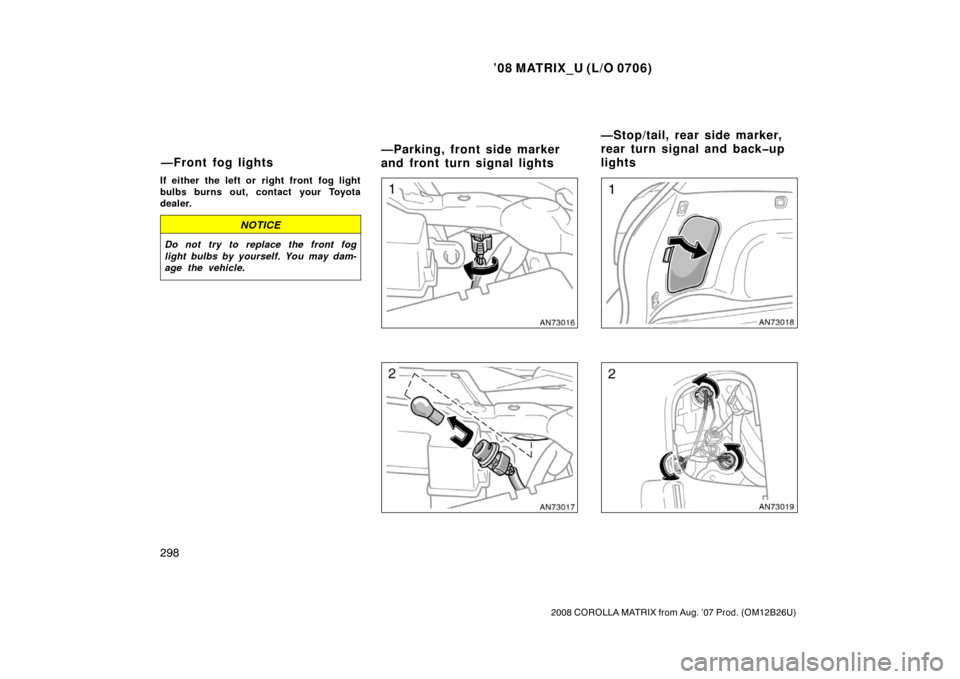

—Front fog lights—Parking, front side marker
and front turn signal lights—Stop/tail, rear side marker,
rear turn signal and backup
lights

’08 MATRIX_U (L/O 0706)
299
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
a: Stop/tail and rear side marker light
b: Rear turn signal light
c: Backup lightRemove the clips and the cover.Removing the clips
Installing the clips

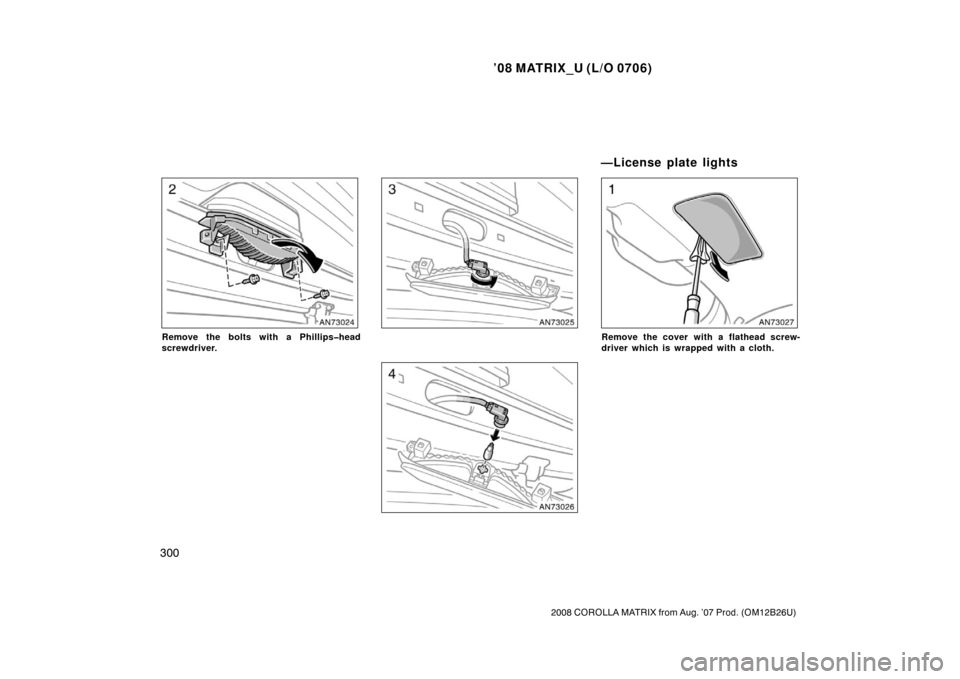

—High mounted stoplight

’08 MATRIX_U (L/O 0706)
300
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Remove the bolts with a Phillipshead
screwdriver.Remove the cover with a flathead screw-
driver which is wrapped with a cloth.
—License plate lights

’08 MATRIX_U (L/O 0706)
301
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

’08 MATRIX_U (L/O 0706)
302
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
