2008 TOYOTA MATRIX Owners Manual

’08 MATRIX_U (L/O 0706)
199
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

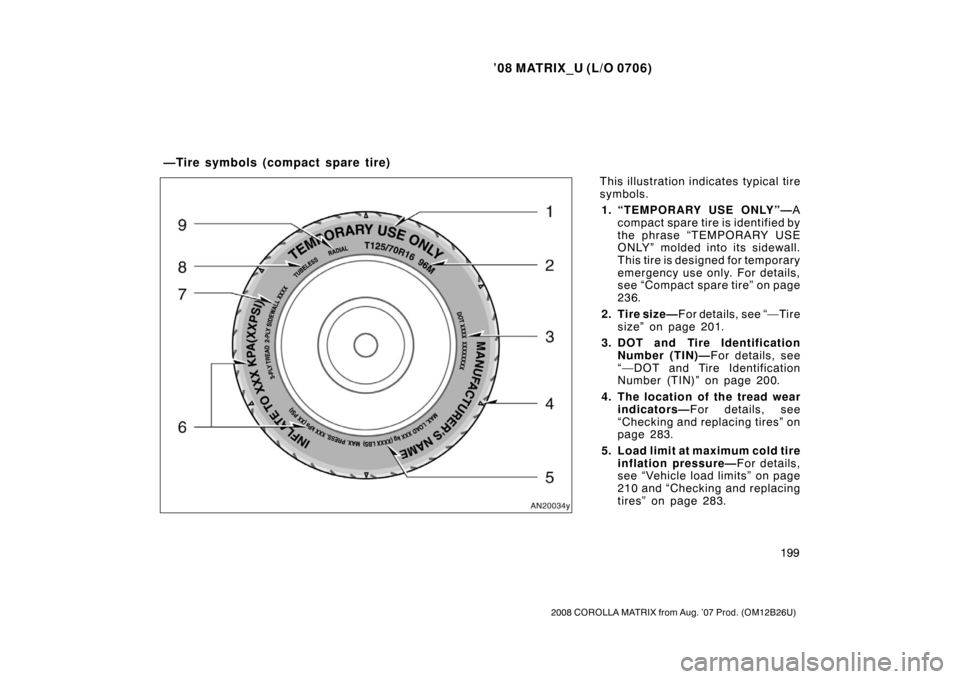

This illustration indicates typical tire
symbols.1. “TEMPORARY USE ONLY”— A
compact spare tire is identified by
the phrase “TEMPORARY USE
ONLY” molded into its sidewall.
This tire is designed for temporary
emergency use only. For details,
see “Compact spare tire” on page
236.
2. Tire size— F or det ails, see “— Ti re
size” on page 201.
3. DOT and Tire Identification Number (TIN)— For details, see
“—DOT and Tire Identification
Number (TIN)” on page 200.
4. The location of the tread wear indicators— For details, see
“Checking and replacing tires” on
page 283.
5. Load limit at maximum cold tire inflation pressure— For details,
see “Vehicle load limits” on page
210 and “Checking and replacing
tires” on page 283.
—Tire symbols (compact spare tire)

’08 MATRIX_U (L/O 0706)
200
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
6. Maximum cold tire inflationpressure— This means the pres-
sure to which a tire may be in-
flated. For details about recom-
mended cold tire inflation
pressure, see “Tires” on page 308.
7. Tire ply composition and mate- rials— Plies mean a layer of rub-
ber −coated parallel cords. Cords
mean the strands forming the plies
in the tire.
8. “TUBELESS” or “TUBE TYPE”— A tubeless tire does not
have a tube inside the tire and air
is directly filled in the tire. A tube
type tire has a tube inside the tire
and the tube maintains the air
pressure.
9. Radial tires or biasply tires— A
radial tire has “RADIAL” on the
sidewall. A tire not marked with
“RADIAL” is a bias −ply tir e.
This illustration indicates typical DOT
and Tire Identification Number (TIN).
1. “DOT” symbol
2. Tire Identification Number (TIN)
3. Tire manufacturer ’s identification mark
4. Tire size code
5. Manufacturer ’s optional tire type code (3 or 4 letters)
6. Manufacturing week
7. Manufacturing year The “DOT” symbol certifies that the
tire conforms to applicable Federal
Motor Vehicle Safety Standards.
—DOT and Tire Identification
Number (TIN)

’08 MATRIX_U (L/O 0706)
201
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Ty p e A
Ty p e BThis illustration indicates typical tire
size.
1. Tire use (P=Passenger car, T=Temporary use)
2. Section width (in millimeters)
3. Aspect ratio (tire height to section width)
4. Tire construction code (R=Radial, D=Diagonal)
5. Wheel diameter (in inches)
6. Load index (2 digits or 3 digits)
7. Speed symbol (alphabet with one letter)
8. Speed category (alphabet with one letter)
1. Section width
2. Tire height
3. Wheel diameter
—Tire size

’08 MATRIX_U (L/O 0706)
202
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
1. Bead
2. Sidewall
3. Shoulder
4. Tread
5. Belt
6. Inner liner
7. Reinforcing rubber
8. Carcass
9. Rim lines
10.Bead wires
11. Chafer This information has been prepared
in accordance with regulations issued
by the National Highway Traffic Safe-
ty Administration of the U.S. Depart-
ment of Transportation. It provides
the purchasers and/or prospective
purchasers of Toyota vehicles with in-
formation on uniform tire quality grad-
ing.
Your Toyota dealer will help answer
any questions you may have as you
read this information.
DOT quality grades—All passenger
vehicle tires must conform to Fed-
eral Safety Requirements in addi-
tion to these grades. Quality
grades can be found where appli-
cable on the tire sidewall between
tread shoulder and maximum sec-
tion width. For example: Treadwear
200 Traction AA Temperature A
Treadwear—
The treadwear grade is
a comparative rating based on the
wear rate of the tire when tested un-
der controlled conditions on a speci-
fied government test course. For ex-
ample, a tire graded 150 would wear
one and a half (1 −1/2) times as well
on the government course as a tire
graded 100. The relative performance
of tires depends upon the actual
conditions of their use, however, and
may depart significantly from the
norm due to variations in driving hab-
its, service practices and differences
in road characteristics and climate.
—Name of each section of tire —Uniform tire quality grading

’08 MATRIX_U (L/O 0706)
203
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Traction AA, A, B, C—The traction
grades, from highest to lowest, are
AA, A, B, and C, and they represent
the tire’s ability to stop on wet pave-
ment as measured under controlled
conditions on specified government
test surfaces of asphalt and concrete.
A tire marked C may have poor trac-
tion performance.
Warning: The traction grade assigned
to this tire is based on braking
(straight ahead) traction tests and
does not include cornering (turning)
traction. Temperature A, B, C—
T he tem per a-
ture grades are A (the highest), B,
and C, representing the tire’s resis-
tance to the generation of heat and
its ability to dissipate heat when
tested under controlled conditions on
a specified indoor laboratory test
wheel. Sustained high temperature
can cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure. The grade C cor-
responds to a level of performance
which all passenger car tires must
meet under the Federal Motor Vehicle
Safety Standard No.109. Grades B
and A represent higher levels of per-
formance on the laboratory test wheel
than the minimum required by law.
Warning: The temperature grades for
this tire are established for a tire that
is properly inflated and not over-
loaded. Excessive speed, underinfla-
tion, or excessive loading, either sep-
arately or in combination, can cause
heat buildup and possible tire failure.

’08 MATRIX_U (L/O 0706)
204
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Ti r e relat ed ter mMeaning
Cold tire inflation pressure
tire inflation pressure when the vehicle has been parked for at least 3
hours or more, or it has not been driven more than 1.5 km or 1 mile
under that condition
Maximum inflation pressurethe maximum cold inflation pressure to which a tire may be inflated and it
is shown on the sidewall of the tire
Recommended inflation pressurecold tire inflation pressure recommended by a manufacturer
Accessory weight
the combined weight (in excess of those standard items which may be
replaced) of automatic transmission, power steering, power brakes, power
windows, power seats, radio, and heater, to the extent that these items
are available as factory −installed equipment (whether installed or not)
Curb weight
the weight of a motor vehicle wi th standard equipment including the
maximum capacity of fuel, oil, and coolant, and, if so equipped, air
conditioning and additional weight optional engine
Maximum loaded vehicle weight
t he sum of —
(a) curb weight;
(b) accessory weight;
(c) vehicle capacity weight; and
(d) production options weight
Normal occupant weight68 kg (150 lb.) times the number of occupants specified in the second
column of Table 1 that follows
Occupant distributiondistribution of occupants in a vehicle as specified in the third column of Table
1 that follows
—Glossary of tire terminology

’08 MATRIX_U (L/O 0706)
205
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Ti r e relat ed ter mMeaning
Production options weight
the combined weight of those installed regular production options weighing
over 2.3 kg (5 lb.) in excess of those standard items which they replace,
not previously considered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special
trim
Rima metal support for a tire or a tire and tube assembly upon which the tire beads
are seated
Rim diameter (Wheel diameter)nominal diameter of the bead seat
Rim size designationrim diameter and width
Rim type designationthe industry of manufacturer ’s designation for a rim by style or code
Rim widt hnominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)the rated cargo and luggage load plus 68 kg (150 lb.) times the vehicle’s desig-
nated seating capacity
Vehicle maximum load on the tirethe load on an individual tire that is determined by distributing to each axle
its share of the maximum loaded vehicle weight and dividing by two
Vehicle normal load on the tire
the load on an individual tire that is determined by distributing to each axle
its share of the curb weight, accessory weight, and normal occupant weight
(distributed in accordance with Table 1 that follows) and dividing by two
Weather sidethe surface area of the rim no t covered by the inflated tire
Beadthe part of the tire that is made of steel wires, wrapped or reinforced by ply
cords and that is shaped to fit the rim

’08 MATRIX_U (L/O 0706)
206
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Ti r e relat ed ter mMeaning
Bead separationa breakdown of the bond between components in the bead
Bias ply tirea pneumatic tire in which the ply cords that extend to the beads are laid at
alternate angles substantially less than 90 degrees to the centerline of the tread
Carcassthe tire structure, except tread and sidewall rubber which, when inflated, bears
the load
Chunkingthe breaking away of pieces of the tread or sidewall
Cordthe strands forming the plies in the tire
Cord separationthe parting of cords from adjacent rubber compounds
Crackingany parting within the tread, sidewall, or innerliner of the tire extending to cord
material
CT
a pneumatic tire with an inverted flange tire and rim system in which the rim
is designed with rim flanges pointed radi ally inward and the tire is designed
to fit on the underside of the rim in a manner that encloses the rim flanges
inside the air cavity of the tire
Extra load tirea tire designed to operate at higher loads and at higher inflation pressures
than the corresponding standard tire
Groovethe space between two adjacent tread ribs
Innerlinerthe layer(s) forming the inside surface of a tubeless tire that contains the inflat-
ing medium within the tire
