2008 TOYOTA MATRIX Owners Manual

’08 MATRIX_U (L/O 0706)
ix
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Leak detection pump
This pump performs fuel evaporation leakage check. This
check is done approximately five hours after the engine is
turned off. So you may hear sound coming from under-
neath the luggage compartment for several minutes. It
does not indicate a malfunction.
Perchlorate Material
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate.
These components may include airbag, seat belt preten-
sioners, and wireless remote control batteries.

’08 MATRIX_U (L/O 0706)
x
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

’08 MATRIX_U (L/O 0706)
1
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 6
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

’08 MATRIX_U (L/O 0706)
2
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

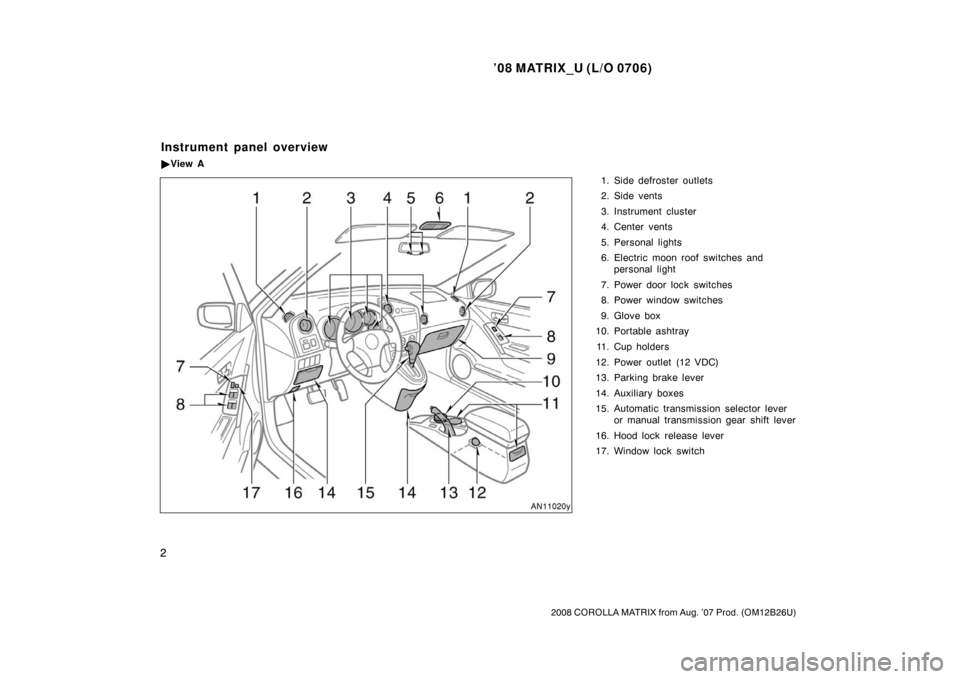

1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switches andpersonal light
7. Power door lock switches
8. Power window switches
9. Glove box
10. Portable ashtray
11. Cup holders
12. Power outlet (12 VDC)
13. Parking brake lever
14. Auxiliary boxes
15. Automatic transmission selector lever or manual transmission gear shift lever
16. Hood lock release lever
17. Window lock switch
Instrument panel overview
 View A

’08 MATRIX_U (L/O 0706)
3
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
1. Power rear view mirror control switches
2. Instrument panel light control dial
3. Headlight, turn signal and front foglight switches
4. Wiper and washer switches
5. Air conditioning controls
6. Rear window defogger switch
7. Emergency flasher switch
8. Clock
9. Front passenger ’s seat belt reminder light/front pass enger occupant
classification indicator light
10. Audio system
11. Auxiliary box or power outlet (115 VAC)
12. Power outlet (12 VDC) or cigarette lighter
13. Ignition switch
14. Cruise control switch
15. Tilt steering lock release lever
16. “TRAC OFF” (traction control system off) switch
17. Engine immobilizer system/Toyota vehicle intrusion protection system
indicator light

View B

’08 MATRIX_U (L/O 0706)
4
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
18. Tire pressure warning system resetswitch
19. Glass hatch opener switch

’08 MATRIX_U (L/O 0706)
5
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
1. Tachometer
2. Service reminder indicators andindicator lights
3. Speedometer 4. Fuel gauge
5. Low fuel level warning light
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer, two trip meters and outside
temperature display
Instrument cluster overview

’08 MATRIX_U (L/O 0706)
6
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Brake system warning light∗1
Charging system warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
SRS warning light∗1
Driver ’s seat belt reminder light∗1Open door warning light∗1
Anti −lock brake system warning light∗
1or
Low windshield washer fluid level warning light∗1
or Front passenger ’s seat belt reminder light
∗
1
or
Vehicle stability control system/traction control
system warning light∗1
Low tire pressure warning light∗1
Engine oil replacement reminder light∗1
Front passenger occupant classification indicator
light
Indicator symbols on the instrument panel
