2008 TOYOTA HIGHLANDER HYBRID Owners Manual

377
3-6. Using the
storage features
3
Interior features
Pull the lock release lever to
remove the side table.
Stow the side table in the con-
sole box.
Push down on the end to engage
the pins in the holes and close
the console box door.
Make sure that the side table is
securely locked in position.
STEP2
STEP3
STEP4
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
Side table

378
3-7. Other interior features

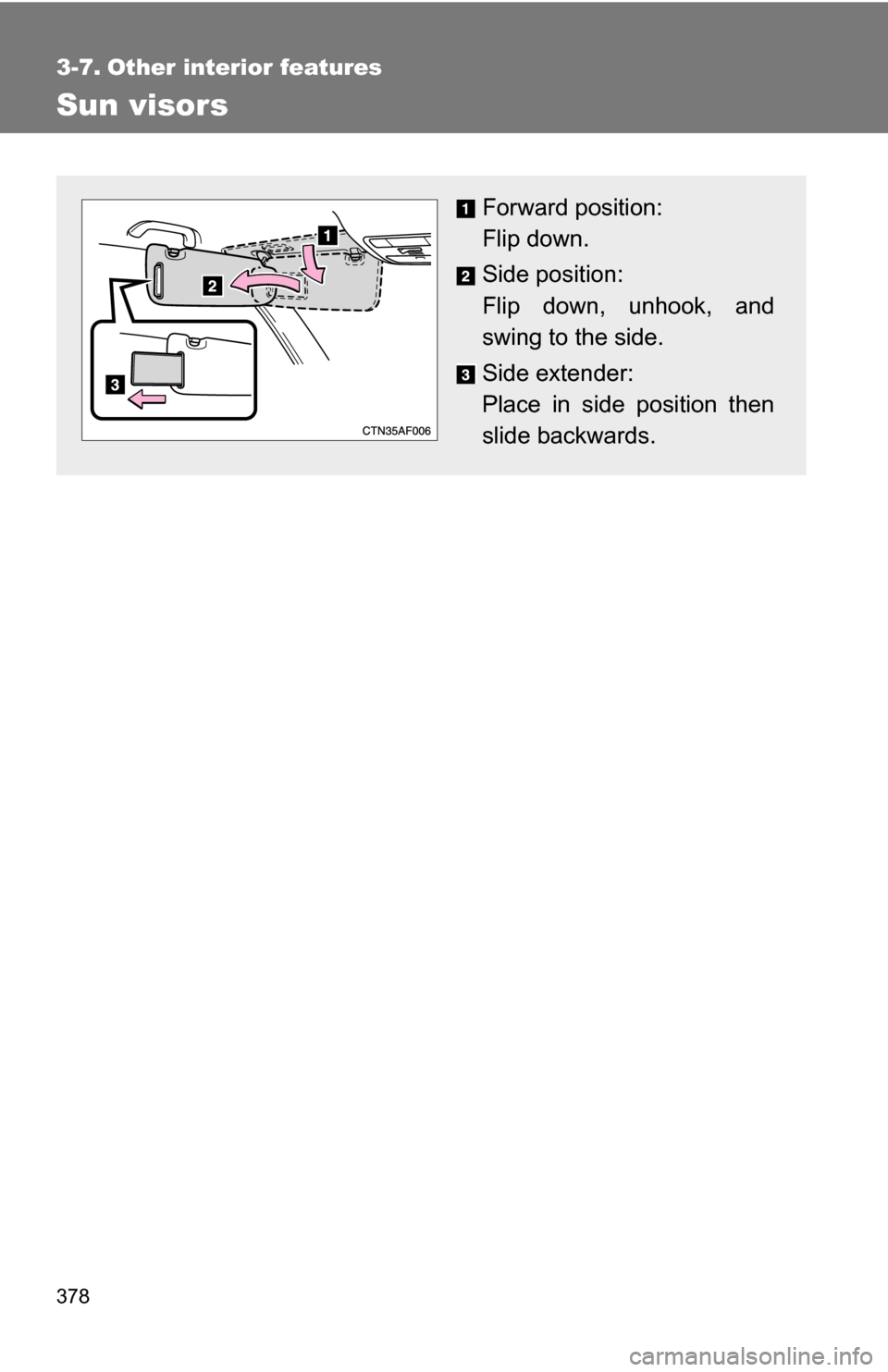

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.
Side extender:
Place in side position then
slide backwards.

379
3-7. Other interior features
3
Interior features
Vanity mirror
NOTICE
■To prevent the 12-volt battery from being discharged
Do not leave the vanity lights on for extended periods while the hybrid sys-
tem is off.
Slide the cover.
The light turns on when the
cover is opened. (vehicles with
vanity mirror light)

380
3-7. Other interior features
Conversation mirror
Press in the lid.
Lower the overhead con-
sole.
Push the lid back up half
way.
The top of the mirror catch
in position.

381
3-7. Other interior features
3
Interior features

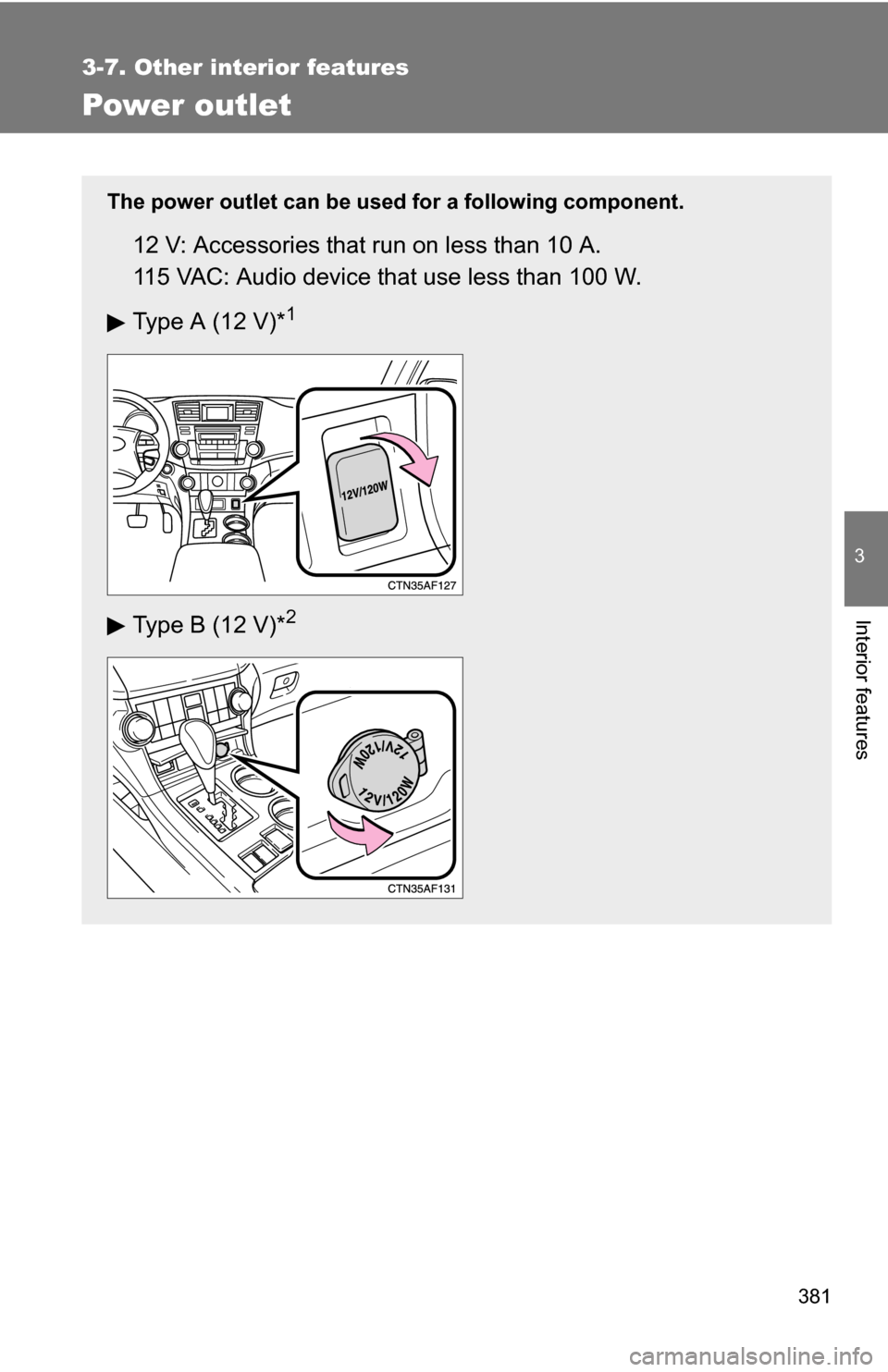

Power outlet
The power outlet can be used for a following component.
12 V: Accessories that run on less than 10 A.
115 VAC: Audio device that use less than 100 W.
Type A (12 V)*
1
Type B (12 V)*2

382 3-7. Other interior features

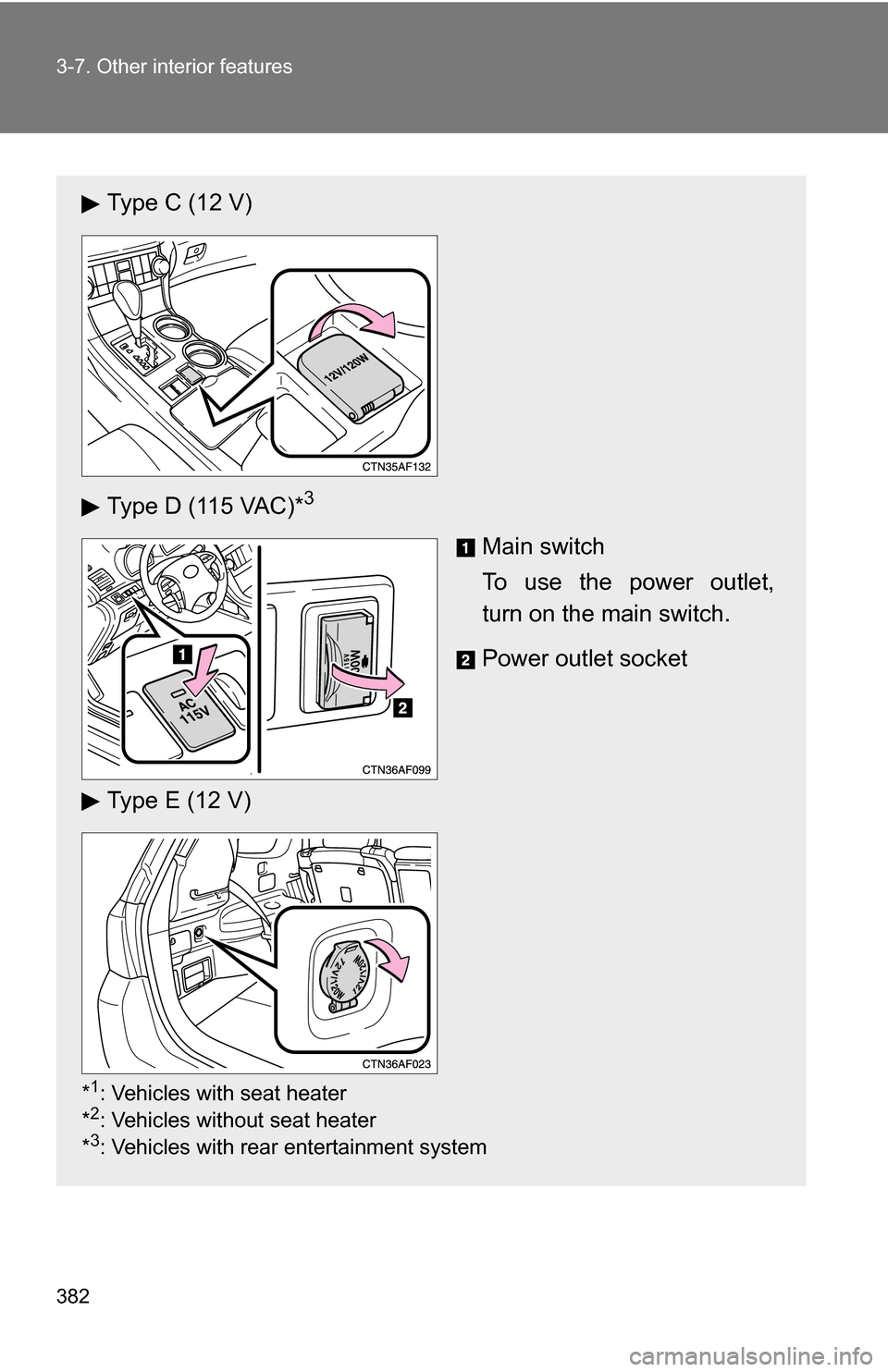

Type C (12 V)
Type D (115 VAC)*
3
Main switch
To use the power outlet,
turn on the main switch.
Power outlet socket
Type E (12 V)
*1: Vehicles with seat heater
*2: Vehicles without seat heater
*3: Vehicles with rear entertainment system

383
3-7. Other interior features
3
Interior features
■
The power outlet can be used when
12 V
The “POWER” switch is in ACCESSORY or ON mode.
115 VAC
The “POWER” switch is in the ON mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
12 V
Do not use an accessory that uses more than 12 V 10 A.
115 VAC
Do not use a 115 VAC appliance that requires more than 100 W.
If a 115 VAC appliance that consumes more than 100 W is used, the pro-
tection circuit will cut the power supply.
■ To prevent the 12-volt battery from being discharged
Do not use the power outlet longer than necessary when the hybrid system
is off.
■ Appliances that may not operate properly (115 VAC)
The following 115 VAC appliances may not operate properly even if their
power consumption is under 100 W.
●Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply

384
3-7. Other interior features

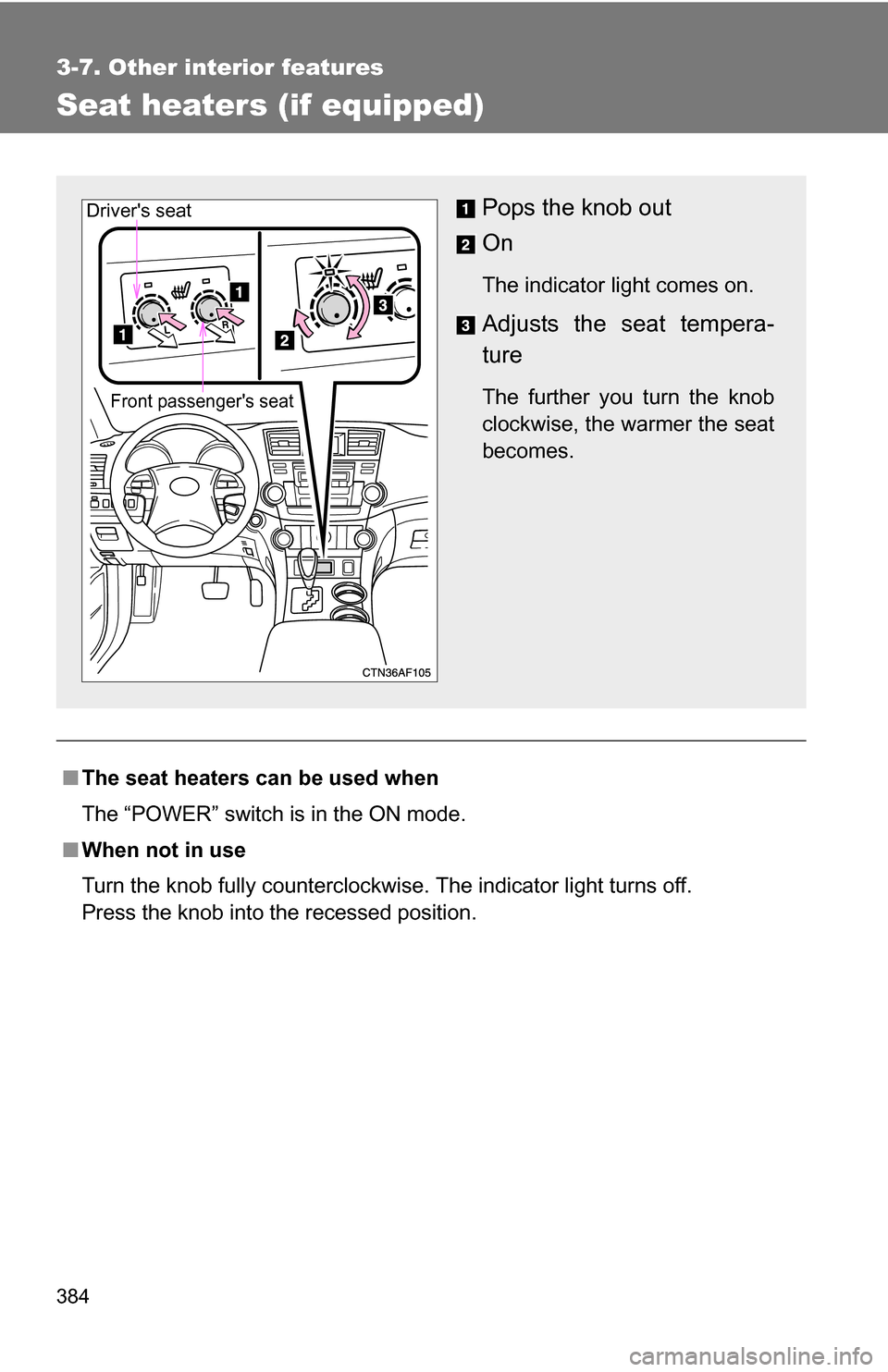

Seat heaters (if equipped)
■The seat heaters can be used when
The “POWER” switch is in the ON mode.
■ When not in use
Turn the knob fully counterclockwise. The indicator light turns off.
Press the knob into the recessed position.
Pops the knob out
On
The indicator light comes on.
Adjusts the seat tempera-
ture
The further you turn the knob
clockwise, the warmer the seat
becomes.Front passenger's seat
Driver's seat
