2008 TOYOTA HIGHLANDER HYBRID Owners Manual

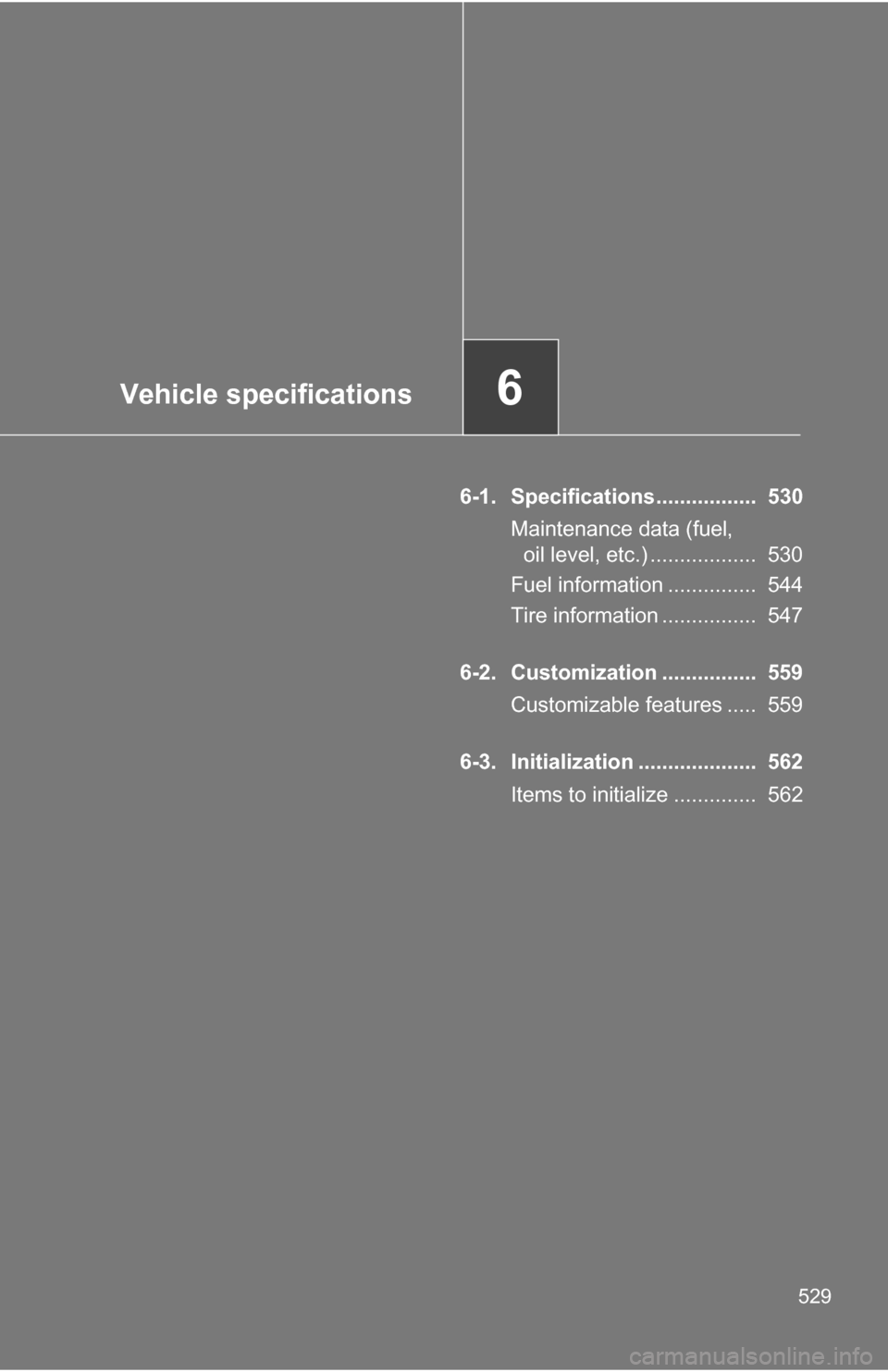

Vehicle specifications6
529
6-1. Specifications................. 530Maintenance data (fuel, oil level, etc.) .................. 530
Fuel information ............... 544
Tire information ................ 547
6-2. Customization ................ 559 Customizable features ..... 559
6-3. Initialization .................... 562 Items to initialize .............. 562

530
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length188.4 in. (4785 mm)
Overall width75.2 in. (1910 mm)
Overall height Without roof rails
68.1 in. (1730 mm)
With roof rails
69.3 in. (1760 mm)
Wheelbase
109.8 in. (2790 mm)
Front tread 64.0 in. (1625 mm)
Rear tread64.0 in. (1625 mm)
Vehicle capacity weight
(Occupant + luggage) 1200 lb. (540 kg)
Towing capacity
(Trailer weight + cargo)3500 lb. (1500 kg)

531
6-1. Specifications
6
Vehicle specifications

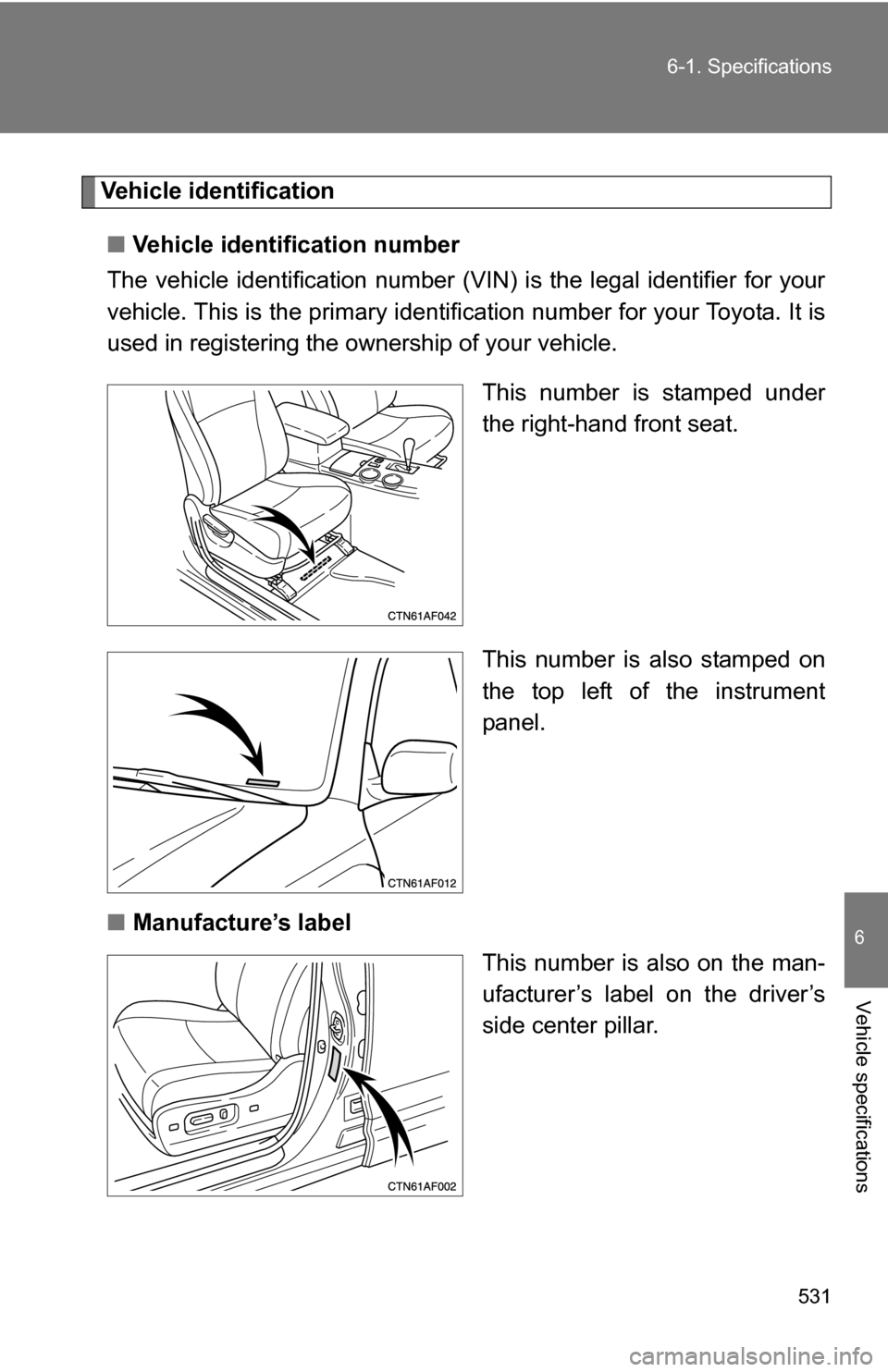

Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is also stamped on
the top left of the instrument
panel.
■ Manufacture’s label
This number is also on the man-
ufacturer’s label on the driver’s
side center pillar.

532 6-1. Specifications

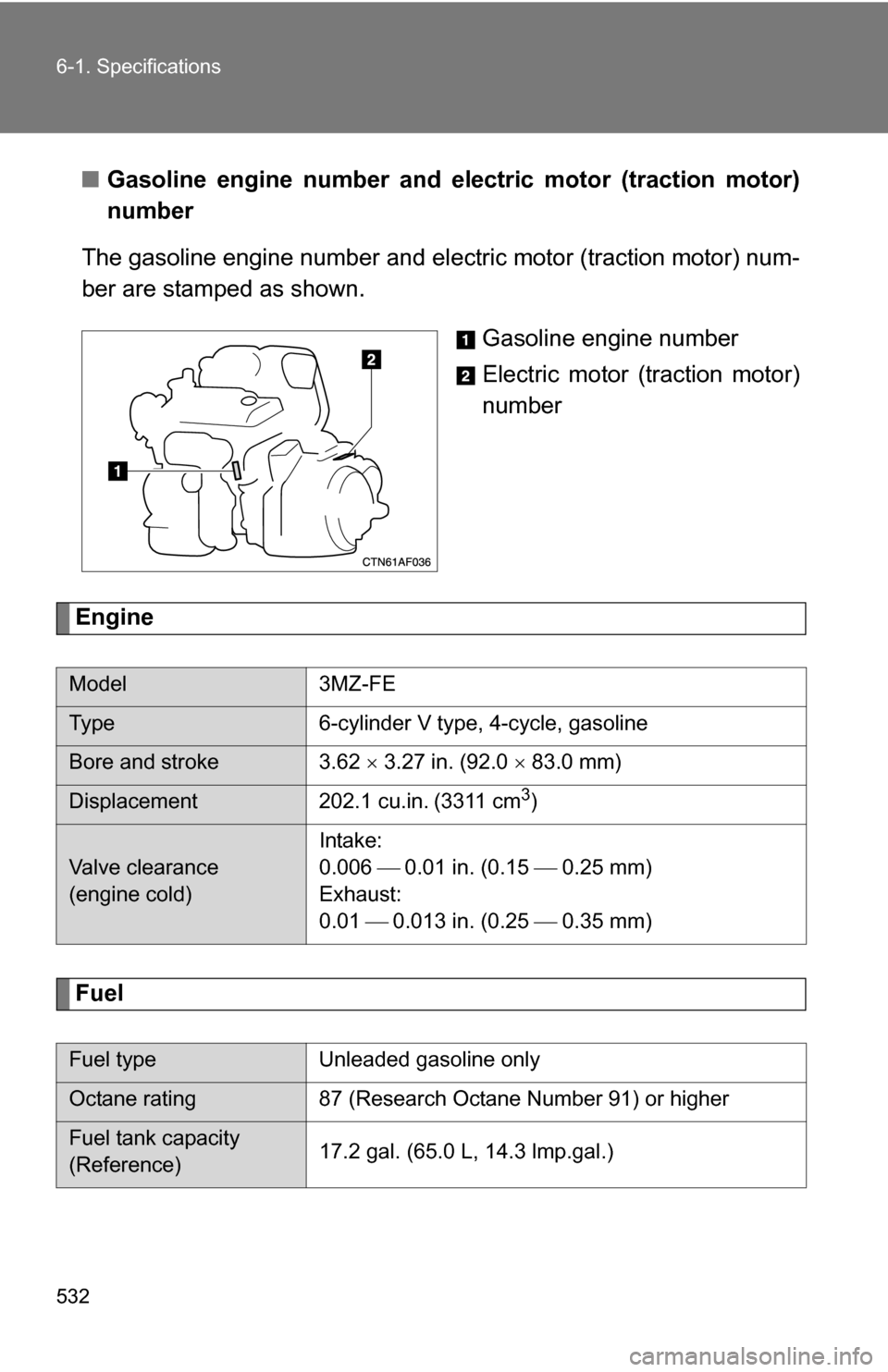

■Gasoline engine number and el ectric motor (traction motor)
number
The gasoline engine number and el ectric motor (traction motor) num-
ber are stamped as shown.
Gasoline engine number
Electric motor (traction motor)
number
Engine
Fuel
Model3MZ-FE
Type 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.62  3.27 in. (92.0  83.0 mm)
Displacement 202.1 cu.in. (3311 cm3)
Valve clearance
(engine cold) Intake:
0.006 
0.01 in. (0.15  0.25 mm)
Exhaust:
0.01  0.013 in. (0.25  0.35 mm)
Fuel type Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference) 17.2 gal. (65.0 L, 14.3 lmp.gal.)

533
6-1. Specifications
6
Vehicle specifications

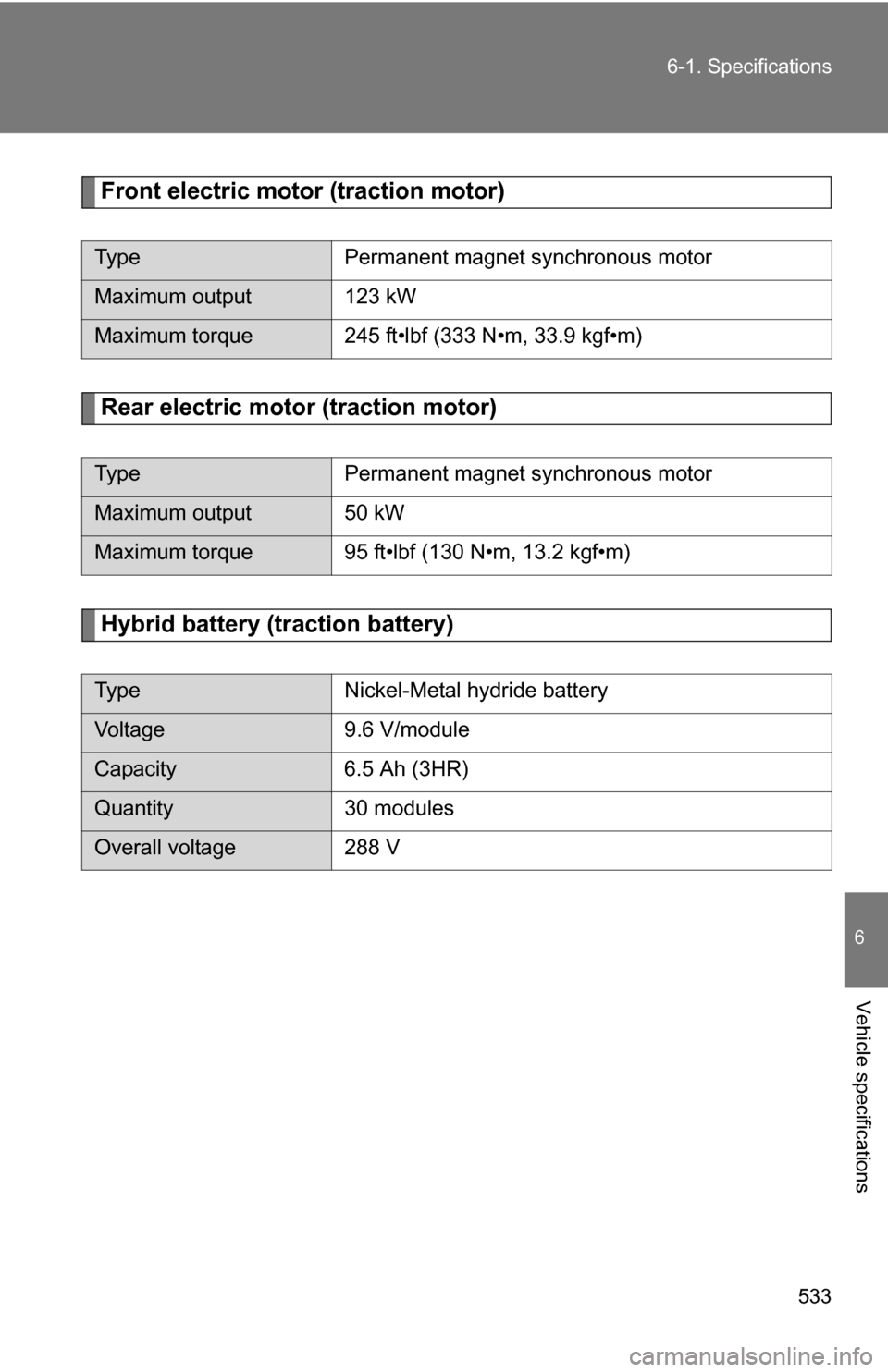

Front electric motor (traction motor)
Rear electric motor (traction motor)
Hybrid battery (traction battery)
Type
Permanent magnet synchronous motor
Maximum output 123 kW
Maximum torque 245 ft•lbf (333 N•m, 33.9 kgf•m)
TypePermanent magnet synchronous motor
Maximum output 50 kW
Maximum torque 95 ft•lbf (130 N•m, 13.2 kgf•m)
TypeNickel-Metal hydride battery
Voltage9.6 V/module
Capacity6.5 Ah (3HR)
Quantity 30 modules
Overall voltage 288 V

534 6-1. Specifications

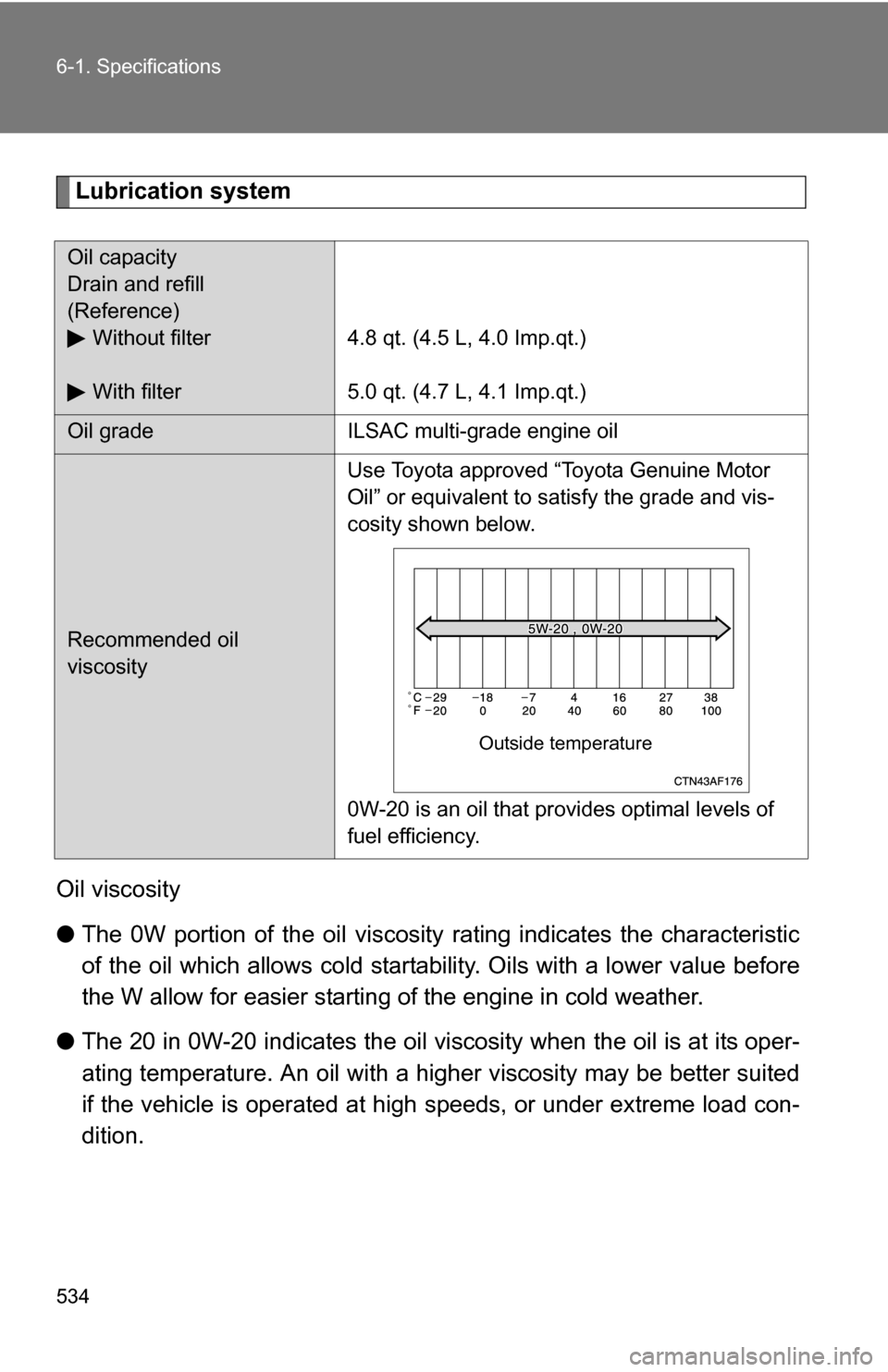

Lubrication system
Oil viscosity
● The 0W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 20 in 0W-20 indicates the oil viscosity when the oil is at its oper-
ating temperature. An oil with a higher viscosity may be better suited
if the vehicle is operated at high speeds, or under extreme load con-
dition.
Oil capacity
Drain and refill
(Reference) Without filter
With filter 4.8 qt. (4.5 L, 4.0 Imp.qt.)
5.0 qt. (4.7 L, 4.1 Imp.qt.)
Oil grade
ILSAC multi-grade engine oil
Recommended oil
viscosity Use Toyota approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the grade and vis-
cosity shown below.
0W-20 is an oil that provides optimal levels of
fuel efficiency.
Outside temperature

535
6-1. Specifications
6
Vehicle specifications
Cooling system
Capacity (Reference)
Gasoline engine
Power control unit Without rear air conditioning system
11.2 qt. (10.6 L, 9.3 Imp.qt.)
With rear air conditioning system
13.5 qt. (12.8 L, 11.3 Imp.qt.)
3.6 qt. (3.4 L, 3.0 Imp.qt.)
Coolant type Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.

536 6-1. Specifications
Ignition system
Electrical system
Spark plug
Make
GapDENSO SK20R11
NGK IFR6A11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.
12-volt battery
Open voltage* at
68 F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(*: Voltage is checked 20 minutes
after the hybrid system and all the
lights are turned off)
Charging rates 5 A max.
