2008 TOYOTA HIGHLANDER HYBRID Owners Manual

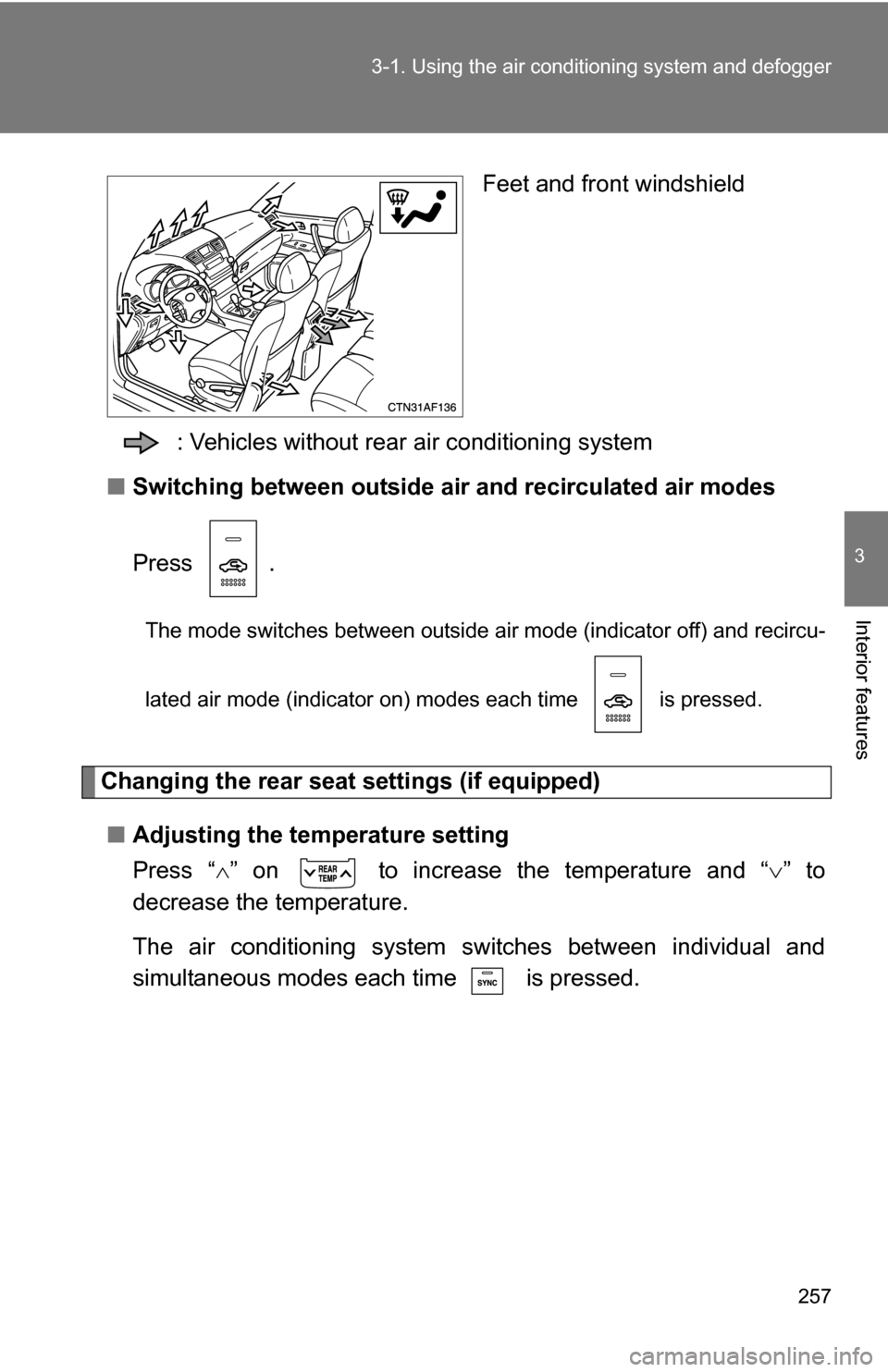

257
3-1. Using the air conditioning system
and defogger
3
Interior features
Feet and front windshield
: Vehicles without rear air conditioning system
■ Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) modes each time is pressed.
Changing the rear seat settings (if equipped)
■ Adjusting the temperature setting
Press “ ” on to increase the temperature and “ ” to
decrease the temperature.
The air conditioning system sw itches between individual and
simultaneous modes each time is pressed.

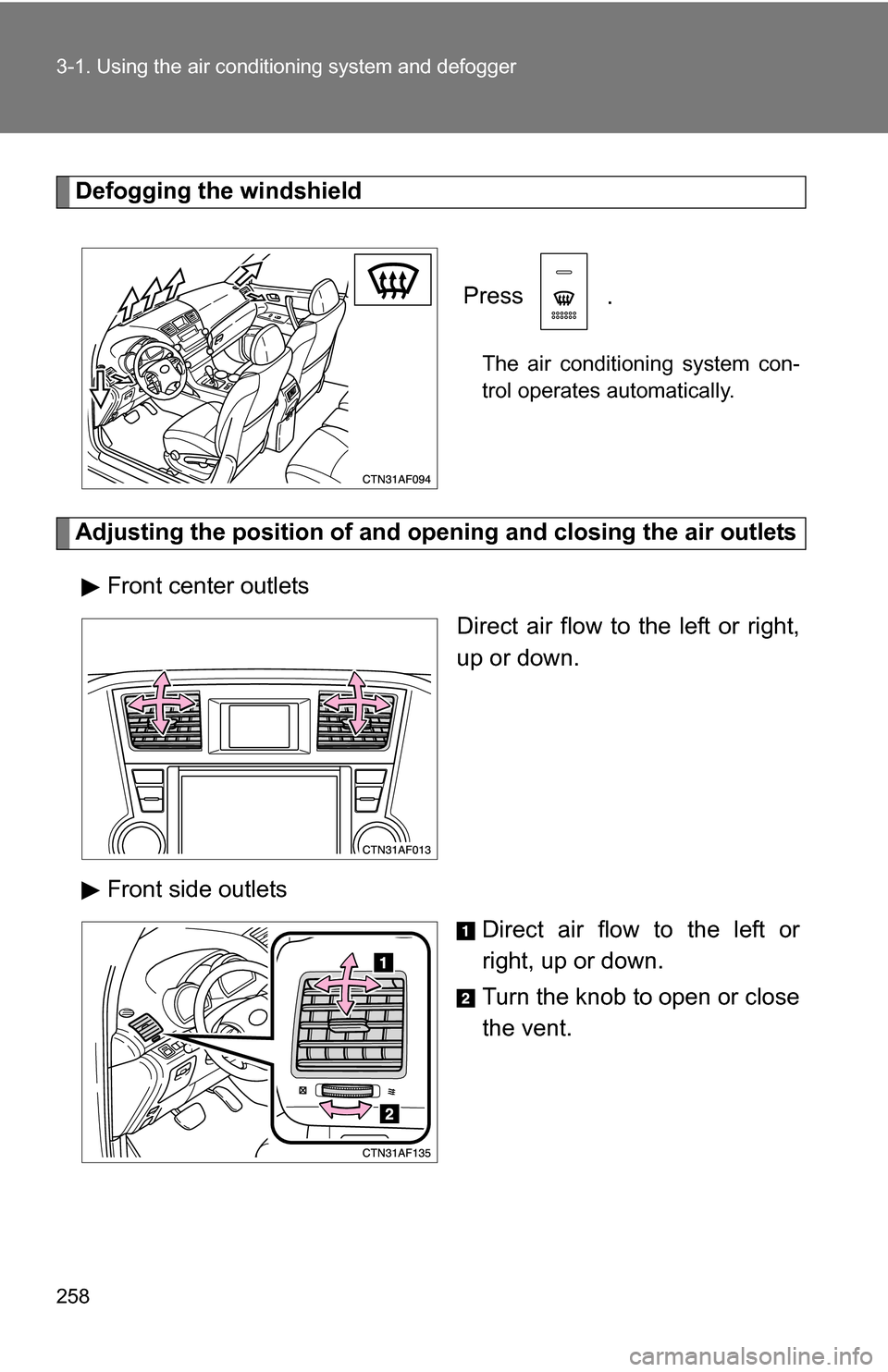

258 3-1. Using the air conditioning system and defogger
Defogging the windshield
Press
.
The air conditioning system con-
trol operates automatically.
Adjusting the position of and opening and closing the air outletsFront center outlets Direct air flow to the left or right,
up or down.
Front side outlets Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.

259
3-1. Using the air conditioning system
and defogger
3
Interior features
Rear center outlets (vehicles without rear air conditioning system)
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Air outlets of the rear seat. ( P. 266)
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature set-
ting and ambient conditions. As a result, the following may occur.
●The system may switch automatically to recirculated mode when the
coolest temperature setting is selected in summer.
● Immediately after the switch is pressed, the fan may stop for a while until
warm or cool air is ready to flow.
● Cool air may flow to the area around the upper body when the heater is
on.
■ Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Window defogger feature
Recirculated air mode may automatically switch to
(outside air) mode
in situations where the windows need to be defogged.
■ When outside temperature approaches 32 F (0 C)
The air conditioning system may not operate even when is pressed.

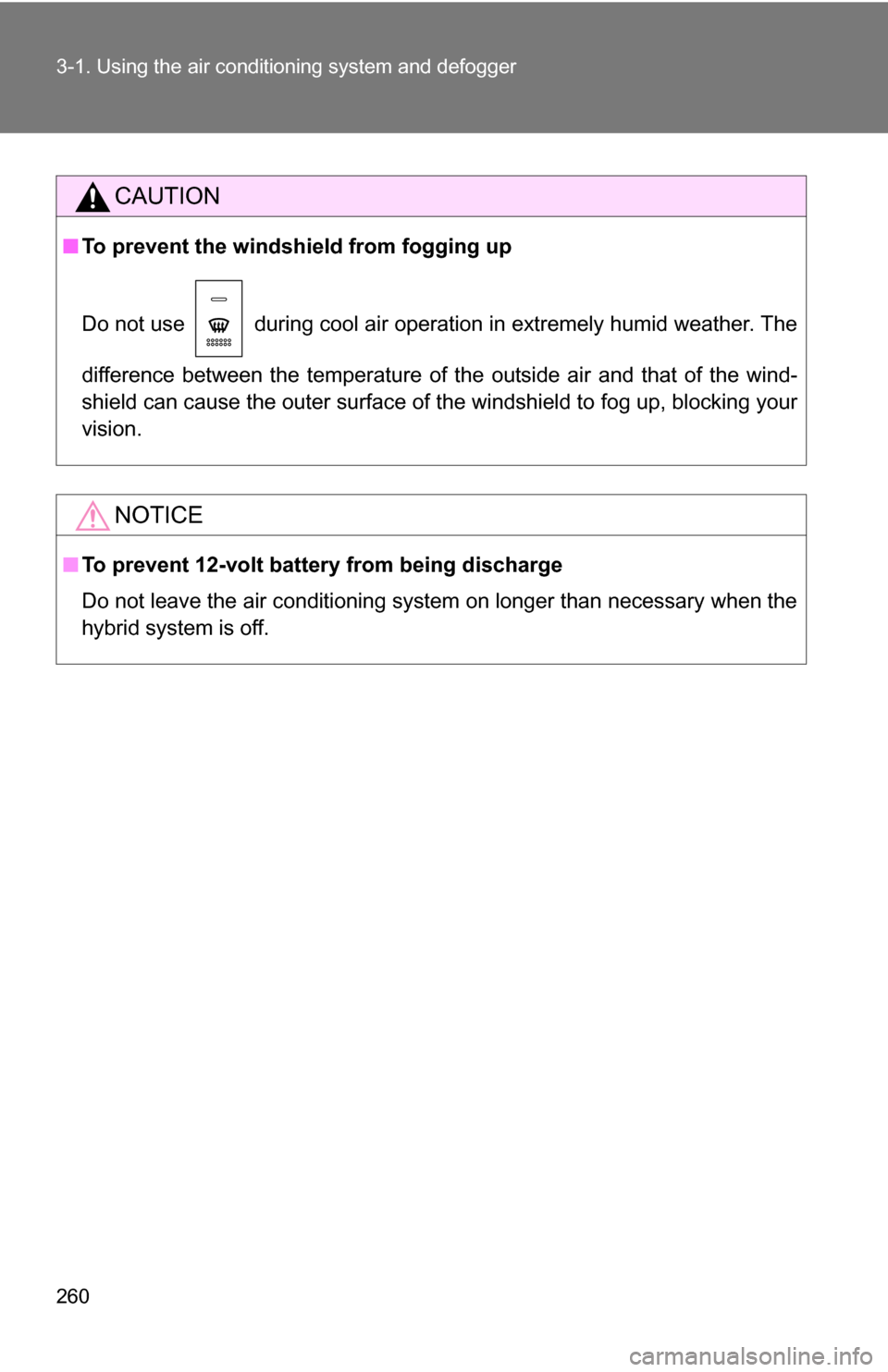

260 3-1. Using the air conditioning system and defogger
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■To prevent 12-volt battery from being discharge
Do not leave the air conditioning system on longer than necessary when the
hybrid system is off.

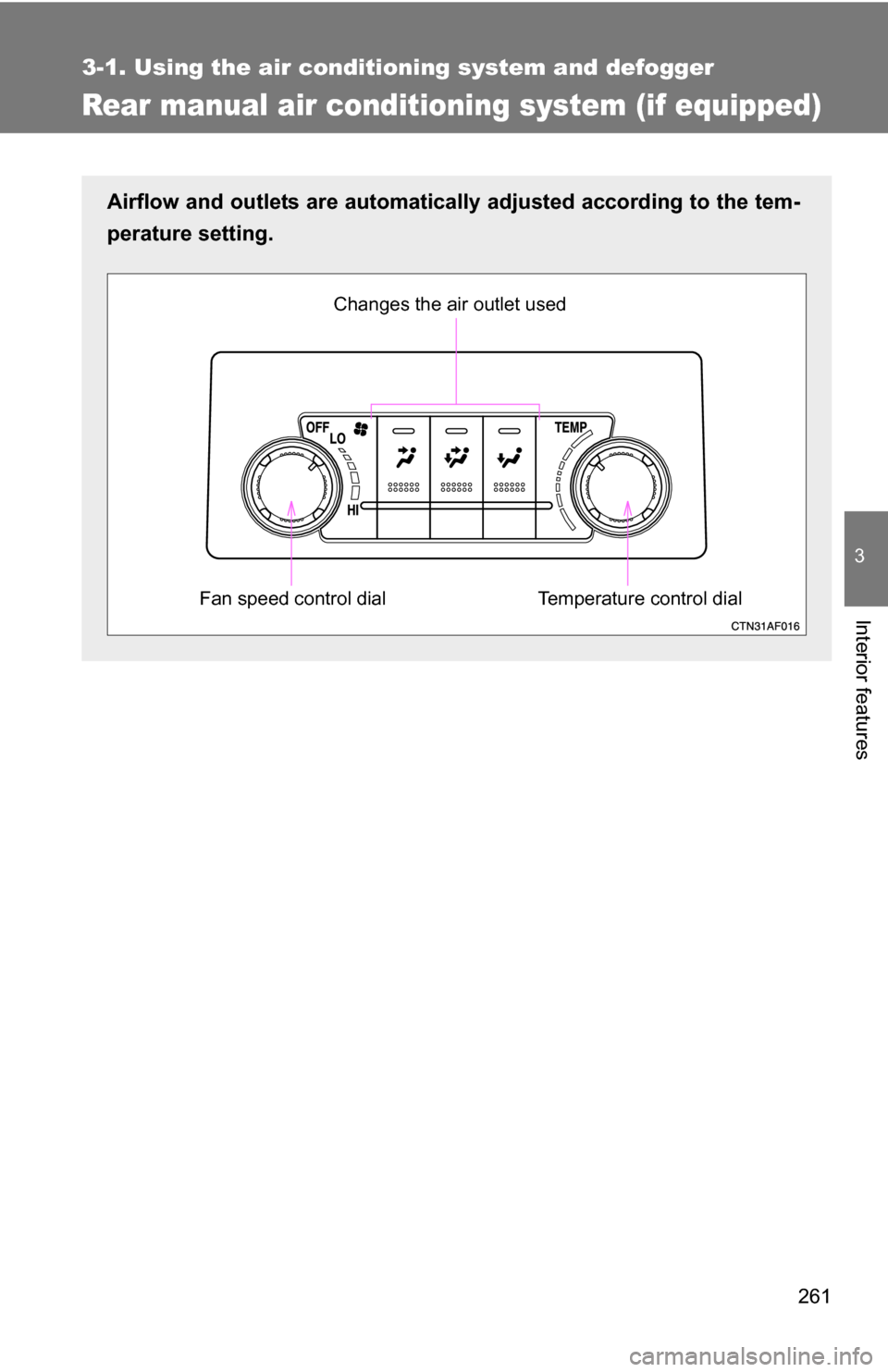

261
3-1. Using the air conditioning system and defogger
3
Interior features
Rear manual air conditioning system (if equipped)
Airflow and outlets are automatical ly adjusted according to the tem-
perature setting.
Temperature control dial
Changes the air outlet used
Fan speed control dial

262 3-1. Using the air conditioning system and defogger
Adjusting the settings
■ Adjusting the temperature setting
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
■ Changing the air outlets
Press the desired , or .
Air flows as shown below according to the mode selected.
Upper body
Upper body and feet

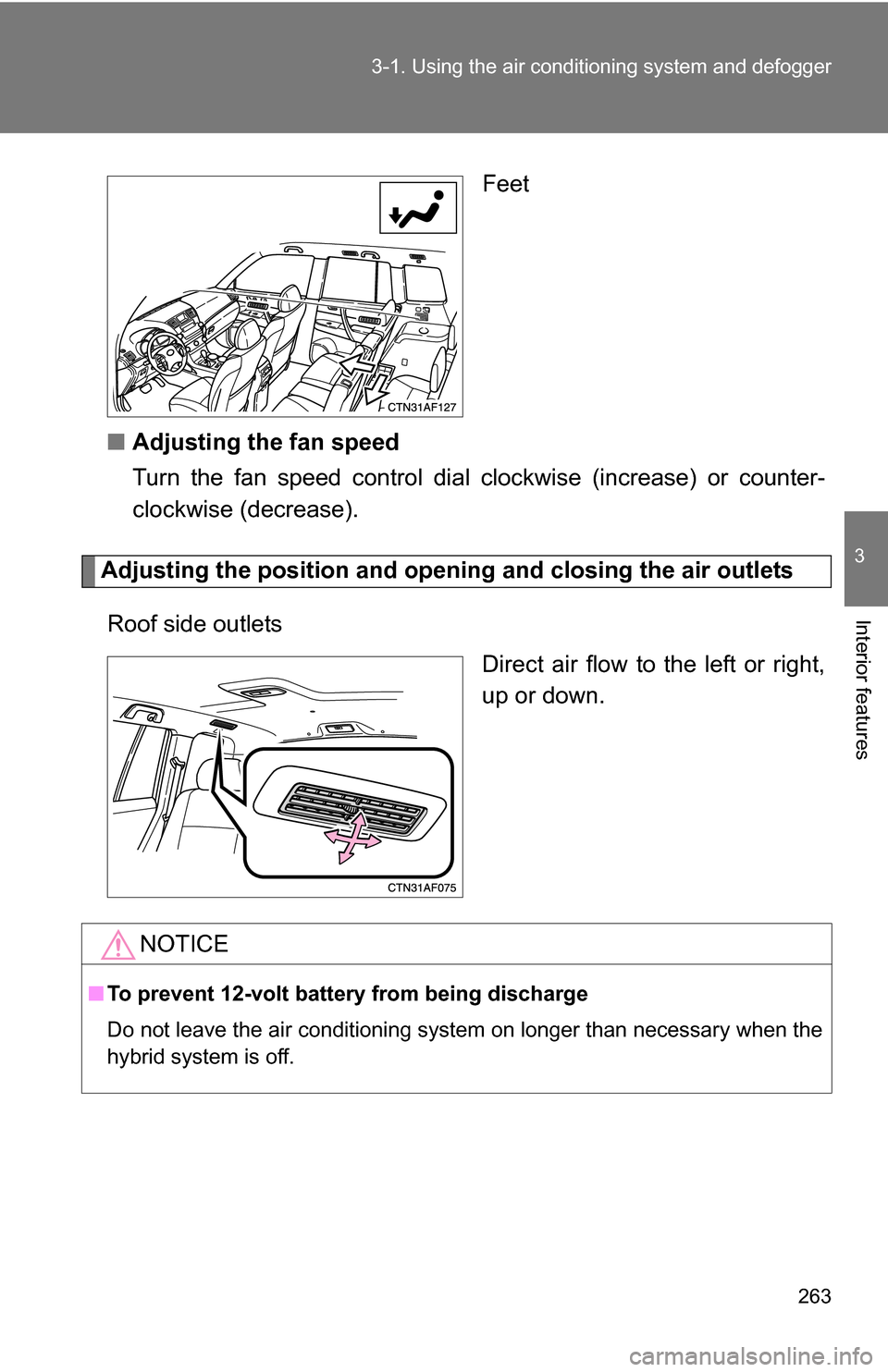

263
3-1. Using the air conditioning system
and defogger
3
Interior features
Feet
■ Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter-
clockwise (decrease).
Adjusting the position and openi ng and closing the air outlets
Roof side outlets Direct air flow to the left or right,
up or down.
NOTICE
■To prevent 12-volt battery from being discharge
Do not leave the air conditioning system on longer than necessary when the
hybrid system is off.

264
3-1. Using the air conditioning system and defogger
Rear automatic air conditioning system (if equipped)
Using the automatic modePress .The air conditioning system will operate, and air outlets
and fan speed will be set automatically.
“AUTO” will be displayed on the control panel.
Turn the temperature control dial clockwise (warm) or coun-
terclockwise (cool).
Airflow and outlets are automatica lly adjusted according to the tem-
perature setting.
Airflow display Fan speed display
Temperature setting display
Fan speed
control dial
OffAutomatic mode Changes the air
outlet used
Temperature
control dial
STEP1
STEP2
