2-3. Operating the lights and wipers .............................. 200
Headlight switch .................. 200
Fog light switch ................... 204
Windshield wipers and washer .............................. 205
Rear window wiper and washer .............................. 207
2-4. Using other driving systems ........................... 208
Cruise control ...................... 208
Rear view monitor system .............................. 211
Driving assist systems ........ 215
2-5. Driving information ........... 220 Utility vehicle precautions ....................... 220
Cargo and luggage ............. 225
Vehicle load limits................. 229
Winter driving tips ............... 230
Trailer towing ...................... 234
Dinghy towing ..................... 244 3-1. Using the air
conditioning system
and defogger .................. 248
Front manual air conditioning system.......... 248
Front automatic air conditioning system.......... 253
Rear manual air conditioning system.......... 261
Rear automatic air conditioning system.......... 264
Rear window and outside rear view mirror
defoggers ......................... 267
Windshield wiper de-icer .............................. 269
Using the steering wheel climate remote control
switches ........................... 270
3-2. Using the audio system ............................. 271
Audio system (without navigation system) ........... 271
Using the radio ................... 274
Using the CD player ........... 280
Playing back MP3 and WMA discs ....................... 287
Optimal use of the audio system .............................. 294
Using the AUX adapter....... 297
Using the steering wheel audio switches.................. 299
3Interior features

8
Headlights P. 200
Pictorial indexExterior
Fog lights  P. 204
Parking and side markerlights
P. 200
Hood P. 420
Windshield wipers P. 205
Moon roof  P. 112
Outside rear view
mirrors
P. 108
Front turn signal lights P. 182

16
Rear view monitor system
(vehicles without navigation
system)
P. 211
Tilt and telescopic steering lock release
lever
P. 105
Glove box P. 365
Pictorial indexInstrument panel
Power back door
main switch
 P. 78
Parking brake pedal P. 183
Hood lock release lever P. 420
Auxiliary box P. 373
“POWER” switch P. 174
Multi-information
display
P. 190
Fuel filler door opener P. 115
Fog light switch
Headlight switch
Turn signal lever P. 204
P. 200
P. 182
Windshield wipers and
washer switch
Rear window wiper and
washer switch
P. 205
P. 207
Gauges and
meters
P. 184

When driving2
163
2-1. Driving procedures ........ 164Driving the vehicle............ 164
Power (ignition) switch ............................. 174
EV-Drive Mode................. 178
Transmission..................... 180
Turn signal lever .............. 182
Parking brake ................... 183
2-2. Instrument cluster.......... 184 Gauges and meters ......... 184
Indicators and warning lights .............................. 186
Multi-information display............................ 190
2-3. Operating the lights and wipers ........................... 200
Headlight switch ............... 200
Fog light switch ................ 204
Windshield wipers and washer ........................... 205
Rear window wiper and washer ........................... 207 2-4. Using other driving
systems ........................ 208
Cruise control ................... 208
Rear view monitor system ........................... 211
Driving assist systems ..... 215
2-5. Driving information ........ 220 Utility vehicle precautions .................... 220
Cargo and luggage .......... 225
Vehicle load limits.............. 229
Winter driving tips ............ 230
Trailer towing ................... 234
Dinghy towing .................. 244

202 2-3. Operating the lights and wipers
Turning on the high beam headlightsWith the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
■Daytime running light system (if equipped)
To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the hybrid system is started
and the parking brake is released. Daytime running lights are not designed
for use at night.
U.S.A.: Daytime running lights can be turned off by operating the switch.
■ Headlight control sensor (if equipped)
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

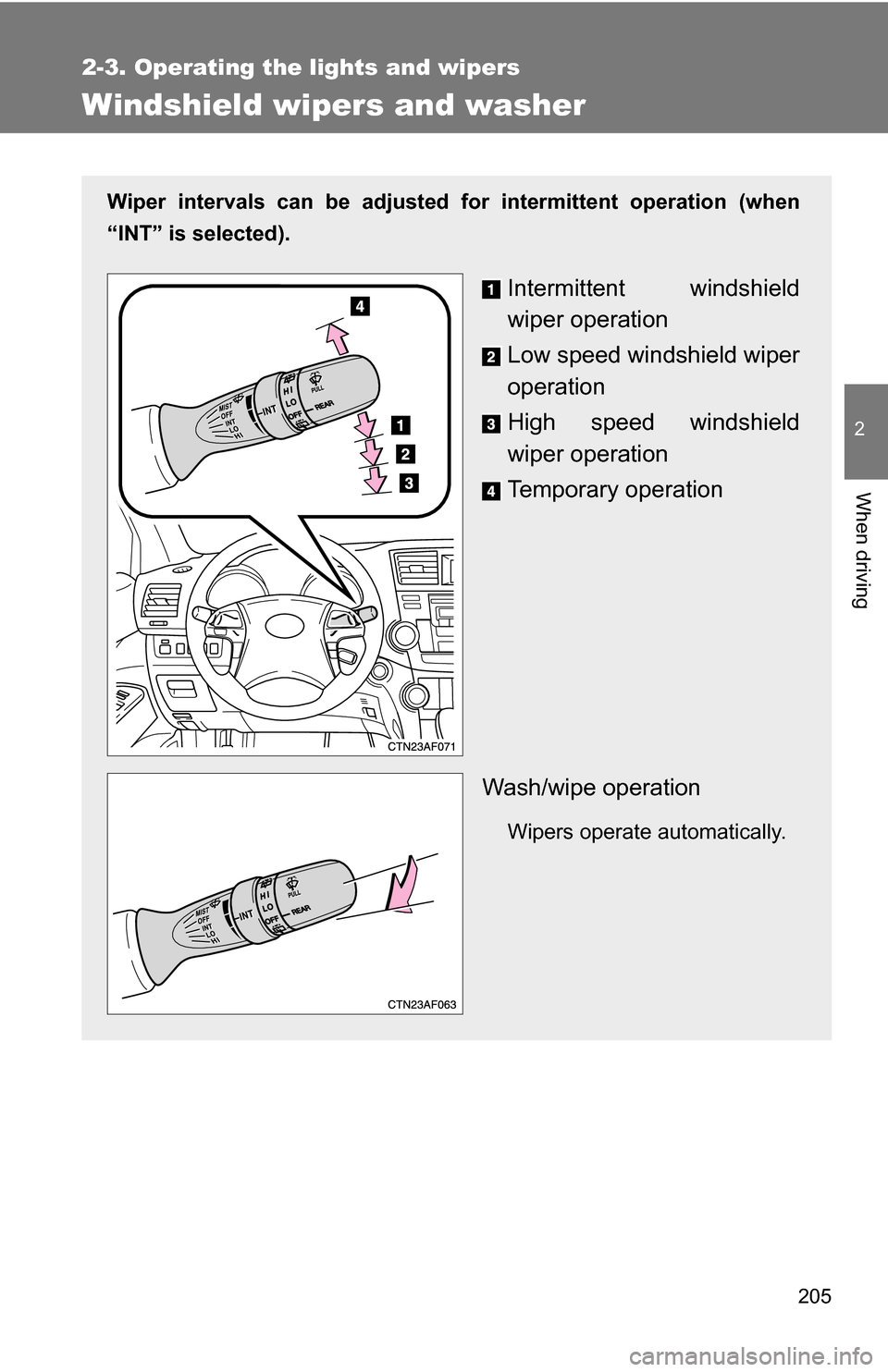

205
2-3. Operating the lights and wipers
2
When driving
Windshield wipers and washer
Wiper intervals can be adjusted for intermittent operation (when
“INT” is selected).
Intermittent windshield
wiper operation
Low speed windshield wiper
operation
High speed windshield
wiper operation
Temporary operation
Wash/wipe operation
Wipers operate automatically.

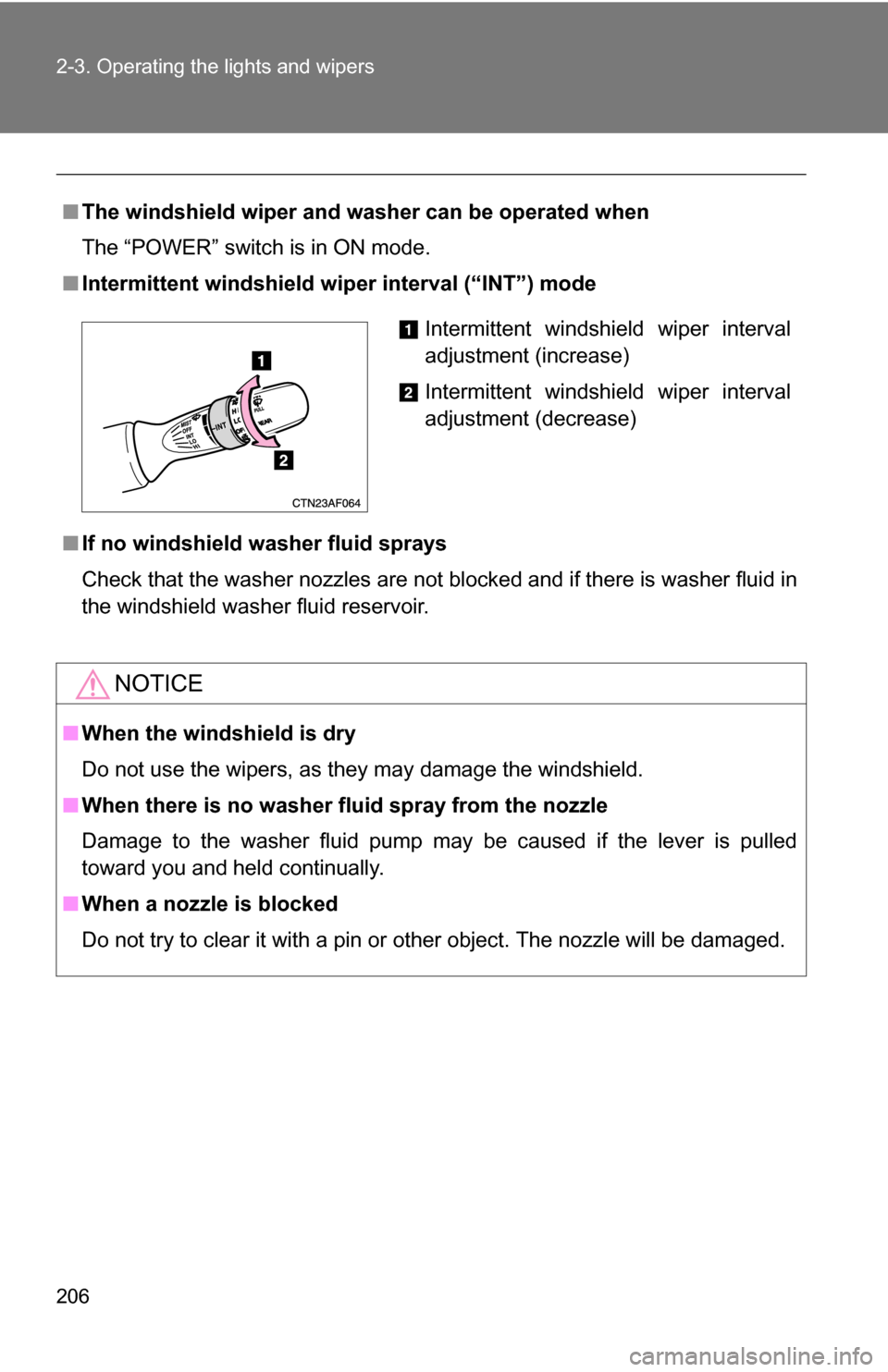

206 2-3. Operating the lights and wipers
■The windshield wiper and washer can be operated when
The “POWER” switch is in ON mode.
■ Intermittent windshield wiper interval (“INT”) mode
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked and if there is washer fluid in
the windshield washer fluid reservoir.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle is blocked
Do not try to clear it with a pin or other object. The nozzle will be damaged.
Intermittent windshield wiper interval
adjustment (increase)
Intermittent windshield wiper interval
adjustment (decrease)

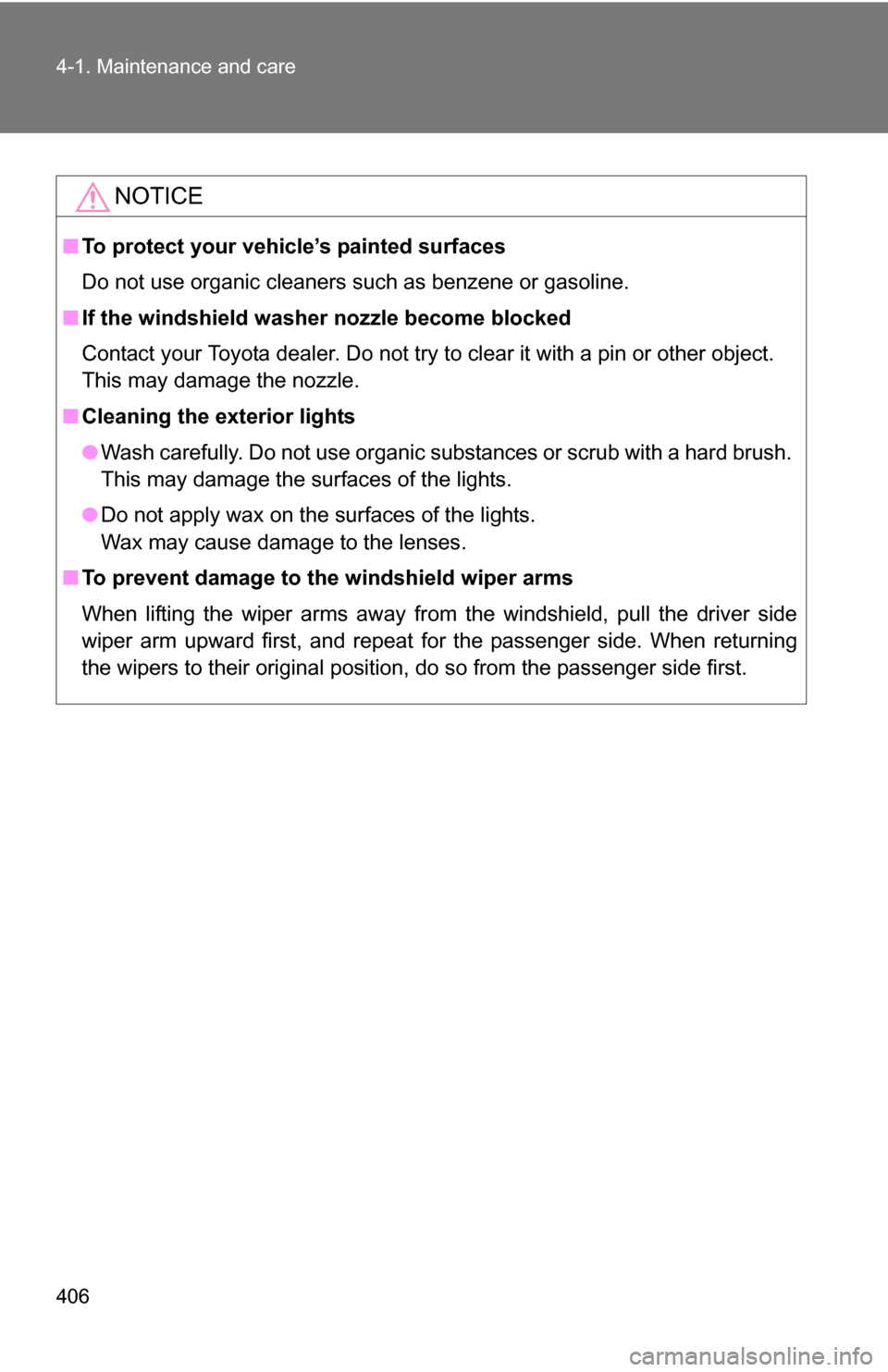

406 4-1. Maintenance and care
NOTICE
■To protect your vehicle’s painted surfaces
Do not use organic cleaners such as benzene or gasoline.
■ If the windshield washer nozzle become blocked
Contact your Toyota dealer. Do not try to clear it with a pin or other object.
This may damage the nozzle.
■ Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
● Do not apply wax on the surfaces of the lights.
Wax may cause damage to the lenses.
■ To prevent damage to the windshield wiper arms
When lifting the wiper arms away from the windshield, pull the driver side
wiper arm upward first, and repeat for the passenger side. When returning
the wipers to their original position, do so from the passenger side first.
