2008 TOYOTA AVALON Owners Manual

409
6-1. Specifications
6
Vehicle specifications
AVALON_U_(L/O_0802)

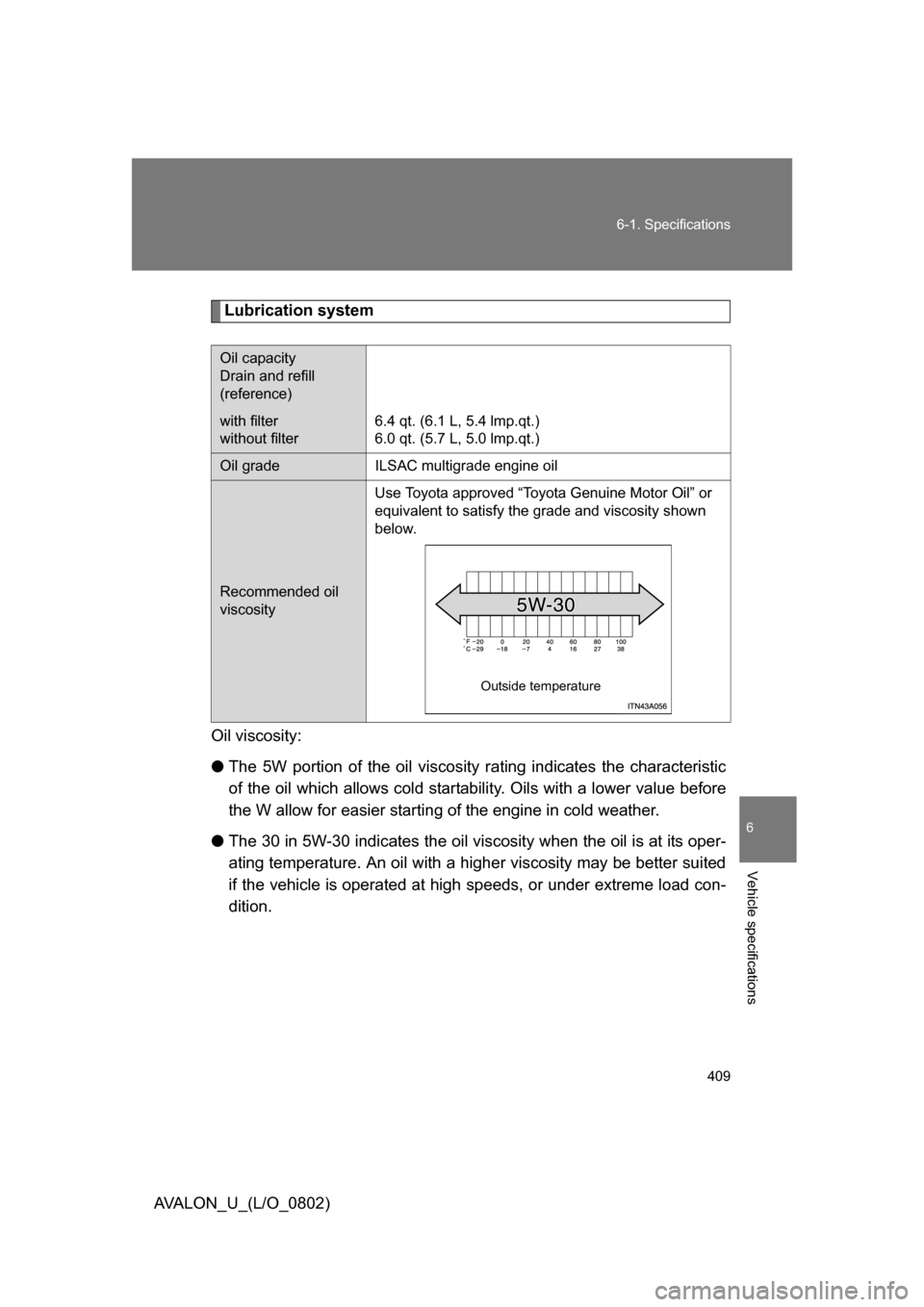

Lubrication system
Oil viscosity:
● The 5W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil viscosity when the oil is at its oper-
ating temperature. An oil with a higher viscosity may be better suited
if the vehicle is operated at high speeds, or under extreme load con-
dition.
Oil capacity 
Drain and refill 
(reference)
with filter
without filter 6.4 qt. (6.1 L, 5.4 lmp.qt.)
6.0 qt. (5.7 L, 5.0 lmp.qt.)
Oil grade
ILSAC multigrade engine oil
Recommended oil 
viscosity Use Toyota approved “Toyota Genuine Motor Oil” or
equivalent to satisfy the grade and viscosity shown
below.
Outside temperature

410 6-1. Specifications
AVALON_U_(L/O_0802)
Cooling system
Ignition system
Electrical system
Capacity8.8 qt. (8.3 L, 7.3 lmp.qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make DENSO
FK20HR11
Gap 0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage at
68 F (20 C):
12.6  12.8 V Fully charged 
12.2  12.4 V Half charged 
11 . 8  12.0 V Discharged 
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates 5A max.

411
6-1. Specifications
6
Vehicle specifications
AVALON_U_(L/O_0802)
Automatic transaxle
*: The fluid capacity is the quantity of reference. If replacement is necessary,
contact your Toyota dealer.
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50 kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 66 lbf (294 N, 30 kgf).
Fluid capacity*6.8 qt. (6.4 L, 5.6 lmp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Automatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the automatic transmis-
sion of your vehicle.
Pedal clearance *12.4 in. (61 mm) Min.
Pedal free play Less than 0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake pedal 
travel *29  11 c l i c k s
Parking brake lining wear
limit 0.04 in. (1.0 mm)
Fluid type
SAE J1703 or FMVSS No. 116 DOT 3

412 6-1. Specifications
AVALON_U_(L/O_0802)
Steering
Tires and wheelsType A
Type B
Free playLess than 1.2 in. (30 mm)
Tire sizeP215/55R17 93V
Front and rear tire 
inflation pressure 
(Recommended cold tire
inflation pressure) Vehicle speed
psi

(kPa, kgf/cm2 or bar)
More than 99 mph
(160 km/h) 38 (260, 2.6)
99 mph 
(160 km/h) or less 32 (220, 2.2)
Wheel size
17  7JJ, 17  7J
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire sizeP215/60R16 94V
Front and rear tire 
inflation pressure 
(Recommended cold tire
inflation pressure) Vehicle speed
psi

(kPa, kgf/cm2 or bar)
More than 99 mph
(160 km/h) 35 (240, 2.4)
99 mph (160 km/h)
or less 29 (200, 2.0)
Wheel size
16  6 1/2JJ
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

413
6-1. Specifications
6
Vehicle specifications
AVALON_U_(L/O_0802)
Light bulbs
A: D4R discharge bulbs

B: H11 halogen bulbs 
C: HIR1 halogen bulbs 
D: Wedge base bulbs (amber) 
E: Wedge base bulbs (clear) 
F: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior Headlights
Low beam (discharge bulbs) 
Low beam (halogen bulbs) 
High beam D4R
H11
HIR1 35
55
65A
B
C
Fog lights 9006 51 B
Front turn signal/parking
lights 3457A 27/7 D
Front side marker lights W5W 5 E
Rear turn signal lights 469 21 D
Stop/tail lights 7443 21/5 E
Rear side marker lights 194 3.8 E
Tail lights 194 3.8 E
Back-up lights 921 16 E
License plate lights 194 3.8 E
InteriorInterior light W5W 5 E
Personal lights W5W 5 E
Vanity lights 7065 1.4 F
Glove box light 74 1.2 E
Door courtesy lights 168 5 E
Trunk light 2825 4.8 E

414
6-1. Specifications
AVALON_U_(L/O_0802)

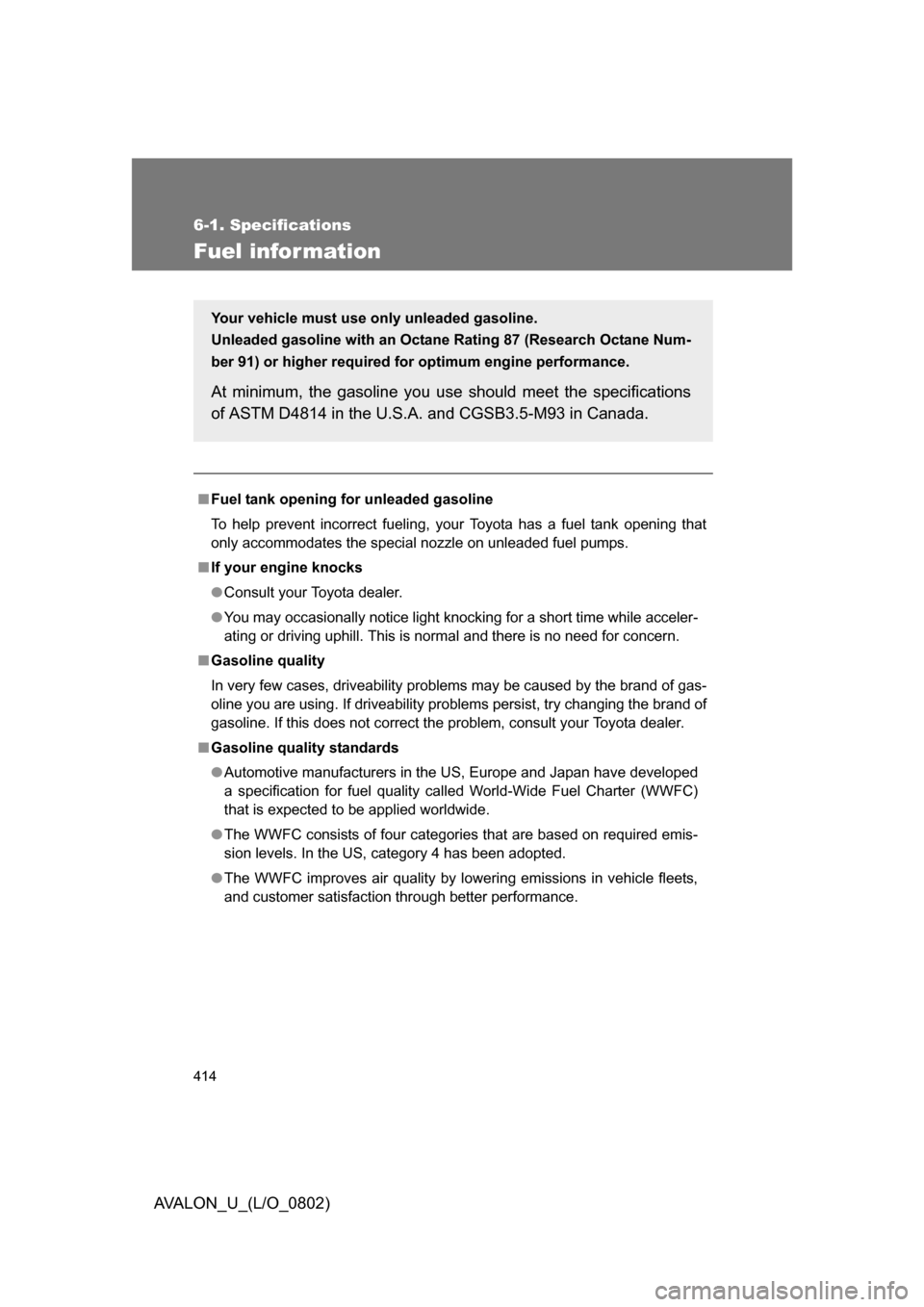

Fuel infor mation
■Fuel tank opening fo r unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If your engine knocks
● Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
■ Gasoline quality standards
● Automotive manufacturers in the US, Europe and Japan have developed
a specification for fuel quality called World-Wide Fuel Charter (WWFC)
that is expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emis-
sion levels. In the US, category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets,
and customer satisfaction through better performance.
Your vehicle must use only unleaded gasoline. 
Unleaded gasoline with an Octa ne Rating 87 (Research Octane Num-
ber 91) or higher required for optimum engine performance.
At minimum, the gasoline you us e should meet the specifications
of ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

415
6-1. Specifications
6
Vehicle specifications
AVALON_U_(L/O_0802)
■
Toyota recommends the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the US contains detergent additives to clean and/or
keep clean intake systems.
■ Toyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
■ Toyota does not recommend blended gasoline
● Toyota allows the use of oxygenate blended gasoline where the oxygen-
ate content is up to 10% ethanol or 15% MTBE.
● If you use gasohol in your Toyota, be sure that it has an octane rating no
lower than 87.
● Toyota DOES NOT recommend the use of gasoline containing methanol.
■ Toyota does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy
clopentadienyl Manganese Tricarbonyl).
Toyota DOES NOT recommend the use of gasoline that contains MMT. If
fuel containing MMT is used, your emission control system may be
adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.

416 6-1. Specifications
AVALON_U_(L/O_0802)
NOTICE
■Notice on gasoline quality
● Do not use leaded gasoline. 
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than that stated here. 
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than that
stated here will cause persistent heavy knocking. 
At worst, this will lead to engine damage.
■ Fuel-related p oor driveability
If after using a different type of fuel, poor driveability is encountered (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
■ When refueling with gasohole
Take care not to spill gasohol. It can damage your vehicle’s paint.
