2008 TOYOTA AVALON inflation pressure

TABLE OF CONTENTSIndex
4
AVALON_U_(L/O_0802)
3-6. Other interior features ..... 263Sun visors .......................... 263
Vanity mirrors ..................... 264
Clock .................................. 265
Outside temperature display .............................. 266
Ashtrays ............................. 267
Power outlets ..................... 268
Climate control seats/seat 
heaters ............................. 270
Armrest............................... 272
Rear sunshade ................... 273
Floor mats .......................... 275
Trunk features .................... 276
Garage door opener ........... 278
Compass ............................ 283
4-1. Maintenance and care...... 288 Cleaning and protecting the 
vehicle exterior ................. 288
Cleaning and protecting the 
vehicle interior .................. 291
4-2. Maintenance ..................... 294 Maintenance 
requirements .................... 294
General maintenance ......... 296
Emission inspection and 
maintenance (I/M) 
programs .......................... 299 4-3. Do-it-yourself

maintenance ................... 300
Do-it-yourself service 
precautions ....................... 300
Hood ................................... 303
Positioning a floor jack........ 304
Engine compartment .......... 306
Tires.................................... 322
Tire inflation pressure ......... 331
Wheels................................ 335
Air conditioning filter ........... 337
Key battery ......................... 340
Checking and replacing 
fuses ................................. 344
Headlight aim (with 
discharge headlights) ....... 353
Light bulbs .......................... 355
5-1. Essential information ....... 362 If your vehicle needs to be 
towed ................................ 362
If you think something is  wrong ................................ 366
Fuel pump shut off 
system .............................. 367
Event data recorder ............ 368
4Maintenance and care
5When trouble arises

7
AVALON_U_(L/O_0802)
Tire
●Rotation
● Replacement
● Inflation pressure
● Information
P. 322
P. 382
P. 412
P. 417
Tail lights P. 143
Side marker light P. 143
Trunk P. 44
Rear window defogger P. 187
Door P. 39
Fuel filler door P. 72
Turn signal light P. 133
: If equipped
Back-up light
Tail/stop light
P. 143

173
2-5. Driving information
2
When driving
AVALON_U_(L/O_0802)
CAUTION
■
Driving with snow tires
Observe the following precautions to reduce the risk of accidents. 
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
● Use tires of the size specified for your vehicle.
● Maintain the specified level of tire inflation pressure.
● Do not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.
● Snow tires should be installed on all wheels.

Maintenance and care4
287
AVALON_U_(L/O_0802)
4-1. Maintenance and care ... 288Cleaning and protecting the 
vehicle exterior............... 288
Cleaning and protecting the 
vehicle interior................ 291 4-2. Maintenance ................... 294
Maintenance 
requirements .................. 294
General maintenance....... 296
Emission inspection and 
maintenance (I/M) 
programs ........................ 299
4-3. Do-it-yourself 
maintenance ................. 300
Do-it-yourself service 
precautions .................... 300
Hood ................................ 303
Positioning a floor jack ..... 304
Engine compartment ........ 306
Tires ................................. 322
Tire inflation pressure ...... 331
Wheels ............................. 335
Air conditioning filter......... 337
Key battery ....................... 340
Checking and replacing 
fuses .............................. 344
Headlight aim (with 
discharge headlights) ..... 353
Light bulbs........................ 355

298 4-2. Maintenance
AVALON_U_(L/O_0802)
Vehicle exterior
ItemsCheck points
Doors/trunk • Operate smoothly?
Engine hood • The lock system works properly?
Fluid leaks • Is there any leakage after parking?
Tire • Inflation pressure is correct?
• Tire surfaces not worn or damaged?
• Tires rotated according to the mainte-
nance schedule?
• Wheel nuts are not loose?
CAUTION
■ If the engine is running
Turn off the engine and ensure that there is adequate ventilation before per-
forming maintenance checks.

4
Maintenance and care
301
4-3. Do-it-yourself maintenance
AVALON_U_(L/O_0802)
CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
■
When working on the engine compartment
● Keep hands, clothing, and tools away from the moving fan and engine
drive belt.
● Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
● Do not leave anything that may burn easily, such as paper or rags, in the
engine compartment.
● Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.
● Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
ItemsParts and tools
Fuses (P. 344)• Fuse with same amperage rating
as original
Headlight aim ( P. 353)• Phillips-head screwdriver
Power steering fluid level
( P. 316)
• Automatic transmission fluid
DEXRON® II or III
• Rag or paper towel
• Clean funnel
Radiator and condenser (P. 314)
Tire inflation pressure ( P. 331)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 321)
• Water washer fluid containing anti-
freeze (for winter use)
• Funnel

322
4-3. Do-it-yourself maintenance
AVALON_U_(L/O_0802)

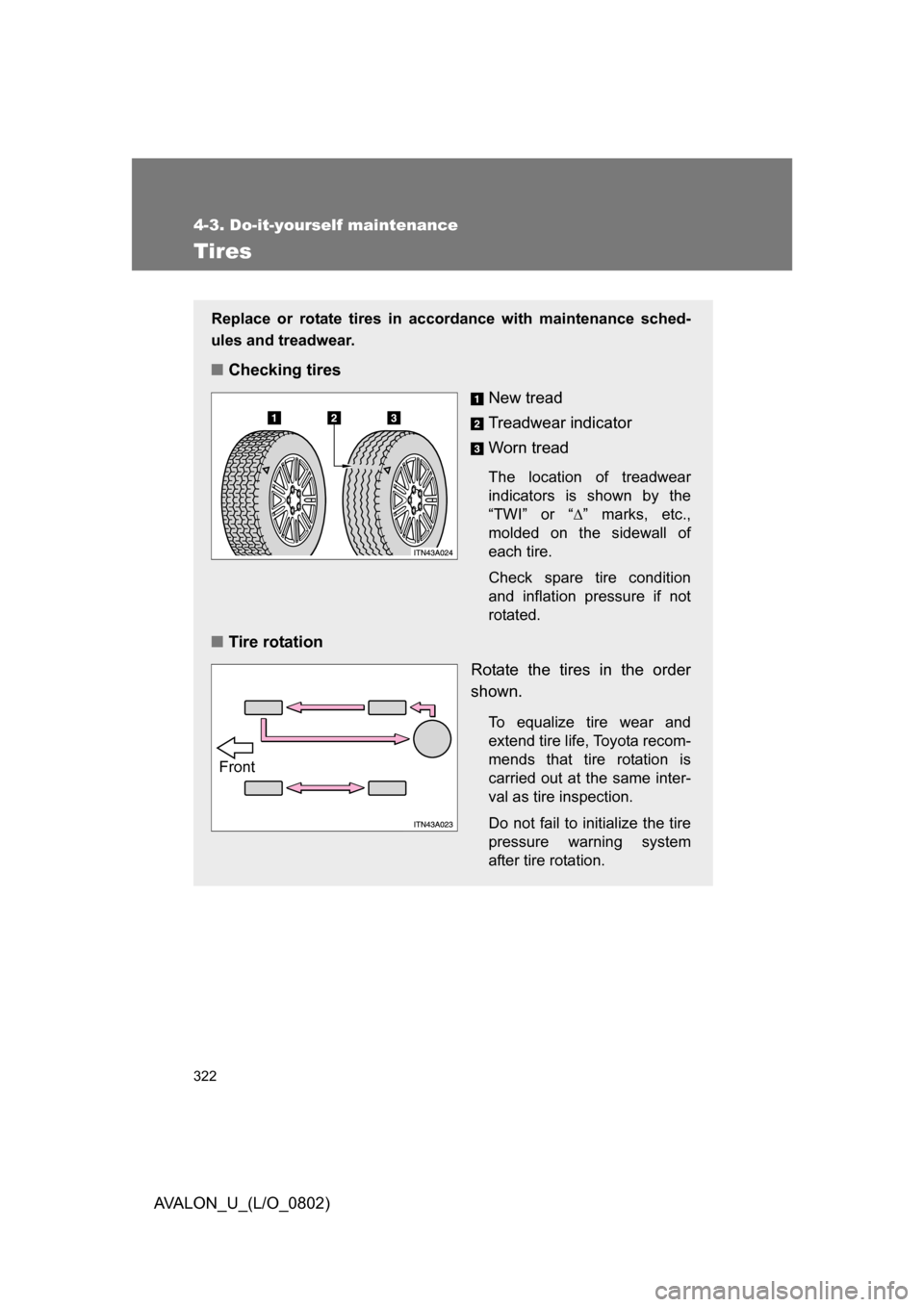

Tires
Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.
■Checking tires
New tread
Treadwear indicator
Worn tread
The location of treadwear
indicators is shown by the
“TWI” or “” marks, etc.,
molded on the sidewall of
each tire.
Check spare tire condition
and inflation pressure if not
rotated.
■ Tire rotation
Rotate the tires in the order
shown.
To equalize tire wear and
extend tire life, Toyota recom-
mends that tire rotation is
carried out at the same inter-
val as tire inspection.
Do not fail to initialize the tire
pressure warning system
after tire rotation.
Front

4
Maintenance and care
323
4-3. Do-it-yourself maintenance
AVALON_U_(L/O_0802)

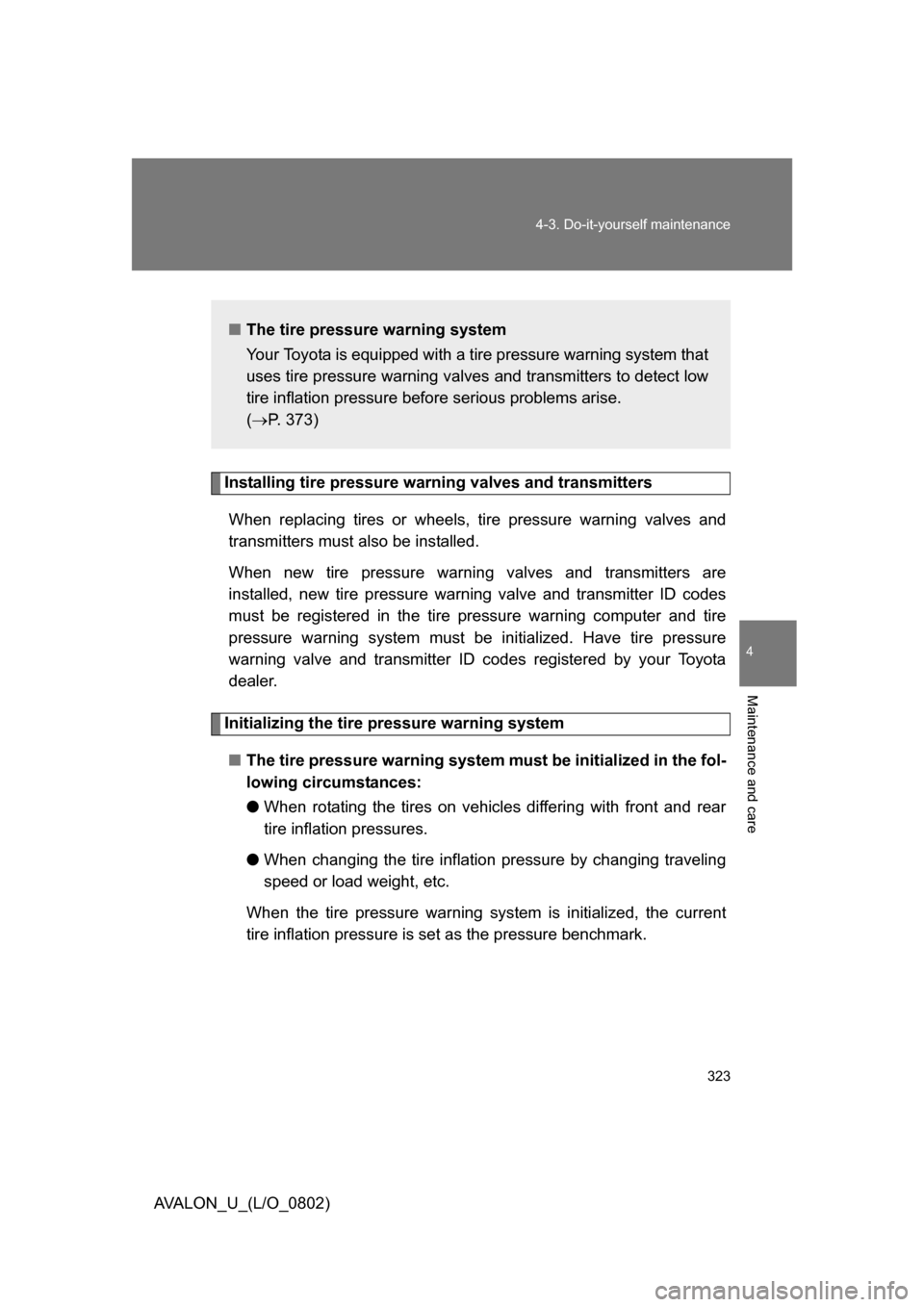

Installing tire pressure warning valves and transmitters
When replacing tires or wheels, ti re pressure warning valves and
transmitters must also be installed.
When new tire pressure warning valves and transmitters are
installed, new tire pressure warn ing valve and transmitter ID codes
must be registered in the tire pr essure warning computer and tire
pressure warning system must be initialized. Have tire pressure
warning valve and transmitter ID codes registered by your Toyota
dealer.
Initializing the tire pressure warning system
■ The tire pressure warning system must be initialized in the fol-
lowing circumstances:
●When rotating the tires on vehicles differing with front and rear
tire inflation pressures.
● When changing the tire inflation pressure by changing traveling
speed or load weight, etc.
When the tire pressure warning system is initialized, the current
tire inflation pressure is set as the pressure benchmark.
■ The tire pressure warning system
Your Toyota is equipped with a tire pressure warning system that
uses tire pressure warning valves and transmitters to detect low
tire inflation pressure before serious problems arise. 
(  P. 373)
