2008 TOYOTA AVALON Owners Manual

217
3-2. Using the audio system
3
Interior features
AVALON_U_(L/O_0802)
Using the steering wheel audio switches
Turning on the powerPress when the audio system is turned off.
The audio system can be turned off by holding the switch down for 1 sec-
ond or more.
Changing the audio sourcePress when the audio system is turned on. The audio source
changes as follows each time the bu tton is pressed. If a CD is not
inserted, that mode will be skipped.
“FM1”  “FM2”  “CD player”  “AUX”  “AM”  “SAT1” 
“SAT2”  “SAT3”
Some audio features can be cont rolled using the switches on the
steering wheel.
Vo l u m e
Radio: Select radio stations
CD: Select tracks, files (MP3 and WMA) and
discs
Power on, select audio
source

218 3-2. Using the audio system
AVALON_U_(L/O_0802)

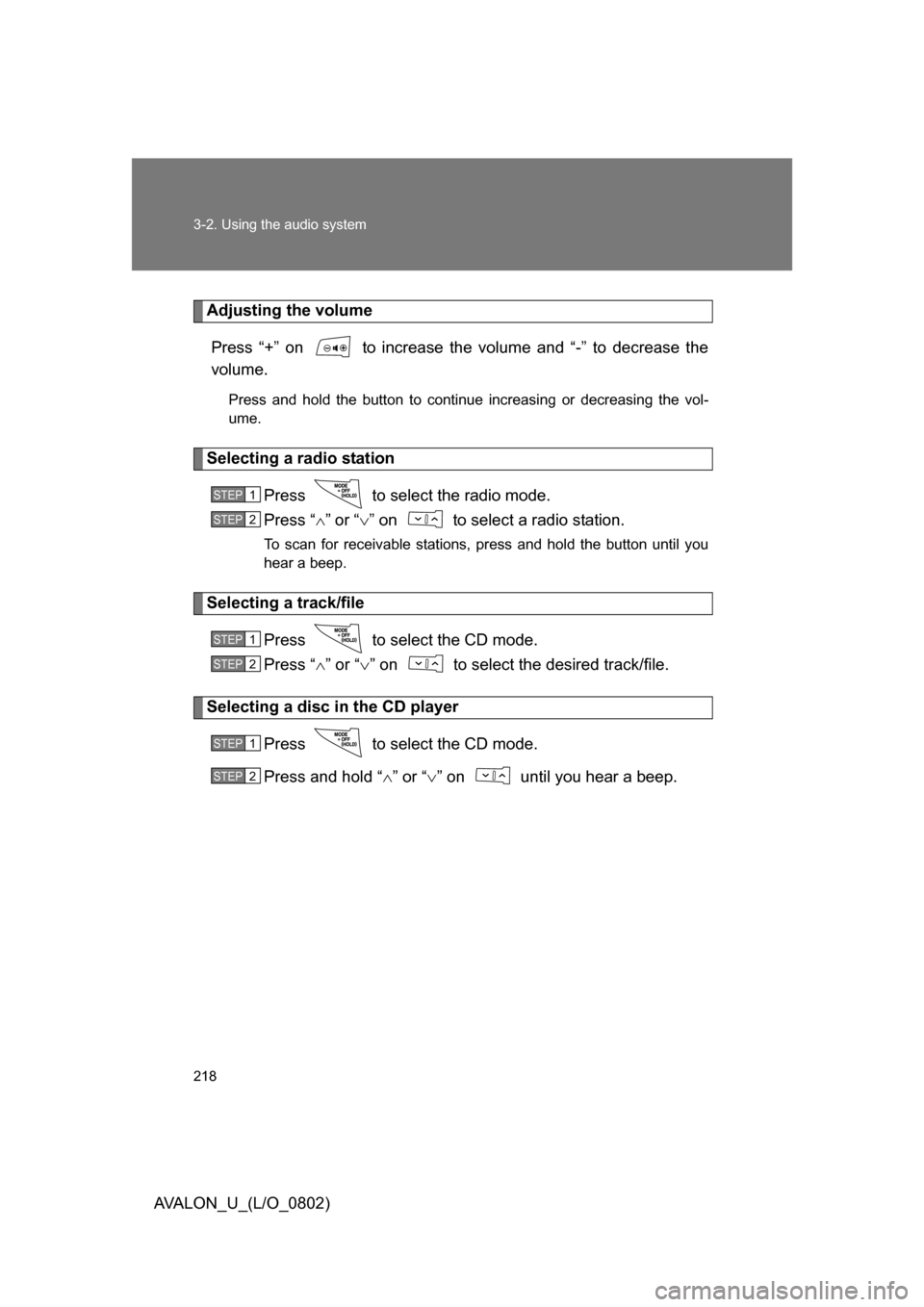

Adjusting the volumePress “+” on to increase the volume and “-” to decrease the
volume.
Press and hold the button to continue increasing or decreasing the vol-
ume.
Selecting a radio station Press to select the radio mode.
Press “”or “ ” on to select a radio station.
To scan for receivable stations, press and hold the button until you
hear a beep.
Selecting a track/file
Press to select the CD mode.
Press “” or “ ” on to select the desired track/file.
Selecting a disc in the CD player
Press to select the CD mode.
Press and hold “ ” or “ ” on until you hear a beep.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

219
3-2. Using the audio system
3
Interior features
AVALON_U_(L/O_0802)
■

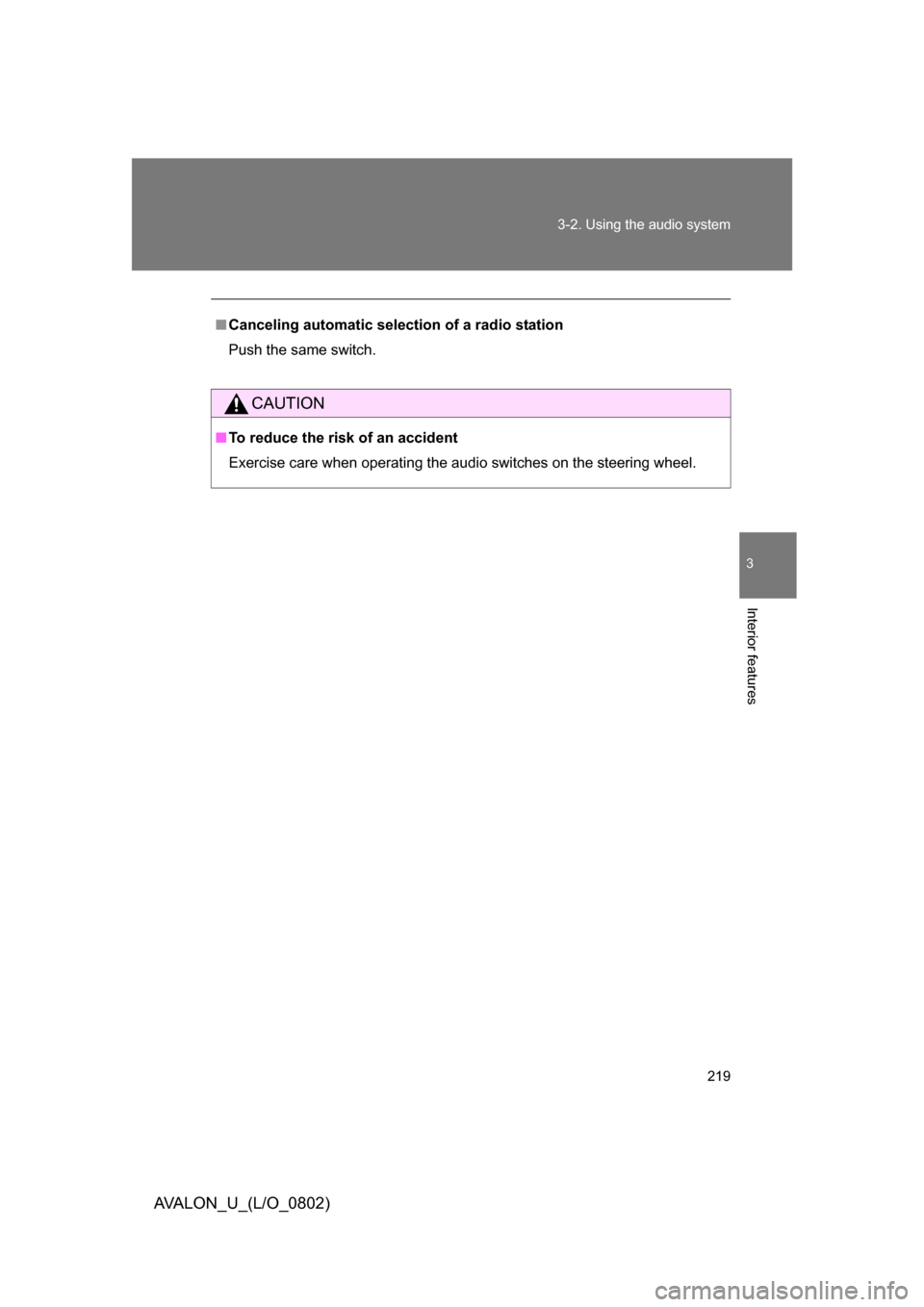

Canceling automatic selection of a radio station
Push the same switch.
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

220
AVALON_U_(L/O_0802)
3-3. Using the hands-free system (for cellular phone)
Hands-free system (for cellular phone) (if equipped)
■Conditions under which th e system will not operate
● If using a cellular phone that does not support Bluetooth
®.
● If the cellular phone is switched off.
● If you are outside service range.
● If the cellular phone is not connected.
● If the cellular phone’s battery is low.
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent the personal data from being
improperly accessed.
■ About Bluetooth
®
This system supports Bluetooth®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without oper ating the cellular phone.
TitlePage
Using the hands-free systemP. 223
Making a phone callP. 231
Setting a cellular phoneP. 236
Security and system setupP. 241
Using the phone bookP. 244
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

221
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
AVALON_U_(L/O_0802)
■Compatible models
Compatible with HFP (Hands Free Profile) Ver. 1.0 and OPP (Object Push
Profile) Ver. 1.1.
If your cellular phone does not support HFP, you cannot enter the Bluetooth
®
phone, and take OPP service individually.
■ Certification for the hands-free system
NOTE: 
This device complies with Part 15 of the FCC Rules and RSS-210. Opera-
tion is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
NOTICE: 
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC ID: HYQBTAU01A
IC ID: 1551A-BTAU01A
MADE IN JAPAN

222 3-3. Using the hands-free system (for cellular phone)
AVALON_U_(L/O_0802)

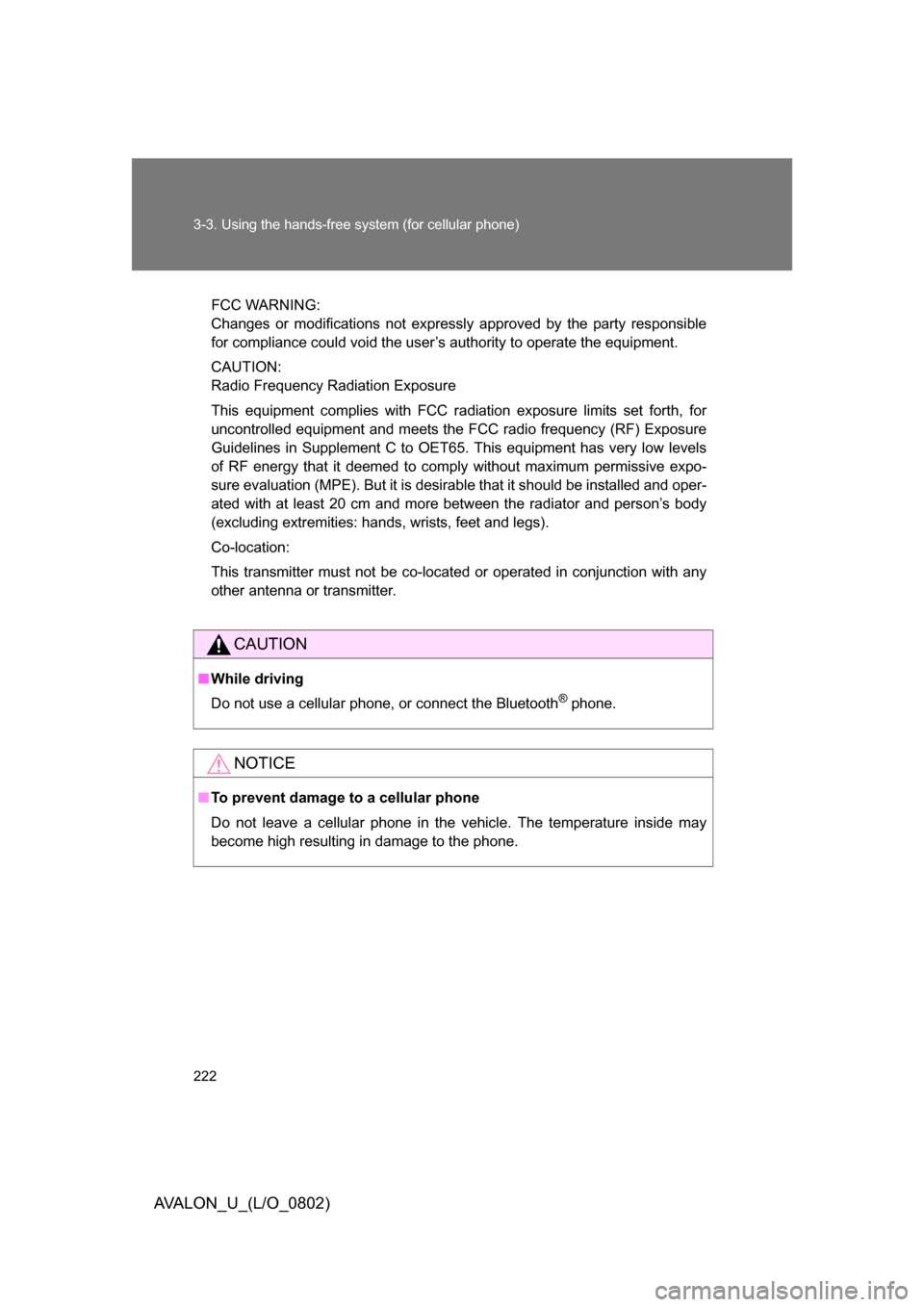

FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
CAUTION: 
Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth, for
uncontrolled equipment and meets the FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65. This equipment has very low levels
of RF energy that it deemed to comply without maximum permissive expo-
sure evaluation (MPE). But it is desirable that it should be installed and oper-
ated with at least 20 cm and more between the radiator and person’s body
(excluding extremities: hands, wrists, feet and legs).
Co-location:
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
CAUTION
■ While driving
Do not use a cellular phone, or connect the Bluetooth
® phone.
NOTICE
■To prevent damage to a cellular phone
Do not leave a cellular phone in the vehicle. The temperature inside may
become high resulting in damage to the phone.

223
3-3. Using the hands-free system (for cellular phone)
3
Interior features
AVALON_U_(L/O_0802)

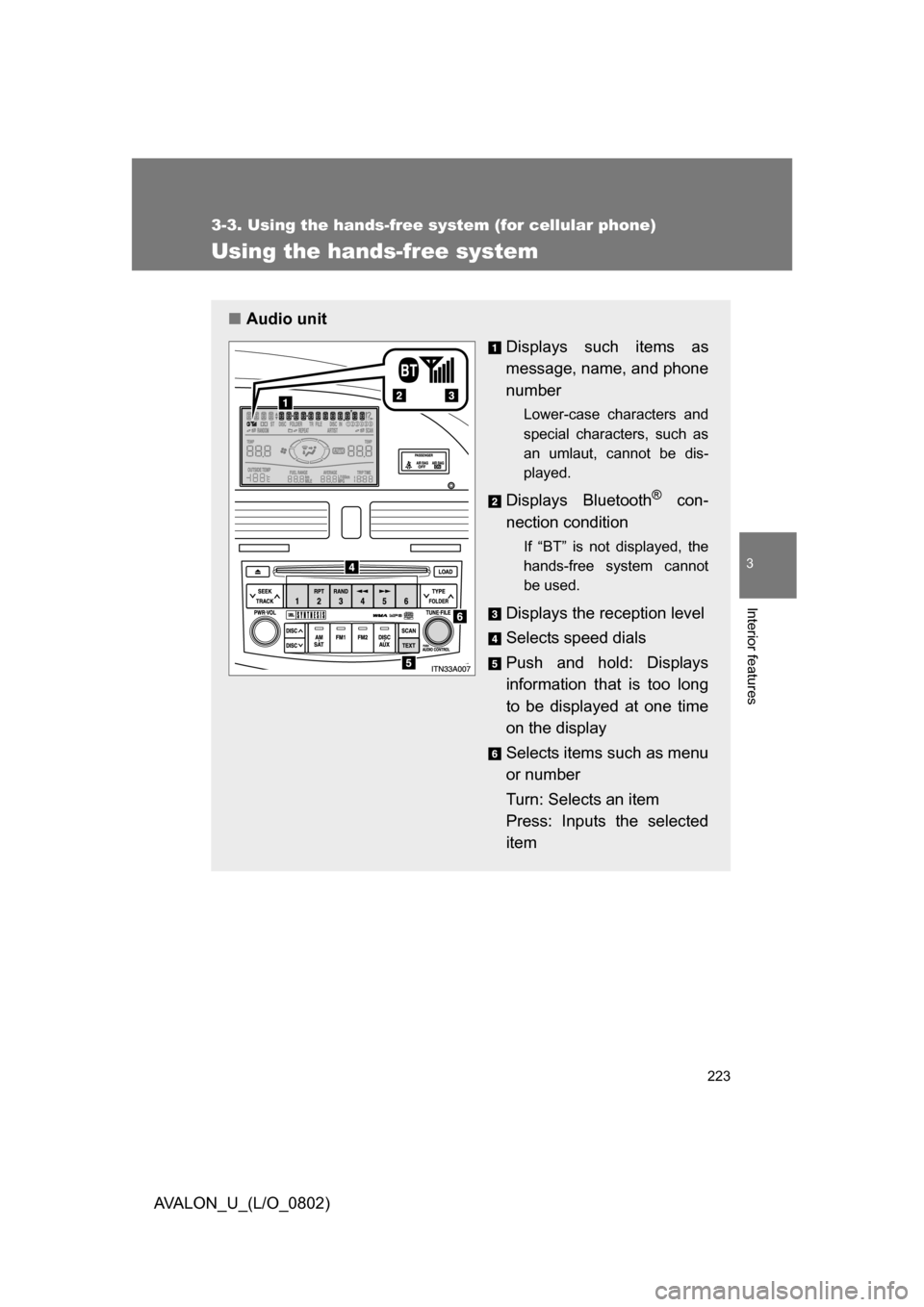

Using the hands-free system
■Audio unit
Displays such items as
message, name, and phone
number
Lower-case characters and
special characters, such as
an umlaut, cannot be dis-
played.
Displays Bluetooth® con-
nection condition
If “BT” is not displayed, the
hands-free system cannot
be used.
Displays the reception level
Selects speed dials
Push and hold: Displays
information that is too long
to be displayed at one time
on the display
Selects items such as menu
or number
Turn: Selects an item 
Press: Inputs the selected
item

224 3-3. Using the hands-free system (for cellular phone)
AVALON_U_(L/O_0802)

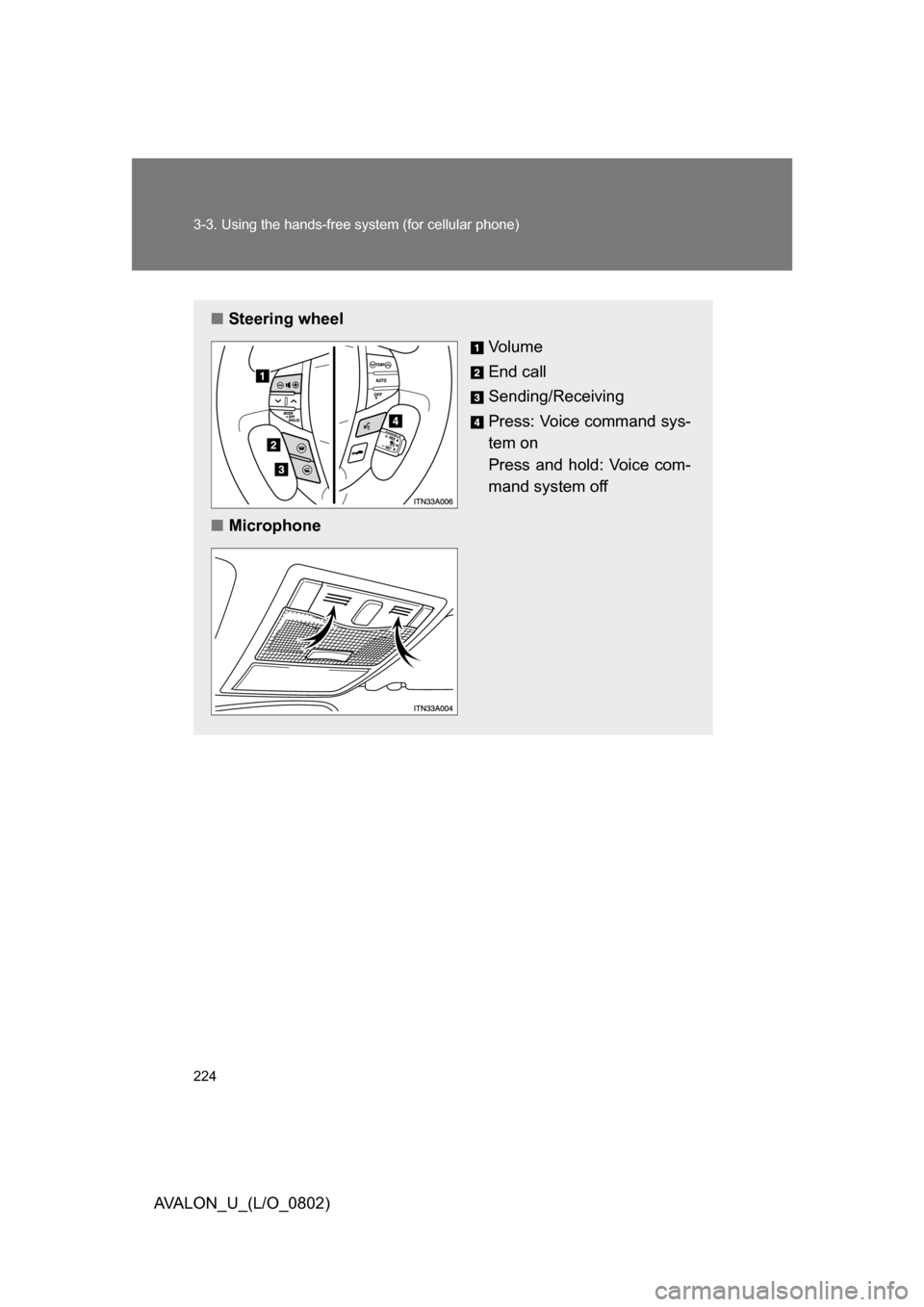

■Steering wheel
Vo l u m e
End call
Sending/Receiving
Press: Voice command sys-
tem on
Press and hold: Voice com-
mand system off
■ Microphone
