2008 TOYOTA AVALON Owners Manual

273
3-6. Other interior features
3
Interior features
AVALON_U_(L/O_0802)
Rear sunshade (if equipped)
■The rear sunshade can be used when
The “ENGINE START STOP” switch or the engine switch is in ON mode.
■ Reverse operation feature
To ensure adequate rear visibility, the sunshade automatically lowers when
the shift lever is shifted to “R”.
However, the rear sunshade is raised again if any of the following occurs:
● Shift the shift lever into “P”.
● The switch is pressed again.
● The shift lever is shifted out of “R”, and the vehicle reaches a speed of 9
mph (15 km/h).
If the engine is turned off when the rear sunshade has been lowered due to
the reverse operation feature, it will not be raised even when the engine is
turned on again and the vehicle reaches a speed of 9 mph (15 km/h). To
raise the sunshade again, press the switch.
■ Operating the rear suns hade after turning the “ENGINE START STOP”
switch or the engine switch off
The rear sunshade can be raised and lowered for approximately 1 minute.
■ Customization that can be co nfigured at Toyota dealer
Contact your Toyota dealer for further details.
The rear sunshade can be raised and lowered by pressing the switch
shown below.
Raise/lower

274 3-6. Other interior features
AVALON_U_(L/O_0802)
CAUTION
■When the rear sunshade is being raised or lowered
Do not place fingers or other objects in the fastener section or in the open-
ing. They may get caught, causing injury.
NOTICE
■To prevent battery discharge
Do not operate the rear sunshade when the engine is not running.
■ To ensure normal operation of the sunshade
Observe the following precautions.
● Do not place excessive load on the motor or other components.
● Do not place objects where they may hinder opening and closing opera-
tions.
● Do not attach items to the rear sunshade.
● Keep the opening clean and clear of obstructions.
● Do not operate the rear sunshade continuously over long periods of time.

275
3-6. Other interior features
3
Interior features
AVALON_U_(L/O_0802)

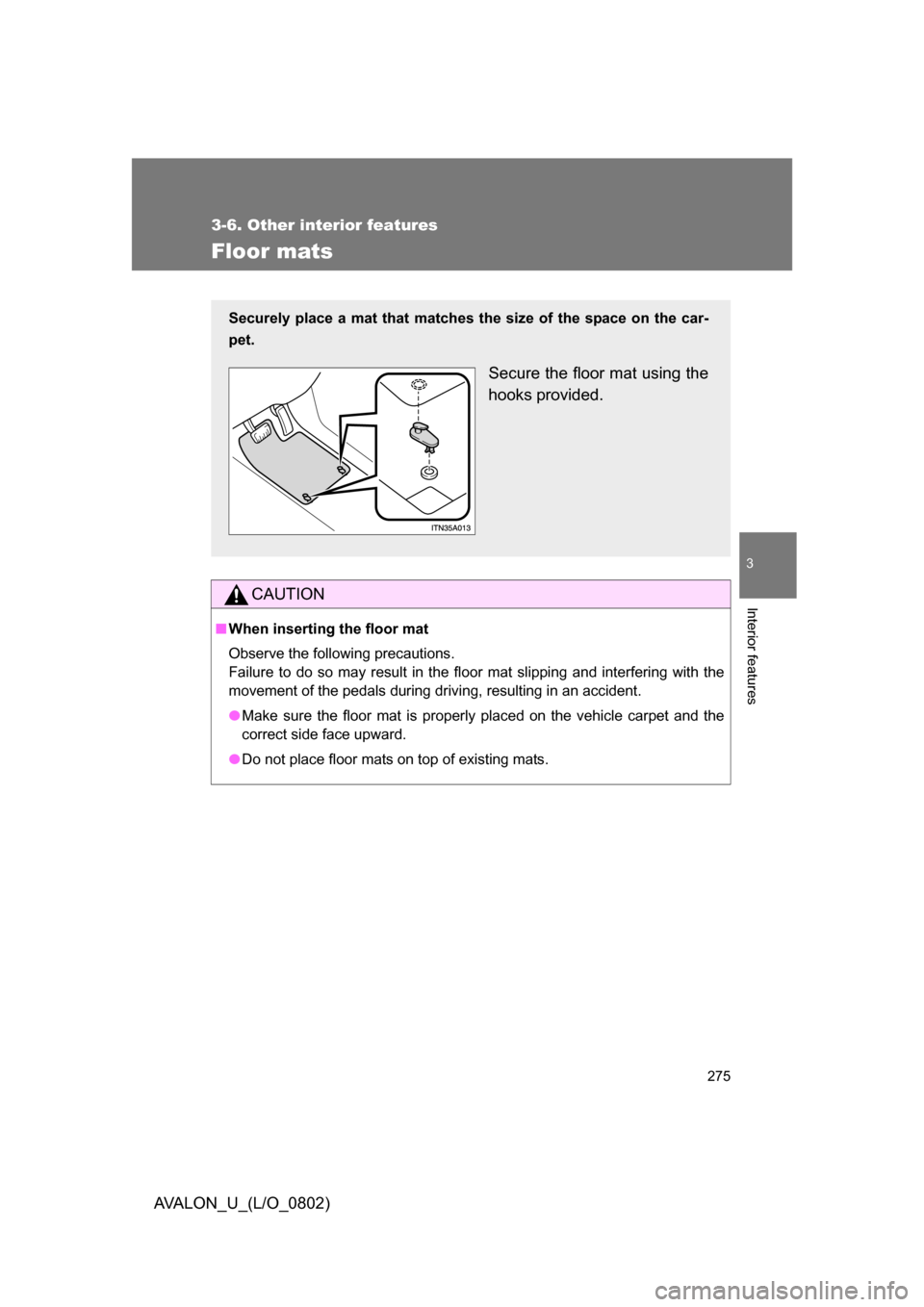

Floor mats
CAUTION
■When inserting the floor mat
Observe the following precautions.
Failure to do so may result in the floor mat slipping and interfering wi\
th the
movement of the pedals during driving, resulting in an accident.
● Make sure the floor mat is properly placed on the vehicle carpet and the
correct side face upward.
● Do not place floor mats on top of existing mats.
Securely place a mat that matches the size of the space on the car-
pet.
Secure the floor mat using the
hooks provided.

276
3-6. Other interior features
AVALON_U_(L/O_0802)
Trunk features
■Cargo net
The cargo net is provided for
securing loose items.
■ Shopping bag hooks
■ Storage box

277
3-6. Other interior features
3
Interior features
AVALON_U_(L/O_0802)

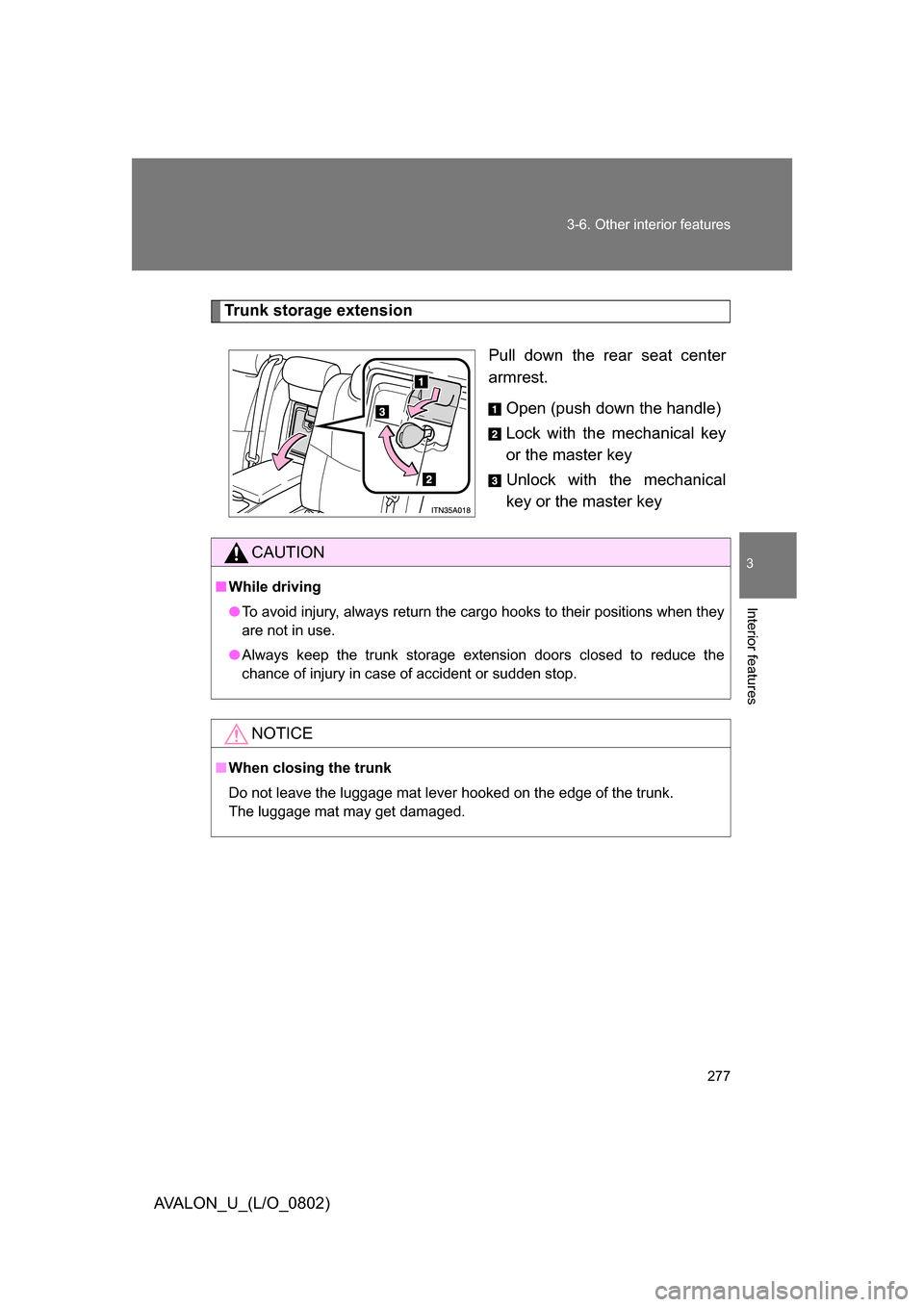

Trunk storage extension
Pull down the rear seat center
armrest.Open (push down the handle)
Lock with the mechanical key
or the master key
Unlock with the mechanical
key or the master key
CAUTION
■While driving
● To avoid injury, always return the cargo hooks to their positions when they
are not in use.
● Always keep the trunk storage extension doors closed to reduce the
chance of injury in case of accident or sudden stop.
NOTICE
■When closing the trunk
Do not leave the luggage mat lever hooked on the edge of the trunk. 
The luggage mat may get damaged.

278
3-6. Other interior features
AVALON_U_(L/O_0802)

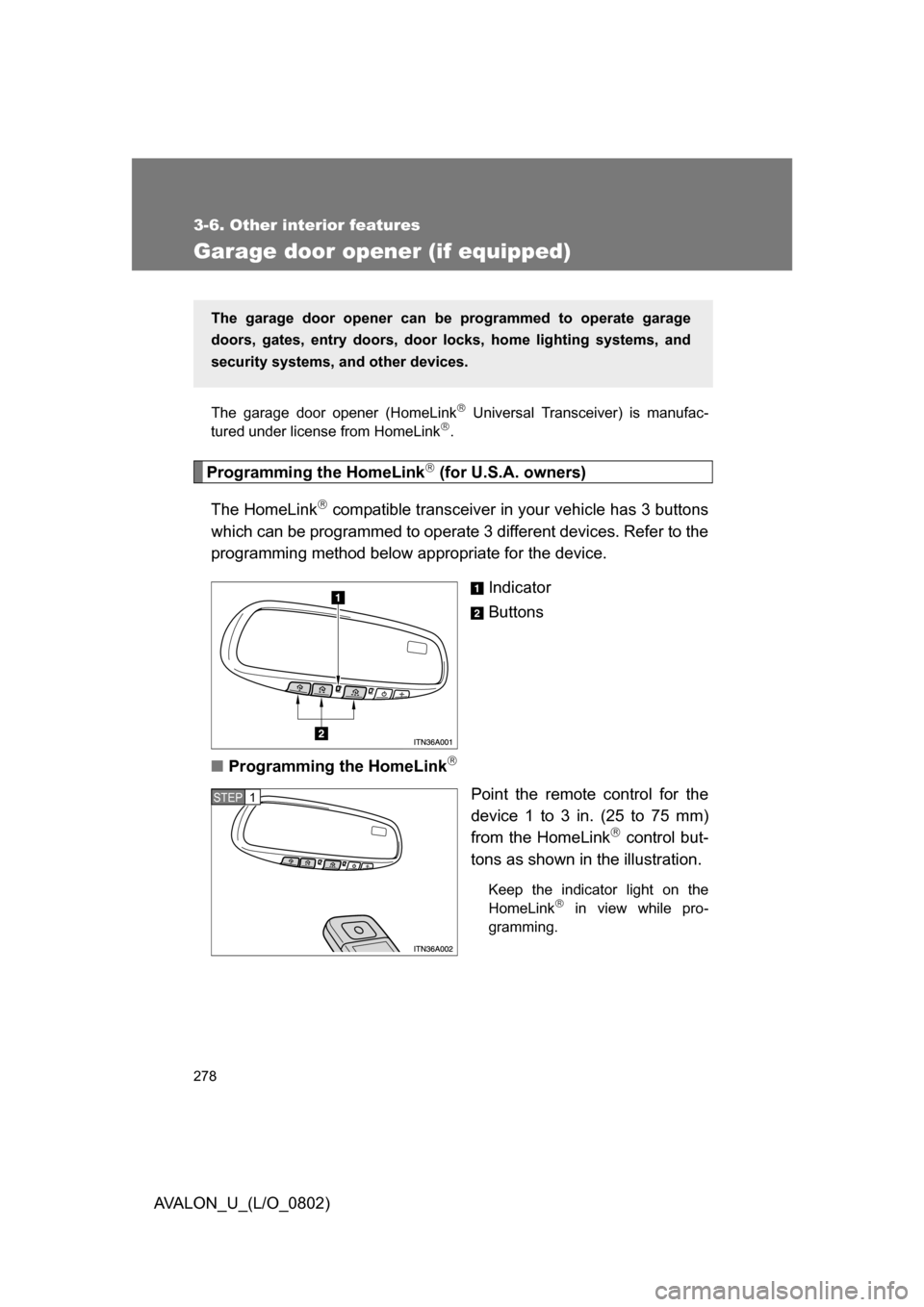

Garage door opener (if equipped)
The garage door opener (HomeLink Universal Transceiver) is manufac-
tured under license from HomeLink.
Programming the HomeLink (for U.S.A. owners)
The HomeLink
 compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
Buttons
■ Programming the HomeLink

Point the remote control for the
device 1 to 3 in. (25 to 75 mm)
from the HomeLink
 control but-
tons as shown in the illustration.
Keep the indicator light on the
HomeLink in view while pro-
gramming.
The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, hom e lighting systems, and
security systems, and other devices.
STEP1

279
3-6. Other interior features
3
Interior features
AVALON_U_(L/O_0802)

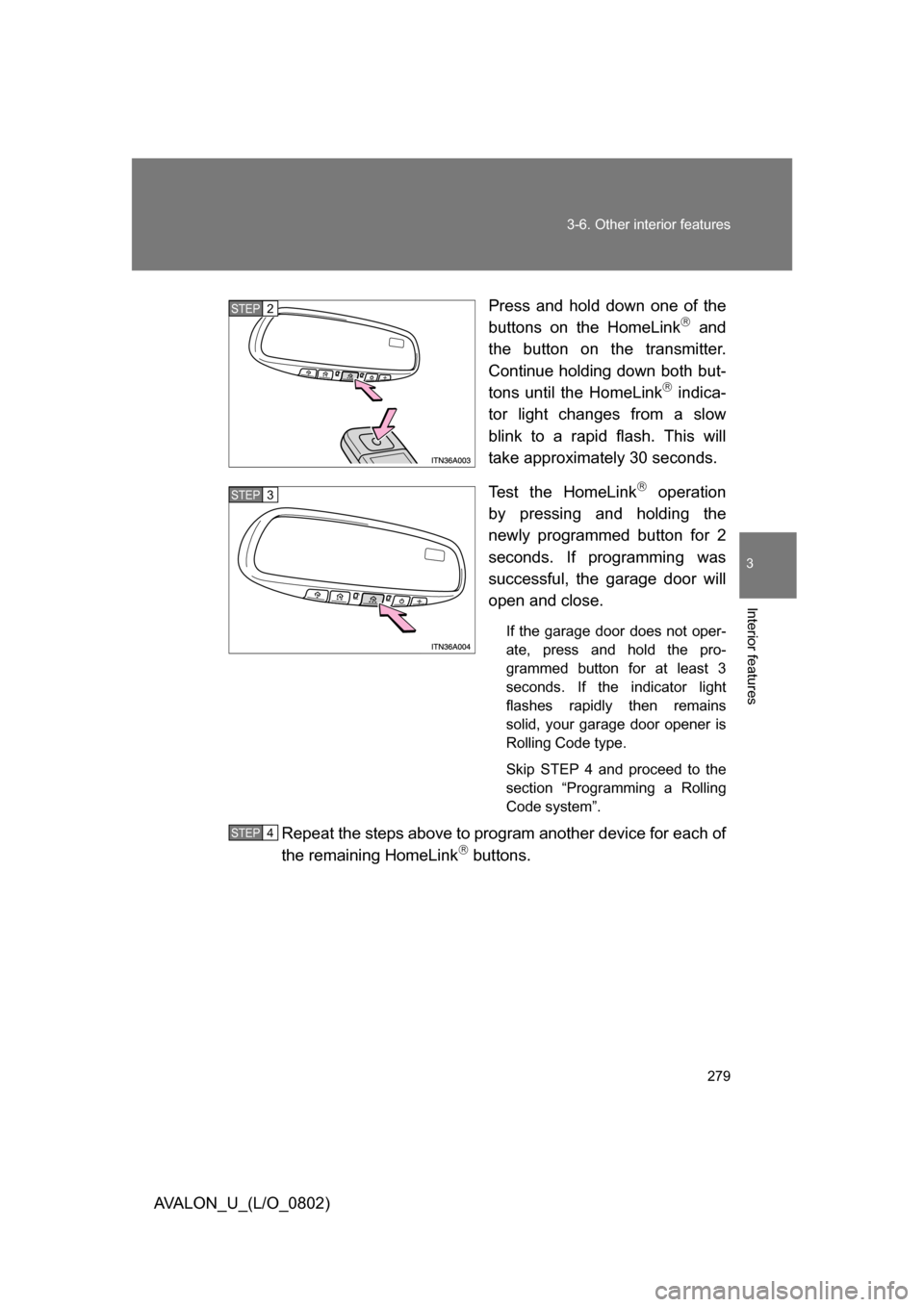

Press and hold down one of the
buttons on the HomeLink
 and
the button on the transmitter.
Continue holding down both but-
tons until the HomeLink
 indica-
tor light changes from a slow
blink to a rapid flash. This will
take approximately 30 seconds.
Test the HomeLink
 operation
by pressing and holding the
newly programmed button for 2
seconds. If programming was
successful, the garage door will
open and close.
If the garage door does not oper-
ate, press and hold the pro-
grammed button for at least 3
seconds. If the indicator light
flashes rapidly then remains
solid, your garage door opener is
Rolling Code type.
Skip STEP 4 and proceed to the
section “Programming a Rolling
Code system”.
Repeat the steps above to program another device for each of
the remaining HomeLink buttons.
STEP2
STEP3
STEP4

280 3-6. Other interior features
AVALON_U_(L/O_0802)■

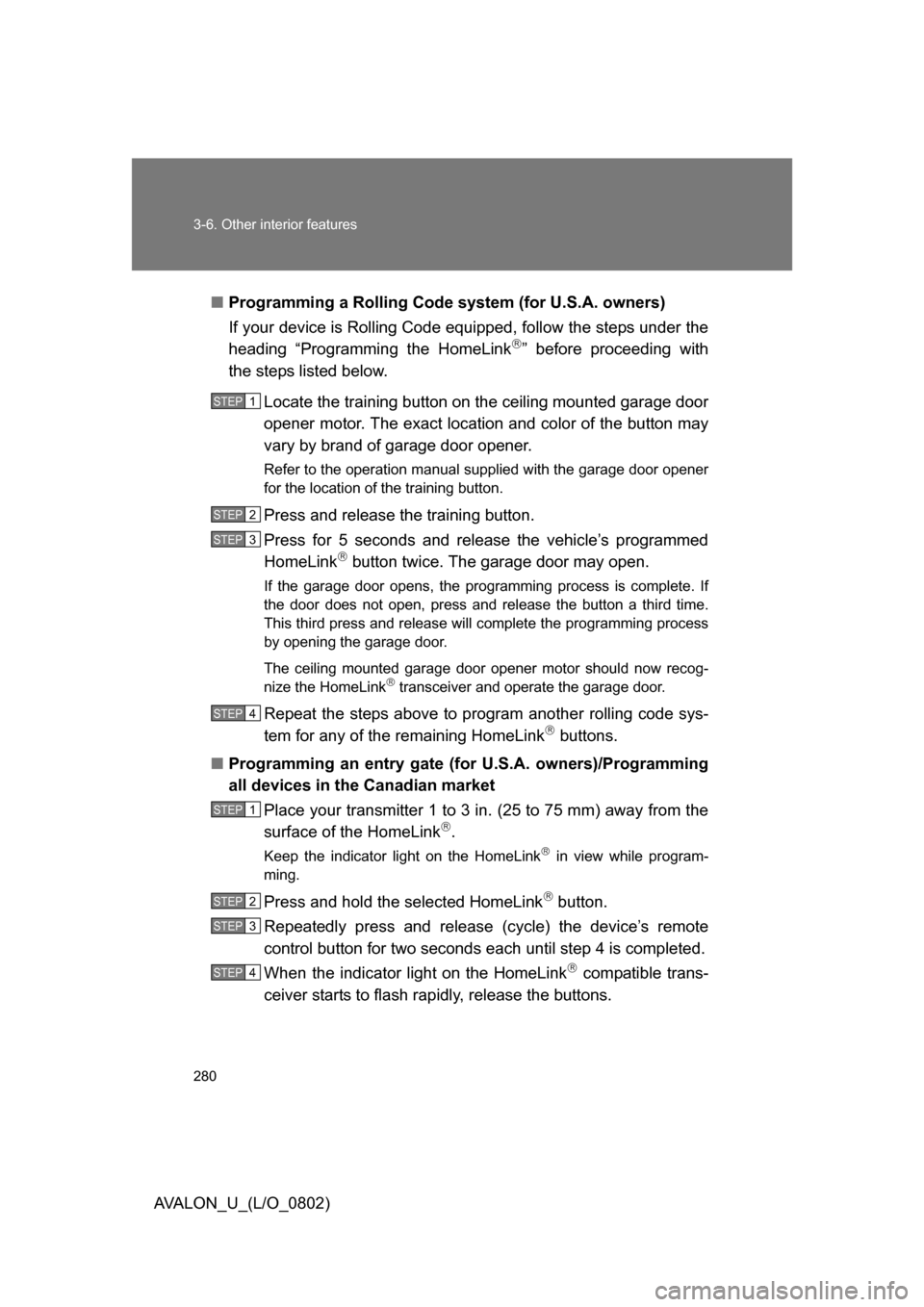

Programming a Rolling Code sys tem (for U.S.A. owners)
If your device is Rolling Code equipped, follow the steps under the
heading “Programming the HomeLink
” before proceeding with
the steps listed below.
Locate the training button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener.
Refer to the operation manual supplied with the garage door opener
for the location of the training button.
Press and release the training button.
Press for 5 seconds and release the vehicle’s programmed
HomeLink
 button twice. The garage door may open.
If the garage door opens, the programming process is complete. If
the door does not open, press and release the button a third time.
This third press and release will complete the programming process
by opening the garage door.
The ceiling mounted garage door opener motor should now recog-
nize the HomeLink
 transceiver and operate the garage door.
Repeat the steps above to prog ram another rolling code sys-
tem for any of the remaining HomeLink buttons.
■ Programming an entry gate (f or U.S.A. owners)/Programming
all devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the
surface of the HomeLink
.
Keep the indicator light on the HomeLink in view while program-
ming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the device’s remote
control button for two seconds each until step 4 is completed.
When the indicator light on the HomeLink
 compatible trans-
ceiver starts to flash rapidly, release the buttons.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4
