2008 TOYOTA AVALON Owners Manual

105
1-7. Safety information
1
Before driving
AVALON_U_(L/O_0802)

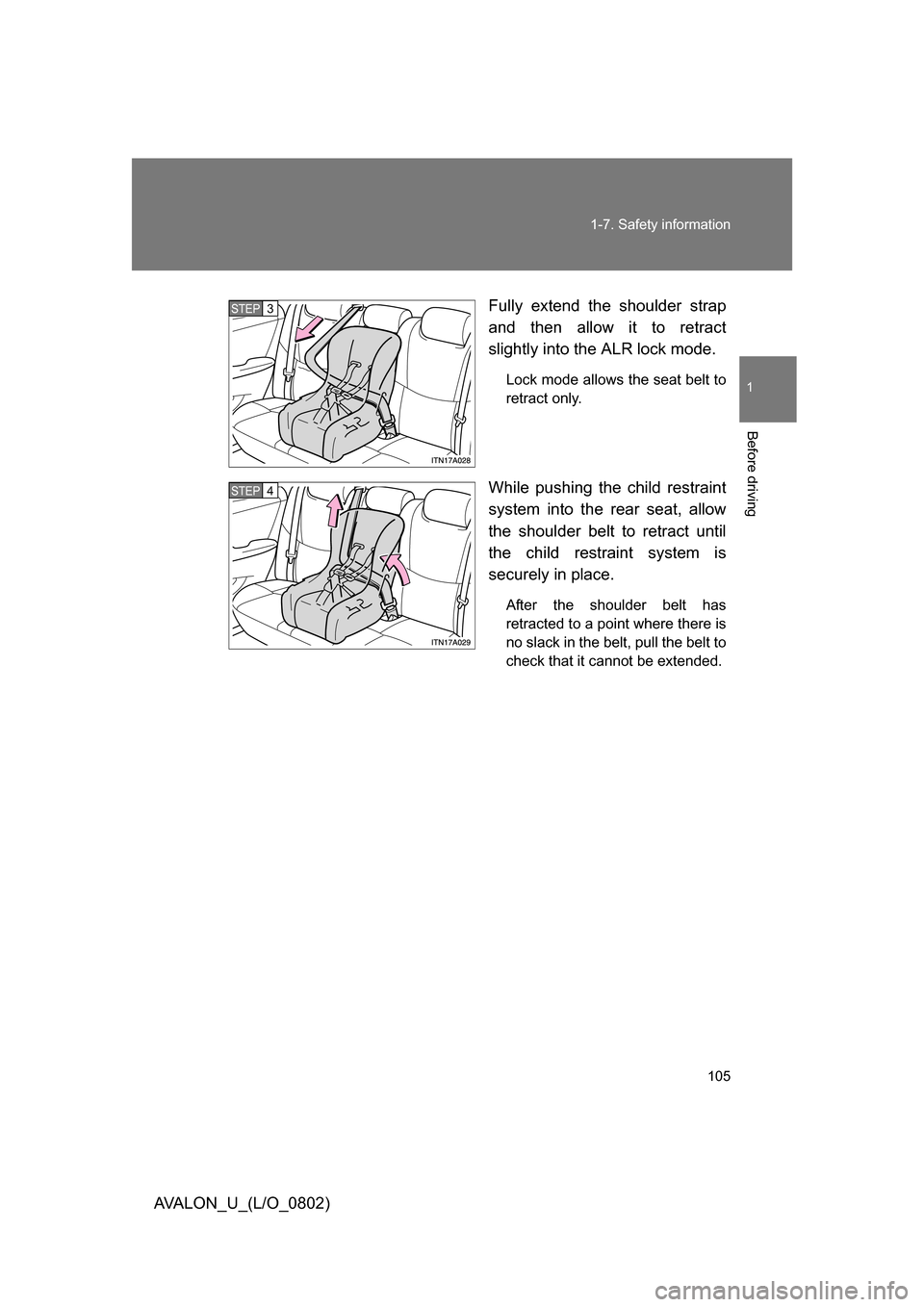

Fully extend the shoulder strap
and then allow it to retract
slightly into the ALR lock mode.
Lock mode allows the seat belt to
retract only.
While pushing the child restraint
system into the rear seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
STEP3
STEP4

106 1-7. Safety information
AVALON_U_(L/O_0802)■

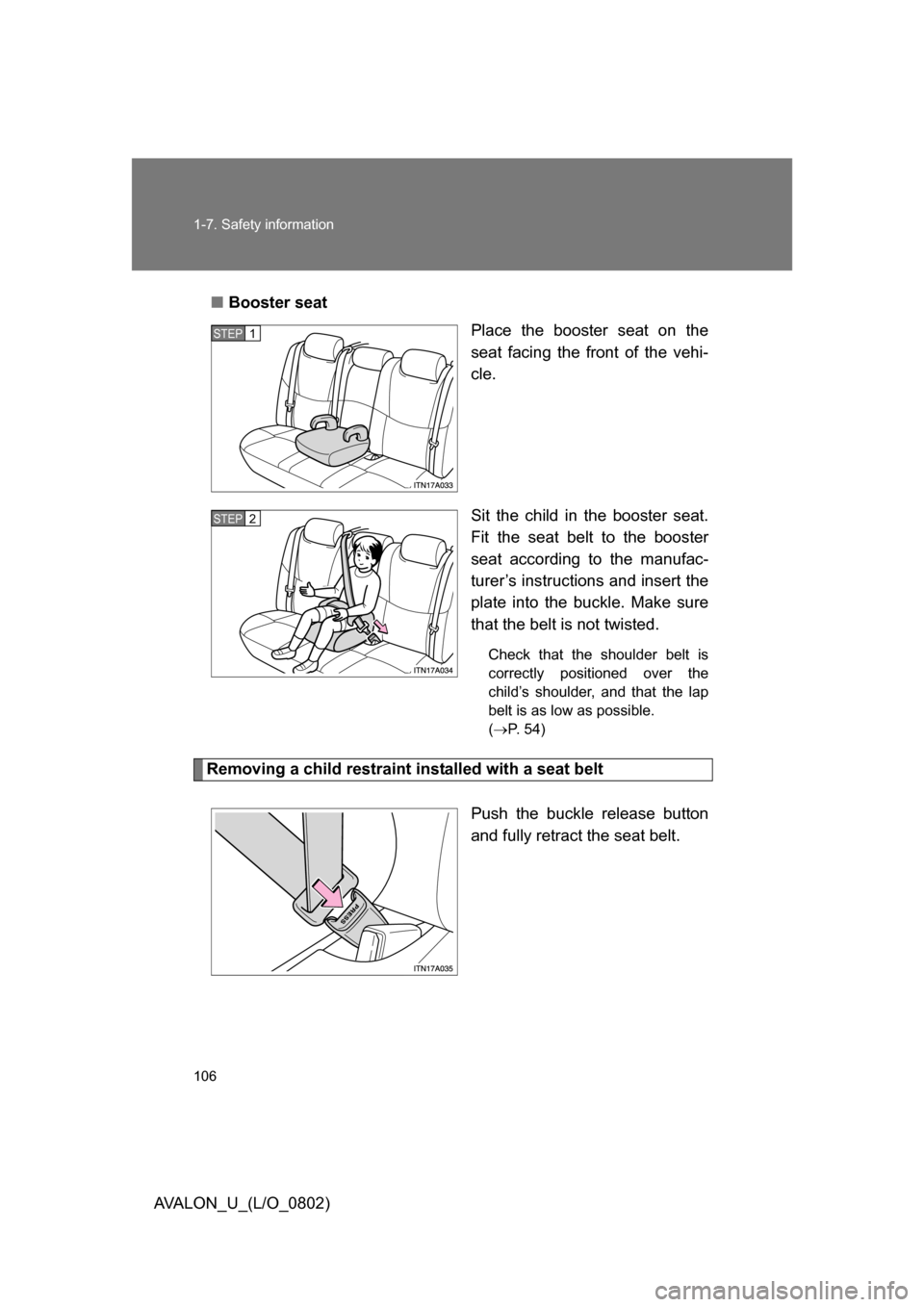

Booster seat
Place the booster seat on the
seat facing the front of the vehi-
cle.
Sit the child in the booster seat.
Fit the seat belt to the booster
seat according to the manufac-
turer’s instructions and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible. 
( P. 54)
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
STEP1
STEP2

107
1-7. Safety information
1
Before driving
AVALON_U_(L/O_0802)

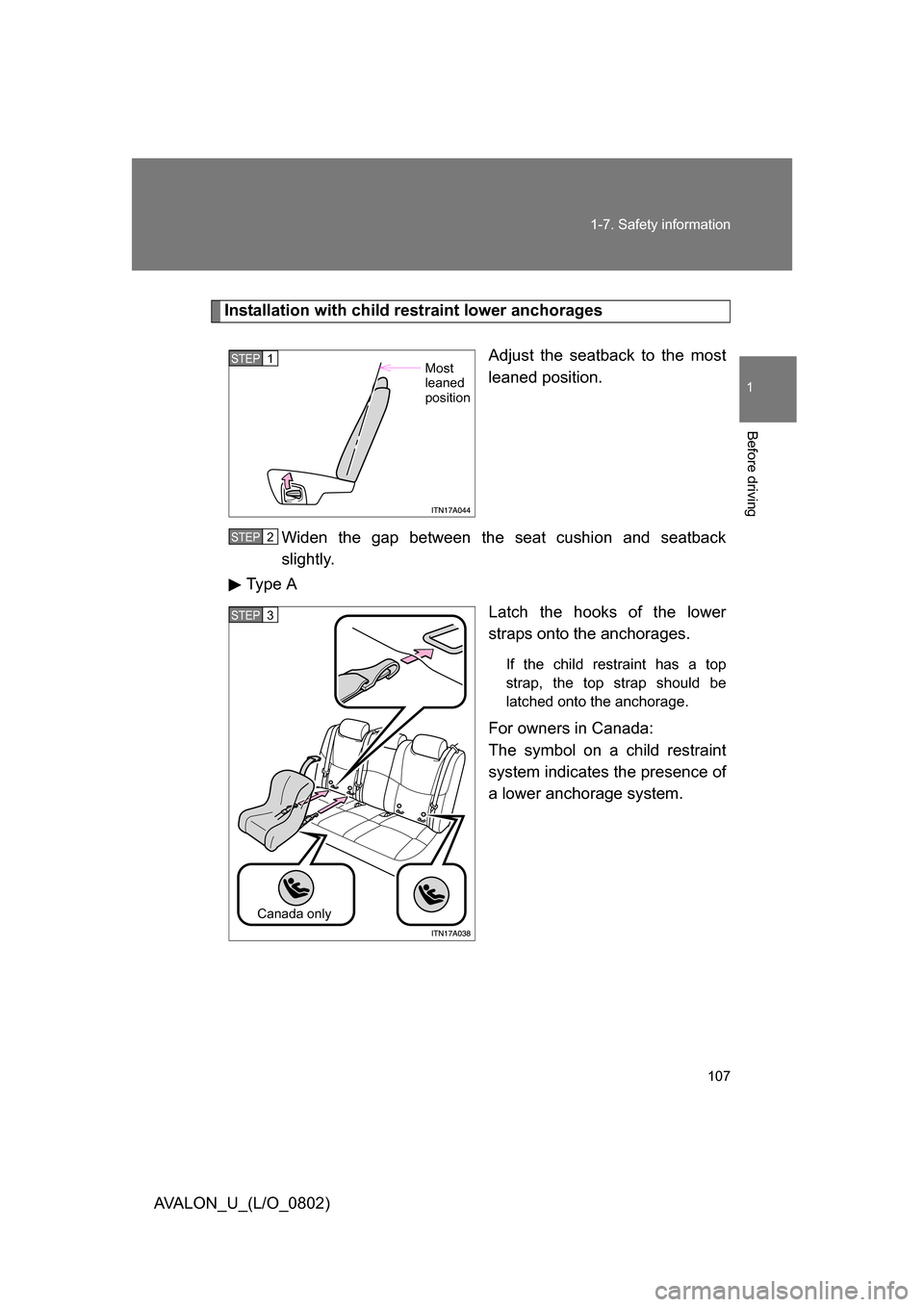

Installation with child restraint lower anchorages
Adjust the seatback to the most
leaned position.
Widen the gap between the seat cushion and seatback
slightly.
Type A
Latch the hooks of the lower
straps onto the anchorages.
If the child restraint has a top
strap, the top strap should be
latched onto the anchorage.
For owners in Canada: 
The symbol on a child restraint
system indicates the presence of
a lower anchorage system.
STEP1Most 
leaned 
position
STEP2
STEP3
Canada only

108 1-7. Safety information

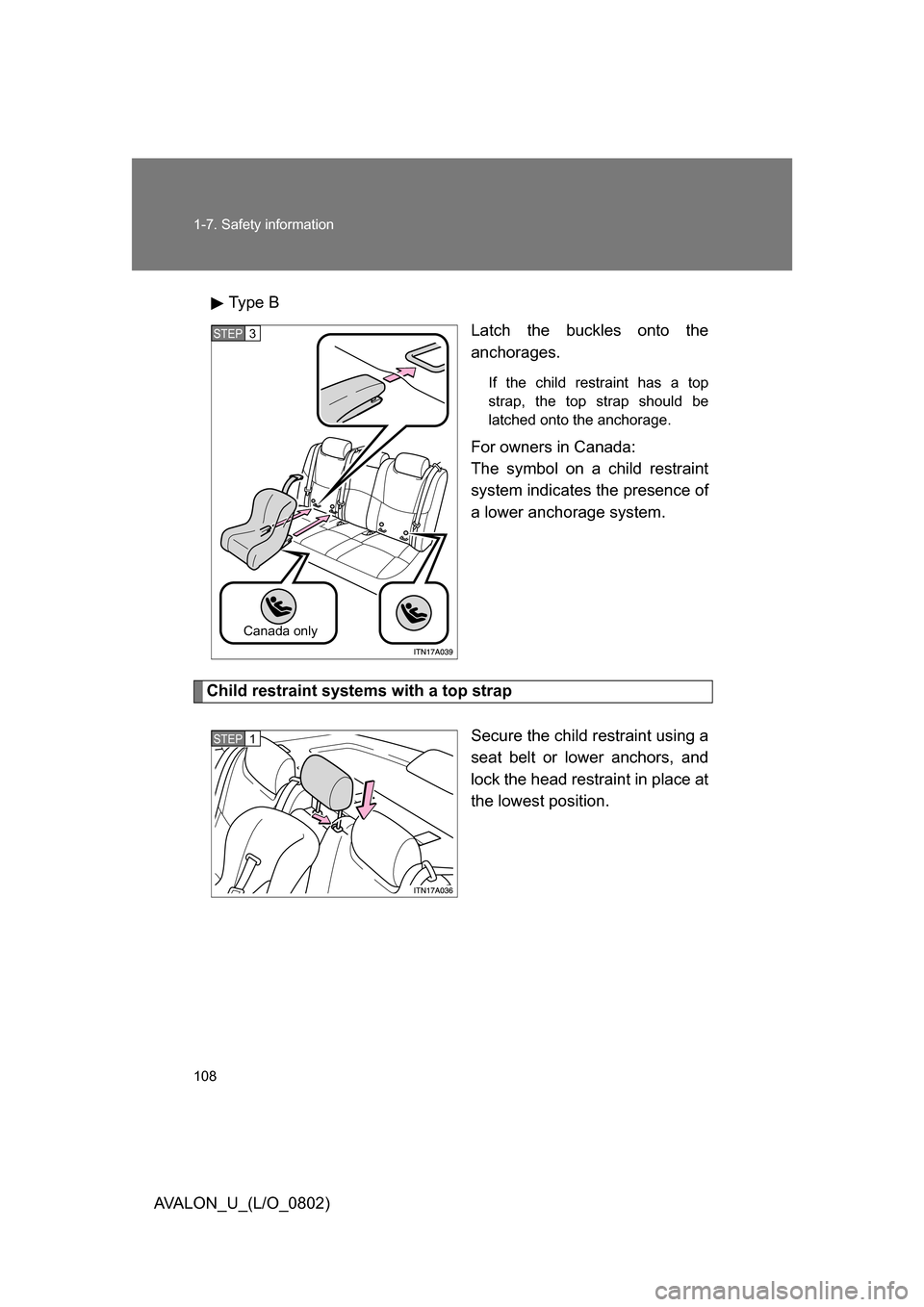

AVALON_U_(L/O_0802)Type B
Latch the buckles onto the
anchorages.
If the child restraint has a top
strap, the top strap should be
latched onto the anchorage.
For owners in Canada: 
The symbol on a child restraint
system indicates the presence of
a lower anchorage system.
Child restraint systems with a top strap
Secure the child restraint using a
seat belt or lower anchors, and
lock the head restraint in place at
the lowest position.
Canada only
STEP3
STEP1

109
1-7. Safety information
1
Before driving
AVALON_U_(L/O_0802)

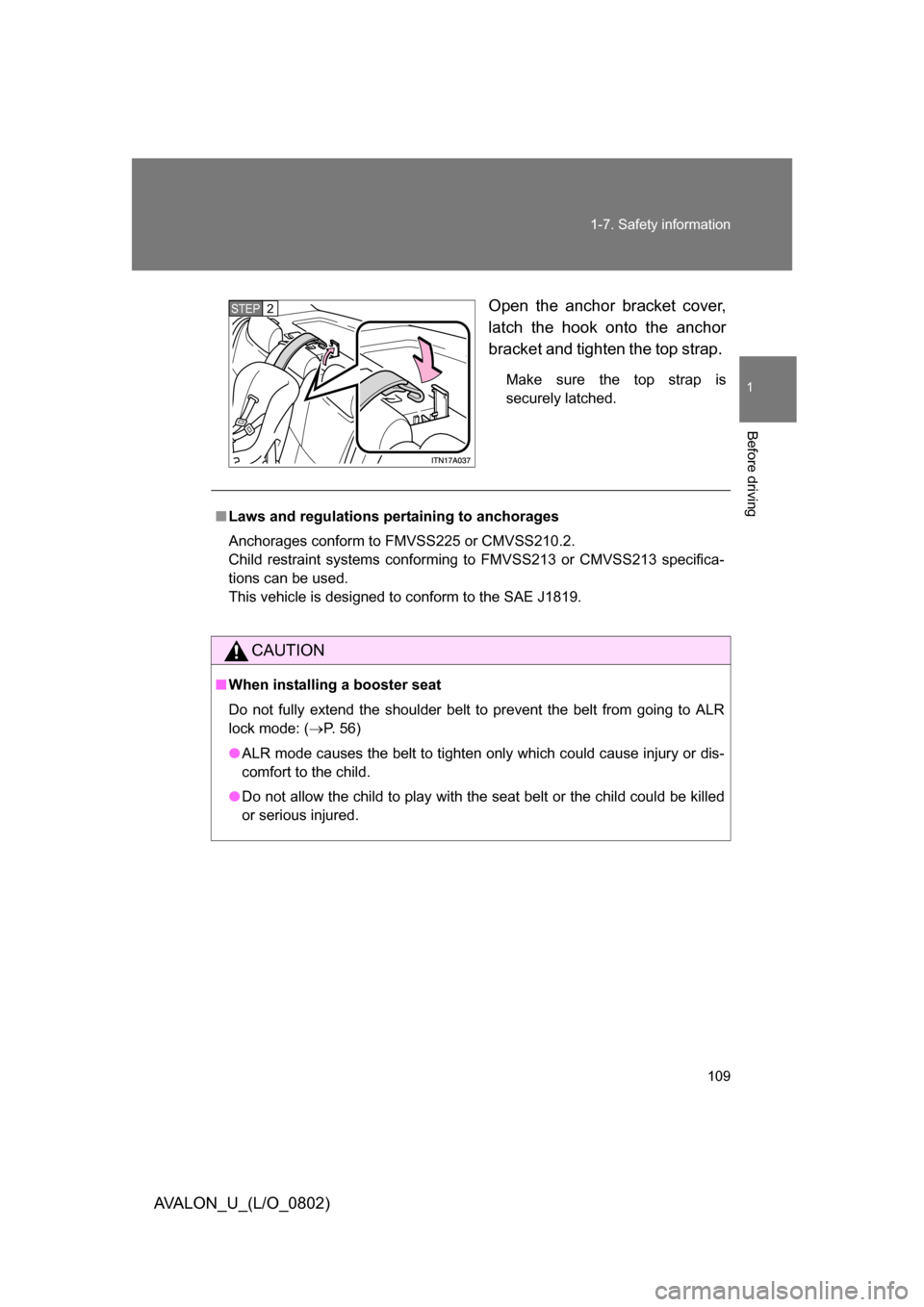

Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is
securely latched.
STEP2
■
Laws and regulations pertaining to anchorages
Anchorages conform to FMVSS225 or CMVSS210.2. 
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.
CAUTION
■ When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR
lock mode: ( P. 56)
● ALR mode causes the belt to tighten only which could cause injury or dis-
comfort to the child.
● Do not allow the child to play with the seat belt or the child could be killed
or serious injured.

110 1-7. Safety information
AVALON_U_(L/O_0802)

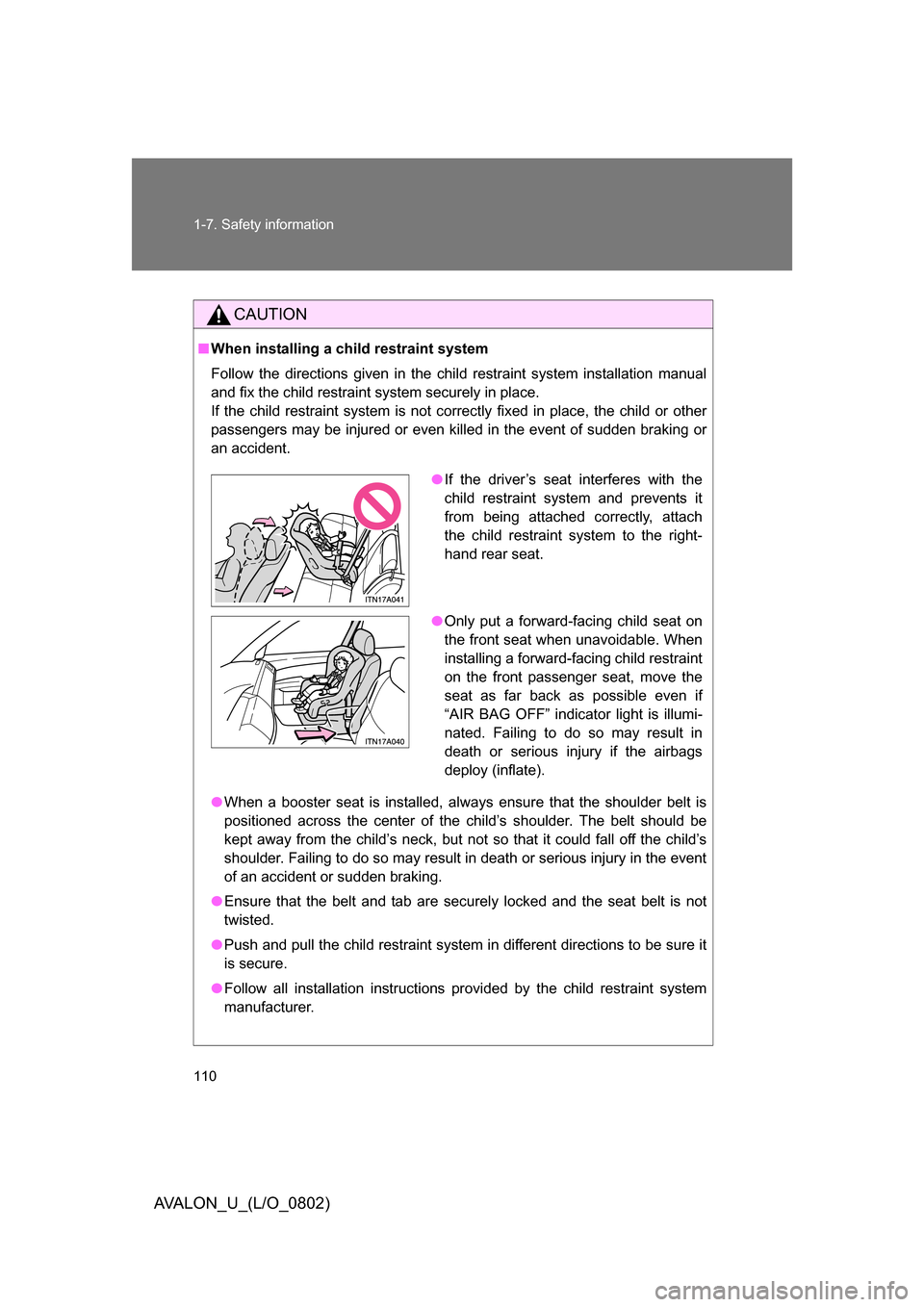

CAUTION
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place. 
If the child restraint system is not correctly fixed in place, the child or other
passengers may be injured or even killed in the event of sudden braking or
an accident.
● When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of an accident or sudden braking.
● Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
● Push and pull the child restraint system in different directions to be sure it
is secure.
● Follow all installation instructions provided by the child restraint system
manufacturer.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat.
● Only put a forward-facing child seat on
the front seat when unavoidable. When
installing a forward-facing child restraint
on the front passenger seat, move the
seat as far back as possible even if
“AIR BAG OFF” indicator light is illumi-
nated. Failing to do so may result in
death or serious injury if the airbags
deploy (inflate).

111
1-7. Safety information
1
Before driving
AVALON_U_(L/O_0802)

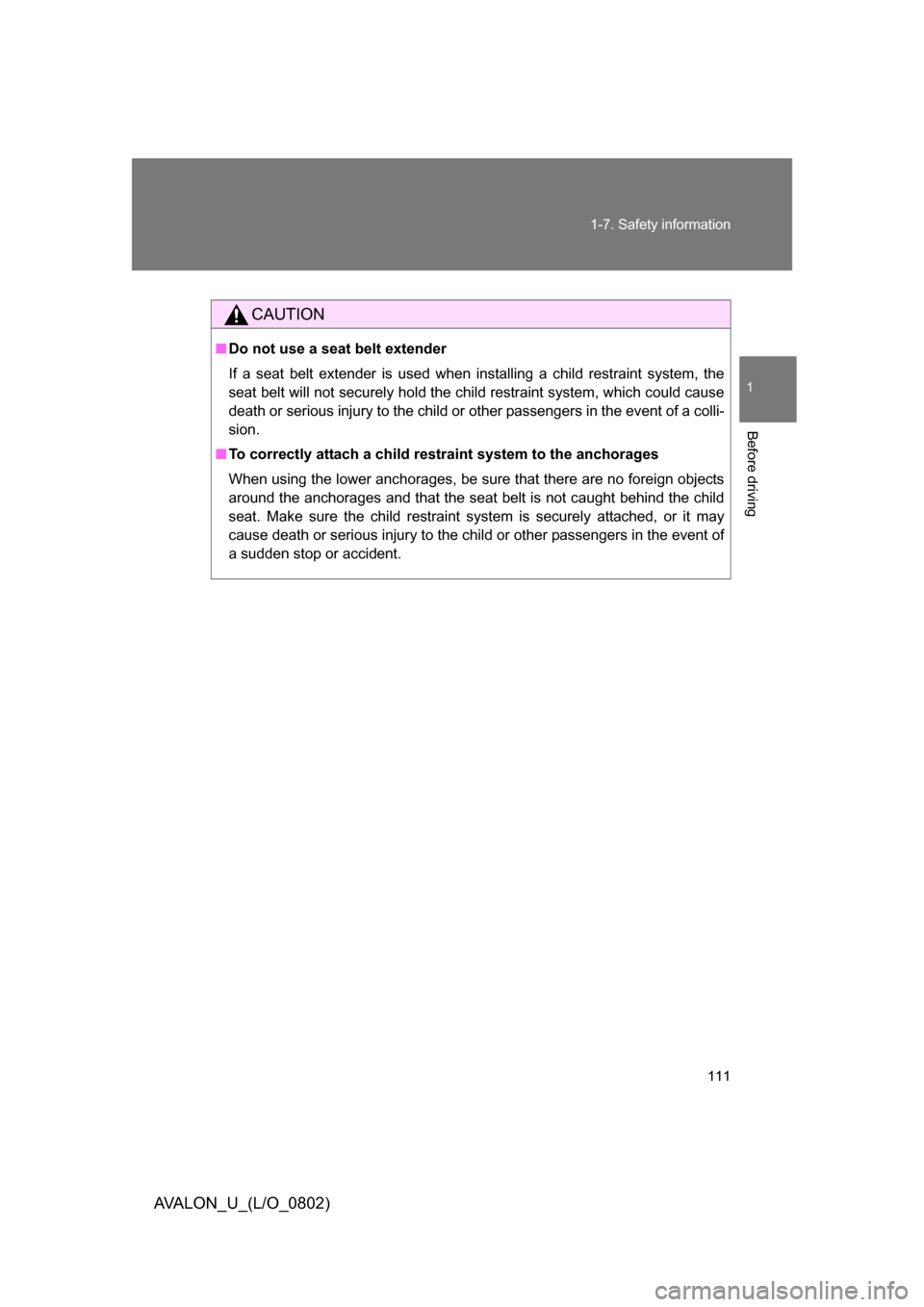

CAUTION
■
Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a colli-
sion.
■ To correctly attach a child r estraint system to the anchorages
When using the lower anchorages, be sure that there are no foreign objects
around the anchorages and that the seat belt is not caught behind the child
seat. Make sure the child restraint system is securely attached, or it may
cause death or serious injury to the child or other passengers in the event of
a sudden stop or accident.
