It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has
a malfunction.
ECM always returns to Diagnostic Test Mode I after the ignition switch is turned OFF.

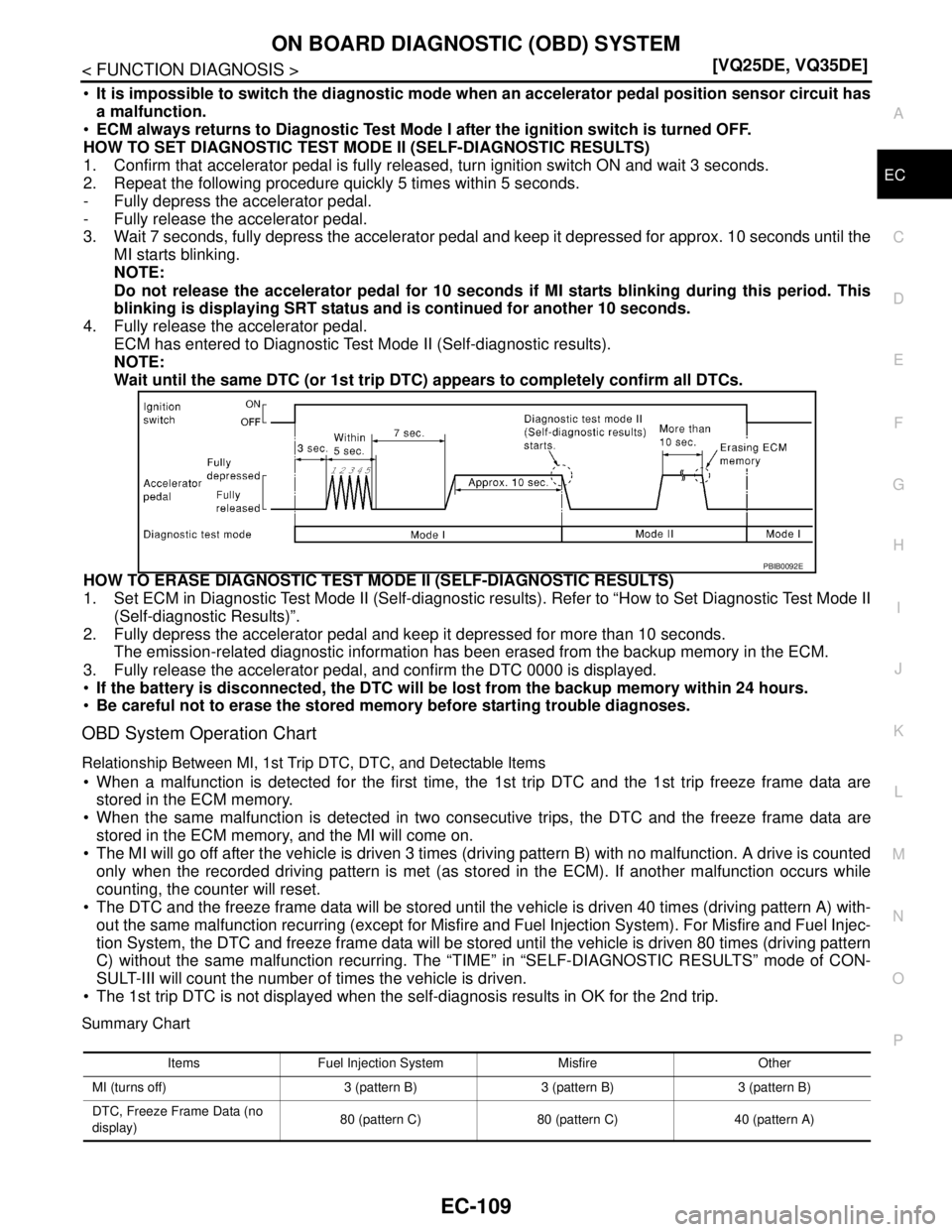

HOW TO SET DIAGNOSTIC TEST MODE II (SELF-DIAGNOSTIC RESULTS)
1. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
2. Repeat the following procedure quickly 5 times within 5 seconds.
- Fully depress the accelerator pedal.
- Fully release the accelerator pedal.
3. Wait 7 seconds, fully depress the accelerator pedal and keep it depressed for approx. 10 seconds until the
MI starts blinking.
NOTE:
Do not release the accelerator pedal for 10 seconds if MI starts blinking during this period. This
blinking is displaying SRT status and is continued for another 10 seconds.
4. Fully release the accelerator pedal.
ECM has entered to Diagnostic Test Mode II (Self-diagnostic results).
NOTE:
Wait until the same DTC (or 1st trip DTC) appears to completely confirm all DTCs.
HOW TO ERASE DIAGNOSTIC TEST MODE II (SELF-DIAGNOSTIC RESULTS)
1. Set ECM in Diagnostic Test Mode II (Self-diagnostic results). Refer to “How to Set Diagnostic Test Mode II
(Self-diagnostic Results)”.
2. Fully depress the accelerator pedal and keep it depressed for more than 10 seconds.
The emission-related diagnostic information has been erased from the backup memory in the ECM.
3. Fully release the accelerator pedal, and confirm the DTC 0000 is displayed.
If the battery is disconnected, the DTC will be lost from the backup memory within 24 hours.
Be careful not to erase the stored memory before starting trouble diagnoses.
OBD System Operation Chart
Relationship Between MI, 1st Trip DTC, DTC, and Detectable Items
 When a malfunction is detected for the first time, the 1st trip DTC and the 1st trip freeze frame data are
stored in the ECM memory.
 When the same malfunction is detected in two consecutive trips, the DTC and the freeze frame data are
stored in the ECM memory, and the MI will come on.
 The MI will go off after the vehicle is driven 3 times (driving pattern B) with no malfunction. A drive is counted
only when the recorded driving pattern is met (as stored in the ECM). If another malfunction occurs while
counting, the counter will reset.
 The DTC and the freeze frame data will be stored until the vehicle is driven 40 times (driving pattern A) with-
out the same malfunction recurring (except for Misfire and Fuel Injection System). For Misfire and Fuel Injec-
tion System, the DTC and freeze frame data will be stored until the vehicle is driven 80 times (driving pattern
C) without the same malfunction recurring. The “TIME” in “SELF-DIAGNOSTIC RESULTS” mode of CON-
SULT-III will count the number of times the vehicle is driven.
 The 1st trip DTC is not displayed when the self-diagnosis results in OK for the 2nd trip.
Summary Chart
PBIB0092E
Items Fuel Injection System Misfire Other
MI (turns off) 3 (pattern B)3 (pattern B) 3 (pattern B)
DTC, Freeze Frame Data (no
display)80 (pattern C) 80 (pattern C) 40 (pattern A)

EC-114
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
 1st trip freeze frame data
 System readiness test (SRT) codes
Test values
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
ItemDIAGNOSTIC TEST MODE
WORK
SUPPORTSELF-DIAGNOSTIC
RESULTS
DATA
MONI-
TORACTIVE
TESTDTC & SRT
CONFIRMATION
DTC*
1FREEZE
FRAME
DATA*
2
SRT STA-
TUSDTC
WORK
SUP-
PORT
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS)×××
Camshaft position sensor (PHASE)×××
Mass air flow sensor××
Engine coolant temperature sensor××××
Engine oil temperature sensor×
Air fuel ratio (A/F) sensor 1××××
Heated oxygen sensor 2××××
Vehicle speed signal×××
Accelerator pedal position sensor××
Throttle position sensor×××
Intake air temperature sensor××
Knock sensor×
Refrigerant pressure sensor×
Closed throttle position switch (accel-
erator pedal position sensor signal)×
Air conditioner switch×
Park/neutral position (PNP) signal××
Stop lamp switch××
Power steering pressure sensor××
Battery voltage×
Load signal×
Primary speed sensor××
Battery current sensor××
ASCD steering switch××
ASCD brake switch××

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-115
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
X: Applicable
*1: This item includes 1st trip DTCs.
*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-III screen in freeze frame data
mode only if a 1st trip DTC or DTC is detected. For details, refer to EC-102, "
Diagnosis Description".
*3: Always “CMPLT” is displayed.
WORK SUPPORT MODE
Work Item
*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to EC-389, "DTCIndex".
ENGINE CONTROL COMPONENT PARTS
OUTPUT
Fuel injector××
Power transistor (Ignition timing)××
Throttle control motor relay××
Throttle control motor×
EVAP canister purge volume control
solenoid valve××××
Air conditioner relay×
Fuel pump relay×××
Cooling fan relay×××
Air fuel ratio (A/F) sensor 1 heater××
×*
3
Heated oxygen sensor 2 heater××
×*3
Intake valve timing control solenoid
valve×××
VIAS control solenoid valve 1×××
VIAS control solenoid valve 2×××
Electronic controlled engine mount××
Alternator××
Calculated load value×× ItemDIAGNOSTIC TEST MODE
WORK
SUPPORTSELF-DIAGNOSTIC
RESULTS
DATA
MONI-
TORACTIVE
TESTDTC & SRT
CONFIRMATION
DTC*
1FREEZE
FRAME
DATA*
2
SRT STA-
TUSDTC
WORK
SUP-
PORT
WORK ITEM CONDITION USAGE
FUEL PRESSURE RELEASE  FUEL PUMP WILL STOP BY TOUCHING “START” DUR-
ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS.When releasing fuel pressure from
fuel line
IDLE AIR VOL LEARN  THE IDLE AIR VOLUME THAT KEEPS THE ENGINE
WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM.When learning the idle air volume
SELF-LEARNING CONT  THE COEFFICIENT OF SELF-LEARNING CONTROL
MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT.When clearing mixture ratio self-
learning value
TARGET IDLE RPM ADJ*  IDLE CONDITIONWhen setting target idle speed
TARGET IGN TIM ADJ*  IDLE CONDITION When adjusting target ignition tim-
ing

EC-116
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Freeze Frame Data and 1st Trip Freeze Frame Data
*: The items are the same as those of 1st trip freeze frame data.
DATA MONITOR MODE
Monitored Item
×: Applicable
Freeze frame data item* Description
DIAG TROUBLE CODE
[PXXXX] The engine control component part/control system has a trouble code that is displayed as PXXXX. (Refer
to EC-389, "
DTCIndex".)
FUEL SYS-B1  “Fuel injection system status” at the moment a malfunction is detected is displayed.
 One of in the following mode is displayed.
Mode2: Open loop due to detected system malfunction
Mode3: Open loop due to driving conditions (power enrichment, deceleration enleanment)
Mode4: Closed loop - using oxygen sensor(s) as feedback for fuel control
Mode5: Open loop - has not yet satisfied condition to go to closed loop FUEL SYS-B2
CAL/LD VALUE [%]  The calculated load value at the moment a malfunction is detected is displayed.
COOLANT TEMP [°C] or
[°F] The engine coolant temperature at the moment a malfunction is detected is displayed.
L-FUEL TRM-B1 [%]  “Long-term fuel trim” at the moment a malfunction is detected is displayed.
 The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule
than short-term fuel trim. L-FUEL TRM-B2 [%]
S-FUEL TRM-B1 [%]  “Short-term fuel trim” at the moment a malfunction is detected is displayed.
 The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel
schedule. S-FUEL TRM-B2 [%]
ENGINE SPEED [rpm]  The engine speed at the moment a malfunction is detected is displayed.
VEHICL SPEED
[km/h] or [mph] The vehicle speed at the moment a malfunction is detected is displayed.
ABSOL TH·P/S [%]  The throttle valve opening angle at the moment a malfunction is detected is displayed.
B/FUEL SCHDL [msec]  The base fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE [°C] or
[°F] The intake air temperature at the moment a malfunction is detected is displayed.
INT MANI PRES [kPa]
 These items are displayed but are not applicable to this model.
COMBUST CONDITION
Monitored item Unit Description Remarks
ENG SPEED rpm Indicates the engine speed computed from the
signal of the crankshaft position sensor (POS)
and camshaft position sensor (PHASE). Accuracy becomes poor if engine
speed drops below the idle rpm.
 If the signal is interrupted while the
engine is running, an abnormal value
may be indicated.
MAS A/F SE-B1 V The signal voltage of the mass air flow sensor is
displayed. When the engine is stopped, a certain
value is indicated.
 When engine is running, specification
range is indicated in “SPEC”.
B/FUEL SCHDL msec “Base fuel schedule” indicates the fuel injection
pulse width programmed into ECM, prior to any
learned on board correction. When engine is running, specification
range is indicated in “SPEC”.
A/F ALPHA-B1
% The mean value of the air-fuel ratio feedback cor-
rection factor per cycle is indicated. When the engine is stopped, a certain
value is indicated.
 This data also includes the data for
the air-fuel ratio learning control.
 When engine is running, specification
range is indicated in “SPEC”. A/F ALPHA-B2

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-117
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
COOLAN TEMP/S°C or °F The engine coolant temperature (determined by
the signal voltage of the engine coolant tempera-
ture sensor) is displayed. When the engine coolant temperature
sensor is open or short-circuited,
ECM enters fail-safe mode. The en-
gine coolant temperature determined
by the ECM is displayed.
A/F SEN1 (B1)
V The A/F signal computed from the input signal of
the air fuel ratio (A/F) sensor 1 is displayed.
A/F SEN1 (B2)
HO2S2 (B1)
V The signal voltage of the heated oxygen sensor 2
is displayed.
HO2S2 (B2)
HO2S2 MNTR(B1)
RICH/LEAN Display of heated oxygen sensor 2 signal:
RICH: means the amount of oxygen after three
way catalyst is relatively small.
LEAN: means the amount of oxygen after three
way catalyst is relatively large. When the engine is stopped, a certain
value is indicated.
HO2S2 MNTR(B2)
VHCL SPEED SE km/h or mph The vehicle speed computed from the vehicle
speed signal sent from combination meter is dis-
played.
BATTERY VOLT V  The power supply voltage of ECM is displayed.
ACCEL SEN 1
V The accelerator pedal position sensor signal volt-
age is displayed. ACCEL SEN 2 signal is converted by
ECM internally. Thus, it differs from
ECM terminal voltage signal. ACCEL SEN 2
TP SEN 1-B1
V The throttle position sensor signal voltage is dis-
played. TP SEN 2-B1 signal is converted by
ECM internally. Thus, it differs from
ECM terminal voltage signal. TP SEN 2-B1
INT/A TEMP SE°C or °F The intake air temperature (determined by the
signal voltage of the intake air temperature sen-
sor) is indicated.
START SIGNAL ON/OFF Indicates start signal status [ON/OFF] computed
by the ECM according to the signals of engine
speed and battery voltage. After starting the engine, [OFF] is dis-
played regardless of the starter sig-
nal.
CLSD THL POS ON/OFF Indicates idle position [ON/OFF] computed by
ECM according to the accelerator pedal position
sensor signal.
AIR COND SIG ON/OFF Indicates [ON/OFF] condition of the air condition-
er switch as determined by the air conditioner sig-
nal.
P/N POSI SW ON/OFF Indicates [ON/OFF] condition from the park/neu-
tral position (PNP) signal.
PW/ST SIGNAL ON/OFF [ON/OFF] condition of the power steering system
(determined by the signal voltage of the power
steering pressure sensor) is indicated.
LOAD SIGNAL ON/OFF Indicates [ON/OFF] condition from the electrical
load signal.
ON: Rear window defogger switch is ON and/or
lighting switch is in 2nd position.
OFF: Both rear window defogger switch and light-
ing switch are OFF.
IGNITION SW ON/OFF Indicates [ON/OFF] condition from ignition switch
signal.
HEATER FAN SW ON/OFF Indicates [ON/OFF] condition from the heater fan
switch signal.
BRAKE SW ON/OFF Indicates [ON/OFF] condition from the stop lamp
switch signal.
INJ PULSE-B1
msec Indicates the actual fuel injection pulse width
compensated by ECM according to the input sig-
nals. When the engine is stopped, a certain
computed value is indicated.
INJ PULSE-B2Monitored item Unit Description Remarks

EC-118
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
IGN TIMING BTDC Indicates the ignition timing computed by ECM
according to the input signals. When the engine is stopped, a certain
value is indicated.
CAL/LD VALUE % “Calculated load value” indicates the value of the
current air flow divided by peak air flow.
MASS AIRFLOW g·m/s Indicates the mass air flow computed by ECM ac-
cording to the signal voltage of the mass air flow
sensor.
PURG VOL C/V % Indicates the EVAP canister purge volume con-
trol solenoid valve control value computed by the
ECM according to the input signals.
 The opening becomes larger as the value in-
creases.
INT/V TIM (B1)
°CA Indicates [°CA] of intake camshaft advance an-
gle.
INT/V TIM (B2)
INT/V SOL-B1
% The control value of the intake valve timing con-
trol solenoid valve (determined by ECM accord-
ing to the input signals) is indicated.
 The advance angle becomes larger as the value
increases. INT/V SOL-B2
VIAS S/V-1 ON/OFF The control condition of the VIAS control solenoid
valve 1 (determined by ECM according to the in-
put signals) is indicated.
ON: VIAS control solenoid valve 1 is operating.
OFF: VIAS control solenoid valve 1 is not operat-
ing.
VIAS S/V-2 ON/OFF The control condition of the VIAS control solenoid
valve 2 (determined by ECM according to the in-
put signals) is indicated.
ON: VIAS control solenoid valve 2 is operating.
OFF: VIAS control solenoid valve 2 is not operat-
ing.
AIR COND RLY ON/OFF The air conditioner relay control condition (deter-
mined by ECM according to the input signals) is
indicated.
ENGINE MOUNT IDLE/TRVL The control condition of the electronic controlled
engine mount (determined by ECM according to
the input signals) is indicated.
IDLE: Engine speed is below 950 rpm
TRVL: Engine speed is above 950 rpm
FUEL PUMP RLY ON/OFF Indicates the fuel pump relay control condition
determined by ECM according to the input sig-
nals.
VENT CONT/V* ON/OFF The control condition of the EVAP canister vent
control valve (determined by ECM according to
the input signals) is indicated.
ON: Closed
OFF: Open
THRTL RELAY ON/OFF Indicates the throttle control motor relay control
condition determined by the ECM according to
the input signals.
COOLING FANHI/MID/LOW/
OFF The control condition of the cooling fan (deter-
mined by ECM according to the input signals) is
indicated.
HI: High speed operation
MID: Middle speed operation
LOW: Low speed operation
OFF: Stop Monitored item Unit Description Remarks

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-119
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
HO2S2 HTR (B1)
ON/OFF Indicates [ON/OFF] condition of heated oxygen
sensor 2 heater determined by ECM according to
the input signals. HO2S2 HTR (B2)
I/P PULLY SPD rpm Indicates the engine speed computed from the
turbine revolution sensor signal.
VEHICLE SPEED km/h or mph The vehicle speed computed from the vehicle
speed signal sent from TCM is displayed.
IDL A/V LEARN YET/CMPLT Displays the condition of idle air volume learning
YET: Idle Air Volume Learning has not been per-
formed yet.
CMPLT: Idle Air Volume Learning has already
been performed successfully.
ENG OIL TEMP°C or °F The engine oil temperature (determined by the
signal voltage of the engine oil temperature sen-
sor) is displayed.
TRVL AFTER MIL km or mile  Distance traveled while MI is activated.
A/F S1 HTR(B1)
% Air fuel ratio (A/F) sensor 1 heater control value
computed by ECM according to the input signals.
 The current flow to the heater becomes larger as
the value increases. A/F S1 HTR(B2)
AC PRESS SEN V The signal voltage from the refrigerant pressure
sensor is displayed.
VHCL SPEED SE km/h or mph The vehicle speed computed from the vehicle
speed signal sent from combination meter is dis-
played.
SET VHCL SPD km/h or mph  The preset vehicle speed is displayed.
MAIN SW ON/OFF Indicates [ON/OFF] condition from MAIN switch
signal.
CANCEL SW ON/OFF Indicates [ON/OFF] condition from CANCEL
switch signal.
RESUME/ACC SW ON/OFF Indicates [ON/OFF] condition from RESUME/AC-
CELERATE switch signal.
SET SW ON/OFF Indicates [ON/OFF] condition from SET/COAST
switch signal.
BRAKE SW1 ON/OFF Indicates [ON/OFF] condition from ASCD brake
switch signal or ASCD clutch switch.
BRAKE SW2 ON/OFF Indicates [ON/OFF] condition of stop lamp switch
signal.
VHCL SPD CUT NON/CUT Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the ASCD
set speed.
CUT: Vehicle speed decreased to excessively
low compared with the ASCD set speed, and
ASCD operation is cut off.
LO SPEED CUT NON/CUT Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the ASCD
set speed.
CUT: Vehicle speed decreased to excessively
low, and ASCD operation is cut off.
AT O D M O N I TO R O N / O F F Indicates [ON/OFF] condition of CVT O/D ac-
cording to the input signal from the TCM.
AT OD CANCEL ON/OFF Indicates [ON/OFF] condition of CVT O/D cancel
request signal.
CRUISE LAMP ON/OFF Indicates [ON/OFF] condition of CRUISE lamp
determined by the ECM according to the input
signals. Monitored item Unit Description Remarks

EC-120
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
*: This item is not used on this vehicle.
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TEST MODE
Test Item
SET LAMP ON/OFF Indicates [ON/OFF] condition of SET lamp deter-
mined by the ECM according to the input signals.
BAT CUR SEN mV The signal voltage of battery current sensor is
displayed.
ALT DUTY SIG ON/OFF The control condition of the power generation
voltage variable control (determined by ECM ac-
cording to the input signals) is indicated.
ON: Power generation voltage variable control is
active.
OFF: Power generation voltage variable control
is inactive.
A/F ADJ-B1
— Indicates the correction of factor stored in ECM.
The factor is calculated from the difference be-
tween the target air-fuel ratio stored in ECM and
the air-fuel ratio calculated from A/F sensor 1 sig-
nal. A/F ADJ-B2
ALT DUTY % Indicates the duty ratio of the power generation
command value. The ratio is calculated by ECM
based on the battery current sensor signal. Monitored item Unit Description Remarks
TEST ITEM CONDITION JUDGMENT CHECK ITEM (REMEDY)
FUEL INJEC-
TION Engine: Return to the original
non-standard condition
 Change the amount of fuel injec-
tion using CONSULT-III.If malfunctioning symptom disap-
pears, see CHECK ITEM. Harness and connectors
 Fuel injector
 Air fuel ratio (A/F) sensor 1
IGNITION TIM-
ING Engine: Return to the original
non-standard condition
 Timing light: Set
 Retard the ignition timing using
CONSULT-III.If malfunctioning symptom disap-
pears, see CHECK ITEM. Perform Idle Air Volume Learning.
POWER BAL-
ANCE Engine: After warming up, idle the
engine.
 A/C switch OFF
 Selector lever: P or N
 Cut off each injector signal one at
a time using CONSULT-III.Engine runs rough or dies. Harness and connectors
 Compression
 Fuel injector
 Power transistor
Spark plug
 Ignition coil
COOLING FAN*
1
Ignition switch: ON
 Turn the cooling fan “HI”, “MID”,
“LOW” and “OFF” using CON-
SULT-III.Cooling fan moves and stops. Harness and connectors
 Cooling fan motor
 IPDM E/R
ENG COOLANT
TEMP Engine: Return to the original
non-standard condition
 Change the engine coolant tem-
perature using CONSULT-III.If malfunctioning symptom disap-
pears, see CHECK ITEM. Harness and connectors
 Engine coolant temperature sen-
sor
 Fuel injector
FUEL PUMP RE-
LAY Ignition switch: ON (Engine
stopped)
 Turn the fuel pump relay “ON”
and “OFF” using CONSULT-III
and listen to operating sound.Fuel pump relay makes the operat-
ing sound. Harness and connectors
Fuel pump relay
