Page 25 of 32
SELECTING A MENU SCREEN
1. To select a preferred menu key, use the joystick to highlight the corresponding key on
the screen and press theENTERbutton.
2. Depending on the key you selected, a detailed menu screen, a character input screen
or a setting screen, etc. is displayed. On the screen displayed, make adjustments,
input information, etc. accordingly.
3. Press theBACKbutton
to return to the previous screen without applying any
changes; in some cases pressing theBACKbutton
will accept the changes
you made.
4. Press theMAPbutton
to return to the current location map screen without
applying any changes.
NOTE: Depending on the menu selected, pressing theMAPbutton
may not return you
to the current location map screen.
STORING YOUR HOME IN YOUR ADDRESS BOOK
Press theDESTbutton.
Highlight the “Address Book” key and press
theENTERbutton.
Highlight the “Home (Add New)” key and
press theENTERbutton, a confirmation mes-
sage is displayed. Highlight the “YES” key and
press theENTERbutton.
Highlight the “Street Address” key and press
theENTERbutton. A character input screen is
displayed.
Enter the address of your home, highlight the
“OK” key and press theENTERbutton. The
map screen is displayed.
23

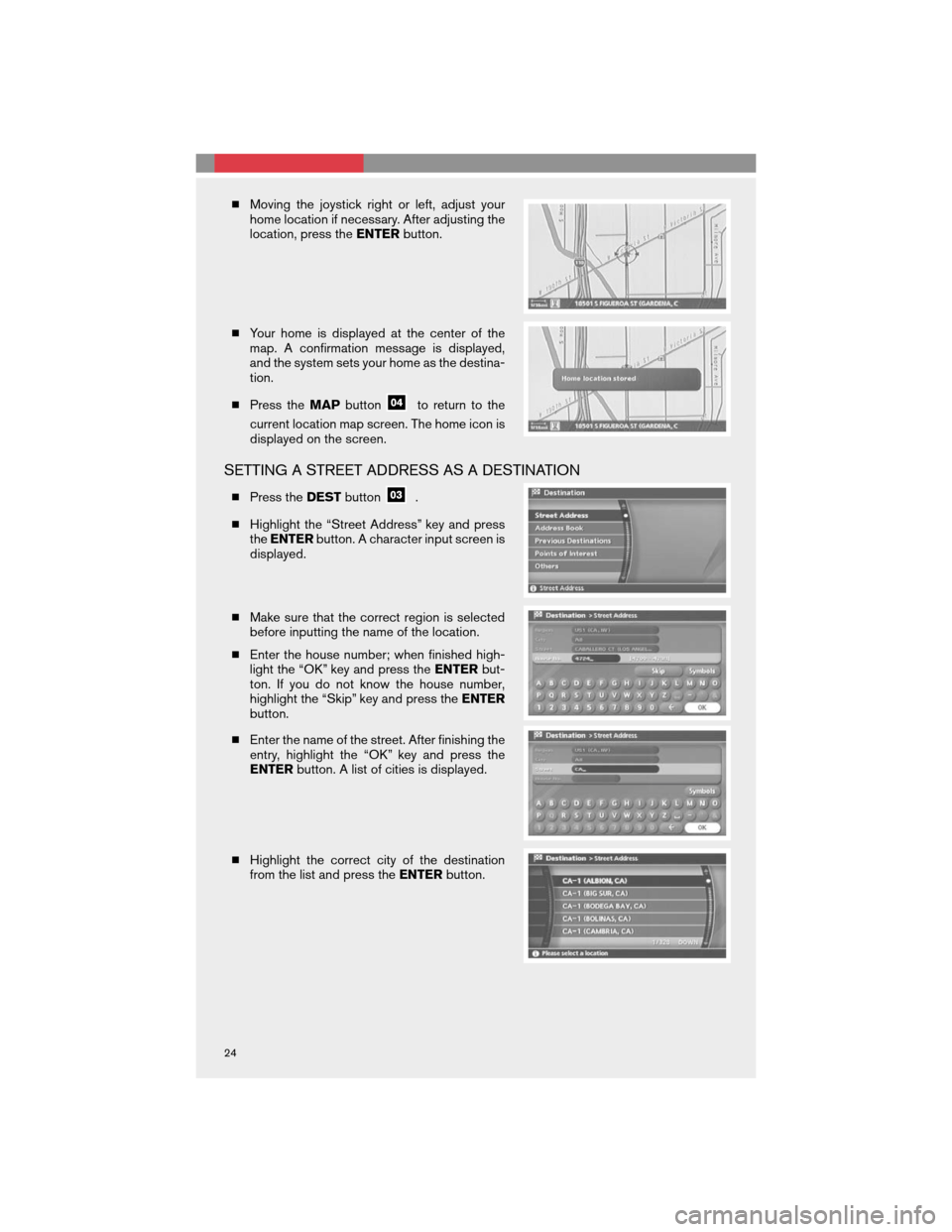

Page 26 of 32
Moving the joystick right or left, adjust your
home location if necessary. After adjusting the
location, press theENTERbutton.
Your home is displayed at the center of the
map. A confirmation message is displayed,
and the system sets your home as the destina-
tion.
Press theMAPbutton
to return to the
current location map screen. The home icon is
displayed on the screen.
SETTING A STREET ADDRESS AS A DESTINATION
Press theDESTbutton.
Highlight the “Street Address” key and press
theENTERbutton. A character input screen is
displayed.
Make sure that the correct region is selected
before inputting the name of the location.
Enter the house number; when finished high-
light the “OK” key and press theENTERbut-
ton. If you do not know the house number,
highlight the “Skip” key and press theENTER
button.
Enter the name of the street. After finishing the
entry, highlight the “OK” key and press the
ENTERbutton. A list of cities is displayed.
Highlight the correct city of the destination
from the list and press theENTERbutton.
24

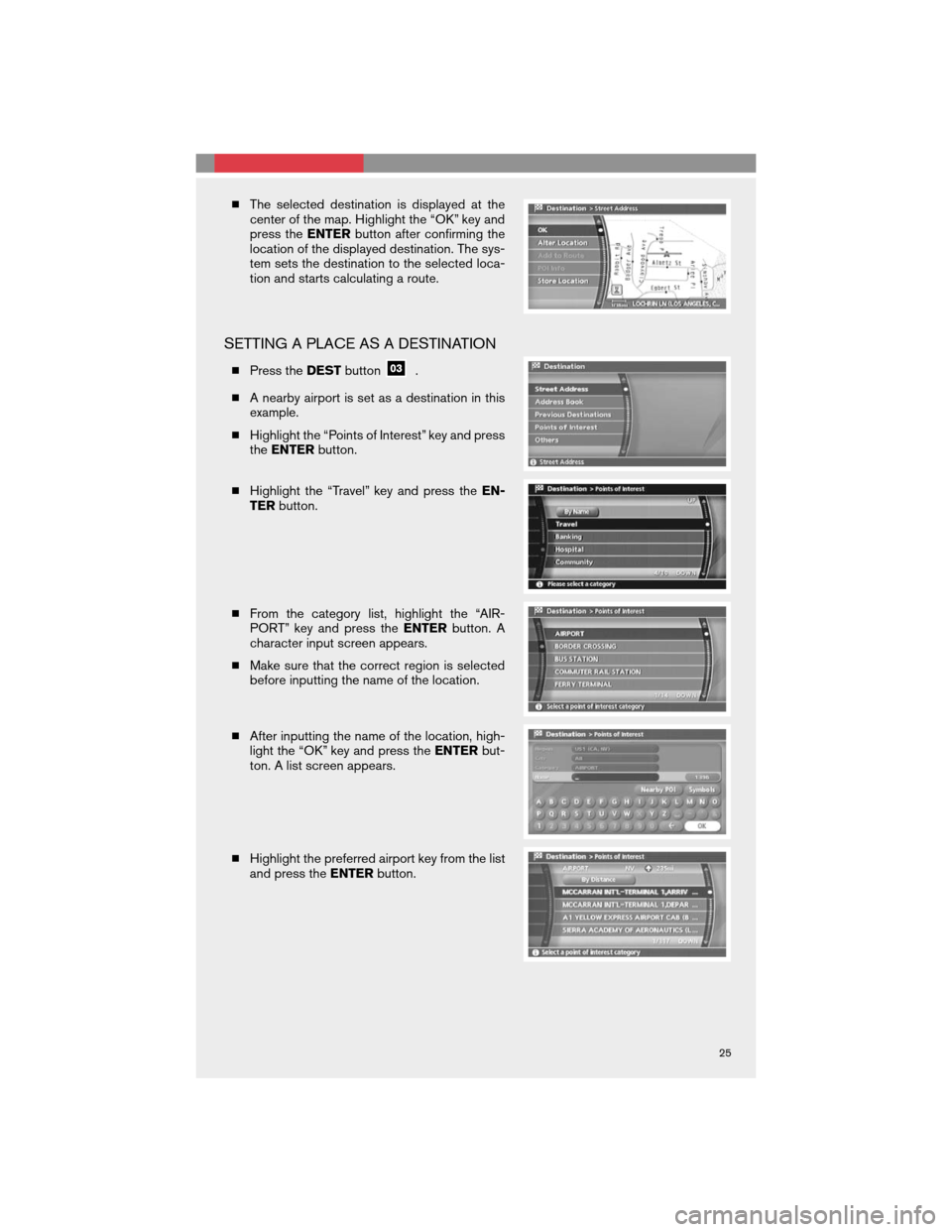

Page 27 of 32
The selected destination is displayed at the
center of the map. Highlight the “OK” key and
press theENTERbutton after confirming the
location of the displayed destination. The sys-
tem sets the destination to the selected loca-
tion and starts calculating a route.
SETTING A PLACE AS A DESTINATION
Press theDESTbutton.
A nearby airport is set as a destination in this
example.
Highlight the “Points of Interest” key and press
theENTERbutton.
Highlight the “Travel” key and press theEN-
TERbutton.
From the category list, highlight the “AIR-
PORT” key and press theENTERbutton. A
character input screen appears.
Make sure that the correct region is selected
before inputting the name of the location.
After inputting the name of the location, high-
light the “OK” key and press theENTERbut-
ton. A list screen appears.
Highlight the preferred airport key from the list
and press theENTERbutton.
25

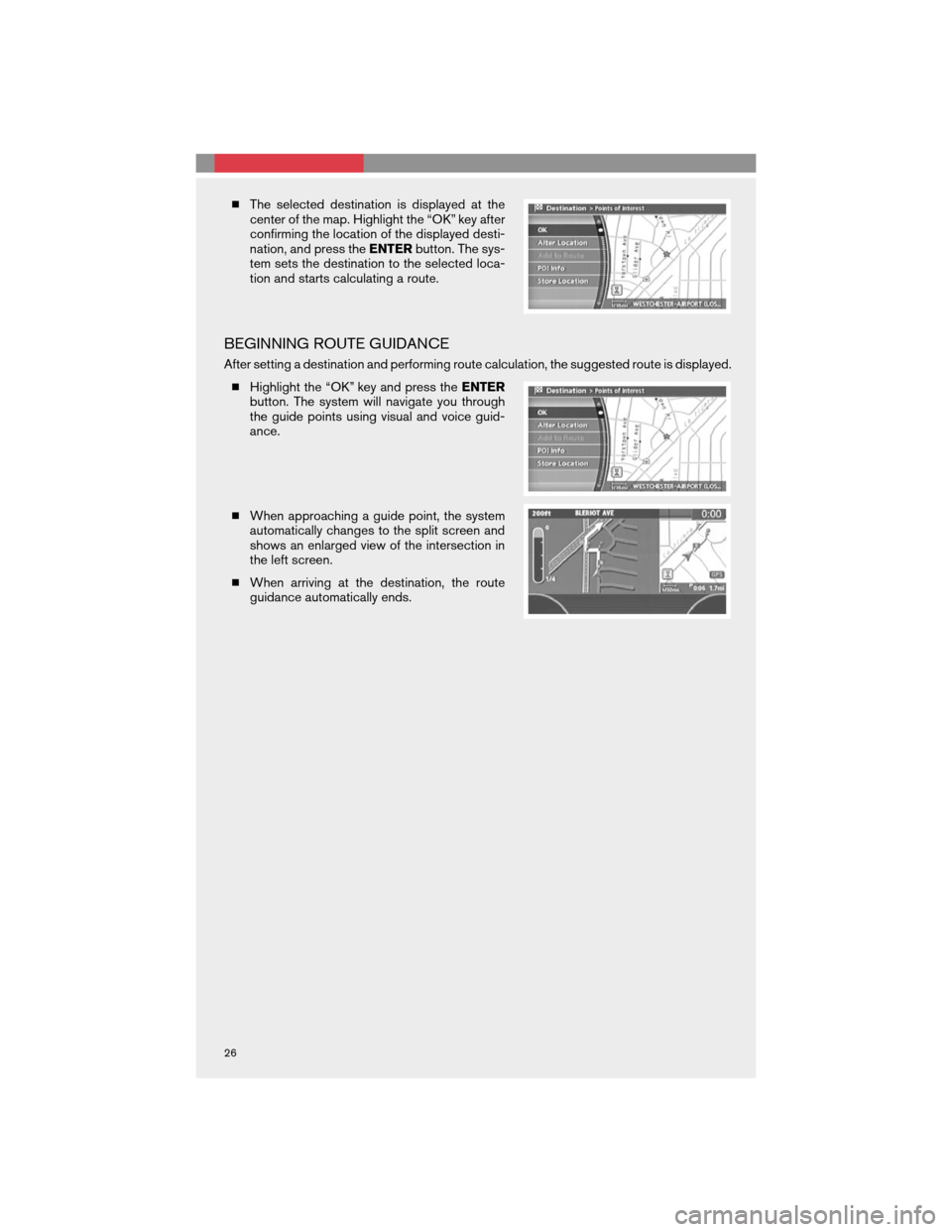

Page 28 of 32
The selected destination is displayed at the
center of the map. Highlight the “OK” key after
confirming the location of the displayed desti-
nation, and press theENTERbutton. The sys-
tem sets the destination to the selected loca-
tion and starts calculating a route.
BEGINNING ROUTE GUIDANCE
After setting a destination and performing route calculation, the suggested route is displayed.
Highlight the “OK” key and press theENTER
button. The system will navigate you through
the guide points using visual and voice guid-
ance.
When approaching a guide point, the system
automatically changes to the split screen and
shows an enlarged view of the intersection in
the left screen.
When arriving at the destination, the route
guidance automatically ends.
26
Page 29 of 32
Page 30 of 32
Page 31 of 32

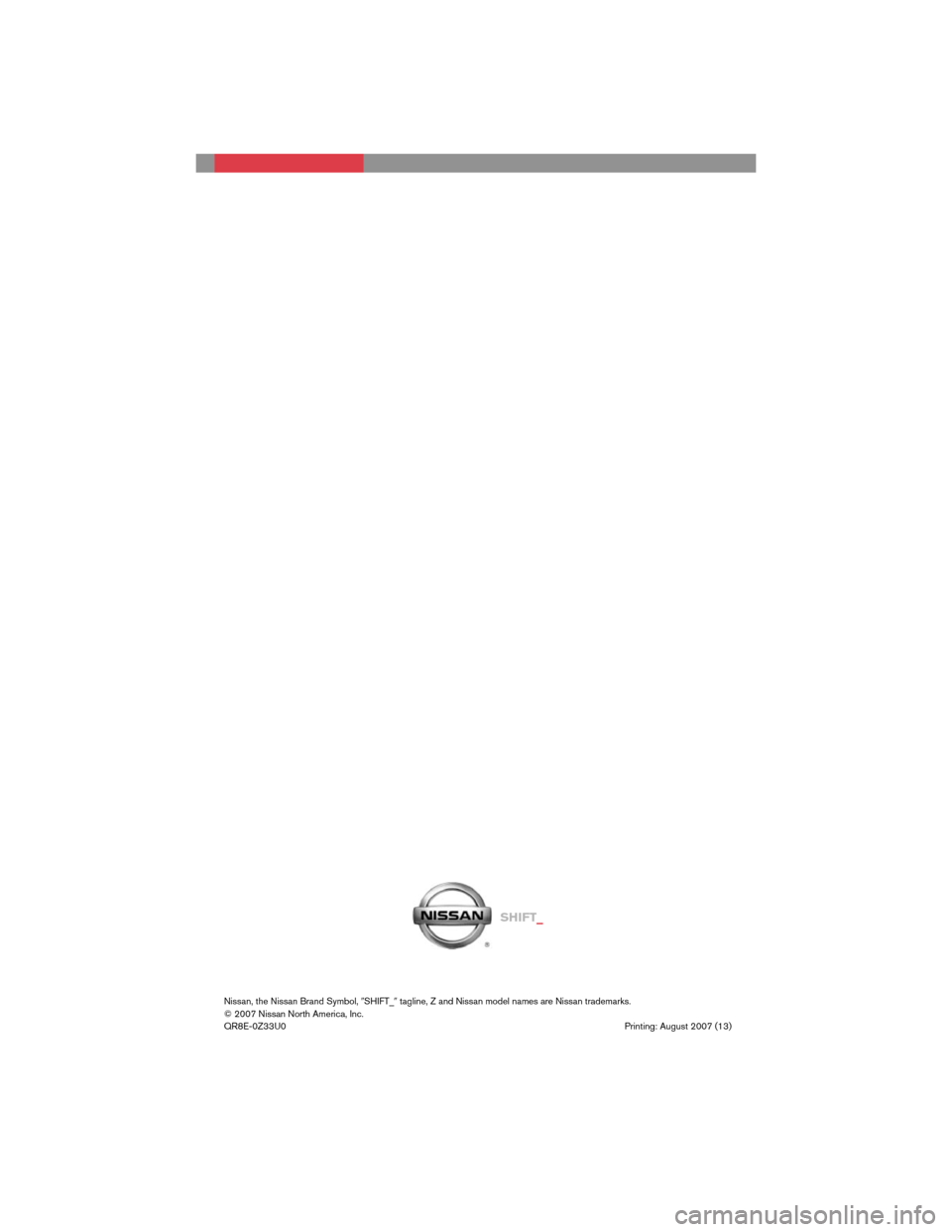

Page 32 of 32
