2008 MITSUBISHI COLT Owner's Manual (in English)

Seat and seat belts2-25
2
Seat belt reminder/warning lamp*E00409800208
A tone and warning lamp are used to remind the driver and
front passenger to fasten their seat belt.
NOTE●For the front passenger seat, the warning function works
only while a person is sitting on the seat. When the ignition key is turned to the “ON” position, the warn-
ing lamp will come on and a tone will sound for about 6 sec-
onds. If the front seat belt rema
ins unfastened approximately 1
minute later, the warning lamp will flash and the tone sound
intermittently (each 12 times) while the vehicle is being driven.
If the passenger subsequently unfastens the seat belt while
driving, the warning lamp and tone will issue further warnings.
And if the seat belt remains unfastened, the warning lamp and
tone will issue further warnings each time the vehicle starts
moving from a standstill. When th e seat belt is fastened, the
warnings will stop.
NOTE● When luggage is placed on th e front passenger seat, a sen-
sor in the seat cushion may, depending on the weight and
position of the luggage, cause the warning tone to sound
and the warning lamp to come on.
WARNING!
● In order to reduce the risk of serious or fatal injury
in an accident, always wear your own seat belt. Do
not allow anyone to ride in your vehicle unless he or
she is also seated and we aring a seat belt. Children
should additionally be re strained in a secure child
restraint system.

2-26 Seat and seat belts
2
Adjustable seat belt anchor (front seats)E00405000055
The seat belt anchor height can be adjusted.
Move the seat belt anchor down with the lock knob (A)
depressed. To move the anchor up, slide it without depressing
the lock knob (A).
Rear-centre 3-point type seat belt
(5-door models)
E00405200031
The rear-centre 3-point type seat belt must be worn correctly as
illustrated.
CAUTION!
● When adjusting the seat belt anchor, set it at a posi-
tion that is sufficiently high to ensure that the belt
makes full contact with your shoulder but does not
touch your neck.
Anchor down Anchor up

Seat and seat belts2-27
2

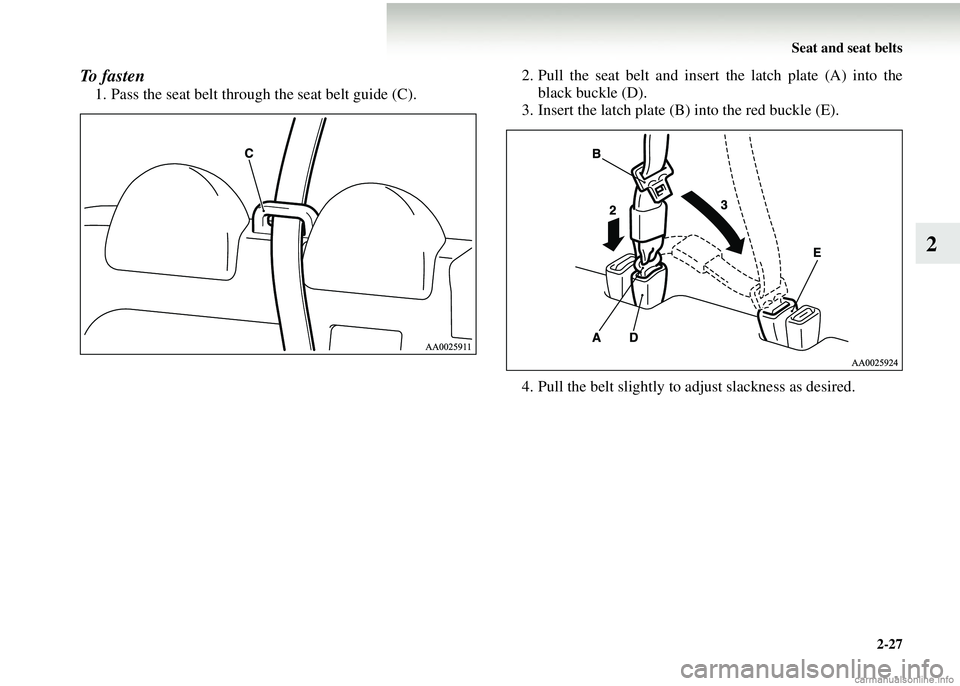

To f a s t e n
1. Pass the seat belt through the seat belt guide (C). 2. Pull the seat belt and insert
the latch plate (A) into the
black buckle (D).
3. Insert the latch plate (B) into the red buckle (E).
4. Pull the belt slightly to adjust slackness as desired.

2-28 Seat and seat belts
2

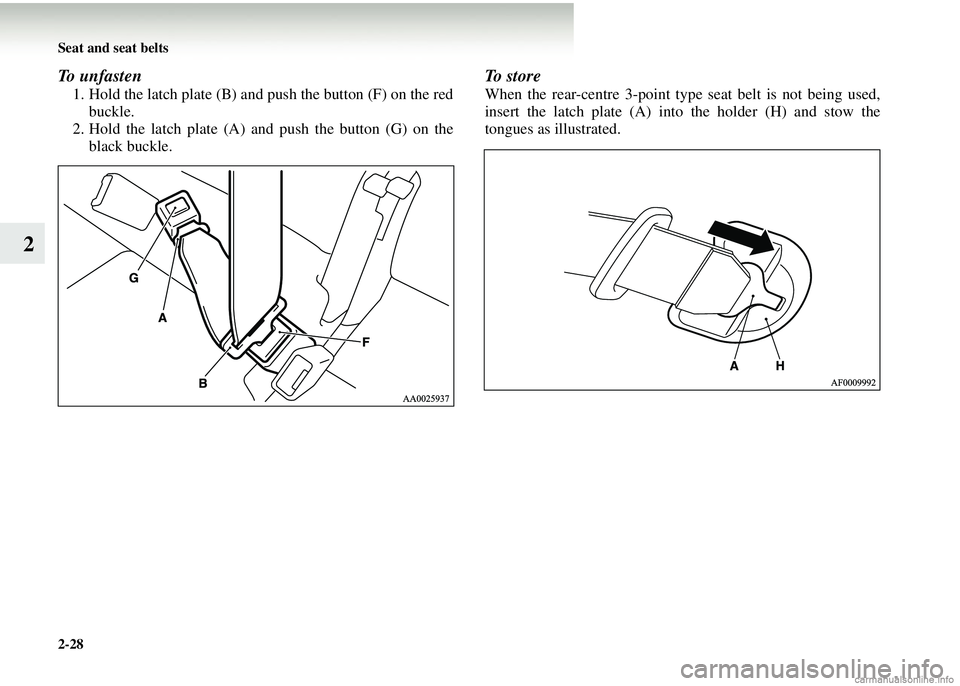

To unfasten
1. Hold the latch plate (B) and push the button (F) on the redbuckle.
2. Hold the latch plate (A) and push the button (G) on the
black buckle.
To s t o r e
When the rear-centre 3-point type seat belt is not being used,
insert the latch plate (A) into the holder (H) and stow the
tongues as illustrated.

Seat and seat belts2-29
2
Pregnant women restraint
E00405600136
Seat belt pre-tensioner system and force
limiter system
E00405700010
The driver’s seat and front passenger’s seat each have a seat
belt equipped with a pre-tensioner system.
Pre-tensioner systemE00405800936
The pre-tensioner systems will retract their respective seat belts
instantaneously, thus maximizing the seat belt’s effectiveness,
if there is a frontal impact severe enough to injure the driver
and/or front passenger and the ignition switch is in the “ON” or
“START” position.
The seat belt pre-tensioner incl udes the following components:
WARNING!
●Seat belts work for everyone, including pregnant
women. Pregnant women should use the available
seat belts. This will reduce the likelihood of injury to
both the woman and the unborn child. The lap belt
should be worn across the thighs and as snug against
the hips as possible, but not across the waist. Consult
your doctor if you have any additional questions or
concerns.
1- Air bag control unit
2- Front impact sensors
3- Seat belt pre-tensioner

2-30 Seat and seat belts
2
NOTE●The pre-tensioner seat belts will be activated if the vehicle
suffers a severe frontal impact , even if the seat belts are
not worn.
● The pre-tensioner seat belts are designed to work only
once. After the pre-tensioner seat belts have been acti-
vated, we recommend that you have them replaced by a
MITSUBISHI MOTORS Authorized Service Point.
SRS warning lampE00405900038
This warning lamp is shared by the SRS air bags and the pre-
tensioner seat belts.
Refer to “SRS warning lamp” on page 2-70.
Force limiter systemE00406000049
In the event of a collision, each force limiter system will effec-
tively absorb the load applied to the seat belt so as to minimize
the impact to the passenger.
WARNING!
● To obtain the best results from your pre-tensioner
seat belt, make sure you do the following:
• Adjust the seat to the proper position.
Refer to “Front seat” on page 2-5.
• Fasten your seat belt properly. Refer to “Seat belts” on page 2-22.
CAUTION!
● Installation of audio equi pment or repairs in the
vicinity of the pre-tension er seat belts or floor con-
sole must be performed in line with MITSUBISHI
MOTORS guidelines. It is important to do this
because the work could aff ect the pre-tensioner sys-
tems.
● If you need to scrap the vehicle, please consult a
MITSUBISHI MOTORS Authorized Service Point.
It is important to do so because unexpected activa-
tion of the pre-tension er seat belts could cause
injury.

Seat and seat belts2-31
2
Child restraint
E00406401239
When transporting children in your vehicle, some type of child
restraint system should always be used according to the size of
the child. This is required by law in most countries.
The regulations concerning driving with children in the front
seat may differ from country to country. You are advised to
comply with the relevant regulations.
Caution for installing the child restraint on
vehicle with front passenger air bag
The label shown here is attached
on vehicles with a front pas-
senger air bag.
WARNING!
● When possible, put children in the rear seat. Acci-
dent statistics show that children of all sizes and ages
are safer when properly restrained in the rear seat
rather than in the front seat.
● Holding a child in your arms is no substitute for a
restraint system. Failure to use a proper restraint
system can result in severe or fatal injury to your
child.
●Each child restraint device or fixing is to be used by
only one child.
●When attaching a child rest raint to the rear seat,
place the front seatbacks in the upright position.
Otherwise, the child could be seriously injured in
the event of hard braking or a collision.WARNING!
● Extreme Hazard!
Do not use a rearward facing child restraint on a
seat protected by an air bag in front of it!

2-32 Seat and seat belts
2
NOTE[Vehicles with front passenger’s air bag ON-OFF switch]● If you have a rearward facing child restraint system that
cannot be fitted to any seat other than the front passenger
seat, be sure to turn OFF the front passenger’s air bag ON-
OFF switch before using it. (Ref er to “To turn an air bag
off” on page 2-54.)WARNING!
● A REARWARD FACING CHILD RESTRAINT
must NOT be used in the front passenger seat if the
front passenger’s air bag has not been deactivated.
The force of an inflating air bag could kill or cause
serious injury to the child. A rearward facing child
restraint should be used in the rear seat.
Front passenger’s air bag ON
Front passenger’s air bag OFF
