2008 JEEP PATRIOT Owners Manual

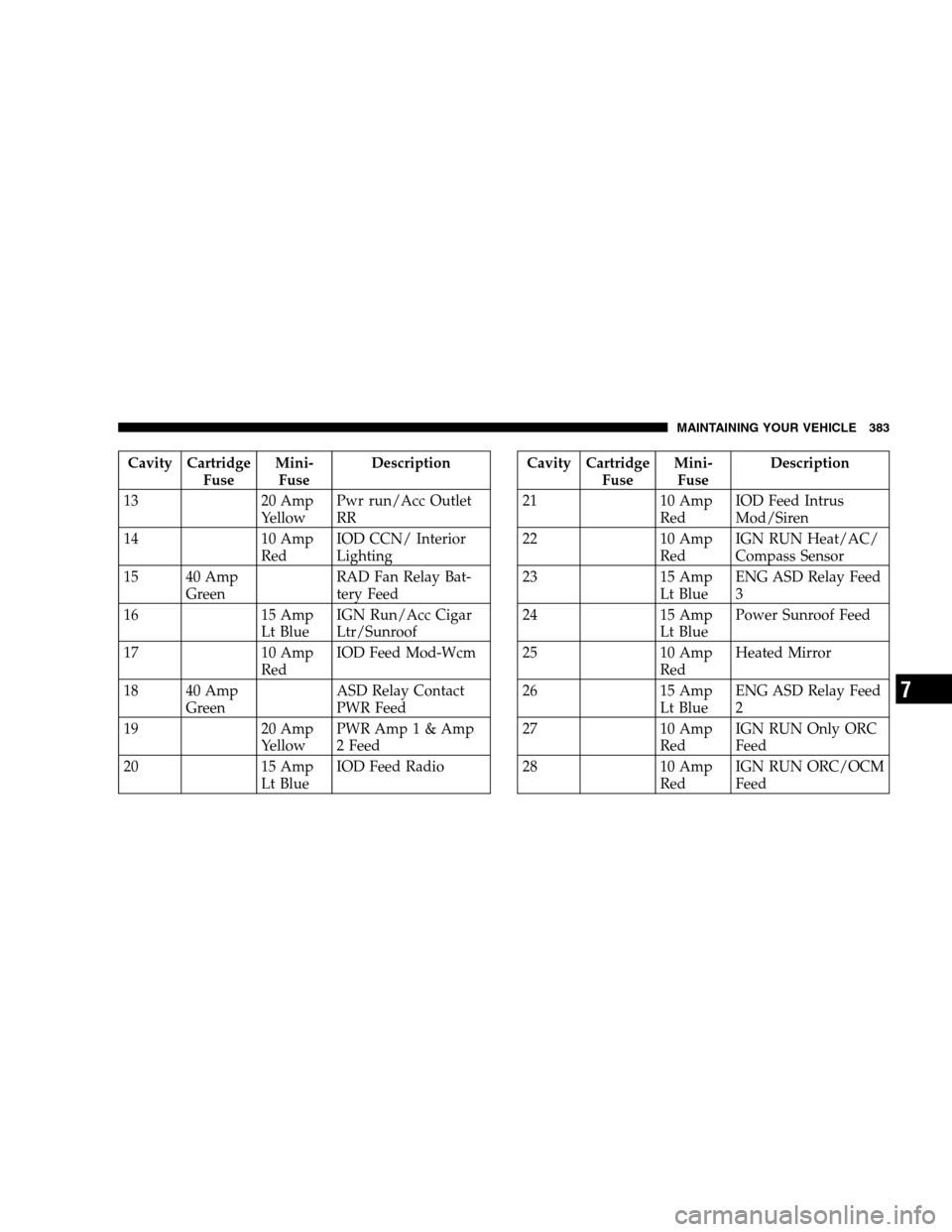

Cavity Cartridge
FuseMini-
FuseDescription
13 20 Amp
YellowPwr run/Acc Outlet
RR
14 10 Amp
RedIOD CCN/ Interior
Lighting
15 40 Amp
GreenRAD Fan Relay Bat-
tery Feed
16 15 Amp
Lt BlueIGN Run/Acc Cigar
Ltr/Sunroof
17 10 Amp
RedIOD Feed Mod-Wcm
18 40 Amp
GreenASD Relay Contact
PWR Feed
19 20 Amp
YellowPWR Amp 1 & Amp
2 Feed
20 15 Amp
Lt BlueIOD Feed RadioCavity Cartridge
FuseMini-
FuseDescription
21 10 Amp
RedIOD Feed Intrus
Mod/Siren
22 10 Amp
RedIGN RUN Heat/AC/
Compass Sensor
23 15 Amp
Lt BlueENG ASD Relay Feed
3
24 15 Amp
Lt BluePower Sunroof Feed
25 10 Amp
RedHeated Mirror
26 15 Amp
Lt BlueENG ASD Relay Feed
2
27 10 Amp
RedIGN RUN Only ORC
Feed
28 10 Amp
RedIGN RUN ORC/OCM
Feed
MAINTAINING YOUR VEHICLE 383
7

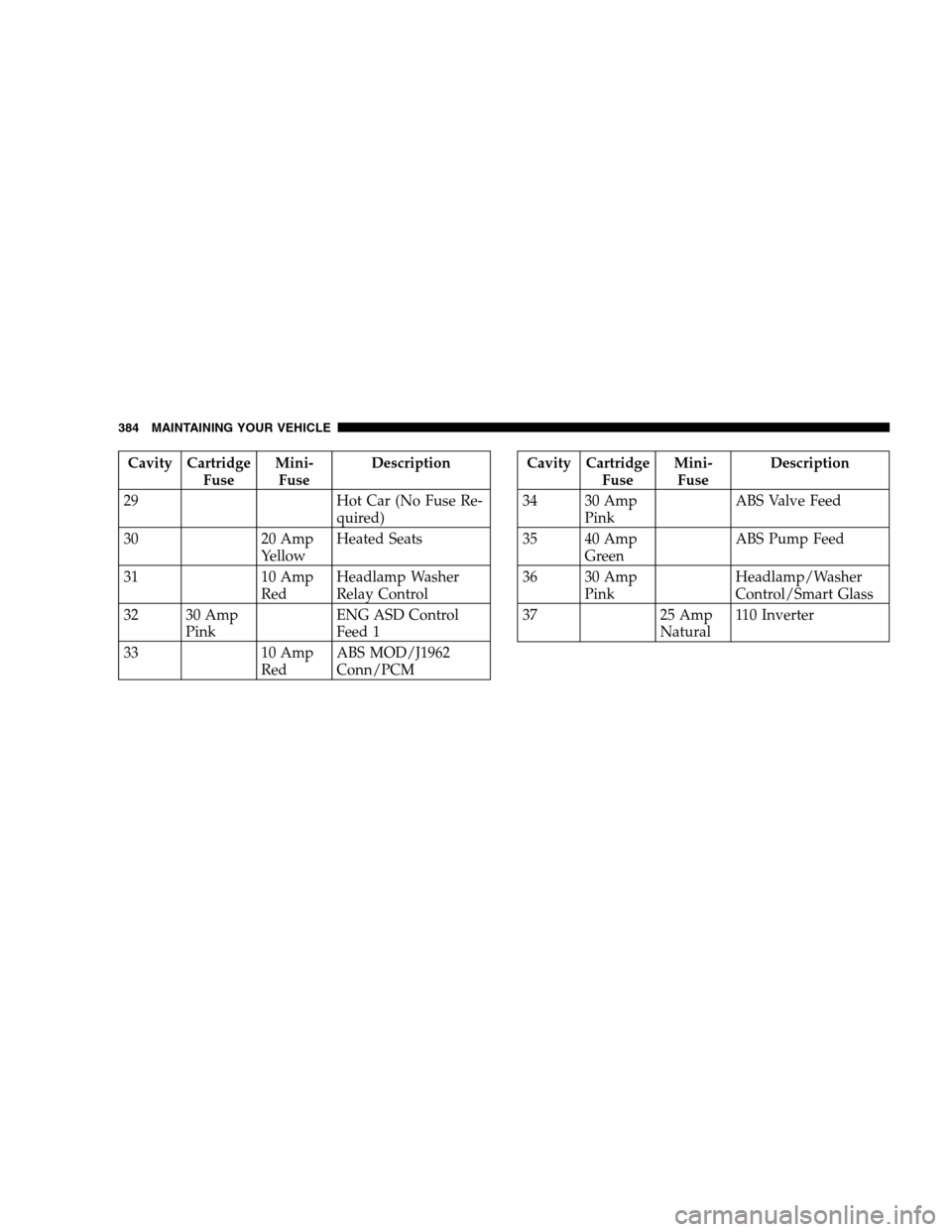

Cavity Cartridge
FuseMini-
FuseDescription
29 Hot Car (No Fuse Re-
quired)
30 20 Amp
YellowHeated Seats
31 10 Amp
RedHeadlamp Washer
Relay Control
32 30 Amp
PinkENG ASD Control
Feed 1
33 10 Amp
RedABS MOD/J1962
Conn/PCMCavity Cartridge
FuseMini-
FuseDescription
34 30 Amp
PinkABS Valve Feed
35 40 Amp
GreenABS Pump Feed
36 30 Amp
PinkHeadlamp/Washer
Control/Smart Glass
37 25 Amp
Natural110 Inverter
384 MAINTAINING YOUR VEHICLE

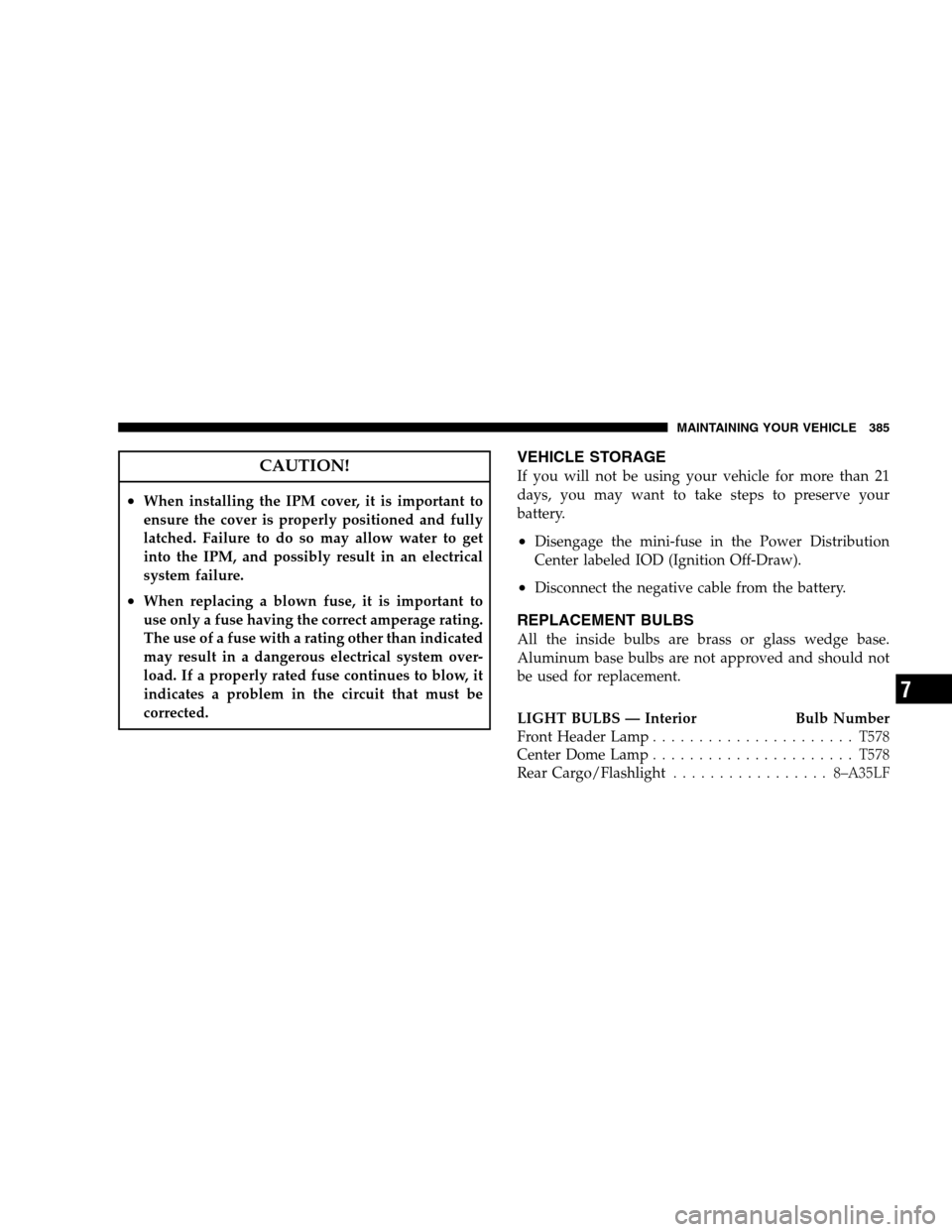

CAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get
into the IPM, and possibly result in an electrical
system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
VEHICLE STORAGE
If you will not be using your vehicle for more than 21
days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Disconnect the negative cable from the battery.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS — Interior Bulb Number
Front Header Lamp......................T578
Center Dome Lamp......................T578
Rear Cargo/Flashlight.................8–A35LF
MAINTAINING YOUR VEHICLE 385
7

LIGHTS BULBS — Exterior Bulb No.
Low Beam/High Beam Headlight............ H13
Front Park/Turn Signal/Side
Marker Light..................3157AK or 3157A
Front Fog Light.........................9145
Center High Mounted Stop
Light (CHMSL).................. LEDAssembly
Rear Tail/Stop..........................3157
Rear Turn Signal...............3757AK or 3757A
Backup Light..................... W16W(921)
License Light.......................... W5W
Off-Road Light........................... H3BULB REPLACEMENT
Headlamps
1. Raise the hood and locate the connector behind the
headlight.
Headlight Connector
386 MAINTAINING YOUR VEHICLE

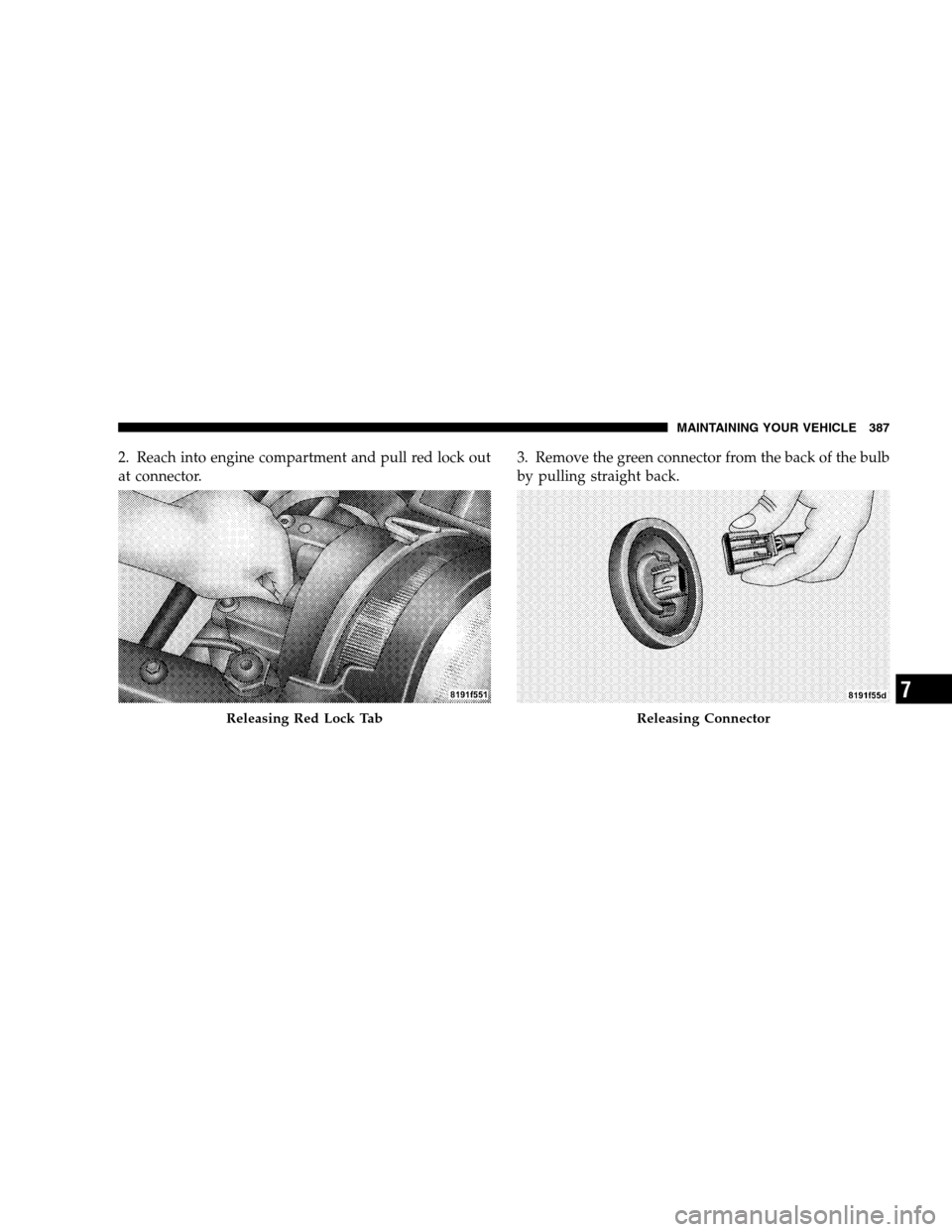

2. Reach into engine compartment and pull red lock out
at connector.3. Remove the green connector from the back of the bulb
by pulling straight back.
Releasing Red Lock TabReleasing Connector
MAINTAINING YOUR VEHICLE 387
7

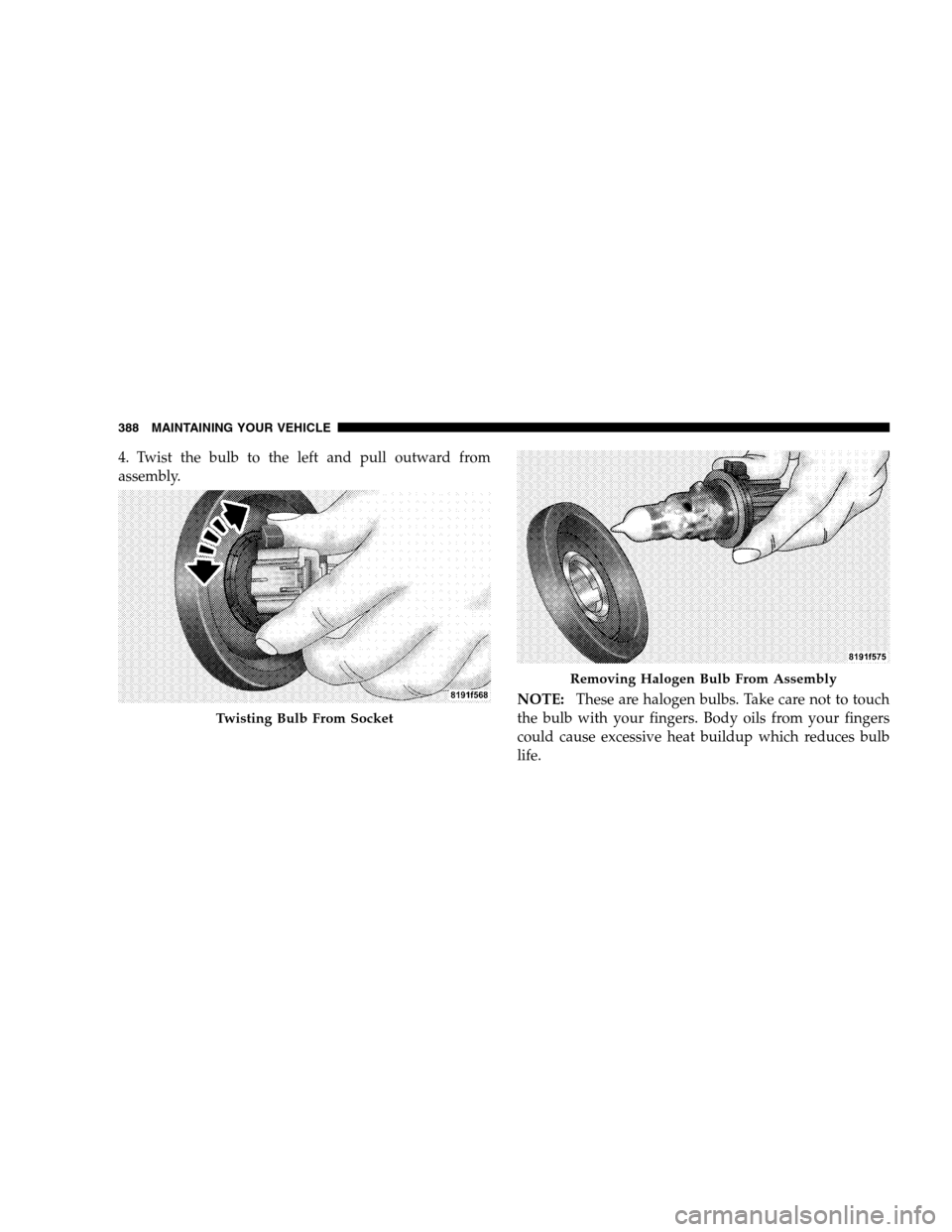

4. Twist the bulb to the left and pull outward from
assembly.
NOTE:These are halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat buildup which reduces bulb
life.
Twisting Bulb From Socket
Removing Halogen Bulb From Assembly
388 MAINTAINING YOUR VEHICLE

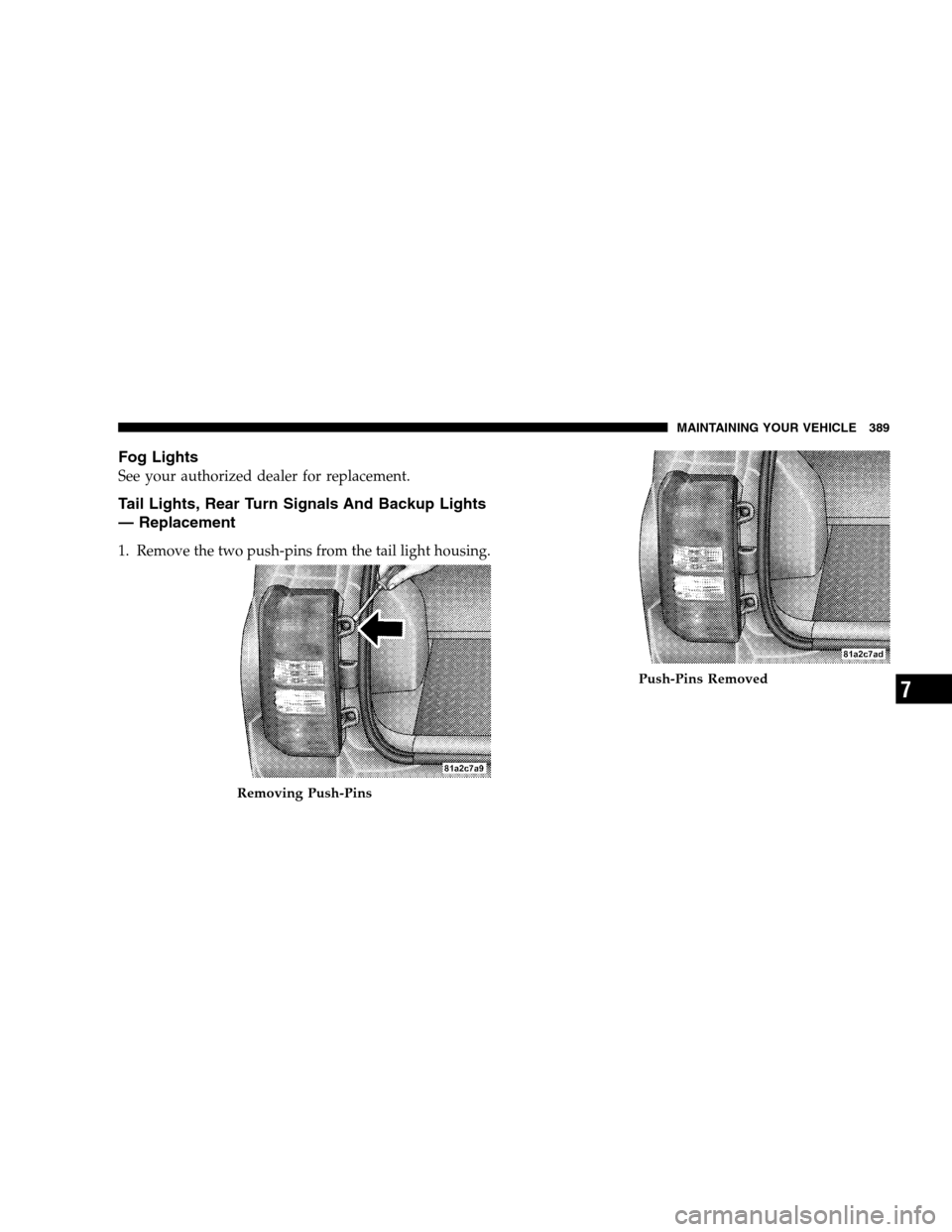

Fog Lights
See your authorized dealer for replacement.
Tail Lights, Rear Turn Signals And Backup Lights
— Replacement
1. Remove the two push-pins from the tail light housing.
Removing Push-Pins
Push-Pins Removed
MAINTAINING YOUR VEHICLE 389
7

2. Grasp the tail light and pull firmly to disengage the
light from the aperture panel.3. Twist and remove socket from the lightl.
Pulling Lamp From Body
Removing Socket and Bulb
390 MAINTAINING YOUR VEHICLE
