2008 JEEP PATRIOT Owners Manual

Dial by Saying a Number
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Dial.
•The system will prompt you to say the number you
want to call.
•For example, you can say234-567-8901.The phone
number that you enter must be of valid length and
combination. Based on the country in which the ve-
hicle was purchased, the UConnectsystem limits the
user from dialing an invalid combination of numbers.
For example, in the U.S., 234-567-890 is nine digits
long, which is not a valid U.S. phone number - the
closest valid phone number has 10 digits.
•The UConnectsystem will confirm the phone num-
ber and then dial. The number will appear in the
display of certain radios.
Call by Saying a Name
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
“Call.
•The system will prompt you to say the name of the
person you want to call.
•After theReadyprompt and the following beep, say
the name of the person you want to call. For example,
you can sayJohn Doe,where John Doe is a previ-
ously stored name entry in the UConnectphonebook.
To learn how to store a name in the phonebook, refer
toAdd Names to Your UConnectPhonebook,in
this section.
•The UConnectsystem will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
3

Add Names to Your UConnectPhonebook
NOTE:Adding names to the phonebook is recom-
mended when the vehicle is not in motion.
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook New Entry.
•When prompted, say the name of the new entry. Use of
long names helps the voice recognition and it is
recommended. For example, sayRobert Smithor
Robertinstead ofBob.
•When prompted, enter the number designation (e.g.,
Home,Work,Mobile,orPager). This will allow
you to store multiple numbers for each phonebook
entry, if desired.
•When prompted, recite the phone number for the
phonebook entry that you are adding.After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.
The UConnectsystem will allow you to enter up to 32
names in the phonebook with each name having up to
four associated phone numbers and designations. Each
language has a separate 32-name phonebook accessible
only in that language.
Phonebook Download
UConnectallows the user to download entries from
their phone via Bluetooth. To use this feature, press the
PHONE button and say “Phonebook Download.” The
system prompts, “Ready to accept “V” card entry via
Bluetooth…” The system is now ready to accept phone-
book entries from your phone using the Bluetooth
Object Exchange Profile (OBEX). Please see your phone
Owner’s Manual for specific instructions on how to send
these entries from your phone.
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:
•The phone handset must support BluetoothOBEX
transfers of phonebook entries to use this feature.
•Some phones cannot send phonebook entries if they
are already connected to any system via Bluetooth,
and you may see a message on the phone display that
the Bluetoothlink is busy. In this case, the user must
first disconnect or drop the Bluetoothconnection to
the UConnectsystem, and then send the address
book entry via Bluetooth. Please see your phone
Owner ’s Manual for specific instructions on how to
drop the Bluetoothconnection.
•If the phonebook entry is longer than 24 characters, it
will only use the first 24 characters.
Edit Entries in the UConnectPhonebook
NOTE:Editing names in the phonebook is recom-
mended when the vehicle is not in motion.
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook Edit.
•You will then be asked for the name of the phonebook
entry that you wish to edit.
•Next, choose the number designation (home, work,
mobile, or pager) that you wish to edit.
•When prompted, recite the new phone number for the
phonebook entry that you are editing.
After you are finished editing an entry in the phonebook,
you will be given the opportunity to edit another entry in
the phonebook, call the number you just edited, or return
to the main menu.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
3

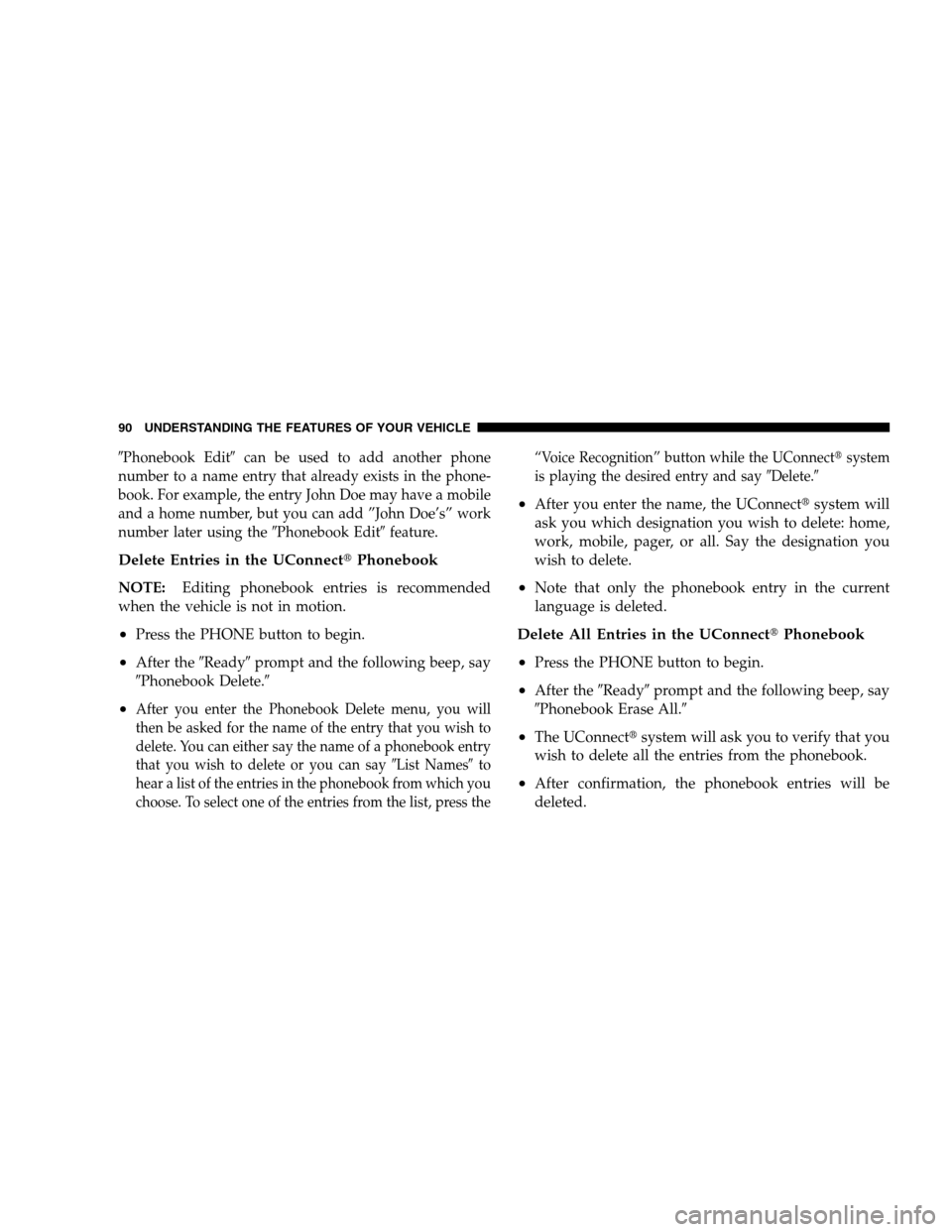

Phonebook Editcan be used to add another phone
number to a name entry that already exists in the phone-
book. For example, the entry John Doe may have a mobile
and a home number, but you can add ”John Doe’s” work
number later using thePhonebook Editfeature.
Delete Entries in the UConnectPhonebook
NOTE:Editing phonebook entries is recommended
when the vehicle is not in motion.
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook Delete.
•After you enter the Phonebook Delete menu, you will
then be asked for the name of the entry that you wish to
delete. You can either say the name of a phonebook entry
that you wish to delete or you can sayList Namesto
hear a list of the entries in the phonebook from which you
choose. To select one of the entries from the list, press the“Voice Recognition” button while the UConnectsystem
is playing the desired entry and sayDelete.
•After you enter the name, the UConnectsystem will
ask you which designation you wish to delete: home,
work, mobile, pager, or all. Say the designation you
wish to delete.
•Note that only the phonebook entry in the current
language is deleted.
Delete All Entries in the UConnectPhonebook
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook Erase All.
•The UConnectsystem will ask you to verify that you
wish to delete all the entries from the phonebook.
•After confirmation, the phonebook entries will be
deleted.
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

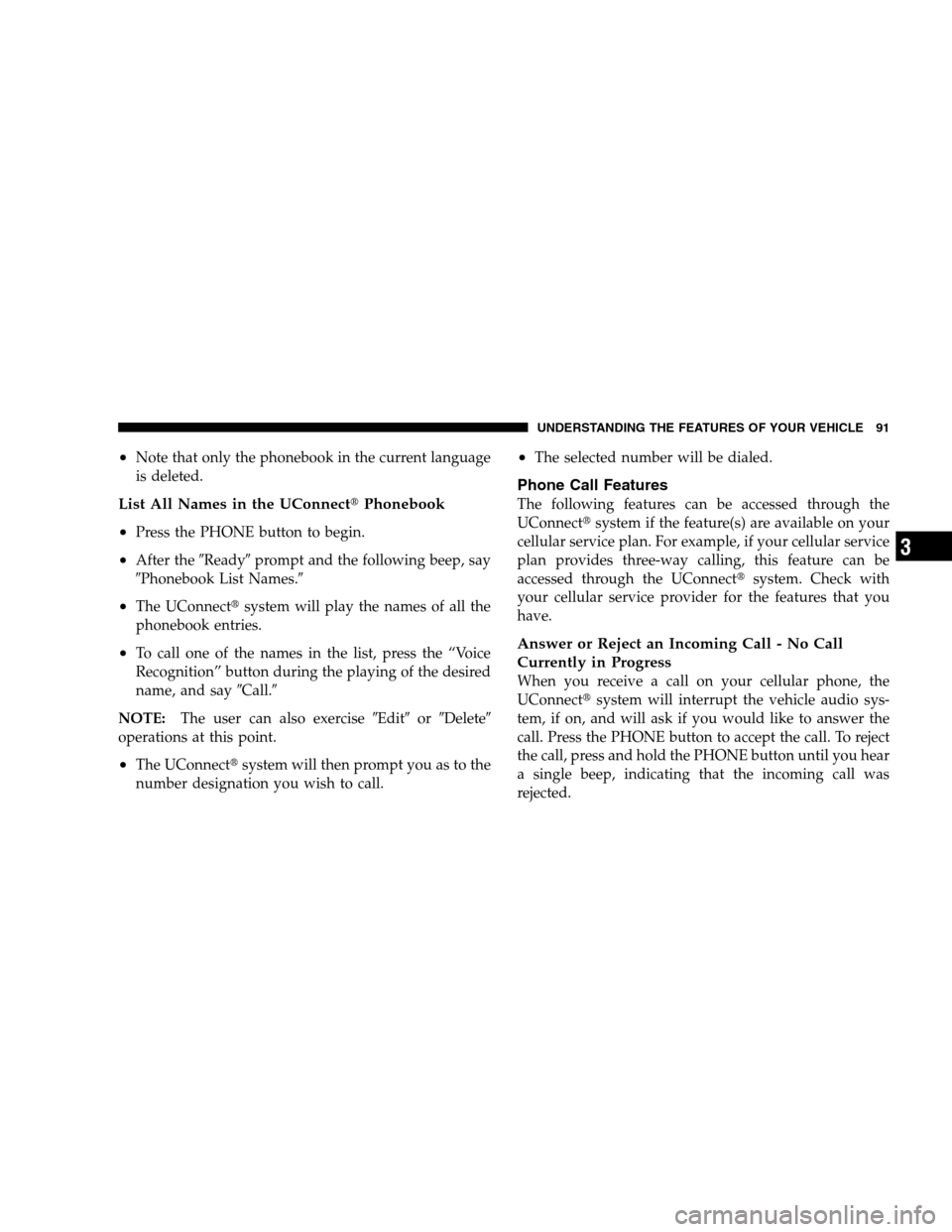

•Note that only the phonebook in the current language
is deleted.
List All Names in the UConnectPhonebook
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook List Names.
•The UConnectsystem will play the names of all the
phonebook entries.
•To call one of the names in the list, press the “Voice
Recognition” button during the playing of the desired
name, and sayCall.
NOTE:The user can also exerciseEditorDelete
operations at this point.
•The UConnectsystem will then prompt you as to the
number designation you wish to call.
•The selected number will be dialed.
Phone Call Features
The following features can be accessed through the
UConnectsystem if the feature(s) are available on your
cellular service plan. For example, if your cellular service
plan provides three-way calling, this feature can be
accessed through the UConnectsystem. Check with
your cellular service provider for the features that you
have.
Answer or Reject an Incoming Call - No Call
Currently in Progress
When you receive a call on your cellular phone, the
UConnectsystem will interrupt the vehicle audio sys-
tem, if on, and will ask if you would like to answer the
call. Press the PHONE button to accept the call. To reject
the call, press and hold the PHONE button until you hear
a single beep, indicating that the incoming call was
rejected.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
3

Answer or Reject an Incoming Call - Call
Currently in Progress
If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your cell
phone. Press the PHONE button to place the current call
on hold and answer the incoming call.
NOTE:The UConnectsystem compatible phones in
the market today do not support rejecting an incoming
call when another call is in progress. Therefore, the user
can only answer an incoming call or ignore it.
Making a Second Call While Current Call in
Progress
To make a second call while you are currently on a call,
press the “Voice Recognition” button and sayDialor
Callfollowed by the phone number or phonebook entry
you wish to call. The first call will be on hold while the
second call is in progress. To go back to the first call, refertoToggling Between Callsin this section. To combine
two calls, refer toConference Callin this section.
Place/Retrieve a Call From Hold
To put a call on hold, press the PHONE button until you
hear a single beep. This indicates that the call is on hold.
To bring the call back from hold, press and hold the
PHONE button until you hear a single beep.
Toggling Between Calls
If two calls are in progress (one active and one on hold),
press the PHONE button until you hear a single beep,
indicating that the active and hold status of the two calls
have switched. Only one call can be placed on hold at one
time.
Conference Call
When two calls are in progress (one active and one on
hold), press and hold the PHONE button until you hear
a double beep indicating that the two calls have been
joined into one conference call.
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

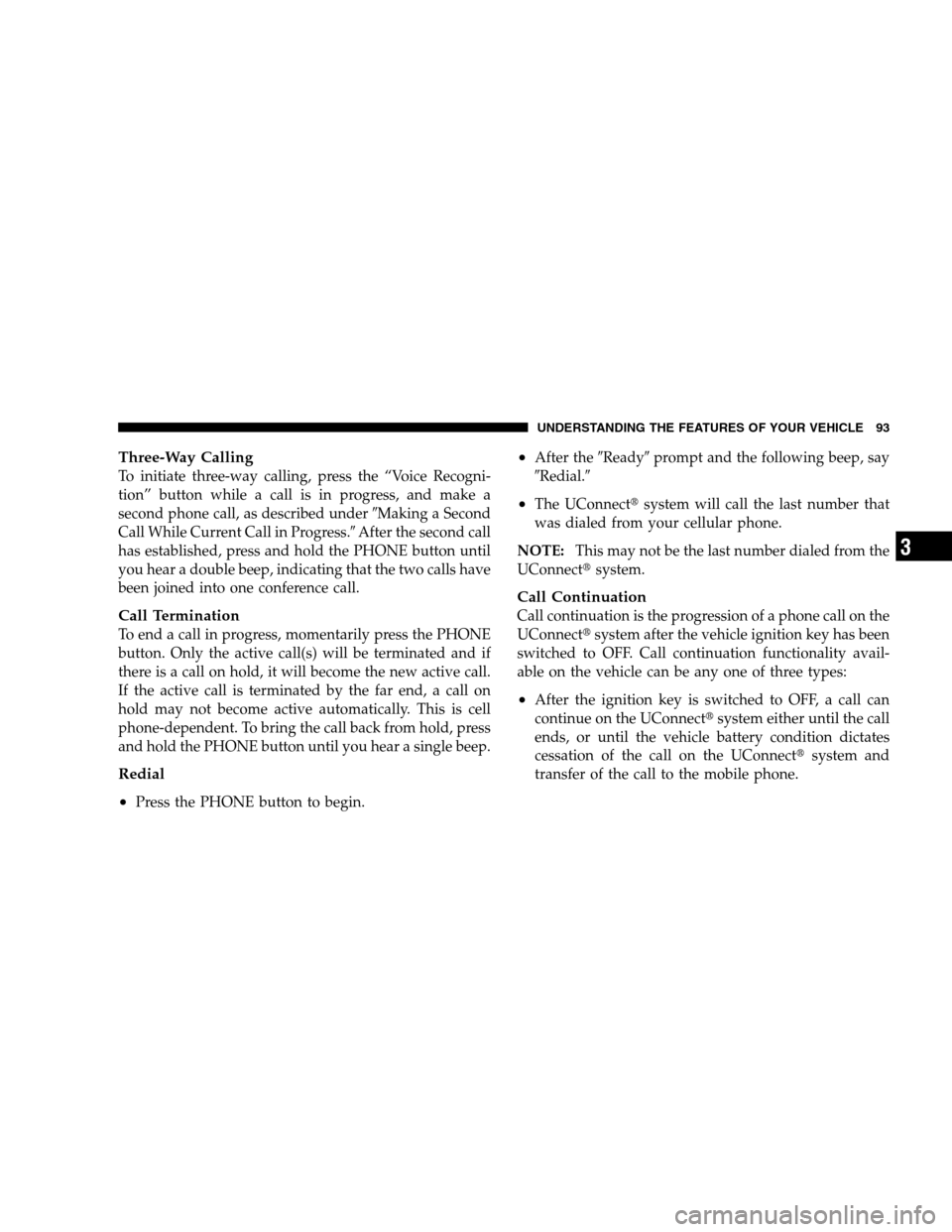

Three-Way Calling
To initiate three-way calling, press the “Voice Recogni-
tion” button while a call is in progress, and make a
second phone call, as described underMaking a Second
Call While Current Call in Progress.After the second call
has established, press and hold the PHONE button until
you hear a double beep, indicating that the two calls have
been joined into one conference call.
Call Termination
To end a call in progress, momentarily press the PHONE
button. Only the active call(s) will be terminated and if
there is a call on hold, it will become the new active call.
If the active call is terminated by the far end, a call on
hold may not become active automatically. This is cell
phone-dependent. To bring the call back from hold, press
and hold the PHONE button until you hear a single beep.
Redial
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Redial.
•The UConnectsystem will call the last number that
was dialed from your cellular phone.
NOTE:This may not be the last number dialed from the
UConnectsystem.
Call Continuation
Call continuation is the progression of a phone call on the
UConnectsystem after the vehicle ignition key has been
switched to OFF. Call continuation functionality avail-
able on the vehicle can be any one of three types:
•After the ignition key is switched to OFF, a call can
continue on the UConnectsystem either until the call
ends, or until the vehicle battery condition dictates
cessation of the call on the UConnectsystem and
transfer of the call to the mobile phone.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
3

•After the ignition key is switched to OFF, a call can
continue on the UConnectsystem for a certain dura-
tion, after which the call is automatically transferred
from the UConnectsystem to the mobile phone.
•An active call is automatically transferred to the
mobile phone after the ignition key is switched to OFF.
UConnectSystem Features
Language Selection
To change the language that the UConnectsystem is
using:
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
the name of the language you wish to switch to
English, Espanol, or Francais.
•Continue to follow the system prompts to complete
language selection.After selecting one of the languages, all prompts and
voice commands will be in that language.
NOTE:After every UConnectlanguage change opera-
tion, only the language-specific 32-name phonebook is
usable. The paired phone name is not language-specific
and usable across all languages.
Emergency Assistance
If you are in an emergency and the mobile phone is
reachable:
•Pick up the phone and manually dial the emergency
number for your area.
If the phone is not reachable and the UConnectsystem
is operational, you may reach the emergency number as
follows:
•Press the PHONE button to begin.
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
