2008 JEEP PATRIOT Owners Manual

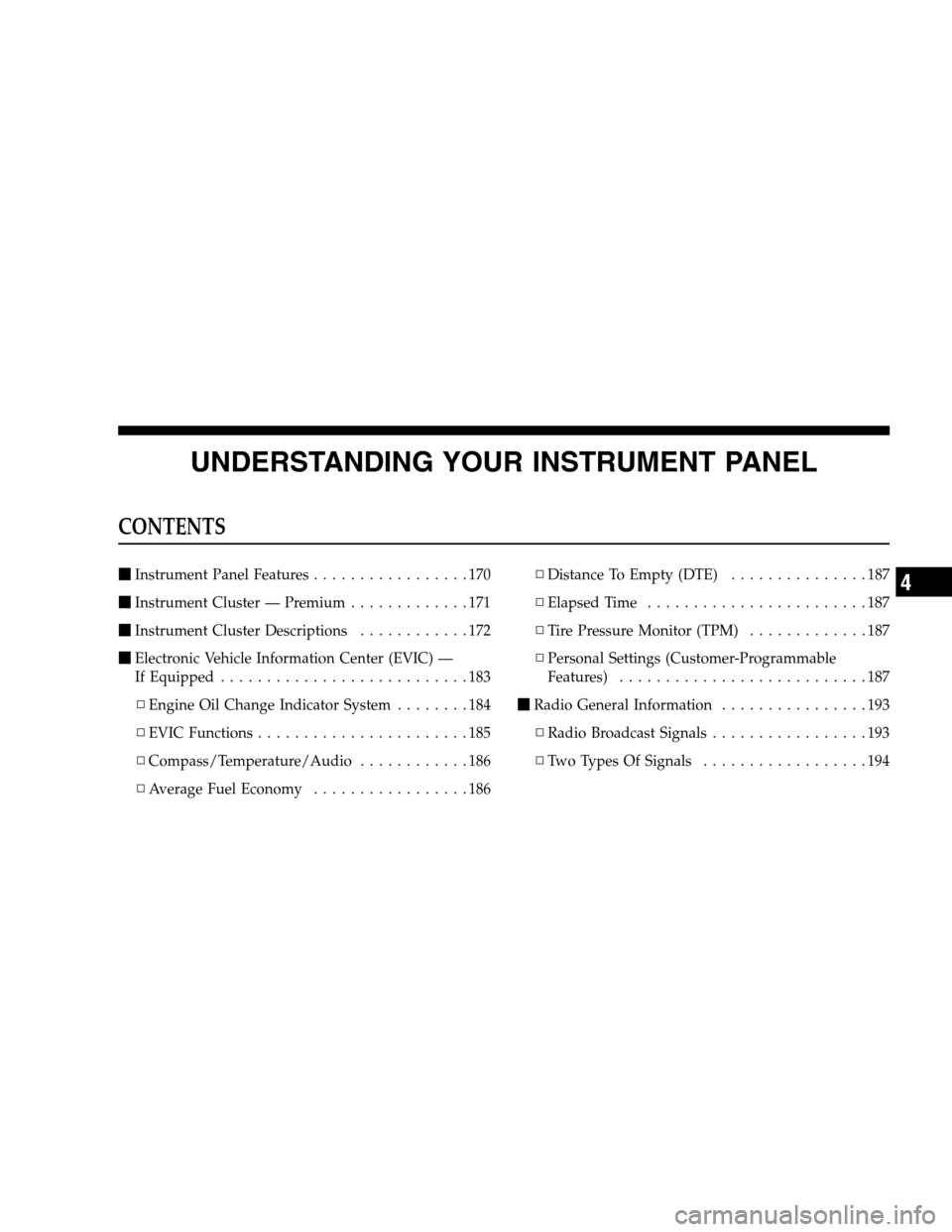

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS

Instrument Panel Features.................170

Instrument Cluster — Premium.............171

Instrument Cluster Descriptions............172

Electronic Vehicle Information Center (EVIC) —
If Equipped...........................183
▫Engine Oil Change Indicator System........184
▫EVIC Functions.......................185
▫Compass/Temperature/Audio............186
▫Average Fuel Economy.................186▫Distance To Empty (DTE)...............187
▫Elapsed Time........................187
▫Tire Pressure Monitor (TPM).............187
▫Personal Settings (Customer-Programmable
Features)...........................187

Radio General Information................193
▫Radio Broadcast Signals.................193
▫Two Types Of Signals..................1944

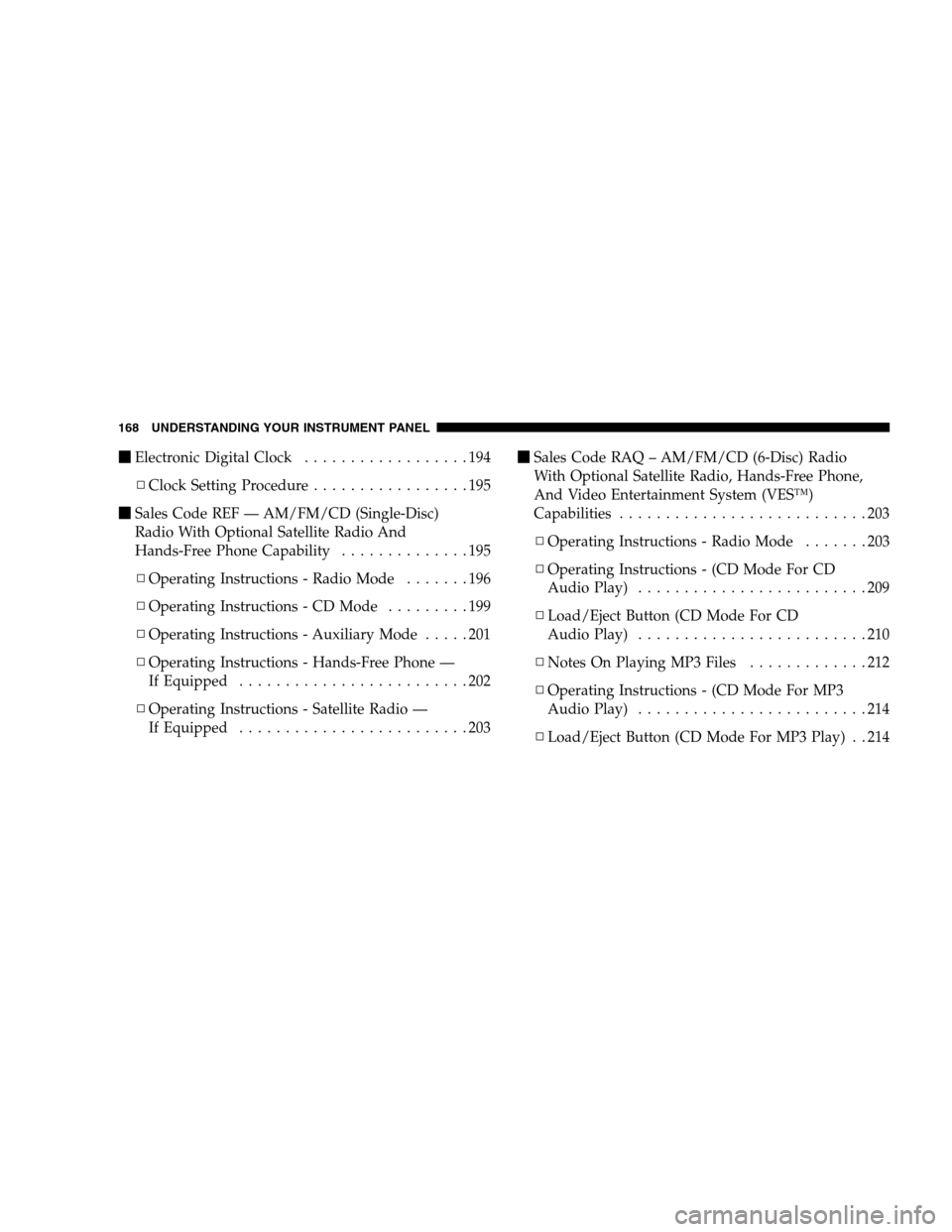

Electronic Digital Clock..................194
▫Clock Setting Procedure.................195

Sales Code REF — AM/FM/CD (Single-Disc)
Radio With Optional Satellite Radio And
Hands-Free Phone Capability..............195
▫Operating Instructions - Radio Mode.......196
▫Operating Instructions - CD Mode.........199
▫Operating Instructions - Auxiliary Mode.....201
▫Operating Instructions - Hands-Free Phone —
If Equipped.........................202
▫Operating Instructions - Satellite Radio —
If Equipped.........................203
Sales Code RAQ – AM/FM/CD (6-Disc) Radio
With Optional Satellite Radio, Hands-Free Phone,
And Video Entertainment System (VES™)
Capabilities...........................203
▫Operating Instructions - Radio Mode.......203
▫Operating Instructions - (CD Mode For CD
Audio Play).........................209
▫Load/Eject Button (CD Mode For CD
Audio Play).........................210
▫NotesOnPlayingMP3Files .............212
▫Operating Instructions - (CD Mode For MP3
Audio Play).........................214
▫Load/Eject Button (CD Mode For MP3 Play) . . 214
168 UNDERSTANDING YOUR INSTRUMENT PANEL

Sales Code REC — AM/FM/CD (6–Disc)
Radio With Navigation System.............217
▫Operating Instructions — Satellite Radio —
If Equipped.........................217
▫REC Setting The Clock.................218

Satellite Radio — If Equipped..............220
▫System Activation.....................220
▫Electronic Serial Number/Sirius Identification
Number (ESN/SID)....................221
▫Selecting Satellite Mode In REF, RAQ, And
RAK Radios.........................222
▫Selecting A Channel...................222
▫Storing And Selecting Preset Channels......223
▫Using The PTY (Program Type) Button — If
Equipped...........................223
▫PTY Button Scan......................223▫PTY Button Seek......................223
▫Satellite Antenna......................223
▫Reception Quality.....................224

Remote Sound System Controls —
If Equipped...........................224
▫Radio Operation......................225
▫CD Player..........................225

CD/DVD Maintenance...................226

Radio Operation And Cellular Phones........226

Climate Controls.......................227
▫Climate Controls......................227
▫Air Conditioning.....................230
▫Air Filtration System — If Equipped........231
▫Operating Tips.......................232
UNDERSTANDING YOUR INSTRUMENT PANEL 169
4

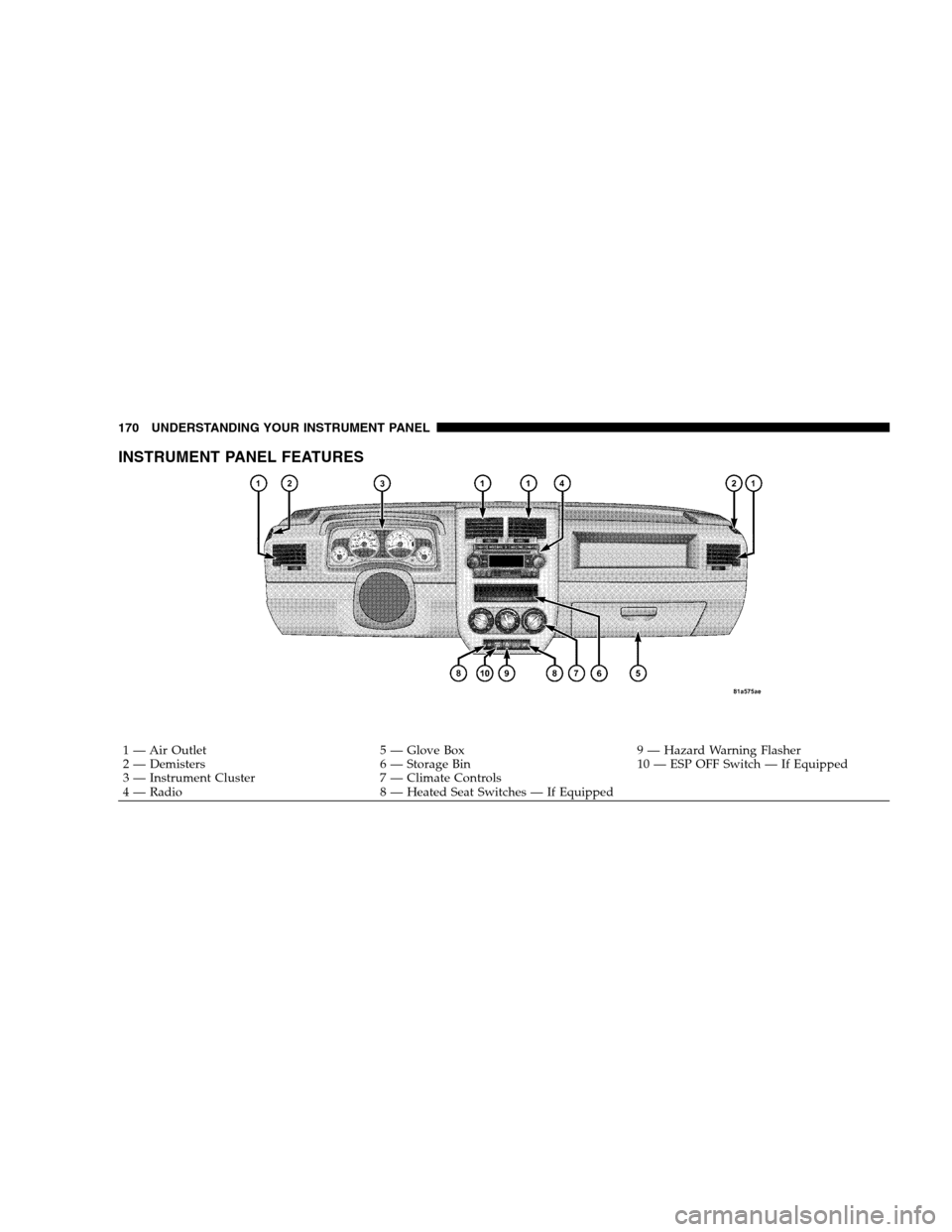

INSTRUMENT PANEL FEATURES
1 — Air Outlet 5 — Glove Box 9 — Hazard Warning Flasher
2 — Demisters 6 — Storage Bin 10 — ESP OFF Switch — If Equipped
3 — Instrument Cluster 7 — Climate Controls
4 — Radio 8 — Heated Seat Switches — If Equipped 170 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER — PREMIUM
UNDERSTANDING YOUR INSTRUMENT PANEL 171
4

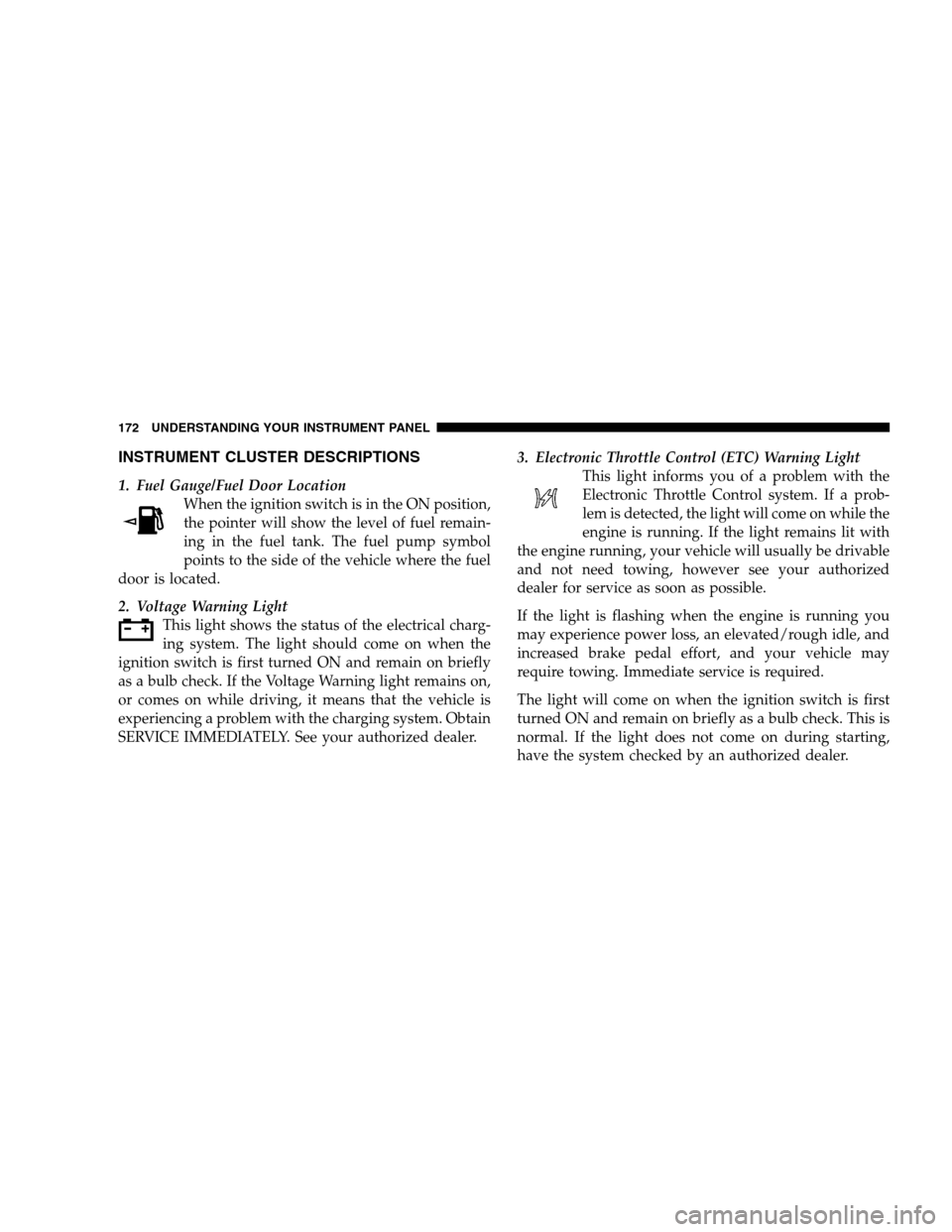

INSTRUMENT CLUSTER DESCRIPTIONS
1. Fuel Gauge/Fuel Door Location
When the ignition switch is in the ON position,
the pointer will show the level of fuel remain-
ing in the fuel tank. The fuel pump symbol
points to the side of the vehicle where the fuel
door is located.
2. Voltage Warning Light
This light shows the status of the electrical charg-
ing system. The light should come on when the
ignition switch is first turned ON and remain on briefly
as a bulb check. If the Voltage Warning light remains on,
or comes on while driving, it means that the vehicle is
experiencing a problem with the charging system. Obtain
SERVICE IMMEDIATELY. See your authorized dealer.3. Electronic Throttle Control (ETC) Warning Light
This light informs you of a problem with the
Electronic Throttle Control system. If a prob-
lem is detected, the light will come on while the
engine is running. If the light remains lit with
the engine running, your vehicle will usually be drivable
and not need towing, however see your authorized
dealer for service as soon as possible.
If the light is flashing when the engine is running you
may experience power loss, an elevated/rough idle, and
increased brake pedal effort, and your vehicle may
require towing. Immediate service is required.
The light will come on when the ignition switch is first
turned ON and remain on briefly as a bulb check. This is
normal. If the light does not come on during starting,
have the system checked by an authorized dealer.
172 UNDERSTANDING YOUR INSTRUMENT PANEL

4. Oil Pressure Warning Light
Shows low engine oil pressure. The light will come
on and remain on when the ignition switch is
turned from the OFF to the ON position, and the light
will turn off after the engine is started. If the light does
not come on during starting, have the system checked by
an authorized dealer.
If the light comes on and remains on while driving, stop
the vehicle and shut OFF the engine. DO NOT OPERATE
THE VEHICLE UNTIL THE CAUSE IS CORRECTED.
The light does not show the quantity of oil in the engine.
This can be determined using the procedure shown in
Section 7.
5. Low Fuel Warning Light
When the fuel level drops to two gallons, the fuel
symbol will light and a single chime will sound.6. Speedometer
Indicates vehicle speed.
7. Airbag Warning Light
The light comes on and remains on for six to
eight seconds as a bulb check when the ignition
switch is first turned ON. If the light does not
come on during starting, stays on, or comes on
while driving, have the system checked by an authorized
dealer.
8. Turn Signal Indicator Light
The arrows will flash in unison with the exterior
turn signal, when using the turn signal lever.
9. High Beam Indicator Light
This light shows that the headlights are on high
beam. Push the turn signal lever away from the
steering wheel to switch the headlights from high or low
beam.
UNDERSTANDING YOUR INSTRUMENT PANEL 173
4

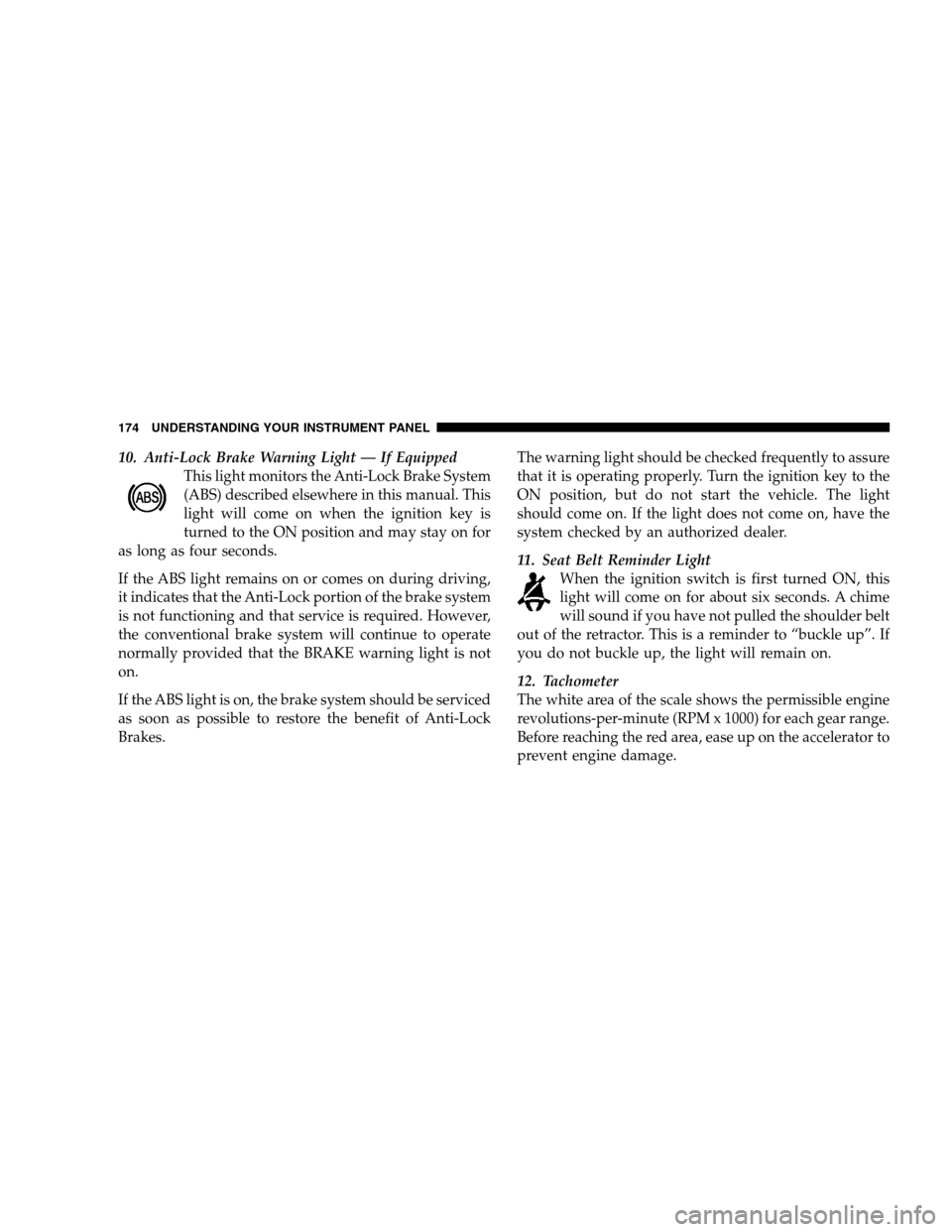

10. Anti-Lock Brake Warning Light — If Equipped
This light monitors the Anti-Lock Brake System
(ABS) described elsewhere in this manual. This
light will come on when the ignition key is
turned to the ON position and may stay on for
as long as four seconds.
If the ABS light remains on or comes on during driving,
it indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required. However,
the conventional brake system will continue to operate
normally provided that the BRAKE warning light is not
on.
If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefit of Anti-Lock
Brakes.The warning light should be checked frequently to assure
that it is operating properly. Turn the ignition key to the
ON position, but do not start the vehicle. The light
should come on. If the light does not come on, have the
system checked by an authorized dealer.
11. Seat Belt Reminder Light
When the ignition switch is first turned ON, this
light will come on for about six seconds. A chime
will sound if you have not pulled the shoulder belt
out of the retractor. This is a reminder to “buckle up”. If
you do not buckle up, the light will remain on.
12. Tachometer
The white area of the scale shows the permissible engine
revolutions-per-minute (RPM x 1000) for each gear range.
Before reaching the red area, ease up on the accelerator to
prevent engine damage.
174 UNDERSTANDING YOUR INSTRUMENT PANEL
