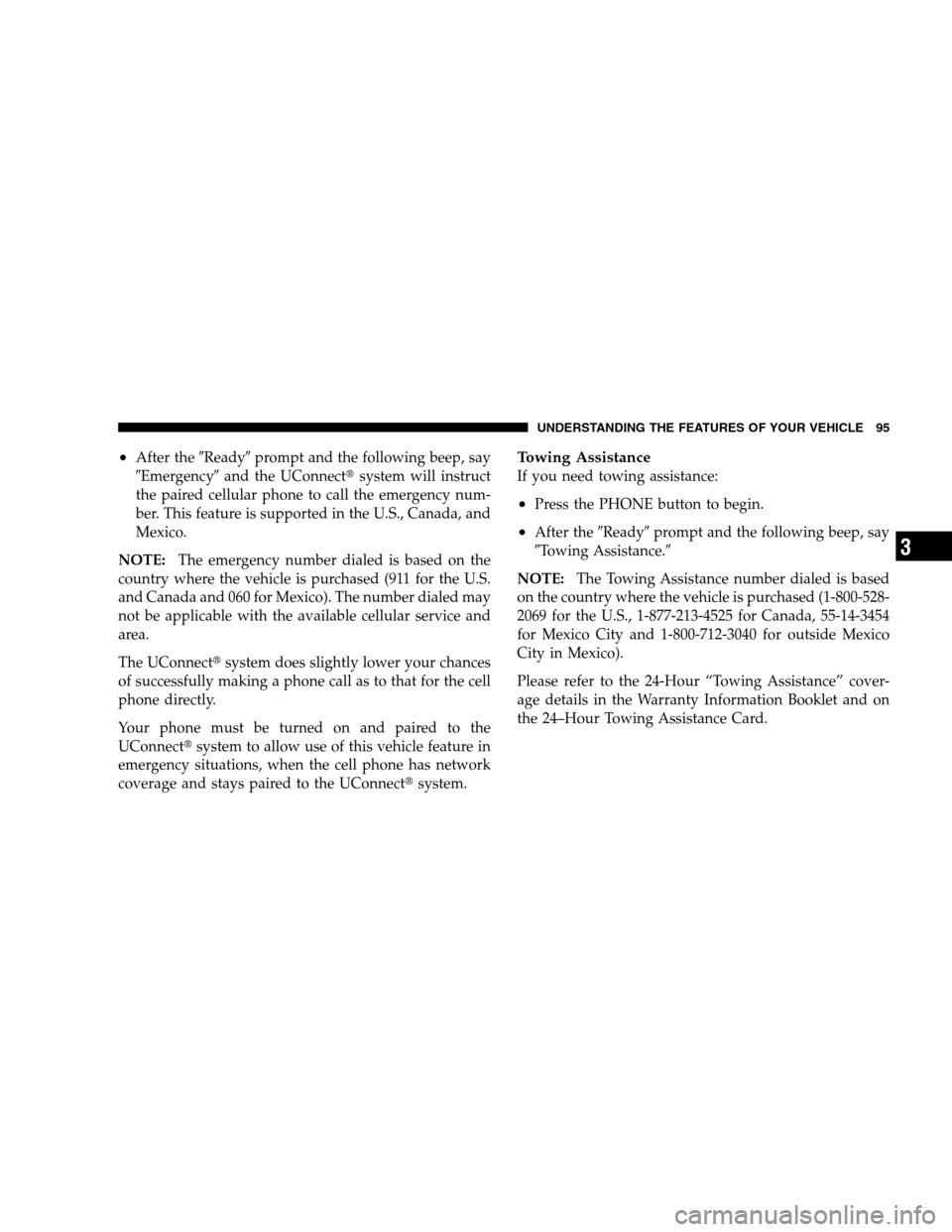

•After theReadyprompt and the following beep, say
Emergencyand the UConnectsystem will instruct
the paired cellular phone to call the emergency num-
ber. This feature is supported in the U.S., Canada, and
Mexico.
NOTE:The emergency number dialed is based on the
country where the vehicle is purchased (911 for the U.S.
and Canada and 060 for Mexico). The number dialed may
not be applicable with the available cellular service and
area.
The UConnectsystem does slightly lower your chances
of successfully making a phone call as to that for the cell
phone directly.
Your phone must be turned on and paired to the
UConnectsystem to allow use of this vehicle feature in
emergency situations, when the cell phone has network
coverage and stays paired to the UConnectsystem.Towing Assistance
If you need towing assistance:
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Towing Assistance.
NOTE:The Towing Assistance number dialed is based
on the country where the vehicle is purchased (1-800-528-
2069 for the U.S., 1-877-213-4525 for Canada, 55-14-3454
for Mexico City and 1-800-712-3040 for outside Mexico
City in Mexico).
Please refer to the 24-Hour “Towing Assistance” cover-
age details in the Warranty Information Booklet and on
the 24–Hour Towing Assistance Card.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95
3

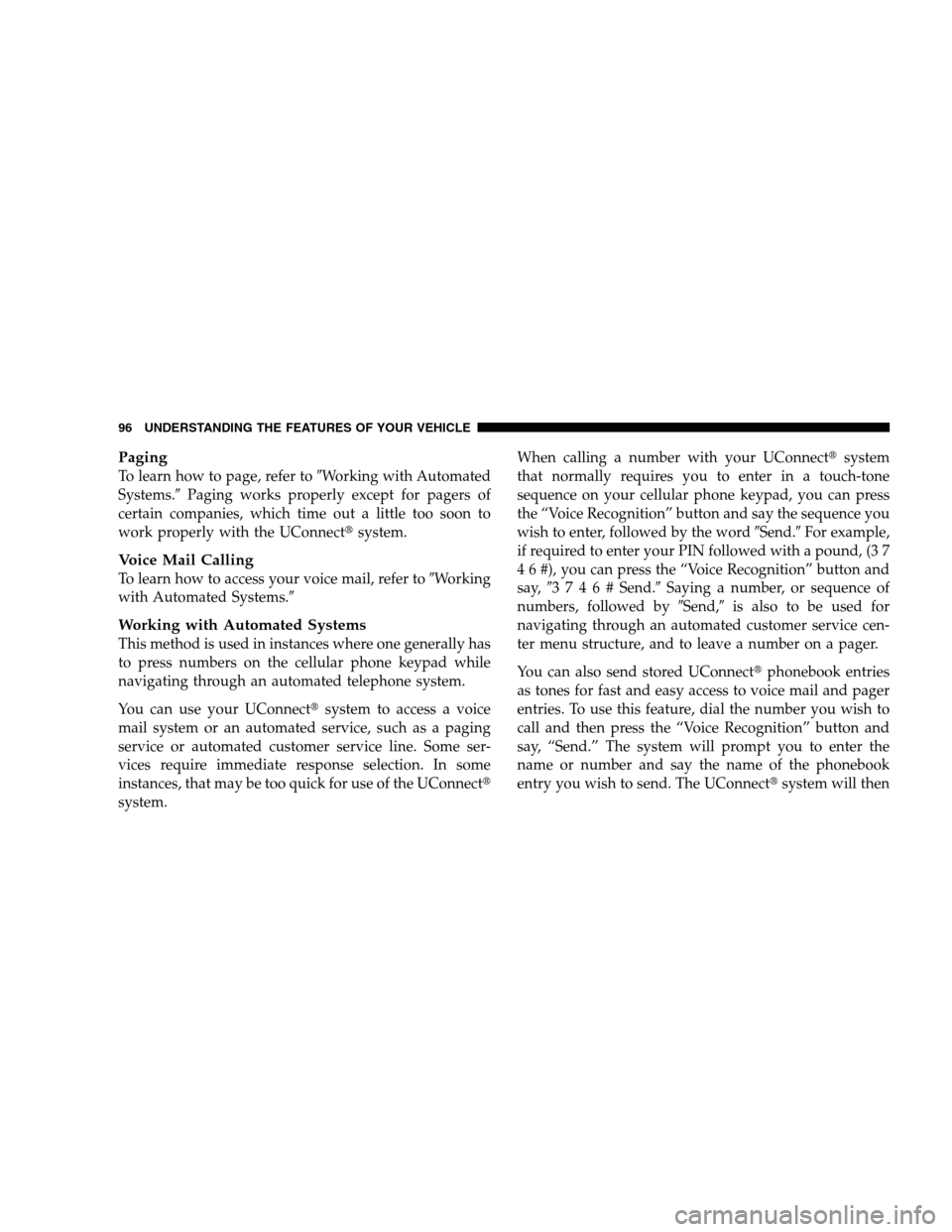

Paging
To learn how to page, refer toWorking with Automated
Systems.Paging works properly except for pagers of
certain companies, which time out a little too soon to
work properly with the UConnectsystem.
Voice Mail Calling
To learn how to access your voice mail, refer toWorking
with Automated Systems.
Working with Automated Systems
This method is used in instances where one generally has
to press numbers on the cellular phone keypad while
navigating through an automated telephone system.
You can use your UConnectsystem to access a voice
mail system or an automated service, such as a paging
service or automated customer service line. Some ser-
vices require immediate response selection. In some
instances, that may be too quick for use of the UConnect
system.When calling a number with your UConnectsystem
that normally requires you to enter in a touch-tone
sequence on your cellular phone keypad, you can press
the “Voice Recognition” button and say the sequence you
wish to enter, followed by the wordSend.For example,
if required to enter your PIN followed with a pound, (3 7
4 6 #), you can press the “Voice Recognition” button and
say,3746#Send.Saying a number, or sequence of
numbers, followed bySend,is also to be used for
navigating through an automated customer service cen-
ter menu structure, and to leave a number on a pager.
You can also send stored UConnectphonebook entries
as tones for fast and easy access to voice mail and pager
entries. To use this feature, dial the number you wish to
call and then press the “Voice Recognition” button and
say, “Send.” The system will prompt you to enter the
name or number and say the name of the phonebook
entry you wish to send. The UConnectsystem will then
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

send the corresponding phone number associated with
the phonebook entry, as tones over the phone.
NOTE:
•You may not hear all of the tones due to cellular phone
network configurations; this is normal.
•Some paging and voice mail systems have system time
out settings that are too short and may not allow the
use of this feature.
Barge In - Overriding Prompts
The “Voice Recognition” button can be used when you
wish to skip part of a prompt and issue your voice
recognition command immediately. For example, if a
prompt is askingWould you like to pair a phone, clear
a,you could press the “Voice Recognition” button and
say,Pair a Phoneto select that option without having to
listen to the rest of the voice prompt.
Turning Confirmation Prompts On/Off
Turning confirmation prompts off will stop the system
from confirming your choices (e.g., the UConnectsys-
tem will not repeat a phone number before you dial it).
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Setup Confirmations.The UConnectsystem will
play the current confirmation prompt status and you
will be given the choice to change it.
Phone and Network Status Indicators
If available on the radio and/or on a premium display
such as the instrument panel cluster, and supported by
your cell phone, the UConnectsystem will provide
notification to inform you of your phone and network
status when you are attempting to make a phone call
using UConnect. The status is given for roaming, net-
work signal strength, phone battery strength, etc.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97
3

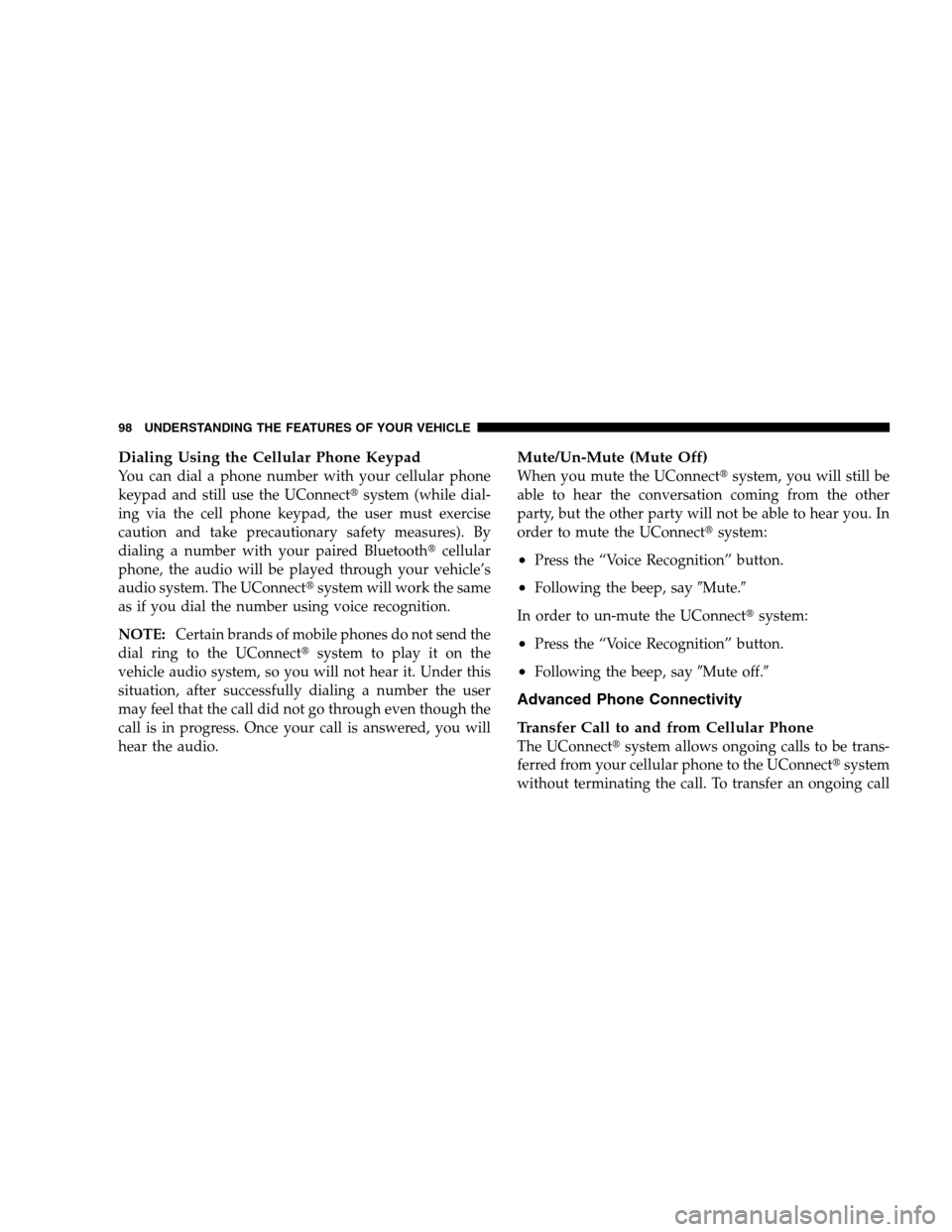

Dialing Using the Cellular Phone Keypad
You can dial a phone number with your cellular phone
keypad and still use the UConnectsystem (while dial-
ing via the cell phone keypad, the user must exercise
caution and take precautionary safety measures). By
dialing a number with your paired Bluetoothcellular
phone, the audio will be played through your vehicle’s
audio system. The UConnectsystem will work the same
as if you dial the number using voice recognition.
NOTE:Certain brands of mobile phones do not send the
dial ring to the UConnectsystem to play it on the
vehicle audio system, so you will not hear it. Under this
situation, after successfully dialing a number the user
may feel that the call did not go through even though the
call is in progress. Once your call is answered, you will
hear the audio.
Mute/Un-Mute (Mute Off)
When you mute the UConnectsystem, you will still be
able to hear the conversation coming from the other
party, but the other party will not be able to hear you. In
order to mute the UConnectsystem:
•Press the “Voice Recognition” button.
•Following the beep, sayMute.
In order to un-mute the UConnectsystem:
•Press the “Voice Recognition” button.
•Following the beep, sayMute off.
Advanced Phone Connectivity
Transfer Call to and from Cellular Phone
The UConnectsystem allows ongoing calls to be trans-
ferred from your cellular phone to the UConnectsystem
without terminating the call. To transfer an ongoing call
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

from your UConnectpaired cellular phone to the
UConnectsystem or vice versa, press the “Voice Recog-
nition” button and sayTransfer Call.
Connect or Disconnect Link Between the
UConnectSystem and Cellular Phone
Your cellular phone can be paired with many different
electronic devices, but can only be activelyconnected
with one electronic device at a time.
If you would like to connect or disconnect the Bluetooth
connection between a UConnectpaired cellular phone
and the UConnectsystem, follow the instructions de-
scribed in your cellular phone User’s Manual.
List Paired Cellular Phone Names
•
Press the PHONE button to begin.
•After the “Ready” prompt and the following beep, say
“Setup Phone Pairing.”
•When prompted, sayList Phones.
•The UConnectsystem will play the phone names of
all paired cellular phones in order from the highest to
the lowest priority. To “select” or “delete” a paired
phone being announced, press the “Voice Recogni-
tion” button and say “Select” or “Delete.” Also, see the
next two sections for an alternate way to “select” or
“delete” a paired phone.
Select Another Cellular Phone
This feature allows you to select and start using another
phone paired with the UConnectsystem.
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Setup Select Phoneand follow the prompts.
•You can also press the “Voice Recognition” button at
any time while the list is being played, and then
choose the phone that you wish to select.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99
3

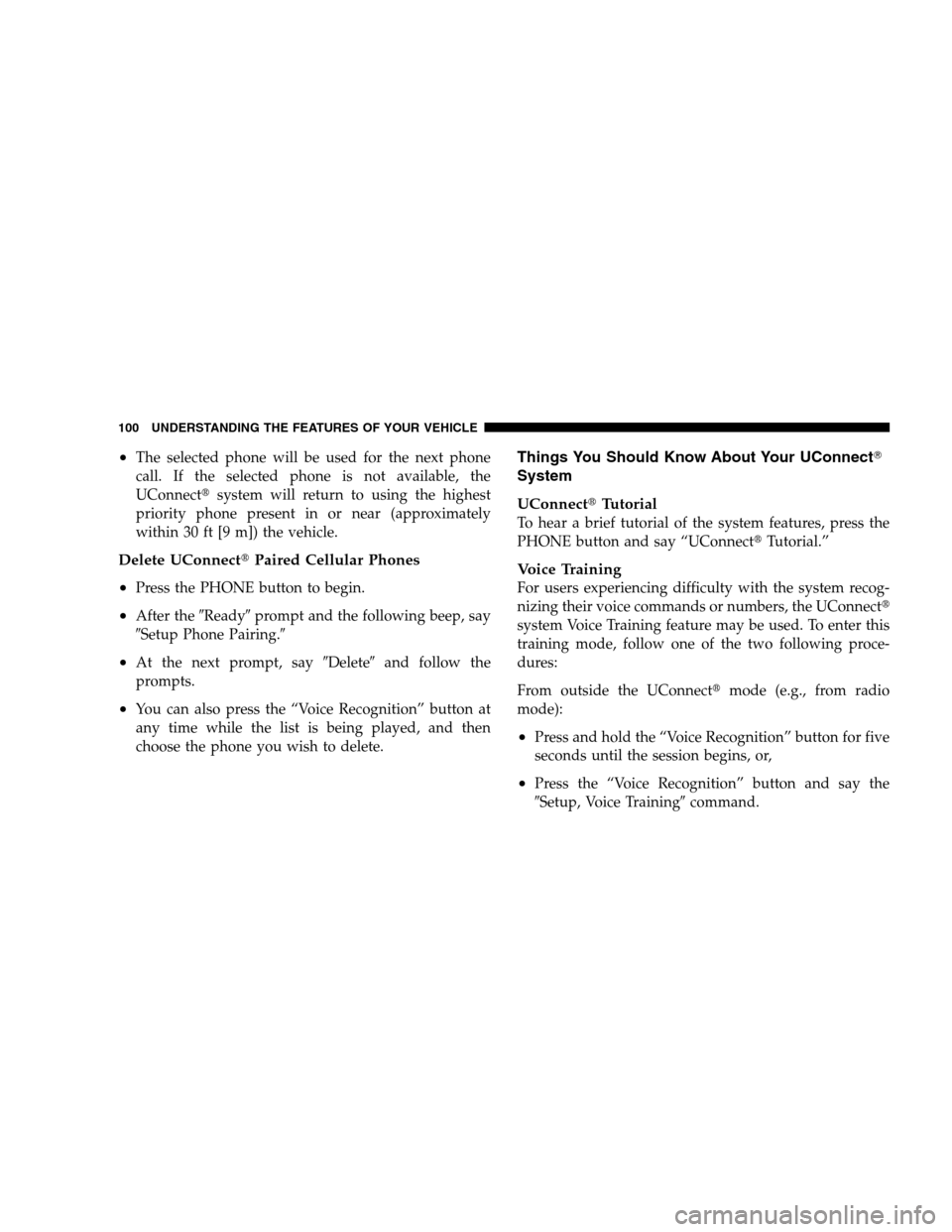

•The selected phone will be used for the next phone
call. If the selected phone is not available, the
UConnectsystem will return to using the highest
priority phone present in or near (approximately
within 30 ft [9 m]) the vehicle.
Delete UConnectPaired Cellular Phones
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Setup Phone Pairing.
•At the next prompt, sayDeleteand follow the
prompts.
•You can also press the “Voice Recognition” button at
any time while the list is being played, and then
choose the phone you wish to delete.
Things You Should Know About Your UConnect
System
UConnectTutorial
To hear a brief tutorial of the system features, press the
PHONE button and say “UConnectTutorial.”
Voice Training
For users experiencing difficulty with the system recog-
nizing their voice commands or numbers, the UConnect
system Voice Training feature may be used. To enter this
training mode, follow one of the two following proce-
dures:
From outside the UConnectmode (e.g., from radio
mode):
•Press and hold the “Voice Recognition” button for five
seconds until the session begins, or,
•Press the “Voice Recognition” button and say the
Setup, Voice Trainingcommand.
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

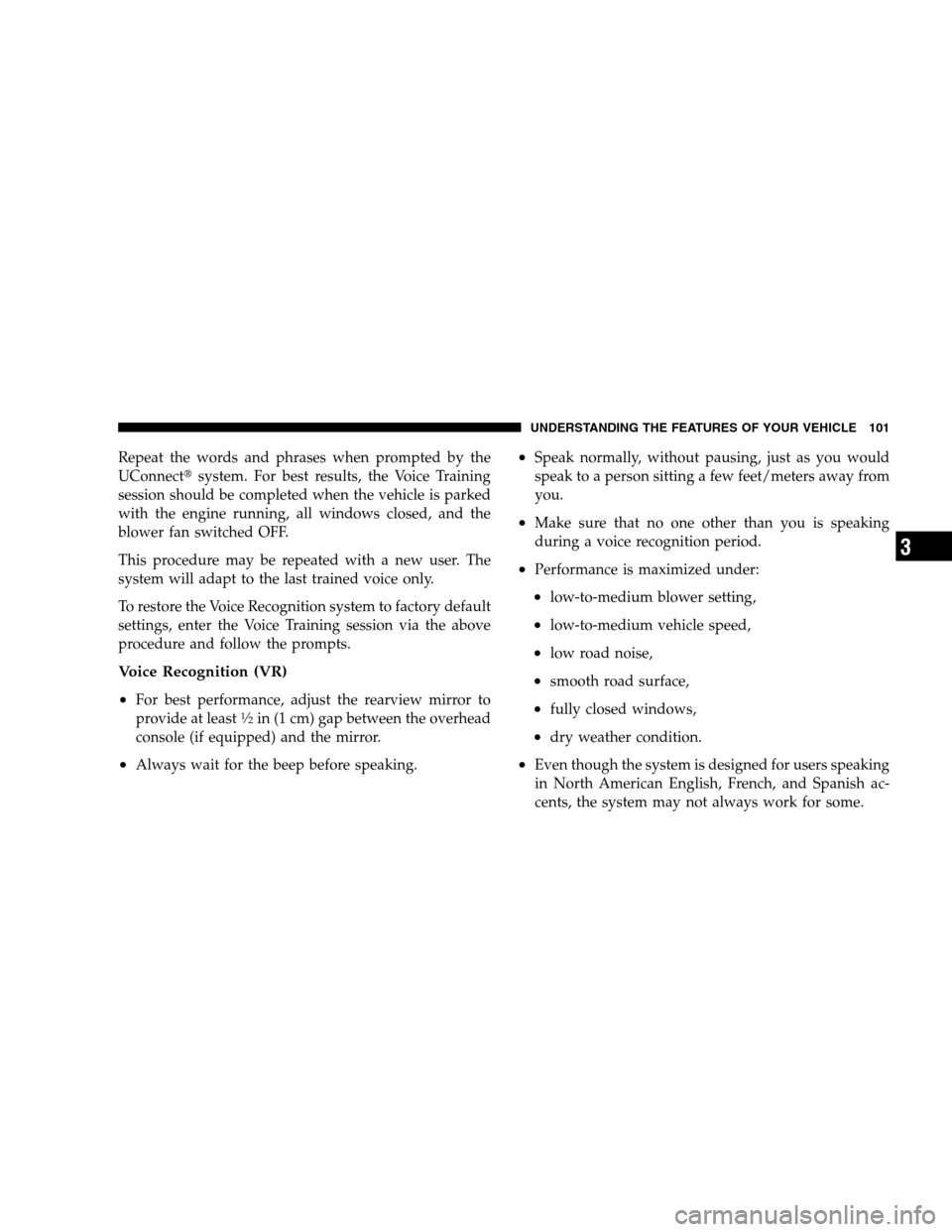

Repeat the words and phrases when prompted by the
UConnectsystem. For best results, the Voice Training
session should be completed when the vehicle is parked
with the engine running, all windows closed, and the
blower fan switched OFF.
This procedure may be repeated with a new user. The
system will adapt to the last trained voice only.
To restore the Voice Recognition system to factory default
settings, enter the Voice Training session via the above
procedure and follow the prompts.
Voice Recognition (VR)
•
For best performance, adjust the rearview mirror to
provide at least12in (1 cm) gap between the overhead
console (if equipped) and the mirror.
•Always wait for the beep before speaking.
•Speak normally, without pausing, just as you would
speak to a person sitting a few feet/meters away from
you.
•Make sure that no one other than you is speaking
during a voice recognition period.
•Performance is maximized under:
•low-to-medium blower setting,
•low-to-medium vehicle speed,
•low road noise,
•smooth road surface,
•fully closed windows,
•dry weather condition.
•Even though the system is designed for users speaking
in North American English, French, and Spanish ac-
cents, the system may not always work for some.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101
3

•When navigating through an automated system such
as voice mail, or when sending a page, at the end of
speaking the digit string, make sure to saySend.
•Storing names in the phonebook when the vehicle is
not in motion is recommended.
•It is not recommended to store similar sounding
names in the UConnectphonebook.
•The UConnectphonebook nametag recognition rate
is optimized for the person who stored the name in the
phonebook.
•You can sayO(letterO) for0(zero).800must be
spokeneight-zero-zero.
•Even though international dialing for most number
combinations is supported, some shortcut dialing
number combinations may not be supported.
•In a convertible vehicle, system performance may be
compromised with the convertible top down.
Far End Audio Performance
•
Audio quality is maximized under:
•low-to-medium blower setting,
•low-to-medium vehicle speed,
•low road noise,
•smooth road surface,
•fully closed windows,
•dry weather conditions, and
•operation from the driver’s seat.
•Performance, such as audio clarity, echo, and loudness
to a large degree rely on the phone and network, and
not the UConnectsystem.
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
