2008 JEEP PATRIOT washer fluid

Adding Washer Fluid
The fluid reservoir for the windshield washers and the
rear window washer (if equipped) is shared. It is located
in the front of the engine compartment on the passenger
side and should be checked for fluid level at regular
intervals. Fill the reservoir with windshield washer sol-
vent (not radiator antifreeze) and operate the system for
a few seconds to flush out the residual water.
Rear Window Defroster
The pushbutton is located on
the bottom right side of the
blower control knob. Press
this button to turn on the rear
window defroster. An amber
light shows that the defroster
is on.The defroster will automatically turn off after approxi-
mately ten minutes. For an additional five minutes of
operation, press the button again. To prevent excessive
battery drain, use the defroster only when the engine is
operating.
Rear Wiper Heater Grid
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163
3

▫Front Suspension Ball Joints..............362
▫Body Lubrication.....................363
▫Windshield Wiper Blades................363
▫Windshield Washer Fluid Reservoir........364
▫Exhaust System......................364
▫Cooling System.......................365
▫Hoses And Vacuum/Vapor Harnesses.......370
▫Fuel System Connections................370
▫Brake System........................371
▫Automatic Transaxle (CVT)..............373
▫Manual Transaxle.....................374
▫Rear Drive Assembly (RDA) – AWD/4WD
Models Only........................375▫Power Transfer Unit (PTU) – AWD/4WD
Models Only........................375
▫Appearance Care And Protection
From Corrosion......................376

Fuses/Integrated Power Module (IPM).......382

Vehicle Storage........................385

Replacement Bulbs......................385

Bulb Replacement......................386
▫Headlamps..........................386
▫Fog Lights..........................389
▫Tail Lights, Rear Turn Signals And Backup
Lights — Replacement..................389
▫License Lights........................391
▫Center High-Mounted Stoplight...........392
346 MAINTAINING YOUR VEHICLE

Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, doors, liftgate and hood hinges, should be
lubricated periodically to assure quiet, easy operation
and to protect against rust and wear. Prior to the appli-
cation of any lubricant, the parts concerned should be
wiped clean to remove dust and grit. After lubricating,
excess oil and grease should be removed. Particular
attention should also be given to hood latching compo-
nents to ensure proper function. When performing other
underhood services, the hood latch, release mechanism
and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant such as MoparLock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild, nonabrasive cleaner or use the washer solvent. This
will remove accumulations of salt, waxes or road film
and help reduce streaking and smearing.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield. Avoid using the wiper blades to
remove frost or ice from the windshield. Make sure that
they are not frozen to the glass before turning them on to
avoid damaging the blade. Keep the blade rubber out of
contact with petroleum products such as engine oil,
gasoline, etc.
MAINTAINING YOUR VEHICLE 363
7

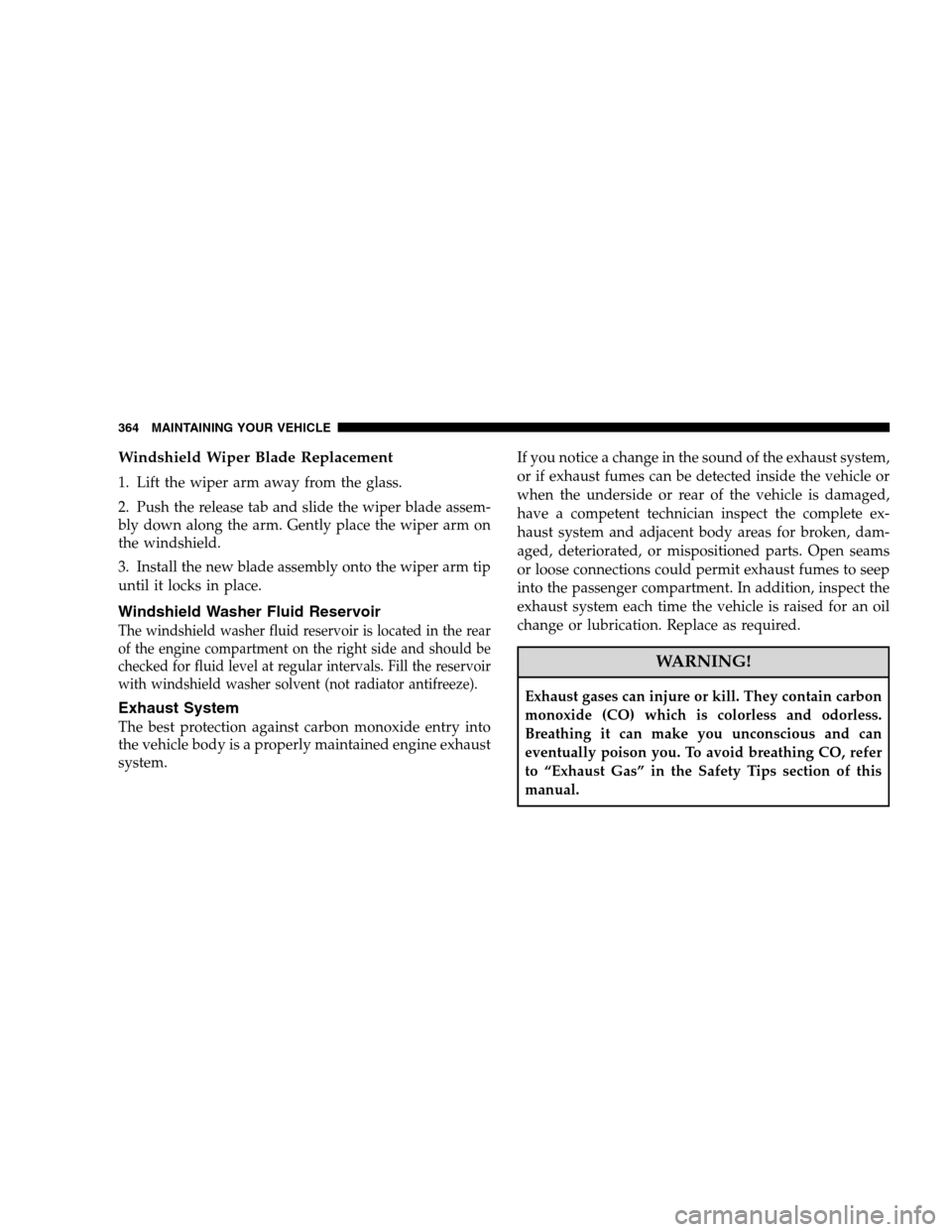

Windshield Wiper Blade Replacement
1. Lift the wiper arm away from the glass.
2. Push the release tab and slide the wiper blade assem-
bly down along the arm. Gently place the wiper arm on
the windshield.
3. Install the new blade assembly onto the wiper arm tip
until it locks in place.
Windshield Washer Fluid Reservoir
The windshield washer fluid reservoir is located in the rear
of the engine compartment on the right side and should be
checked for fluid level at regular intervals. Fill the reservoir
with windshield washer solvent (not radiator antifreeze).
Exhaust System
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.If you notice a change in the sound of the exhaust system,
or if exhaust fumes can be detected inside the vehicle or
when the underside or rear of the vehicle is damaged,
have a competent technician inspect the complete ex-
haust system and adjacent body areas for broken, dam-
aged, deteriorated, or mispositioned parts. Open seams
or loose connections could permit exhaust fumes to seep
into the passenger compartment. In addition, inspect the
exhaust system each time the vehicle is raised for an oil
change or lubrication. Replace as required.
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO) which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing CO, refer
to “Exhaust Gas” in the Safety Tips section of this
manual.
364 MAINTAINING YOUR VEHICLE

ABS (Anti-Lock Brake System).............. 279
Adding Engine Coolant (Antifreeze).......... 367
Adding Fuel........................... 314
Adding Washer Fluid..................... 163
Additives, Fuel......................... 313
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 358
Air Conditioner Maintenance............... 361
Air Conditioning Controls................. 227
Air Conditioning, Operating Tips............ 232
Air Conditioning Refrigerant.............361,362
Air Conditioning System................227,361
Air Pressure, Tires....................... 292
Airbag................................ 48
Airbag Deployment..................... 53,55
Airbag Light..................... 53,57,70,173
Airbag Maintenance....................... 57
Airbag, Side............................ 54
Airbag, Window (Side Curtain)............. 49,54
Alarm System (Security Alarm)............ 18,176Alignment and Balance................... 300
Alterations/Modifications, Vehicle............. 8
Antenna, Satellite Radio................... 223
Antifreeze (Engine Coolant)...........366,395,396
Capacities........................... 395
Disposal............................ 368
Anti-Lock Brake System (ABS)............133,279
Anti-Theft Security Alarm (Theft Alarm)........ 18
Appearance Care........................ 376
Assistance Towing........................ 95
Automatic Door Locks................... 27,29
Automatic Transaxle........... 13,239,244,333,373
Fluid Level Check...................... 374
Interlock System....................... 246
Overheating.......................... 333
Selection Of Lubricant................... 373
Shifting ............................. 246
Special Additives...................... 374
Autostick ............................. 249
418 INDEX

Unleaded Gasoline....................... 311
Vacuum/Vapor Harnesses................. 370
VanityMirrors ........................... 82
Variance, Compass....................... 191
Vehicle Identification Number (VIN)............ 7
Vehicle Loading......................288,317
Vehicle Modifications/Alterations.............. 8
Vehicle Storage......................... 385
Vehicle Theft Alarm (Security Alarm).......... 18
Warning Lights
(Instrument Cluster Description)............. 172
Warning, Roll Over........................ 4
Warnings and Cautions..................... 7
Warranty Information..................... 412
Washer, Adding Fluid..................... 163Washers, Windshield..................... 128
Washing Vehicle......................... 377
Wheel Alignment and Balance............... 300
Wheel and Wheel Trim.................... 378
Wheel and Wheel Trim Care................ 378
WindBuffeting ......................... 152
Window Airbag (Side Curtain)............. 49,54
Window Fogging........................ 233
Windows.............................. 32
Power............................... 32
Windshield Washers...................127,128
Windshield Wipers....................127,363
Wiper Blade Replacement.................. 364
Wipers, Intermittent...................... 128
YES EssentialsFabric Cleaning Procedure...... 378
434 INDEX
