2008 INFINITI QX56 diagram

DAYTIME LIGHT SYSTEMEXL-47
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P

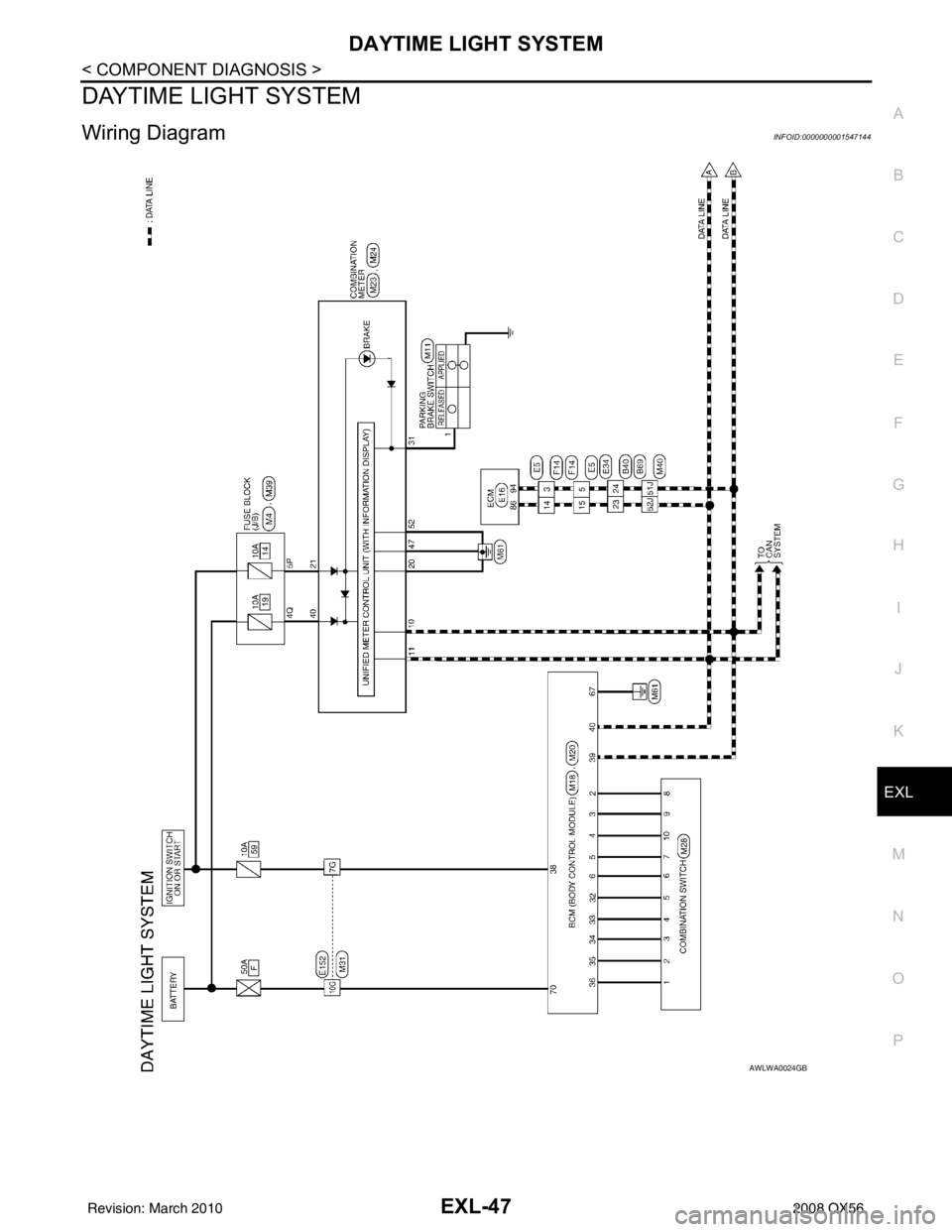

DAYTIME LIGHT SYSTEM
Wiring DiagramINFOID:0000000001547144
AWLWA0024GB
Revision: March 2010 2008 QX56

EXL-54
< COMPONENT DIAGNOSIS >

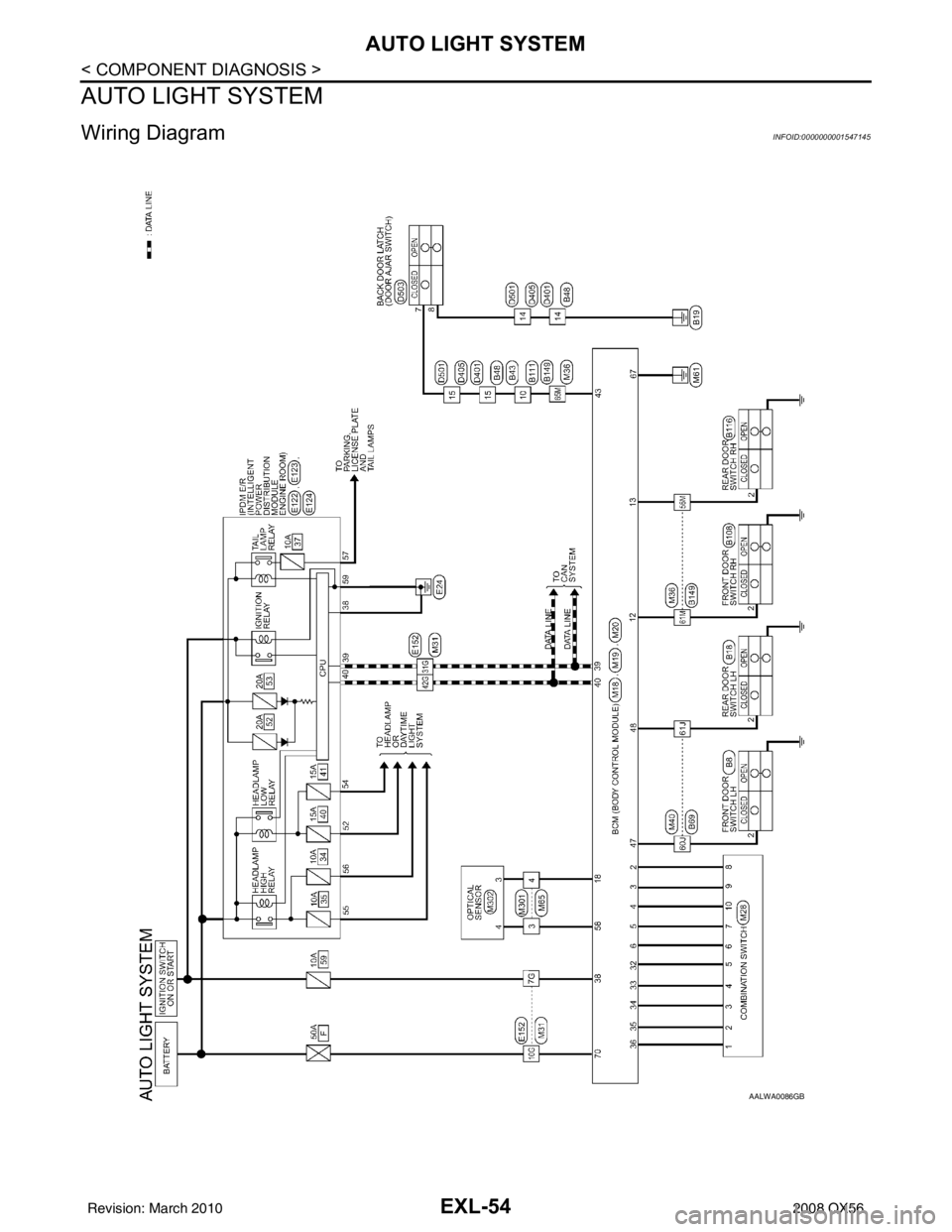

AUTO LIGHT SYSTEM
AUTO LIGHT SYSTEM
Wiring DiagramINFOID:0000000001547145
AALWA0086GB
Revision: March 20102008 QX56

HEADLAMP AIMING SYSTEM (MANUAL)EXL-61
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P

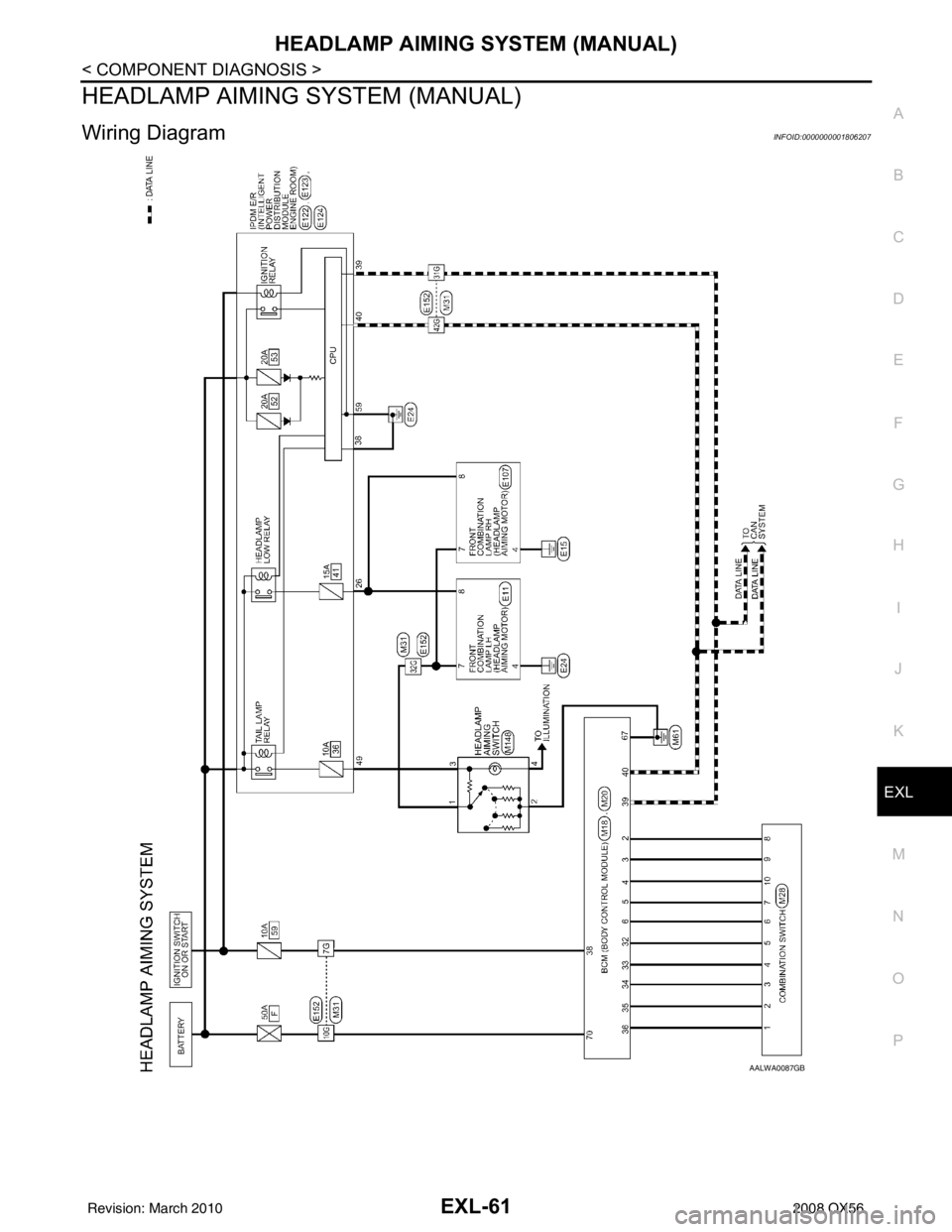

HEADLAMP AIMING SYSTEM (MANUAL)
Wiring DiagramINFOID:0000000001806207
AALWA0087GB
Revision: March 2010 2008 QX56

FRONT FOG LAMP SYSTEMEXL-65
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P

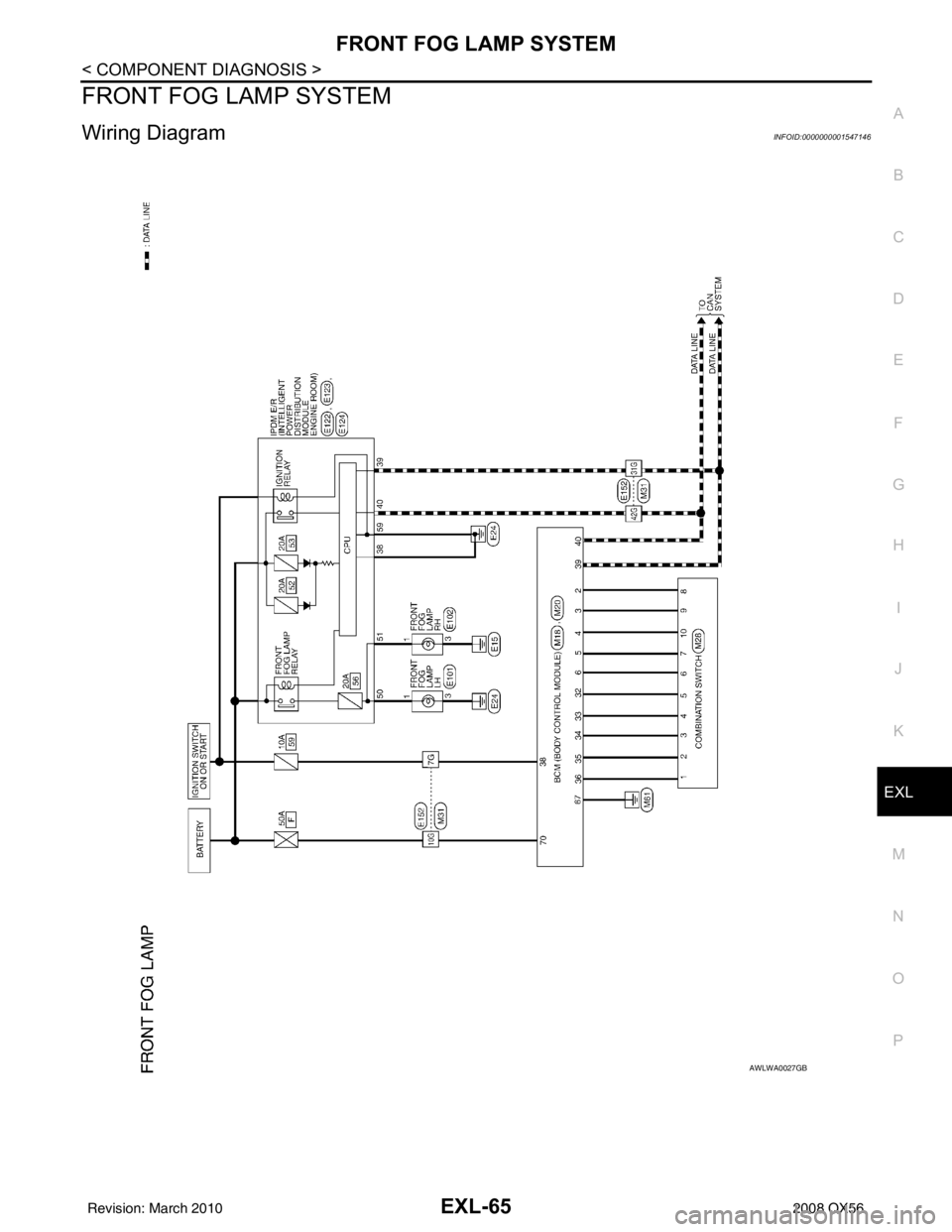

FRONT FOG LAMP SYSTEM
Wiring DiagramINFOID:0000000001547146
AWLWA0027GB
Revision: March 2010 2008 QX56

EXL-68
< COMPONENT DIAGNOSIS >

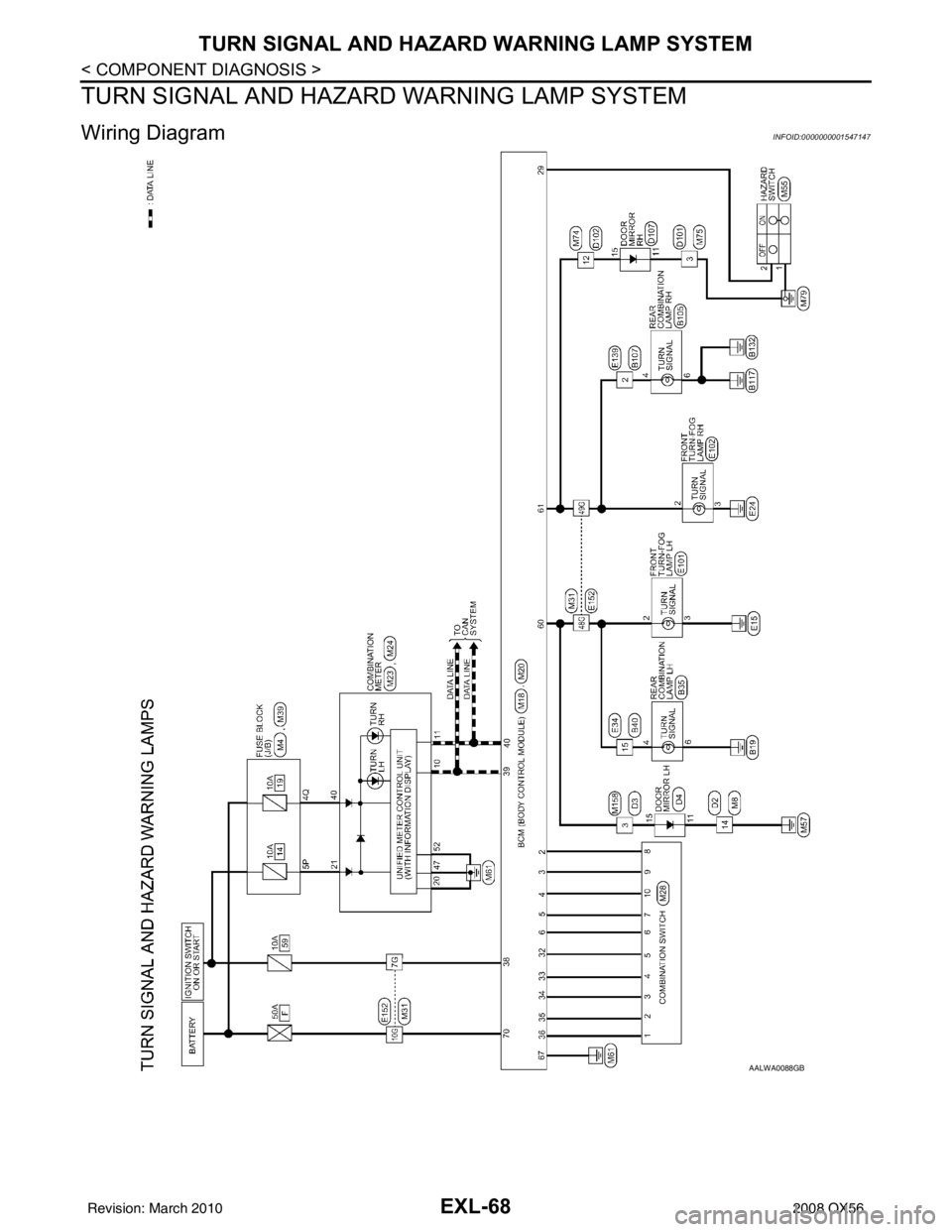

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM
TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM
Wiring DiagramINFOID:0000000001547147
AALWA0088GB
Revision: March 2010 2008 QX56

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEMEXL-75
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P

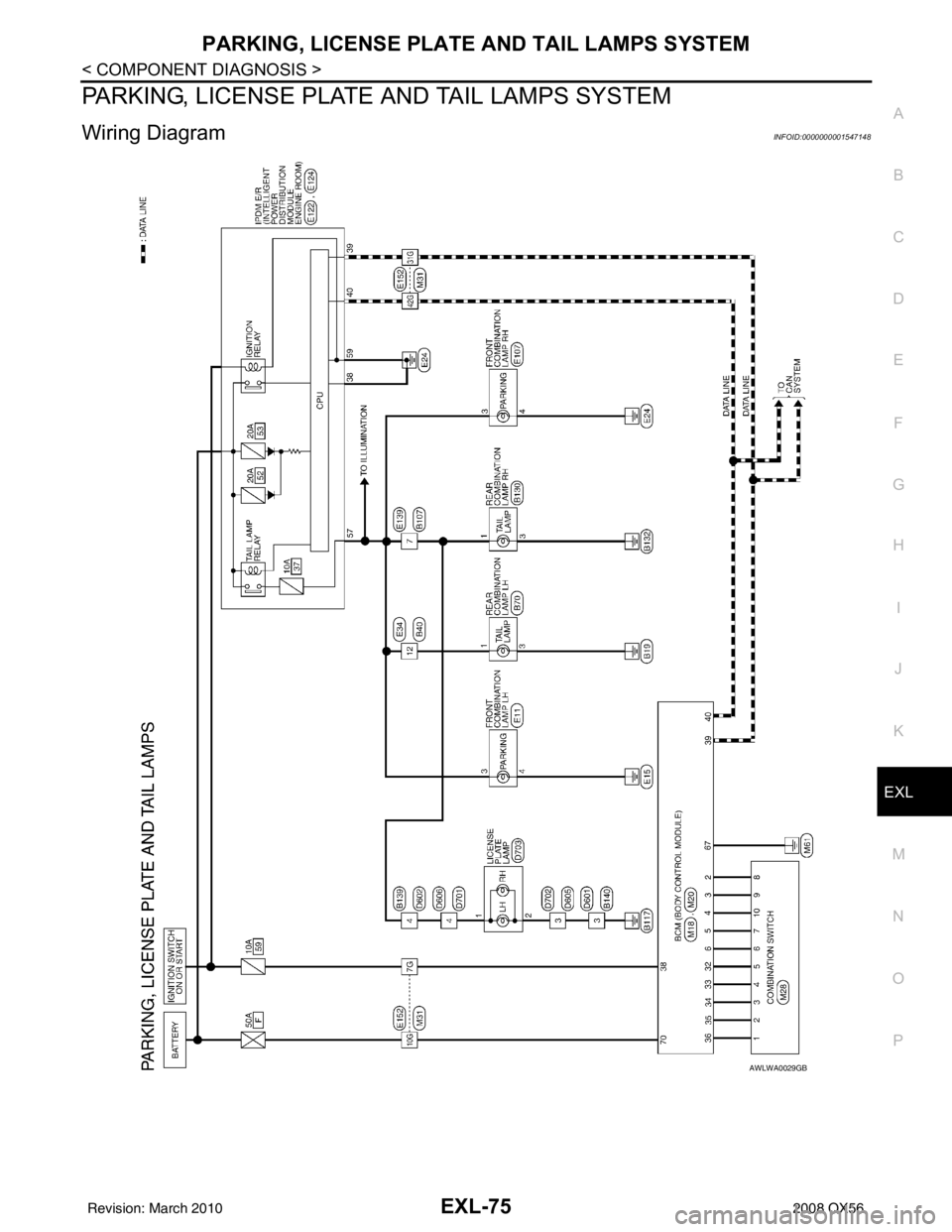

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM
Wiring DiagramINFOID:0000000001547148
AWLWA0029GB
Revision: March 2010 2008 QX56

STOP LAMPEXL-81
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P

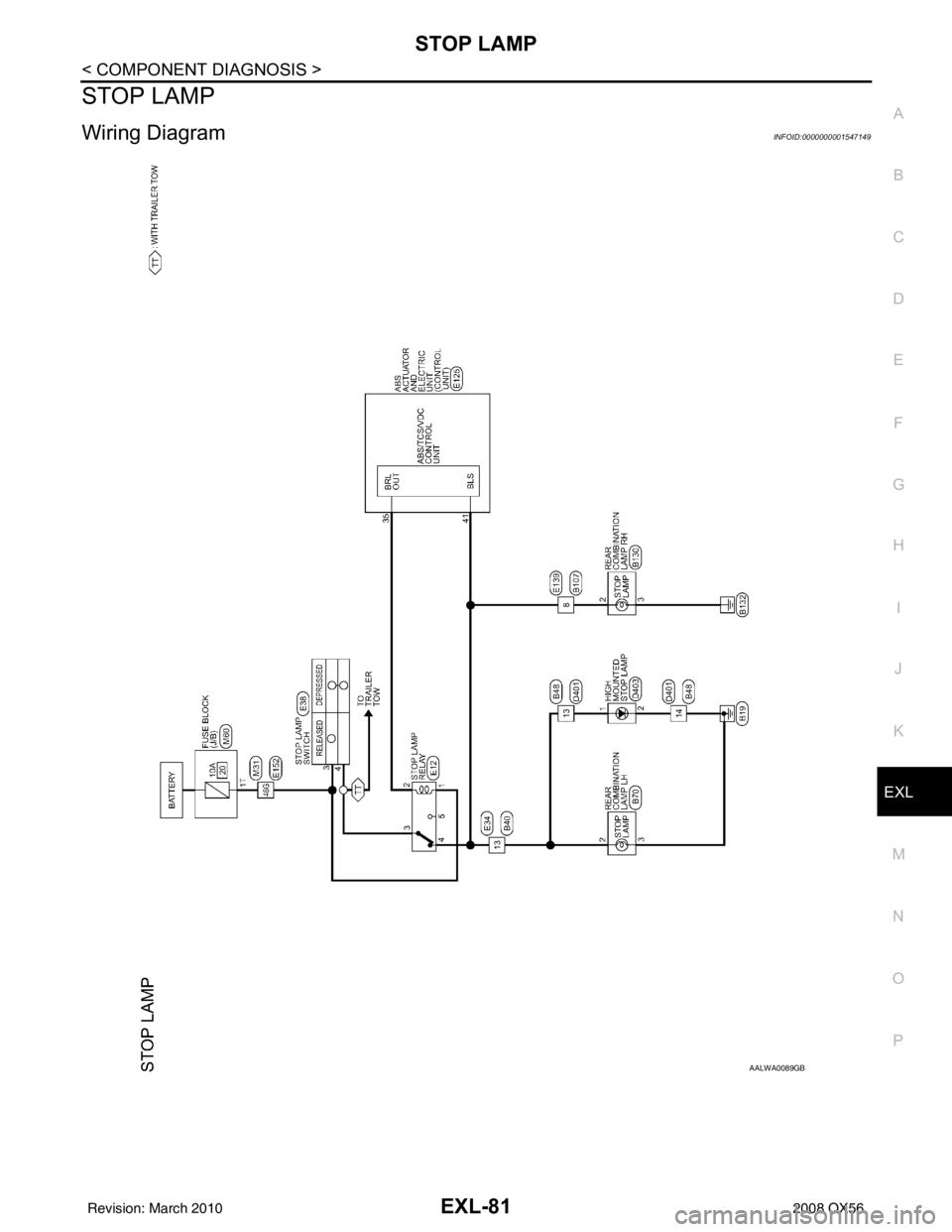

STOP LAMP
Wiring DiagramINFOID:0000000001547149
AALWA0089GB
Revision: March 2010 2008 QX56

BACK-UP LAMPEXL-85
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P

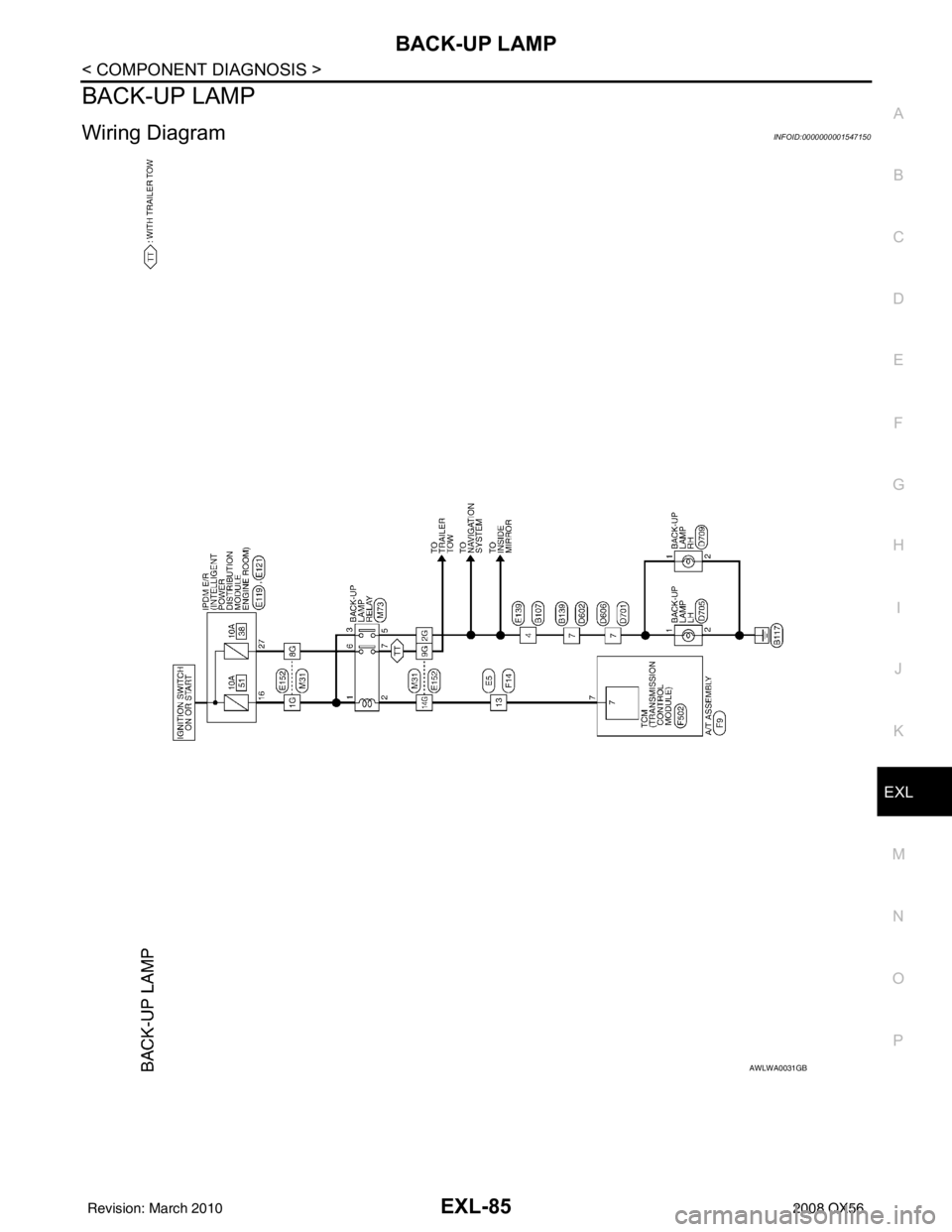

BACK-UP LAMP
Wiring DiagramINFOID:0000000001547150
AWLWA0031GB
Revision: March 2010 2008 QX56
