P2122, P2123 APP SENSOREC-371
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000001365828
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-86, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 7 and ground with CONSULT-IIl or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK APP SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 82 and APP sensor terminal 1. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
BBIA0354E
BBIA0361E
Voltage: Approximately 5V
JMBIA0601ZZ
Continuity should exist.
Revision: March 2010 2008 QX56

EC-372
< COMPONENT DIAGNOSIS >[VK56DE]
P2122, P2123 APP SENSOR
4.CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 106 and APP sensor terminal 2. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK APP SENSOR
Refer to EC-372, "
Component Inspection".
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace the accelerator pedal assembly.
2. Perform EC-18, "
Accelerator Pedal Released Position Learning".
3. Perform EC-18, "
Throttle Valve Closed Position Learning".
4. Perform EC-18, "
Idle Air Volume Learning".
>> INSPECTION END
7.CHECK INTERMITTENT INCIDENT
Refer to GI-35, "
How to Check Terminal" and GI-38, "Intermittent Incident".
>> INSPECTION END
Component InspectionINFOID:0000000001365829
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and ground under the following
conditions.
4. If NG, replace accelerator pedal assembly and go to next step.
5. Perform EC-18, "
Accelerator Pedal Released Position Learning".
6. Perform EC-18, "
Throttle Valve Closed Position Learning".
7. Perform EC-18, "
Idle Air Volume Learning".
Continuity should exist.
Terminal
Accelerator pedal Voltage
106
(Accelerator pedal position
sensor 1) Fully released
0.5 - 1.0V
Fully depressed 4.2 - 4.8V
98
(Accelerator pedal position
sensor 2) Fully released
0.25 - 0.5V
Fully depressed 2.0 - 2.5V
MBIB0023E
Revision: March 2010 2008 QX56

EC-374
< COMPONENT DIAGNOSIS >[VK56DE]

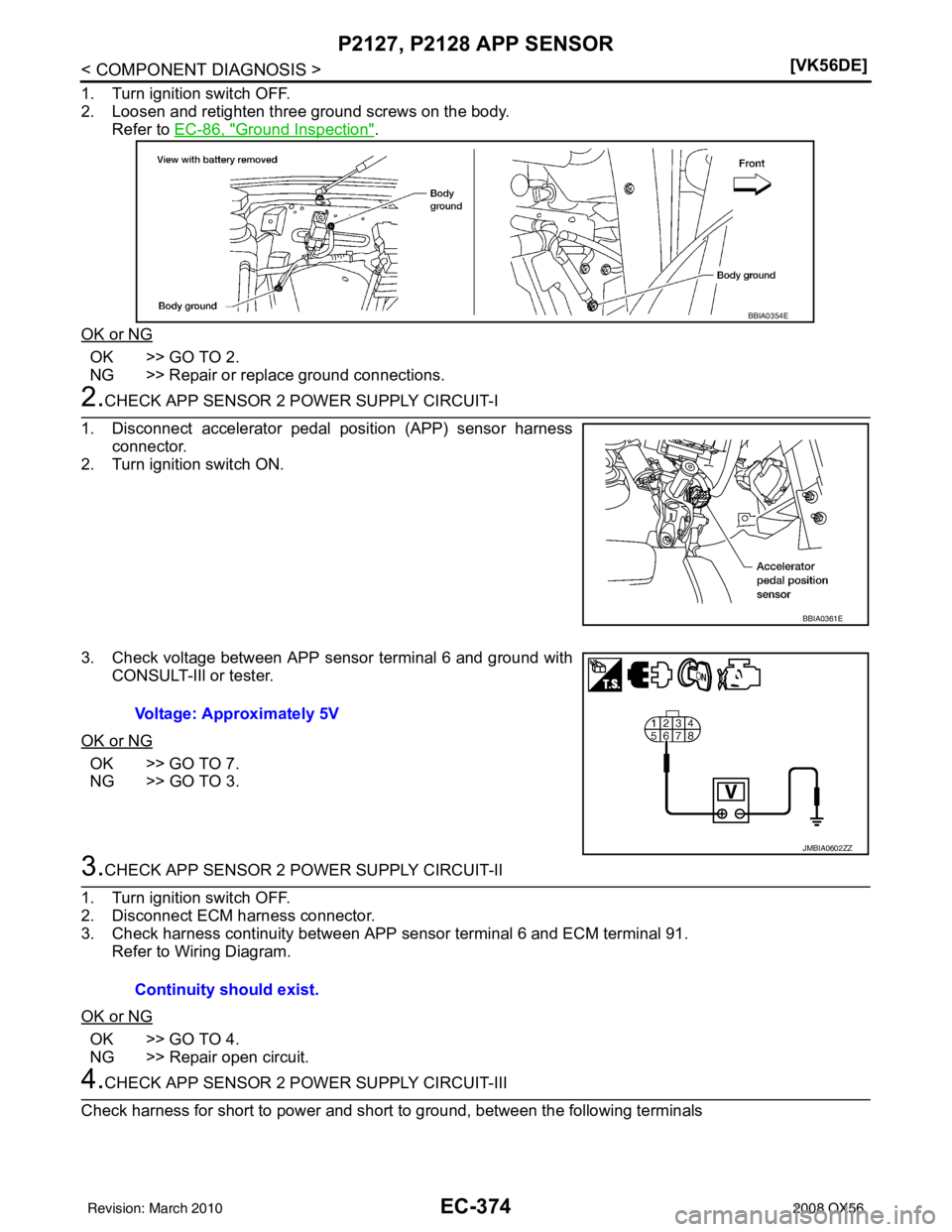

P2127, P2128 APP SENSOR
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-86, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 6 and ground with CONSULT-IIl or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3.CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 6 and ECM terminal 91. Refer to Wiring Diagram.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit.
4.CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals
BBIA0354E
BBIA0361E
Voltage: Approximately 5V
JMBIA0602ZZ
Continuity should exist.
Revision: March 2010 2008 QX56

P2127, P2128 APP SENSOREC-375
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >> GO TO 5.
NG >> Repair short to ground or short to power in harness or connectors.
5.CHECK THROTTLE
POSITION SENSOR
Refer to EC-380, "
Component Inspection".
OK or NG
OK >> GO TO 11.
NG >> GO TO 6.
6.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-18, "
Throttle Valve Closed Position Learning".
3. Perform EC-18, "
Idle Air Volume Learning".
>> INSPECTION END
7.CHECK APP SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 83 and APP sensor terminal 3. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK APP SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 98 and APP sensor terminal 5. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK APP SENSOR
Refer to EC-376, "
Component Inspection".
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace the accelerator pedal assembly.
2. Perform EC-18, "
Accelerator Pedal Released Position Learning".
3. Perform EC-18, "
Throttle Valve Closed Position Learning".
4. Perform EC-18, "
Idle Air Volume Learning".
ECM terminal Sensor terminal Reference Wiring Diagram
47 Electric throttle control actuator terminal 2
EC-439, "
Wiring Diagram - ENGINE
CONTROL SYSTEM -"91APP sensor terminal 6
Continuity should exist.
Continuity should exist.
Revision: March 2010 2008 QX56

EC-378
< COMPONENT DIAGNOSIS >[VK56DE]

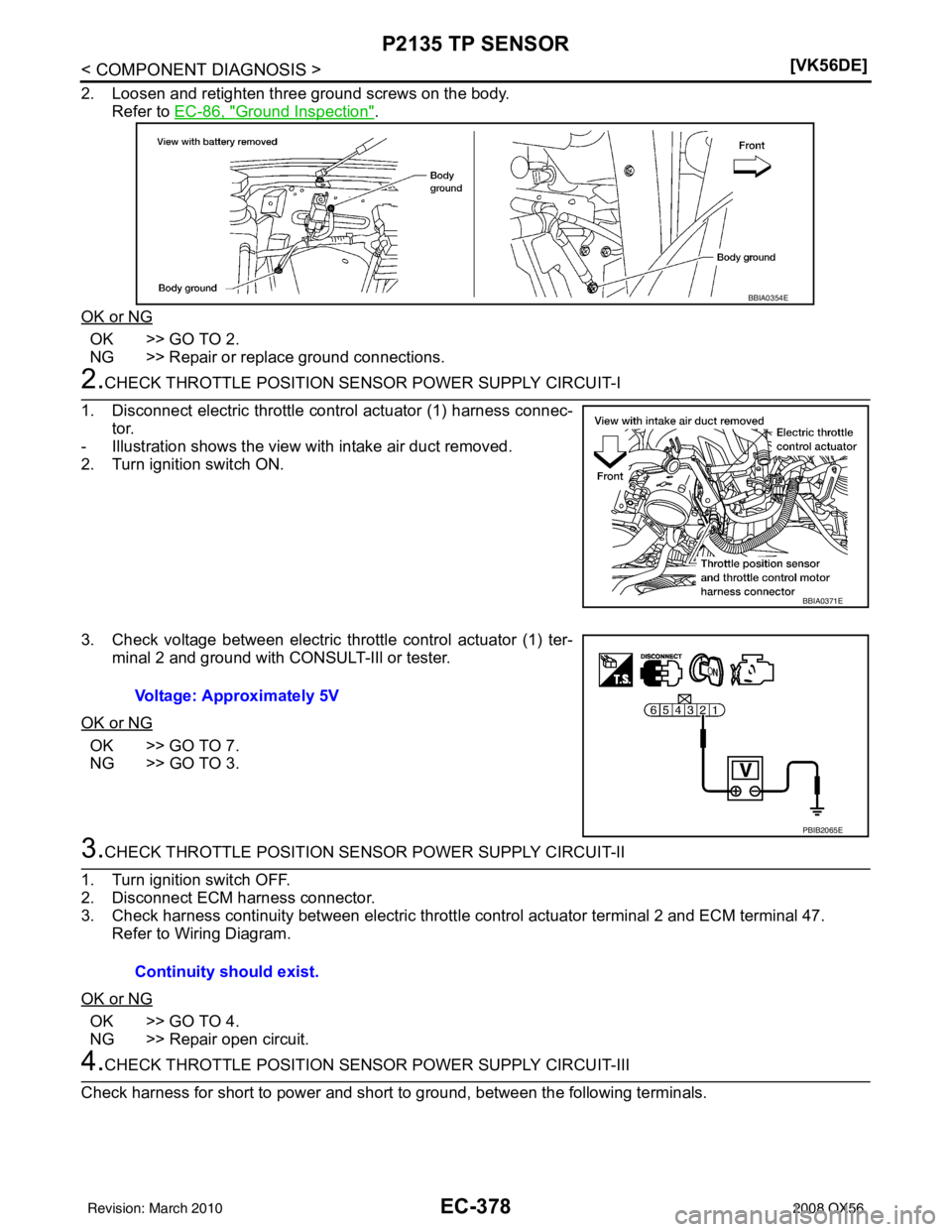

P2135 TP SENSOR
2. Loosen and retighten three ground screws on the body.
Refer to EC-86, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK THROTTLE POSITION SE NSOR POWER SUPPLY CIRCUIT-I
1. Disconnect electric throttle control actuator (1) harness connec- tor.
- Illustration shows the view with intake air duct removed.
2. Turn ignition switch ON.
3. Check voltage between electric throttle control actuator (1) ter-
minal 2 and ground with CONSULT-IIl or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3.CHECK THROTTLE POSITION SE NSOR POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric thrott le control actuator terminal 2 and ECM terminal 47.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit.
4.CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
BBIA0354E
BBIA0371E
Voltage: Approximately 5V
PBIB2065E
Continuity should exist.
Revision: March 2010 2008 QX56

P2135 TP SENSOREC-379
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >> GO TO 5.
NG >> Repair short to ground or short to power in harness or connectors.
5.CHECK ACCELERATOR PEDAL POSITION SENSOR
Refer to EC-384, "
Component Inspection".
OK or NG
OK >> GO TO 11.
NG >> GO TO 6.
6.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace the accelerator pedal assembly.
2. Perform EC-18, "
Accelerator Pedal Released Position Learning".
3. Perform EC-18, "
Throttle Valve Closed Position Learning".
4. Perform EC-18, "
Idle Air Volume Learning".
>> INSPECTION END
7.CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric thrott le control actuator terminal 4 and ECM terminal 66.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK THROTTLE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 50 and elec tric throttle control actuator terminal 1, ECM
terminal 69 and electric throttle control actuator terminal 3.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK THROTTLE POSITION SENSOR
Refer to EC-380, "
Component Inspection".
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-18, "
Throttle Valve Closed Position Learning".
3. Perform EC-18, "
Idle Air Volume Learning".
ECM terminal Sensor terminal Reference Wiring Diagram
47 Electric throttle control actuator terminal 2
EC-439, "
Wiring Diagram - ENGINE
CONTROL SYSTEM -"91APP sensor terminal 6
Continuity should exist.
Continuity should exist.
Revision: March 2010 2008 QX56

P2138 APP SENSOREC-383
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
4.CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 6 and ECM terminal 91. Refer to Wiring Diagram.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit in harness or connectors.
5.CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals
OK or NG
OK >> GO TO 6.
NG >> Repair short to ground or short to power in harness connectors.
6.CHECK THROTTLE POSITION SENSOR
Refer to EC-380, "
Component Inspection" .
OK or NG
OK >> GO TO 12.
NG >> GO TO 7.
7.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-18, "
Throttle Valve Closed Position Learning" .
3. Perform EC-18, "
Idle Air Volume Learning" .
>> INSPECTION END
8.CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 82 and APP sensor terminal 1, ECM terminal 83 and APP sensor terminal 3.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 106 and APP sensor terminal 2, ECM terminal 98 and APP sensor terminal 5.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power. Continuity should exist.
ECM terminal
Sensor terminal Reference Wiring Diagram
47 Electric throttle control actuator terminal 2
EC-439, "
Wiring Diagram - ENGINE
CONTROL SYSTEM -"91APP sensor terminal 6
Continuity should exist.
Continuity should exist.
Revision: March 2010 2008 QX56

EC-388
< COMPONENT DIAGNOSIS >[VK56DE]
P2A00, P2A03 A/F SENSOR 1
1. Turn ignition switch ON.
2. Check voltage between A/F sensor 1 terminal 4 and ground with
CONSULT-IIl or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E5, F14
• IPDM E/R harness connector E119
• 15A fuse
• Harness for open or short between A/F sensor 1 and fuse
>> Repair or replace harness or connectors.
8.CHECK A/F SENSOR 1 INPUT SIGN AL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows. Refer to Wiring Diagram.
4. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram.
5. Also check harness for short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK A/F SENSOR 1 HEATER
Refer to EC-99, "
Component Inspection".
OK or NG
OK >> GO TO 10.
NG >> GO TO 11. Voltage: Battery voltage
PBIB3308E
A/F sensor 1 terminal
ECM terminal
Bank1 13
5
25 6
Bank 2 11
6
27 5
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal 13 511 6
25 627 5
Continuity should not exist.
Revision: March 2010 2008 QX56
