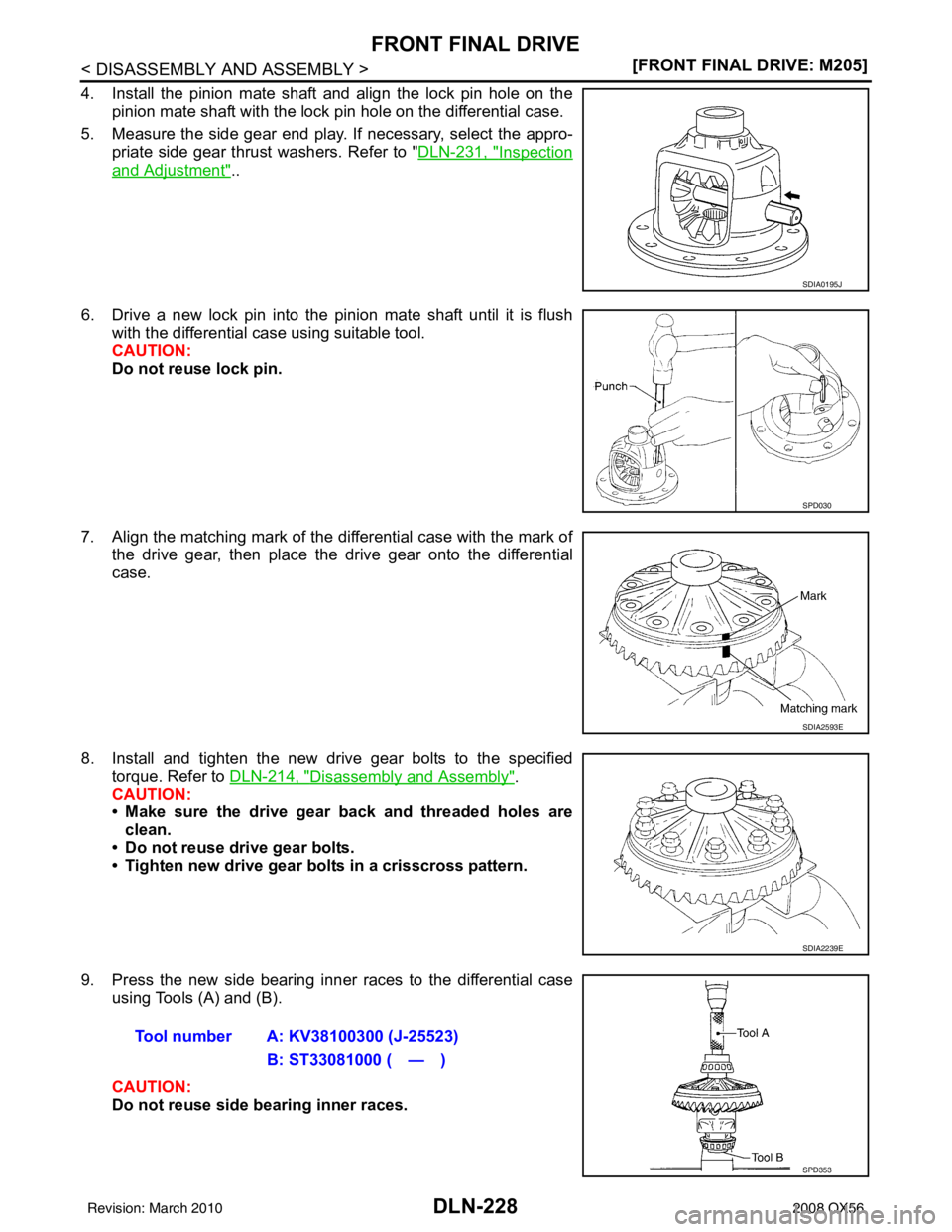

DLN-228
< DISASSEMBLY AND ASSEMBLY >[FRONT FINAL DRIVE: M205]
FRONT FINAL DRIVE
4. Install the pinion mate shaft and align the lock pin hole on the
pinion mate shaft with the lock pin hole on the differential case.
5. Measure the side gear end play. If necessary, select the appro- priate side gear thrust washers. Refer to " DLN-231, "
Inspection
and Adjustment"..
6. Drive a new lock pin into the pinion mate shaft until it is flush with the differential case using suitable tool.
CAUTION:
Do not reuse lock pin.
7. Align the matching mark of the differential case with the mark of the drive gear, then place the drive gear onto the differential
case.
8. Install and tighten the new drive gear bolts to the specified torque. Refer to DLN-214, "
Disassembly and Assembly".
CAUTION:
• Make sure the drive gear back and threaded holes are
clean.
• Do not reuse drive gear bolts.
• Tighten new drive gear bolts in a crisscross pattern.
9. Press the new side bearing inner races to the differential case using Tools (A) and (B).
CAUTION:
Do not reuse side bearing inner races.
SDIA0195J
SPD030
SDIA2593E
SDIA2239E
Tool number A: KV38100300 (J-25523)
B: ST33081000 ( — )
SPD353
Revision: March 2010 2008 QX56
Page 1295 of 4083
![INFINITI QX56 2008 Factory Service Manual REAR FINAL DRIVEDLN-265
< DISASSEMBLY AND ASSEMBLY > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
4. Align the lock pin hole on the differential case with the lock pin hole on the pinion INFINITI QX56 2008 Factory Service Manual REAR FINAL DRIVEDLN-265
< DISASSEMBLY AND ASSEMBLY > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
4. Align the lock pin hole on the differential case with the lock pin hole on the pinion](/manual-img/42/57030/w960_57030-1294.png)

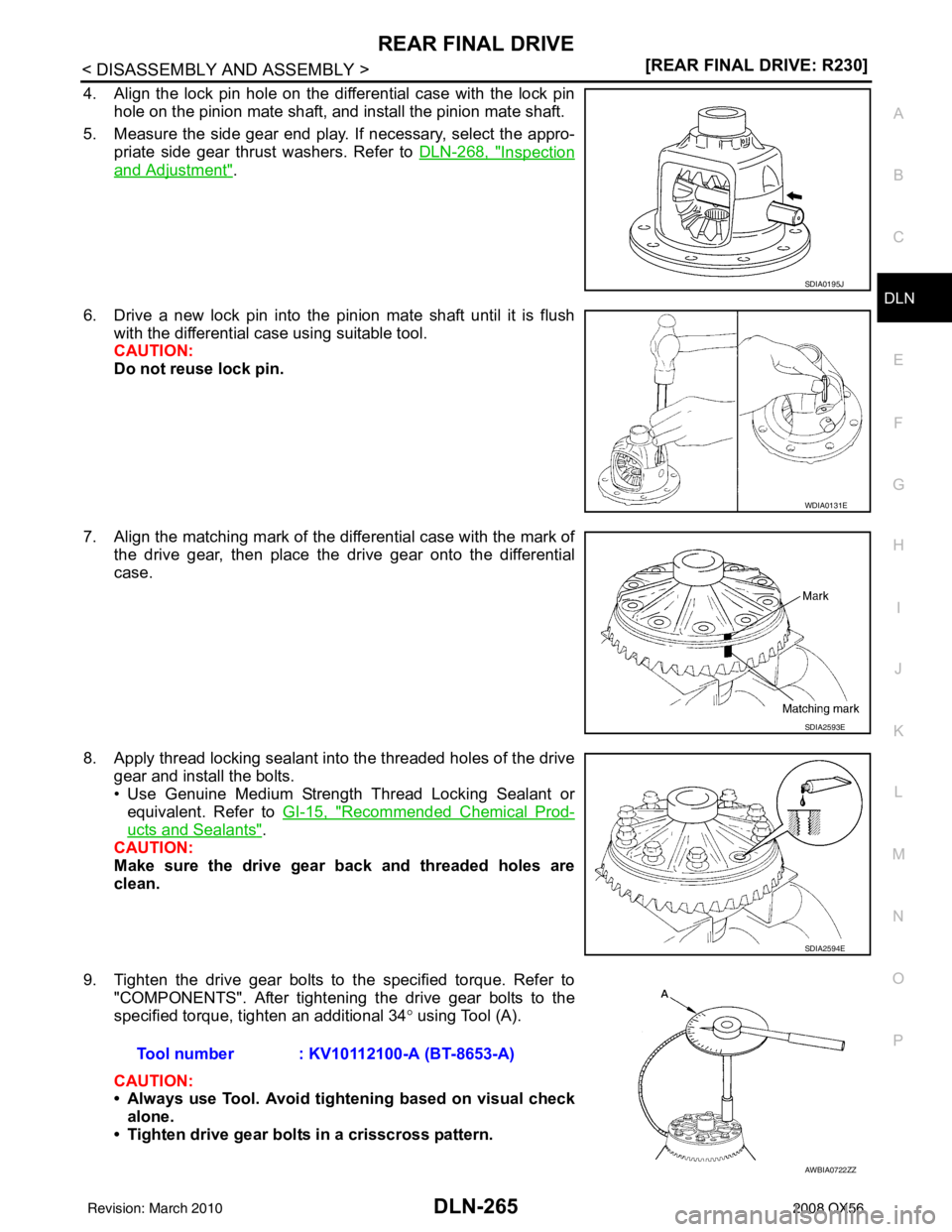

REAR FINAL DRIVEDLN-265
