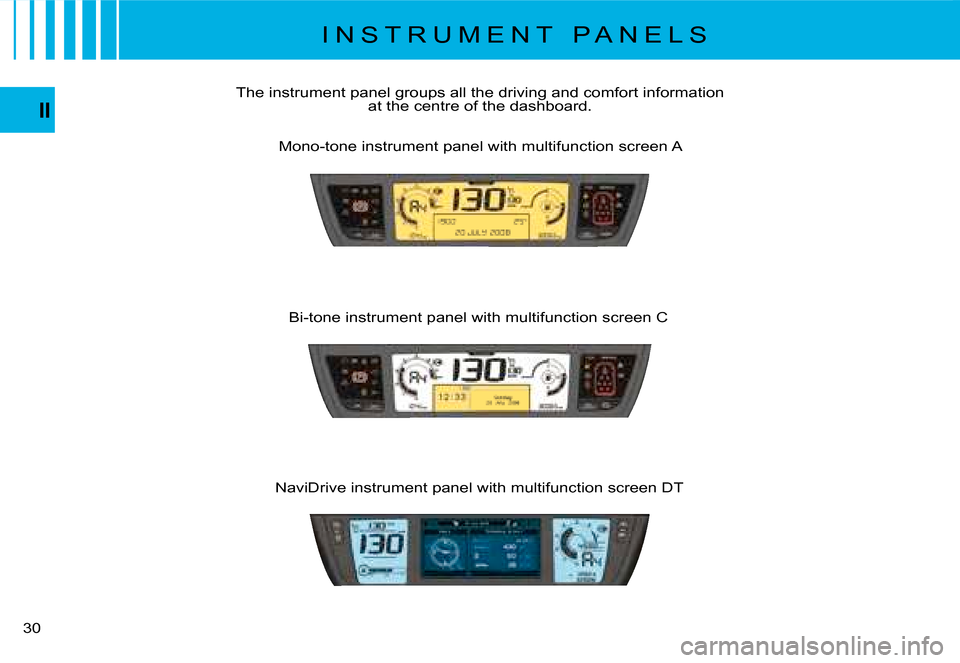

The instrument panel groups all the driving and comfort information at the centre of the dashboard.
Mono-tone instrument panel with multifunction screen A
Bi-tone instrument panel with multifunction screen C
NaviDrive instrument panel with multifunction screen DT
I N S T R U M E N T P A N E L S

123456
DC987BA
II
31
CENTRAL DISPLAY
1. Rev counter
2. Gearbox information
3. “Foot on brake” warning lamp
4. Speed indicator
5. Cruise control or speed limiter reference
6. Fuel gauge
7. Trip mileage recorder
8. Multifunction screen A
9. Maintenance indicator, when switching on ignition, then total mileage recorder
COMMAND BUTTONS
A. Lighting rheostat (available day and night)
B. Trip mileage recorder reset
C. Lighting rheostat (available day and night)
D. Check (list of alerts)
Warning lamps displayWarning lamps display
M O N O - T O N E I N S T R U M E N T P A N E L E LLM U L T I F U N C T I O N S C R E E N A

30
II
The instrument panel groups all the driving and comfort information at the centre of the dashboard.
Mono-tone instrument panel with multifunction screen A
Bi-tone instrument panel with multifunction screen C
NaviDrive instrument panel with multifunction screen DT
I N S T R U M E N T P A N E L S

123456
DC987BA
32
II
CENTRAL DISPLAY
1. Rev counter
2. Gearbox information
3. “Foot on brake” warning lamp
4. Speed indicator
5. Cruise control or speed limiter reference
6. Fuel gauge
7. Trip mileage recorder
8. Multifunction screen C
9. Maintenance indicator, when switching on ignition, then total mileage recorder
COMMAND BUTTONS
A. Lighting rheostat (available day and night)
B. Trip mileage recorder reset
C. Personalisation of the instrument panel (display of desired information)
D. COLOUR (choice of background colour)
This button offers you a whole range of colour backgrounds, from white to blue.
Warning lamps displayWarning lamps display
B I - T O N E I N S T R U M E N T P A N E LM U L T I F U N C T I O N S C R E E N C

30
II
The instrument panel groups all the driving and comfort information at the centre of the dashboard.
Mono-tone instrument panel with multifunction screen A
Bi-tone instrument panel with multifunction screen C
NaviDrive instrument panel with multifunction screen DT
I N S T R U M E N T P A N E L S

124
C
9876
B
35
D
A
II
33
CENTRAL DISPLAY
1. Cruise control or speed limiter reference
2. Speed indicator
3. NaviDrive display (see NaviDrive instructions)
4. Rev counter
5. “Foot on brake” warning lamp
6. Fuel gauge
7. Trip mileage recorder
8. Maintenance indicator, when switching on ignition, then total mileage recorder
9. Gearbox information
COMMAND BUTTONS
A. Personalisation of the instrument panel (display of desired information)
B. COLOUR (choice of background colour)
This button offers you a whole range of colour backgrounds, from white to blue.
C. Lighting rheostat (available day and night)
D. Trip mileage recorder reset
N A V I D R I V E I N S T R U M E N T P A N E LM U L T I F U N C T I O N S C R E E N D T
