C A P A C I T I E S
(1) After oil change with oil fi lter change
Fluid for screen wash3 litres
Fluid for screen wash and headlamp wash6 litres
Engine typeEngine oil capacities (in litres)(1)
1.6i 16V 120 hp (88 kW)4.25
1.6i 16V 150 hp (110 kW)4.25
2.0i 16V 143 hp (105 kW)5
1.6 HDI 110 hp (80 kW)3.75
2.0 HDI 138 hp (100 kW)5.25

A
C
B
V
175
B A T T E R Y
Emergency starting with a slave battery
A vehicle with a discharged battery can be started with either a slave battery or the battery of another vehicle.
A Discharged battery on broken-down vehicle (under the bonnet).
B Slave battery.
C Earth point on broken-down vehicle.Check that the emergency battery is correctly charged up (12 volts).If you are using the battery on another vehicle, stop the engine of the assisting vehicle. The two vehicles must not come into direct contact with each other.
Never apply a fl ame or create sparks close to the battery (explo-sive gas).
The battery contains diluted sulphuric acid which is highly corrosive.
If ever you are handling the battery, protect your eyes and fa ce.
In the event of any contact with the skin, rinse immediately with copious amounts of fresh water.
For any battery replacement, contact a ForCITROËN dealer.
If the vehicle is not being used for over a month, you are ad vised to disconnect the battery.
Advice
Deactivate the alarm before dis-connecting the battery.
Do not touch the cable clamps during the procedure.
Do not lean over the batteries.
Disconnect the cables in the re-verse order to connection, ensuring that they do not touch each other.
Connect the cables in the order indicated in the diagram. Make sure that the clamps are properl y secured orderorder(risk of sparks).
Start the engine of the assisting vehicle. Let the engine run for about a minute at a slightly accelerated speed.
Start the engine of the assisted vehicle.
Note : For any operation necessitating a disconnection of the batte ry, you should wait three minutes after switching off the ignition, without taking any action which would prevent the vehicle’s electrical circuit from going to sleep (such as operating the doors and tailgate or the remote contro l, etc.).
After a disconnection and reconnection of the battery, when you switch on the ignition, wait for approximately one minute before operating the starter motor in order to allow the electronic systems to reinitialise. Following a pro-longed disconnection of the battery, it may be necessary to rei nitialise the parameters of the multifunction display (date, time, language, units of distance and of temperature).

176
V
Fuseboxes
There are two fuseboxes under the dashboard, one fusebox in the engine compartment and another on the battery.
Fuses under the dashboard
To access the fuses under the dashboard, undo the screw by a quarter turn and pivot the hous-ing.
Changing a fuse
Before replacing a fuse, it is es-sential to fi nd the cause of the in-cident and to have it rectifi ed. The fuse identifi cation numbers are in-dicated inside the fusebox.
Replace a blown fuse with one of the same rating (the same colour)
Use the special tool A that is pro-vided in the fuse housing fl ap, which also contains spare fuses.
F U S E S
CorrectIncorrect
Tool A
Your vehicle's electrical system is designed to operate with ei-ther standard or optional equip-ment.
Before installing electrical equip-ment or accessories on your vehicle, consult a CITROËN ment or accessories on your ment or accessories on your
dealer.
CITROËN declines all respon-sibility for the consequences and costs that are caused by faults or repairs on your vehicle resulting from the installation of accessories that are not sup-plied and/or not recommended by CITROËN and not installed plied and/or not recommended plied and/or not recommended
according to CITROËN’s in-by CITROËN and not installed by CITROËN and not installed
structions, particularly when the energy consumption of all of the additional accessories connected exceeds 10 milliam-peres (Ma).
Fuses under the dashboard
Access to the fi rst dashboard fusebox

V
177
T A B L E O F F U S E SF U S E S U N D E R T H E D A S H B O A R D
ReferenceRatingFunctions
F115ARear screen wipe
F230ALocking and unlocking earth
F35AAirbag
F410AMultimedia, photochromic rear view mirror, particle fl ter, diagnostic socket, air conditioning, headlamp height correction control
F530AFront windows, front door electronics, panoramic glass roof
F630ARear windows
F75AInterior lamps, refrigerated glovebox, radio
F820AMultifunction display, radio, CD changer, steering wheel controls, multimedia, defl ation detection, alarm, trailer
F930ACigar lighter, multimedia, front 12V socket, torch, radio
F1015AHeight corrector (suspension)
F1115ABrake switch, ignition switch
F1215AParking assistance, automatic screen wipe and lighting, passenger ’s electric seat, AFIL, Hi-Fi amplifi er, trailer
F135AEngine relay unit, driver’s electric seat
F1415AAir conditioning, Bluetooth® hands-free kit, automatic gearbox selector, airbag, instrument panel
F1530ALocking and unlocking
F16-SHUNT
F1740AHeated rear screen

178
V

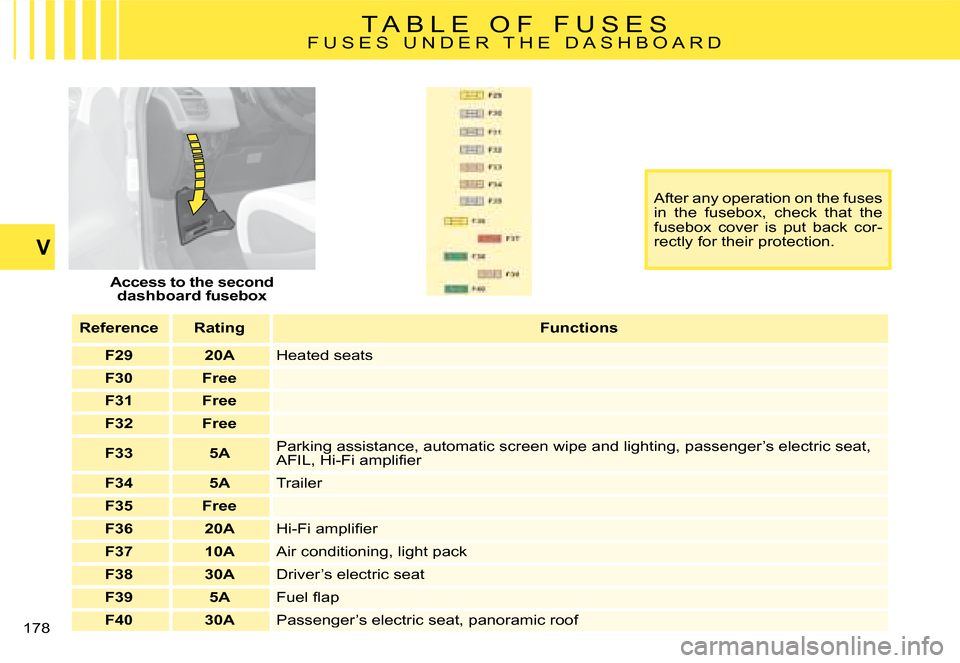

T A B L E O F F U S E SF U S E S U N D E R T H E D A S H B O A R D
Access to the second dashboard fusebox
ReferenceRatingFunctions
F2920AHeated seats
F30Free
F31Free
F32Free
F335AParking assistance, automatic screen wipe and lighting, passenger’s electric seat, AFIL, Hi-Fi amplifi er
F345ATrailer
F35Free
F3620AHi-Fi amplifi er
F3710AAir conditioning, light pack
F3830ADriver’s electric seat
F395AFuel fl ap
F4030APassenger’s electric seat, panoramic roof
After any operation on the fuses in the fusebox, check that the fusebox cover is put back cor-rectly for their protection.

V
179
T A B L E O F F U S E SF U S E S U N D E R T H E B O N N E T
Engine compartment fuses
Fusebox
To access the fusebox located in the engine compartment, detach and remove the cover.
All work on the MAXI fuses, which are located in these fuseboxes and which give extra protection, is the preserve of CITROËN technicians.All work on the MAXI fuses, which are located in th ese fuseboxes All work on the MAXI fuses, which are located in these fuseboxes
After any operation, carefully reclose the cover. If the cover is not correctly positioned or not properly closed, that could cause serious problems on your vehi-cle. For the same reason, take care not to spill any liquid in the fusebox.

180
V
T A B L E O F F U S E S F U S E S U N D E R T H E B O N N E T
ReferenceRatingFunctions
F120AEngine management
F215AHorn
F310AScreen wash pump
F420AHeadlamp wash pump
F515AEngine components
F610AXenon dual-function directional headlamps, headlamp height correction motor, clutch switch, BCP (protection switch box)
F710AAutomatic gearbox, engine coolant level switch, power steering
F825AStarter motor
F910AStoplamp switch
F1030AEngine components
F1140ARear blower
F1230AScreen wipe
F1340ABSI (Built-in Systems Interface)
F1430AAir pump, heat exchange saver
F1510ARight-hand main beam
F1610ALeft-hand main beam
F1715ALeft-hand dipped beam
F1815ARight-hand dipped beam
F1915AEngine components
F2010AEngine components
F215ACooling fan relay

V
181
T A B L E O F F U S E S
F U S E S O N T H E B A T T E R Y
ReferenceRatingFunctions
F1-Battery Plus connection studs
F2-Supply connection studs, BSM (engine relay unit)
F3Free
F45AAutomatic gearbox actuator and ECU
F515ADiagnostic socket
F615AECU for 6-speed electronic gearbox / automatic gearbox
F75AESP ECU
F820ARear 12V socket
Fuses on the battery
Fusebox
To access the fusebox located on the battery, detach and remove the cover.
After any operation, carefully reclose the cover. If the cover is not correctly positioned or not properly closed, that could cause serious problems on your vehi-cle. For the same reason, take care not to spill any liquid in the fusebox.
