2008 Citroen C4 Owner's Manual

12
F A M I L I A R I S A T I O N
Display lighting rheostat
Starting voice recognition
(See "Audio" or your Navidrive instructions)Access to "Main menu"*Scrolling in the multifunction display
Telephone pick-elephone pick-elephone pick-up/hang-up
(See "Audio" or your Navidrive instructions)
Personal button:
- Black panel (default function), or
- Interior lamp on/off, or
- Log of alerts, or
- Status of functions
Give a long press on this button to display the personalisation menu.
Selection of the type of in-formation displayed on the right of the screen (radio, trip computer, navigation/guidance…) and for screen A, choice of activation/deac-tivation of your functions and choice of your adjustments
Cancel the current operation or return to the previous screen
Air recirculation
Validation of the function selected or the value modifi ed
Pick up/hang up
(See "Audio" or your Navigation instructions)
* In compliance with national legislation, in some coun-tries the "menu" control is deactivated when driving.
Display the "Directory" menu
(See "Audio" or your Navidrive instructions)
FIXED CENTRED CONTROLS STEERING WHEEL

13
F A M I L I A R I S A T I O N
SITTING COMFORTABLY
 51
Front seats
Forwards-backwardsDriver’s seat cushion height and angle adjustmentSeat back angle and lumbar adjustment
Manual adjustments
Electrically operated adjustments (driver’s seat only)
Forwards-backwardsSeat cushion height and angle adjustmentSeat back angle and lumbar adjustment
 50

14
F A M I L I A R I S A T I O N
SITTING COMFORTABLY
1. Unlock the steering column using the lever.
2. Adjust the position of the steering wheel for height and reach.
3. Lock the steering column with the lever.
Manual adjustment of steering wheel height and reach
 56
Front seat belt
1. Locking.
 87
Adjustment of front head restraints
Adjustment of rear head restraints
 53
Height and angle.
A. Low position.
B. High position.
A. Height adjustment (5-door)
B. Holding the seat belt (3-door)
 50

15
F A M I L I A R I S A T I O N
Adjustment of exterior rear view mirrors
A. Select the mirror.
B. Adjust the mirror.
C. Fold-back/Unfolding.
Adjustment of interior rear view mirror
 55
SITTING COMFORTABLY
Electric windows
 62
Child safety
5. Inhibition of the opening of the passenger and rear doors and electric windows.
1. Driver’s window control.
2. Passenger’s window control.
3. Left hand rear window control.
4. Right hand rear window control.
1. Mirror direction.
2. Selection of the mirror’s "day" position.
 56

16
F A M I L I A R I S A T I O N
VISIBILITY
Lighting
Ring A
Ring B
Windscreen wipe
Screen wipe
Rear screen wipe
Front foglamps and rear foglamps.
 65 69  70
Lighting off.
Automatic lighting.
Sidelamps.
Dipped or main beam.
2 Fast speed.
1 Normal speed.
I Intermittent.
0 Off.
AUTO Automatic wipe or single wipe.
Off.
Intermittent.
Timed wipe and wash.
Deactivation of automatic wipe
Go to position I then return to position 0.

–
17
F A M I L I A R I S A T I O N

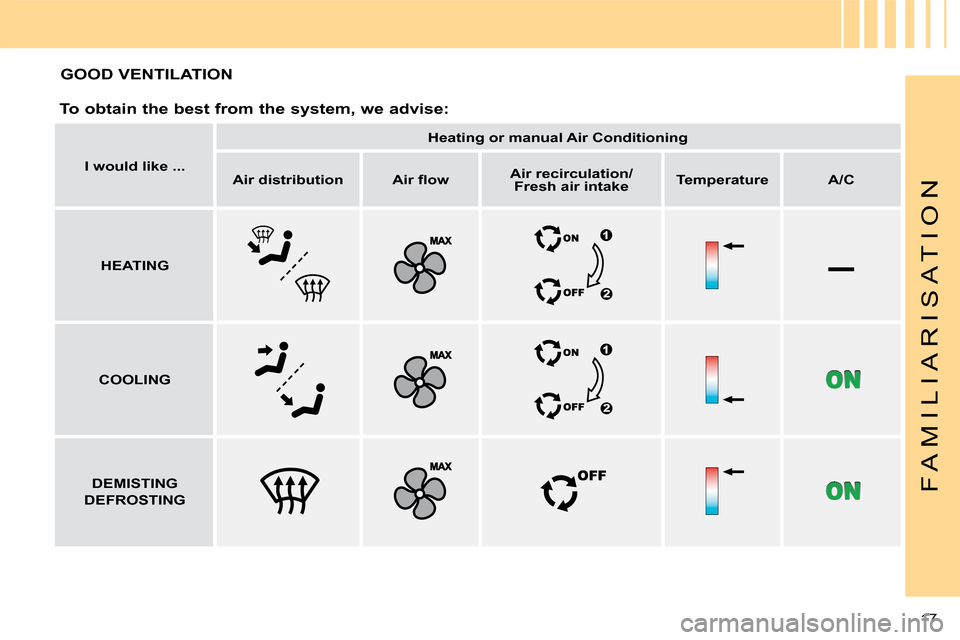

GOOD VENTILATION
To obtain the best from the system, we advise:
I would like ...
Heating or manual Air Conditioning
Air distributionAir fl owAir recirculation/Fresh air intakeTemperatureA/C
HEATING
COOLING
DEMISTING
DEFROSTING

18
F A M I L I A R I S A T I O N
MONITORING
Instrument panelControls
A. Speedometer.
B. Rev counter.
C. Fuel gauge.
D. Lighting rheostat.
E. Warning lamp.
Ignition on, the orange and red alert warning lamps come on.
With the engine running, these same warning lamps should go out.
If a warning lamp stays on, refer to the relevant page.
Warning lamps
 23  24
A. Deactivation of the ESP/ASR system.
 86
B. Deactivation of the visual and audible parking assistance.
 114
C. Deactivation of the lane departure warning system.
 96
D. Deactivation of the alarm volumetric sensors.
 61

19
F A M I L I A R I S A T I O N
PASSENGER SAFETY
Activation/Deactivation of the front passenger’s airbagChild safety
A. Insert the ignition key.
B. Select the "ON" or "OFF" or position.
C. Remove the key.
A. Manual control.
B. Electric control.
 92  83
Warnings for seat belts unfastened/not fastened
Driver
Front passenger.
Left rear passenger.
Centre rear passenger.
Right rear passenger.
 25
