101
6
L A Y O U T
Installation

 fold down the backs of the rear
seats,

 position the high load retaining net
roller above the two rails 1 located
behind the rear seats (2/3 bench
seat). The two notches 2 must be
placed above the two rails,

 slide the two rails 1 into the
notches 2 and push the roller
(lengthways) from right to left to
secure it,

 reposition the rear seat backs. Row 1 Row 2
To use it in row 1:

 fold down the
backs of the
rear seats,

 open the covers

3 of the corre-
sponding upper
fi xings,

 unroll the high load retaining net
and position one of the ends of
the net's metal bar in the cor-
responding fi xing cover. Check
that the hook is secured in the
rail located inside the cover 3 ,

 pull the high load retaining net's
metal bar to position the other
hook in the second fi xing cover. To use it in row 2:

 open the covers

4 of the corre-
sponding upper
fi xings,

 from the rear bench seat, unroll
the high load retaining net, push-
ing it to detach it from the retain-
ing hooks,

 position one of the ends of the
net's metal bar in the corre-
sponding fi xing cover. Check
that the hook is secured in the
rail located inside the cover,

 position the other hook in the
second fi xing cover and pull the
metal bar towards you.

102
7
C H I L D S A F E T Y
* The rules for transporting children are specifi c to each country. Refer
to the current legislation in your
country.
GENERAL POINTS RELATING TO CHILD SEATS
Although one of CITROËN’s main
criteria when designing your vehi-
cle, the safety of your children also
depends on you.
For maximum safety, please follow
these precautions:
- in accordance with European regulations, all children under
the age of 12 or less than one

and a half metres
tall must
travel in approved child seats
suited to their weight , on seats
fi tted with a seat belt or ISOFIX
mountings * ,
- statistically, the safest seats in
your vehicle for the transpor-
tation of children are the rear
seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the
front and in the rear.

CITROËNrecommends that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the
age of 2. INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
"Rearwards-facing"
When a "rearwards-facing" child
seat is installed on the
front pas-
senger seat , it is essential that the
passenger airbag is deactivated.
Otherwise, the child would risk
being seriously injured or killed if
the air bag were to infl ate. "Forwards-facing"
When a "forwards-facing" child seat
is installed on the
front passenger
seat , adjust the vehicle’s seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger airbag activated.
Intermediate longitudinal position

103
C H I L D S A F E T Y
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are
secured using a three point seat belt :

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg

L1
"RÖMER
Baby-Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life" The use of
the restraining cushion is
compulsory for
the transportation of young children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age
of 6 years
(approximately 22 kg),
the booster
is used on its own.

104
7
C H I L D S A F E T Y
CHILD SEATS FITTED BY MEANS OF THE VEHICLE SEAT BELT
In conformity with European law, this table shows you the possibilities for the installation of universally approved child
seats (a) using a seat belt, depending on the weight of t he child and the seating position in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Consult the current legislation for your country before drivi ng with your child in this seat.
(c) Group 0: from birth to 10 kg. Shells and "car cots" cannot be i nstalled on the front passenger seat.

U: seat position suitable for installation of universally appro ved rearwards-facing and/or forwards-facing child seat.

U (R): As U , with the vehicle seat, which must be adjusted to the hi ghest position.

Seat position(s)
Weight of child
Groups 0 (c) and 0+
< 13 kg Group 1
9 to 18 kg Group 2
15 to 25 kg Group 3
22 to 36 kg
Row 1 Front passenger (b) with
height adjustment U (R) U (R) U (R) U (R)
Front passenger (b) without
height adjustment U U U U
Row 2 Lateral rear
U U U U
Central rear U U U U

105
7
C H I L D S A F E T Y
"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the new ISOFIX
regulation
s .
The rear side seats and the front
passenger seat are fi tted with regu-
lation ISOFIX mountings. In the front
These are three rings for the front
passenger seat:
- two rings
A , located between the
vehicle seat back and cushion,
indicated by a label,
- a ring B , fi xed at the bottom of
the rear of the seat back, used
to secure the upper strap of the
child seat. These are three rings for each rear
side seat:
- two lower rings
C , located be-
tween the vehicle seat back and
cushion, indicated by a label,
- an upper ring D , fi xed to the rear
shelf, concealed under a fl ap
with the logo TOP TETHER be-
hind the head restraint.
Tourer
- two lower rings C , located be-
tween the vehicle seat back and
cushion, indicated by a label,
- an upper ring E , fi xed to the
roof on the boot side, concealed
under a fl ap with the logo TOP
TETHER.
In the rear
Saloon

106
7
C H I L D S A F E T Y
This ISOFIX mounting system
guarantees you fast, reliable and
safe fi tting of the child seat in your
vehicle.
The ISOFIX child seats are fi tted
with two locks which are secured
easily on the two rings A or C , fol-
lowing installation of the guides
(supplied with the seat).
Some also have an upper strap
which is attached to the ring B , D
or E .
To attach this strap in the front, raise
the vehicle seat's head restraint
and pass the upper strap between
the rods of the head restraint.
Then fi x the hook on the ring B and
tighten the upper strap.
To attach this strap in the rear,
remove the vehicle seat's head
restraint and stow it. Lift the cover
on the rear shelf (Saloon) or the
roof (Tourer). Then fi x the hook
on the ring D or E and tighten the
upper strap.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the
ISOFIX child seats which can be
installed in your vehicle, consult
the summary table for the location
of the ISOFIX child seats.
* According to country and current local legislation.
ADVICE ON CHILD SEATS
Installing a booster seat
The chest part of the seat belt must
be positioned on the child’s shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child’s
thighs.
CITROËN recommends the use of a
booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not
leave:
- one or more children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child’s protection in the event of an
accident.
Remember to fasten the seat belts
or the child seat harnesses
keeping
the slack in relation to the child’s
body to a minimum, even for short
journeys.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in con-
tact with the back of the vehicle’s
seat and that the head restraint does
not cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking.
Children under the age of 10 must
not travel in the "forwards-facing"
position on the front passenger seat,
unless the rear seats are already oc-
cupied by other children, cannot be
used or are absent.
Deactivate the passenger air bag *
when a "rearwards-facing" child
seat is installed on the front seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
air bag were to infl ate.

107
7
C H I L D S A F E T Y
ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE
This child seat can also be used on seats which are not fi tted with ISOFIX mountings. In this case, it must be attached
to the vehicle seat using the three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manufacturer's installation guide.

RÖMER Duo Plus ISOFIX (size category B1 )

Group 1: from 9 to 18 kg
Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B , D or E , referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.

108
7
C H I L D S A F E T Y

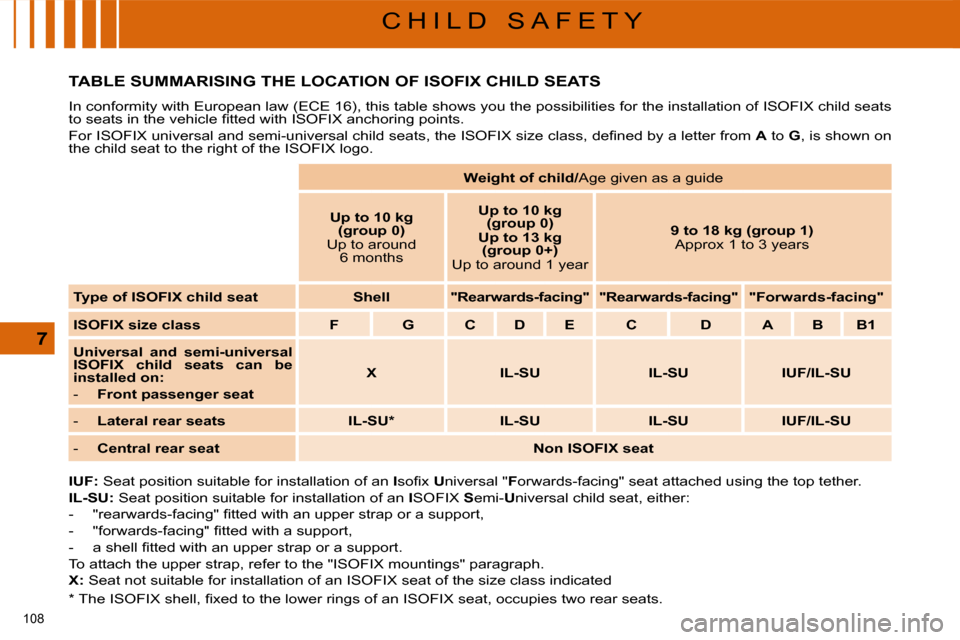

TABLE SUMMARISING THE LOCATION OF ISOFIX CHILD SEATS
In conformity with European law (ECE 16), this table shows you the possibilities for the installation of ISOFIX child seats
to seats in the vehicle fi tted with ISOFIX anchoring points.
For ISOFIX universal and semi-universal child seats, the ISOFIX size class, defi ned by a letter from A to G , is shown on
the child seat to the right of the ISOFIX logo.

IUF: Seat position suitable for installation of an I sofi x U niversal " F orwards-facing" seat attached using the top tether.

IL-SU: Seat position suitable for installation of an I SOFIX S emi- U niversal child seat, either:
- "rearwards-facing" fi tted with an upper strap or a support,
- "forwards-facing" fi tted with a support,
- a shell fi tted with an upper strap or a support.
To attach the upper strap, refer to the "ISOFIX mountings" para graph.

X: Seat not suitable for installation of an ISOFIX seat of the size class indicated


Weight of child/ Age given as a guide

Up to 10 kg
(group 0)
Up to around 6 months
Up to 10 kg
(group 0)

Up to 13 kg
(group 0+)
Up to around 1 year
9 to 18 kg (group 1)
Approx 1 to 3 years

Type of ISOFIX child seat Shell "Rearwards-facing" "Rearwards-facing" "
Forwards
-facing"

ISOFIX size class F G C D E C D A B B1

Universal and semi-universal
ISOFIX child seats can be
installed on:
- Front passenger seat X IL-SU IL-SU IUF/IL-SU
- Lateral rear seats IL-SU * IL-SU IL-SU IUF/IL-SU
- Central rear seat Non ISOFIX seat
* The ISOFIX shell, fi xed to the lower rings of an ISOF IX seat, occupies two rear seats.
