30
1
I N S T R U M E N T S a n d C O N T R O L S
Lighting is associated
with another warning
lamp:
Service If this warning lamp
comes on, it indicates
the occurrence of a
problem in one of the
systems which does not have a spe-
c i fi c w a r n i n g l a m p .
In order to identify it, see the mes-
sage on the multifunction screen.
The warning lamp only comes on
temporarily in the case of the follow-
ing minor faults:
- incorrect closing of the doors, boot, rear screen and bonnet,
- fl a t r e m o t e c o n t r o l b a t t e r y ,
- low tyre pressure,
- the saturation of the particle e m i s s i o n fi l t e r ( D i e s e l ) .
In the case of major faults, the warn-
ing lamp remains on until the operating
f a u l t i s r e c t i fi e d , c o n t a c t a C I T R O Ë N
dealer as soon as possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- s i g n i fi c a n t d r o p i n t h e fl u i d l e v e l in the circuit,
- electronic brake force distribu- tion (EBFD) faulty (simultane-
ous lighting of the ABS warning
lamp),
stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.
Parking brake
When stationary, the perma-
nent lighting of this warning
l a m p c o n fi r m s t h a t t h e p a r -
king brake is applied.
I f t h i s w a r n i n g l a m p fl a s h e s , i t i n d i -
cates a fault with its application or re-
lease. Consult a CITROËN dealer.
With the engine running, and when
displayed at the same time as the
STOP warning lamp, it indicates that
t h e b r a k e fl u i d l e v e l i s t o o l o w . Electric parking brake fault
This warning lamp comes
on if there is a fault with the
electric parking brake.
Electric parking brake -
deactivation of automatic
functions This warning lamp comes
on if the "automatic lock-
ing" (upon switching off the
ignition) and the "automatic
unlocking" functions are de-
activated or faulty.
Dynamic stability control
(ESP/ASR) The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been deacti-
vated, if this warning lamp comes on
continuously, accompanied by a mes-
sage on the instrument panel screen,
switching on of the SERVICE warning
lamp and an audible signal, this indi-
cates the occurrence of a fault in the
ESP/ASR system.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking sys-
tem.
However, this does not prevent op-
eration of the vehicle's servo assist-
ed braking. If this warning lamp comes on, stop
immediately and contact a CITROËN
dealer.
Consult a CITROËN dealer.
Page 13 of 306
31
1
I N S T R U M E N T S a n d C O N T R O L S
Engine autodiagnostics system If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r r e n c e o f
a fault in the emission control system.
Maximum coolant temperature If this comes on, it indicates
that the temperature in the
cooling system is too high.
Stop the vehicle immediately
and as safely as possible.
Check the coolant level.
If the level is low, contact a CITROËN
dealer.
Fuel low
If this comes on, it indicates
that the range remaining
i s a p p r o x i m a t e l y 3 0 m i l e s
(50 km).
It may be less than this in certain
driving conditions and depending on
the engine.
T h e c a p a c i t y o f t h e t a n k i s a p p r o x i -
mately 71 litres. Battery charge
If this comes on, it indi-
cates the occurrence of a
fault in the battery charging
circuit (dirty or loose termi-
nals, slack or cut alternator
belt...).
Seat belt not fastened/
unfastened *
* According to country.
This warning lamp lights
up on the instrument panel
to remind the driver and all
passengers that they must
fasten their seat belt.
It is linked to the seat belt informa-
tion given by the roof console. Seat belt non-fastening/
unfastening
This warning lamp
informs you of the
non-fastening and
unfastening of the
driver and passenger seat belts.
The illuminated positions represent
the passengers whose seat belts
are not fastened/unfastened.
Driver’s seat belt not fastened:
- The warning lamp lights up be- tween 0 and 12 mph (20 km/h).
A b o v e 1 2 m p h , i t fl a s h e s a c -
companied by a sound signal for
around 120 seconds.
Front and rear passenger seat belts
not fastened:
- When the ignition is switched on, the points corresponding to
the seat positions with seat belts
not fastened remain lit up for
30 seconds.
Seat belts unfastened during the
journey:
- The point corresponding to the seat position with seat belt un-
fastened lights up between 0 and
12 mph (20 km/h). Above
1 2 m p h , i t fl a s h e s a c c o m p a n i e d
by an audible signal for around
120 seconds. The audible signal
stops when the seat belt is re-
fastened or if a door is opened.
Page 17 of 306
34
1
I N S T R U M E N T S a n d C O N T R O L S
Engine oil temperature gauge
Under normal operating conditions,
the bars should be within section 1 .
In severe operating conditions, the
b a r s m a y e x t e n d i n t o s e c t i o n 2 .
In this event, slow down, and if neces-
sary, stop the engine and check the
levels (see corresponding chapter). Coolant temperature
indicator
Under normal operating conditions,
the bars should be within section
1 .
In severe operating conditions, the
b a r s m a y e x t e n d i n t o s e c t i o n 2 , the
engine coolant temperature warning
lamp A and the STOP warning lamp
will light up, stop immediately . Switch
off the ignition. The cooling fan may
continue to operate for a certain
time .
Consult a CITROËN dealer.
If the SERVICE warning lamp lights
up, check the levels (see correspon-
ding chapter). On horizontal ground, the lighting of
the fuel low warning lamp warns you
that you are at the reserve level.
A message alert is displayed on the
instrument panel.
Fuel gauge indicator
Page 34 of 306
52
3
C O M F O R T
PROGRAMMABLE HEATING *
With the engine off, programmable
heating preheats the coolant circuit
in order to optimise the engine op-
erating temperature prior to starting.
The programmable heating sys-
tem can be started immediately or
delayed thanks to its programming
function. With the engine idle or the vehicle
stationary, it is normal to hear a
high-pitched whistling noise and
to notice some smoke/emissions. Digital programmer
The heating system’s programmer is
located on the right-hand side of the
dashboard.
1. Time or remaining functioning
time.
2. Increase (time).
3. Select programme.
4. Programme number selected.
5. Immediate start-up of heating.
6. Time adjustment and reading
warning lamp.
7. Reduce (time).
8. Heating mode warning lamp.
9. Programmable heating system
warning lamp.
Page 153 of 306
153
10
C H E C K S
PETROL ENGINES
They allow you access for checking
t h e l e v e l o f t h e v a r i o u s fl u i d s a n d f o r
replacing certain components.
1. Screenwash and headlamp
wash reservoir.
2. P o w e r s t e e r i n g fl u i d r e s e r v o i r o r
power steering and suspension
fl u i d r e s e r v o i r .
3. Engine coolant reservoir.
4. Engine oil dipstick.
5. E n g i n e o i l fi l l e r c a p .
6. B r a k e fl u i d r e s e r v o i r .
7. Battery.
8. A i r fi l t e r .
V e h i c l e s fi t t e d w i t h t h e
2.0i 16V engine may be
fi t t e d w i t h m e t a l s u s p e n -
sion. In this case, a different power
s t e e r i n g fl u i d r e s e r v o i r i s fi t t e d .
1.8i 16V
2.0i 16V
Page 154 of 306
154
10

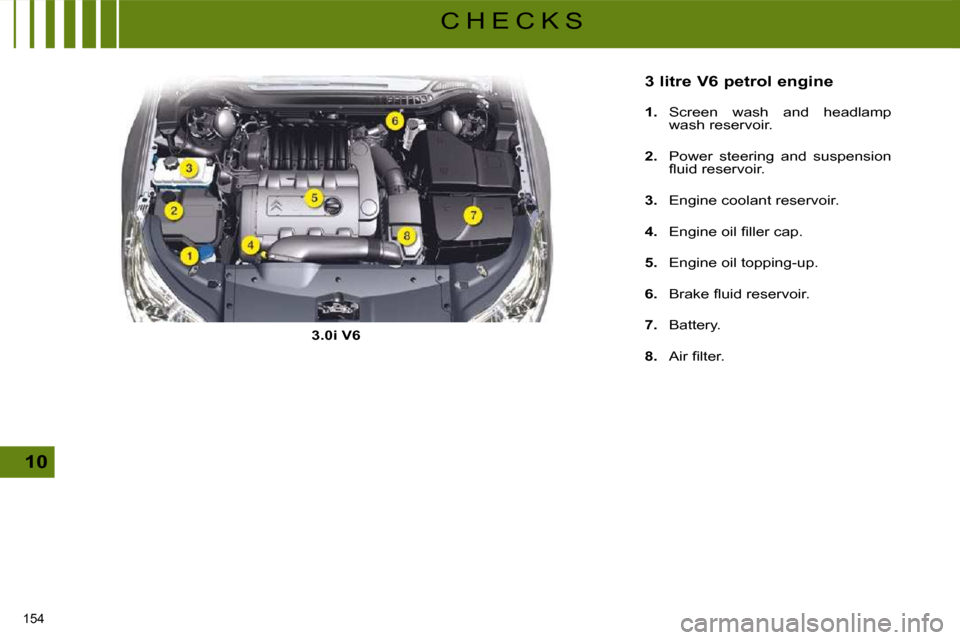

C H E C K S 3 litre V6 petrol engine
1. Screen wash and headlamp
wash reservoir.
2. Power steering and suspension
fl u i d r e s e r v o i r .
3. Engine coolant reservoir.
4. E n g i n e o i l fi l l e r c a p .
5. Engine oil topping-up.
6. B r a k e fl u i d r e s e r v o i r .
7. Battery.
8. A i r fi l t e r .
3.0i V6
Page 155 of 306
155
10
C H E C K S
DIESEL ENGINES
They allow you access for checking
t h e l e v e l o f t h e v a r i o u s fl u i d s , f o r r e -
placing certain components and for
repriming the fuel.
1. Screenwash and headlamp
wash reservoir.
2. P o w e r s t e e r i n g fl u i d r e s e r v o i r o r
power steering and suspension
fl u i d r e s e r v o i r , d e p e n d i n g o n
equipment.
3. Engine coolant reservoir.
4. Engine oil dipstick.
5. E n g i n e o i l fi l l e r c a p .
6. A i r fi l t e r .
7. B r a k e fl u i d r e s e r v o i r .
8. Battery.
As the diesel circuit is pres-
surised, any work on this
circuit is prohibited.
V e h i c l e s fi t t e d w i t h t h e HDi 138
e n g i n e m a y b e fi t t e d w i t h m e t a l
suspension. In this case, a differ-
e n t p o w e r s t e e r i n g fl u i d r e s e r v o i r i s
fi t t e d .
HDi 110
HDi 138
Page 156 of 306
156
10
C H E C K S HDi 173 - V6 HDi 208 engines
(with particle filter)
1. Screen wash and headlamp
wash reservoir.
2. Power steering and suspension
fl u i d r e s e r v o i r .
3. Engine coolant reservoir.
4. Engine oil dipstick.
5. E n g i n e o i l fi l l e r c a p .
6. A i r fi l t e r .
7. B r a k e fl u i d r e s e r v o i r .
8. Battery.
9. "+" and "-" terminals for starting
with a slave battery.
The diesel fuel circuit being
under high pressure:
- Any intervention on the circuit is prohibited.
- HDi engines are the result of advanced technology.
Any intervention requires spe-
c i a l q u a l i fi c a t i o n s w h i c h o n l y a
CITROËN dealer can guarantee.
HDi 173
V6 HDi 208
