2007 SUBARU FORESTER Owners Manual

Keys and doors 2-17
rage
Vibration from trains
y You can have the sensitivity of the
shock sensors adjusted to your prefer-
ence by your SUBARU dealer.Child safety locks
1) Lock
2) Unlock
Each rear door has a child safety lock that
prevents the doors from being opened
even if the inside door handle is pulled.
When the child safety lock lever is in the
lock position, the door cannot be opened
from inside regardless of the position of the inner door handle lock lever. The door
can only be opened from the outside.
Always use the child safety lock
whenever a child rides in the rear
seat. Serious injury could result if a
child accidentally opened the door
and fell out.
2
1
200818

2-18 Keys and doors
Windows „Power windows
The power windows operate only when
the ignition switch is in the “ON” position. T
Driver’s side switches
1) Lock switch
2) For driver’s window (with one-touch auto down feature)
3) For front passenger’s window
4) For rear left window
5) For rear right window
All door windows can be controlled by the
power window switch cluster at the driver
side door. V
Operating the driver’s window
1) Open
2) Automatically open
3) Close
To open:
Push the switch down lightly and hold it.
The window will open as long as the
switch is held.
This switch also has a one-touch auto
down feature that allows the window to be
opened fully without holding the switch.
Push the switch down until it clicks and re-
lease it, and the window will fully open. To
stop the window halfway, pull the switch
up lightly.
To close:
Pull the switch up lightly and hold it. The
window will close as long as the switch is
To avoid serious personal injury
caused by entrapment, you must do
the following.
y When operating the power win-
dows, be extremely careful to pre-
vent anyone’s fingers, arms, neck
or head from being caught in the
window.
yAlways lock the passengers’ win-
dows using the lock switch when
children are riding in the vehicle.
yBefore leaving the vehicle, always
remove the key from the ignition
switch for safety and never allow
an unattended child to remain in
the vehicle. Failure to follow this
procedure could result in injury to
a child operating the power win-
dow.
1
2
4 5 3
200819
3
1
2
200820

Keys and doors 2-19
held. VOperating the passengers’ windows
To open the passengers’ windows, push
the appropriate switch down and hold it
until the window reaches the desired posi-
tion.
To close the window, pull the switch up
and hold it until it reaches the desired po-
sition. V
Locking the passengers’ windows
1) Lock
2) Unlock
To lock the passengers’ windows, push
the lock switch. When the lock switch is in
the “LOCK” position, the passengers’ win-
dows cannot be opened or closed.
Press the switch again to cancel the pas-
sengers’ window locking. T Passengers’ side switches
To open the window, push the switch
down and hold it until the window reaches
the desired position.
To close the window, pull the switch up
and hold it until the window reaches the
desired position.
When the lock switch on the power win- dow switch cluster, located on the driver’s
side door, is in the “LOCK” position, the
passengers’ windows cannot be operated
with the passengers’ switches.
200191
1
2
200821

2-20 Keys and doors
Rear gateThe rear gate can be locked and unlocked
using either the keyless entry system or
the power door locking switches.
Refer to the “Power door locking switches”
and “Remote keyless entry system” sec-
tions in this chapter.
To open the rear gate, first unlock the rear
gate lock then pull the outside handle up.
Then, hold the rear gate and raise it as
high as it will go.To close the rear gate, lower it slowly and
push down firmly until the latch engages.
The rear gate can be lowered easily if you
pull down holding the recessed grip.
NOTE
If the rear gate cannot be unlocked due
to a discharged battery, a fault in the
door locking/unlocking system or oth-
er causes, you can unlock it by manu-
ally operating the rear gate lock release
lever.
For the procedure, refer to “Rear gate –
if the rear gate cannot be unlocked” in
chapter 9 “In case of emergency”.
y
Do not attempt to shut the rear
gate while holding the inside han-
dle. Also avoid closing the rear
gate by pulling on the inside han-
dle from inside the cargo space.
There is a danger of your hand be-
ing caught and injured.
yTo prevent dangerous exhaust
gas from entering the vehicle, al-
ways keep the rear gate closed
while driving.
y Do not jam a plastic bag in or
place cellophane tape on the rear
gate stays or scratch the stays
while loading or unloading cargo.
That could cause leakage of gas
from the stays, which may result
in their inability to hold the rear
gate open.
y Be careful not to hit your head or
face on the rear gate when open-
ing or closing the rear gate and
when loading or unloading cargo.
200822
200194

Keys and doors 2-21
– CONTINUED –

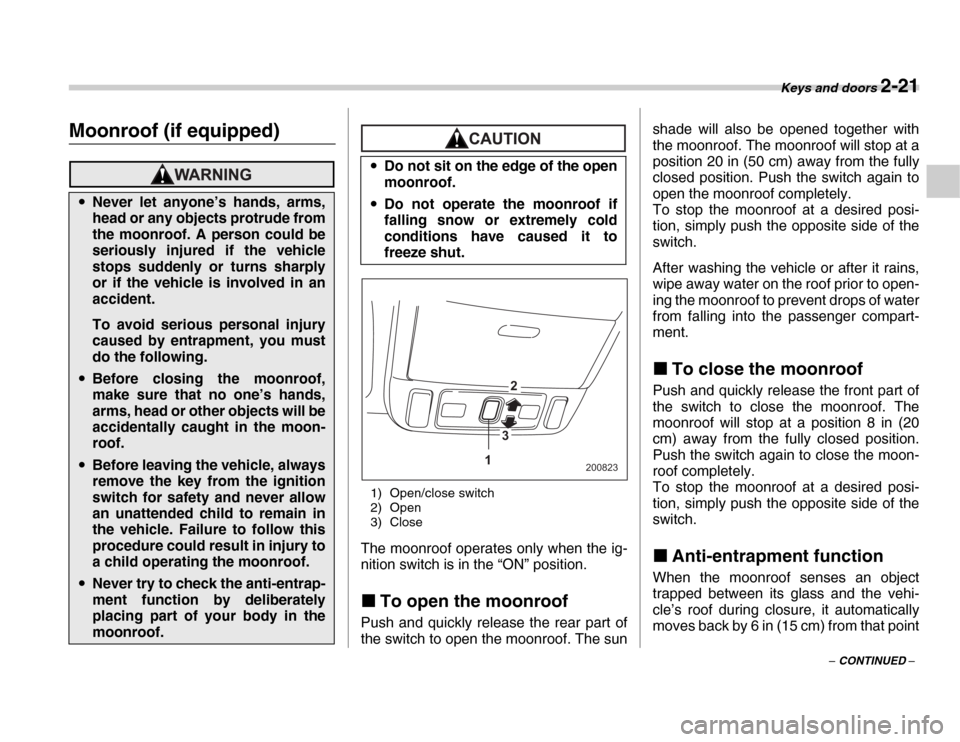

Moonroof (if equipped)
1) Open/close switch
2) Open
3) Close
The moonroof operates only when the ig-
nition switch is in the “ON” position. „ To open the moonroof
Push and quickly release the rear part of
the switch to open the moonroof. The sun shade will also be opened together with
the moonroof. The moonroof will stop at a
position 20 in (50 cm) away from the fully
closed position. Push the switch again to
open the moonroof completely.
To stop the moonroof at a desired posi-
tion, simply push the opposite side of the
switch.
After washing the vehicle or after it rains,
wipe away water on the roof prior to open-
ing the moonroof to prevent drops of water
from falling into the passenger compart-
ment. „
To close the moonroof
Push and quickly release the front part of
the switch to close the moonroof. The
moonroof will stop at a position 8 in (20
cm) away from the fully closed position.
Push the switch again to close the moon-
roof completely.
To stop the moonroof at a desired posi-
tion, simply push the opposite side of the
switch. „ Anti-entrapment function
When the moonroof senses an object
trapped between its glass and the vehi-
cle’s roof during closure, it automatically
moves back by 6 in (15 cm) from that point
y Never let anyone’s hands, arms,
head or any objects protrude from
the moonroof. A person could be
seriously injured if the vehicle
stops suddenly or turns sharply
or if the vehicle is involved in an
accident.
To avoid serious personal injury
caused by entrapment, you must
do the following.
yBefore closing the moonroof,
make sure that no one’s hands,
arms, head or other objects will be
accidentally caught in the moon-
roof.
yBefore leaving the vehicle, always
remove the key from the ignition
switch for safety and never allow
an unattended child to remain in
the vehicle. Failure to follow this
procedure could result in injury to
a child operating the moonroof.
yNever try to check the anti-entrap-
ment function by deliberately
placing part of your body in the
moonroof.
y Do not sit on the edge of the open
moonroof.
y Do not operate the moonroof if
falling snow or extremely cold
conditions have caused it to
freeze shut.
1 2
3200823

2-22 Keys and doors
and then stops. The anti-entrapment func-
tion may also be activated by a strong
shock on the moonroof even when there is
nothing trapped.
NOTE
y For the sake of safety, it is recom-
mended that you avoid driving with the
moonroof fully opened. y Driving with the moonroof fully open
can cause an annoying sound to gen-
erate at high speeds. If such a condi-
tion has been encountered, use the
moonroof at the initial stop position of
20 in (50 cm). y If the moonroof cannot be closed
through switch operation because of
system failure, it can be closed manu-
ally using a hex-head wrench. For the
procedure, refer to “Moonroof – if the
moonroof cannot be closed” in Chap-
ter 9 “In case of emergency”. T
Sun shade
The sun shade can be slid forward or
backward by hand while the moonroof is
closed.
If the moonroof is opened, the sun shade
also moves back.
200196

3
Instruments and controls
Ignition switch .................................................... 3-3LOCK ....................................................................... 3-3
ACC .......................................................................... 3-4
ON ............................................................................ 3-4
START ...................................................................... 3-4
Key reminder chime ............................................... 3-5
Ignition switch light (if equipped) ......................... 3-5
Key interlock release (AT vehicles only) .............. 3-5
Hazard warning flasher ...................................... 3-6
Meters and gauges ............................................. 3-6 Speedometer ........................................................... 3-6
Odometer/Trip meter .............................................. 3-6
Tachometer ............................................................. 3-7
Fuel gauge ............................................................... 3-7
Temperature gauge ................................................ 3-8
Outside temperature indicator .............................. 3-8
Warning and indicator lights ............................. 3-9 Seatbelt warning light and chime .......................... 3-9
SRS airbag system warning light .......................... 3-10
Front passenger’s frontal airbag ON and OFF indicators .............................................................. 3-11
CHECK ENGINE warning light/Malfunction indicator lamp ....................................................... 3-11
Charge warning light .............................................. 3-12
Oil pressure warning light ..................................... 3-12
AT OIL TEMPerature warning light (AT vehicles) ......................................................... 3-12
ABS warning light ................................................... 3-13
Brake system warning light ................................... 3-13
Door open warning lights ...................................... 3-14 Low fuel warning light ............................................ 3-14
All-Wheel Drive warning light (AT vehicles) ......... 3-15
Shift position indicator (AT vehicles) ................... 3-15
Turn signal indicator lights .................................... 3-15
High beam indicator light ....................................... 3-15
Cruise control indicator light ................................. 3-15
Cruise control set indicator light .......................... 3-16
Clock .................................................................... 3-16
Light control switch ........................................... 3-17 Headlights ............................................................... 3-17
High/low beam change (dimmer) .......................... 3-17
Headlight flasher ..................................................... 3-18
Daytime running light system ............................... 3-18
Turn signal lever ................................................. 3-19
Illumination brightness control ......................... 3-19
Headlight beam leveler (Canada-spec. 2.5XT) ............................................................... 3-20
Parking light switch ........................................... 3-20
Front fog light button ......................................... 3-20
Wiper and washer ............................................... 3-21 Windshield wiper and washer switches ............... 3-22
Rear window wiper and washer switch ................ 3-23
Windshield wiper deicer (if equipped) .............. 3-24
Rear window defogger button ........................... 3-24
Mirrors ................................................................. 3-25 Inside mirror ............................................................ 3-25
Outside mirrors ....................................................... 3-27

Instruments and controls
Tilt steering wheel .............................................. 3-28
Horn ..................................................................... 3-29
