2007 SUBARU FORESTER mirror

3
– CONTINUED –
Vehicle symbols
There are some of the symbols you may
see on your vehicle.Mark Name WARNING
CAUTION
Power door lock
Passenger’s windows lock
Fuel
Front fog lights
Parking lights
Hazard warning flasher
Engine hood
Seat heater
Child restraint top tether an-
chorages
Child restraint lower anchor- ages Horn
Windshield wiper deicer
Wiper intermittent
Windshield washer
Windshield wiper mist (for single wipe) Rear window wiper Rear window washer
Lights
Mark NameParking lights, tail lights, li-
cense plate light and instru-
ment panel illumination
Head lights
Headlight beam leveler
Illumination brightness
Fan speed
Instrument panel outlets
Instrument panel outlets and
foot outlets
Foot outlets
Windshield defroster and
foot outlets
Windshield defroster
Outside mirror defogger
Mark Name

14 „Instrument panel
000223
12 3 4 5 67
8
9
10
11
12
14
15
16 13
1) Door locks (page 2-4)
2) Outside mirror switch (page 3-27)
3) Light control lever (page 3-17)
4) Combination meter (page 3-6)
5) Wiper control lever (page 3-21)
6) Hazard warning flasher switch (page
3-6)
7) Audio (page 5-1)
8) Gear shift lever (MT) (page 7-9) Selector lever (AT) (page 7-10)
9) Climate control (page 4-1)
10) Cruise control (page 7-22)
11) Horn (page 3-29)
12) SRS airbag (page 1-36)
13) Tilt steering (page 3-28)
14) Fuse (page 11-41)
15) Hood lock release knob (page 11-4)
16) Power windows (page 2-18)

1-42 Seat, seatbelt and SRS airbags
TDriver’s SRS frontal airbag
The driver’s SRS frontal airbag uses a
dual stage inflator. The inflator operates in
different ways depending on the severity
of impact, backward-forward adjustment
of the driver’s seat position and whether or
not he/she is wearing the seatbelt.
The backward-forward adjustment of the
driver’s seat position is monitored by the
driver’s seat position sensor under the driver’s seat.
Whether or not the driver is wearing the
seatbelt is monitored by the seatbelt buck-
le switch.
Observe the following precautions. Failure
to do so may cause the seatbelt buckle
switch and/or the seat position sensor to
malfunction, preventing the Subaru ad-
vanced frontal airbag system from func-
tioning correctly or causing the system to
fail. y
Do not place articles/metal objects or in-
stall any accessory other than a genuine
SUBARU accessory under the driver’s
seat. Do not allow the rear seat occupant
to kick the driver’s seat or push up its bot-
tom surface with his/her feet. y Do not place a magnet near the seatbelt
buckle or under the driver’s seat.
If the seatbelt buckle switch and/or the
driver’s seat position sensor have failed,
the SRS airbag system warning light will il-
luminate. Although the driver’s SRS fron-
tal airbag can deploy regardless of the
backward-forward adjustment of the driv-
er’s seat position even when the warning
light is on, have the system inspected by
your SUBARU dealer immediately if the
SRS airbag system warning light comes on.
NOTE
The driver’s SRS side airbag and seat-
belt pretensioner are not controlled by
the Subaru advanced frontal airbag
system. T Front passenger’s SRS frontal air- bag
The front passenger’s SRS frontal airbag
uses a dual stage inflator. The inflator op-
erates in different ways depending on the
severity of impact.
The total load on the seat is monitored by
the occupant detection system’s weight
sensor located under the seat.
The system has another sensor that mon-
itors the tension of the front passenger
seatbelt. Using the total seat load and
seatbelt tension data from the sensors,
the occupant detection system deter-
mines whether the front passenger’s SRS
frontal airbag should or should not be in-
flated.
The occupant detection system may not
inflate the front passenger’s SRS frontal
airbag even when the driver’s SRS frontal
airbag deploys. This is normal.
Observe the following precautions. Failure
to do so may prevent the Subaru ad-
vanced frontal airbag system from func-
tioning correctly or cause the system to
fail.
Do not attach accessories to the
windshield, or fit an extra-wide mir-
ror over the rear view mirror. If the
SRS airbag deploys, those objects
could become projectiles that could
seriously injure vehicle occupants.
100157

3
Instruments and controls
Ignition switch .................................................... 3-3LOCK ....................................................................... 3-3
ACC .......................................................................... 3-4
ON ............................................................................ 3-4
START ...................................................................... 3-4
Key reminder chime ............................................... 3-5
Ignition switch light (if equipped) ......................... 3-5
Key interlock release (AT vehicles only) .............. 3-5
Hazard warning flasher ...................................... 3-6
Meters and gauges ............................................. 3-6 Speedometer ........................................................... 3-6
Odometer/Trip meter .............................................. 3-6
Tachometer ............................................................. 3-7
Fuel gauge ............................................................... 3-7
Temperature gauge ................................................ 3-8
Outside temperature indicator .............................. 3-8
Warning and indicator lights ............................. 3-9 Seatbelt warning light and chime .......................... 3-9
SRS airbag system warning light .......................... 3-10
Front passenger’s frontal airbag ON and OFF indicators .............................................................. 3-11
CHECK ENGINE warning light/Malfunction indicator lamp ....................................................... 3-11
Charge warning light .............................................. 3-12
Oil pressure warning light ..................................... 3-12
AT OIL TEMPerature warning light (AT vehicles) ......................................................... 3-12
ABS warning light ................................................... 3-13
Brake system warning light ................................... 3-13
Door open warning lights ...................................... 3-14 Low fuel warning light ............................................ 3-14
All-Wheel Drive warning light (AT vehicles) ......... 3-15
Shift position indicator (AT vehicles) ................... 3-15
Turn signal indicator lights .................................... 3-15
High beam indicator light ....................................... 3-15
Cruise control indicator light ................................. 3-15
Cruise control set indicator light .......................... 3-16
Clock .................................................................... 3-16
Light control switch ........................................... 3-17 Headlights ............................................................... 3-17
High/low beam change (dimmer) .......................... 3-17
Headlight flasher ..................................................... 3-18
Daytime running light system ............................... 3-18
Turn signal lever ................................................. 3-19
Illumination brightness control ......................... 3-19
Headlight beam leveler (Canada-spec. 2.5XT) ............................................................... 3-20
Parking light switch ........................................... 3-20
Front fog light button ......................................... 3-20
Wiper and washer ............................................... 3-21 Windshield wiper and washer switches ............... 3-22
Rear window wiper and washer switch ................ 3-23
Windshield wiper deicer (if equipped) .............. 3-24
Rear window defogger button ........................... 3-24
Mirrors ................................................................. 3-25 Inside mirror ............................................................ 3-25
Outside mirrors ....................................................... 3-27

3-24 Instruments and controls

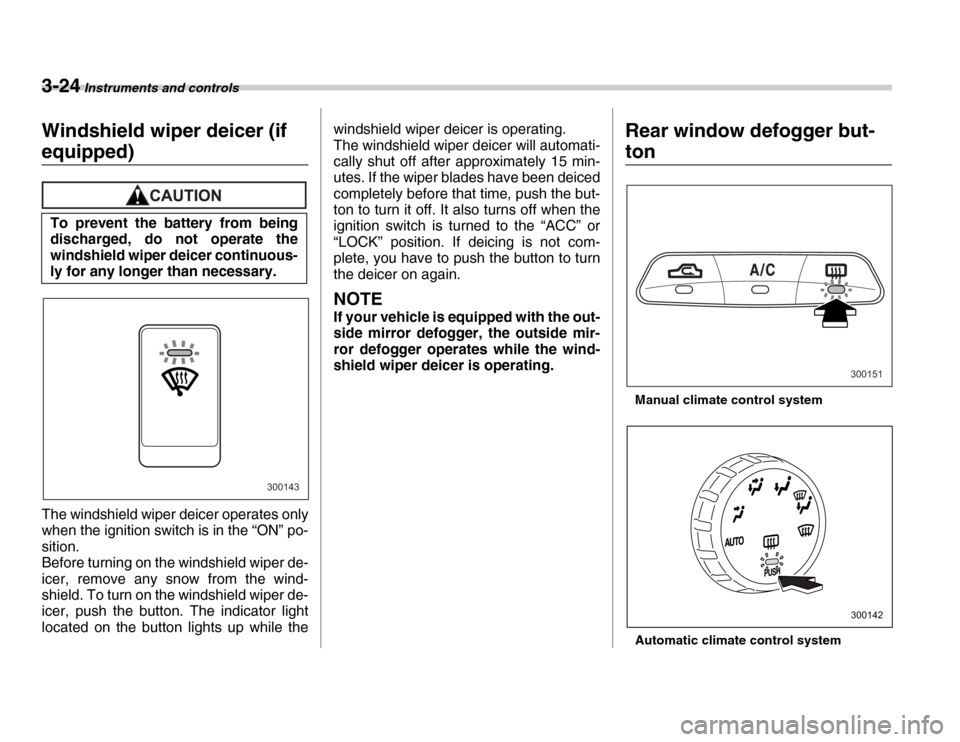

Windshield wiper deicer (if
equipped)
The windshield wiper deicer operates only
when the ignition switch is in the “ON” po-
sition.
Before turning on the windshield wiper de-
icer, remove any snow from the wind-
shield. To turn on the windshield wiper de-
icer, push the button. The indicator light
located on the button lights up while thewindshield wiper deicer is operating.
The windshield wiper deicer will automati-
cally shut off after approximately 15 min-
utes. If the wiper blades have been deiced
completely before that time, push the but-
ton to turn it off. It also turns off when the
ignition switch is turned to the “ACC” or
“LOCK” position. If deicing is not com-
plete, you have to push the button to turn
the deicer on again.
NOTE
If your vehicle is equipped with the out-
side mirror defogger, the outside mir-
ror defogger operates while the wind-
shield wiper deicer is operating. Rear window defogger but-
ton
Manual climate control system
Automatic climate control system
To prevent the battery from being
discharged, do not operate the
windshield wiper deicer continuous-
ly for any longer than necessary.
300143
300151
300142

Instruments and controls 3-25
– CONTINUED –
The rear window defogger operates only
when the ignition switch is in the “ON” po-
sition.
The rear window defogger button is locat-
ed on the climate control panel.
To turn on the defogger, push the button.
To turn it off, push the button again.
The indicator light located on the button
lights up while the rear window defogger is
operating.
The defogger will automatically shut off af-
ter approximately 15 minutes. If the win-
dow clears before that time, push the but-
ton to turn it off. It also turns off when the
ignition switch is turned to the “ACC” or
“LOCK” position. If defrosting or defogging
is desired when you restart your vehicle,
you have to push the button to turn it on
again.
Turn on the rear window defogger if the
wiper is frozen to the glass.
Mirrors
Always check that the inside and outside
mirrors are properly adjusted before you
start driving. „
Inside mirror
The inside mirror has a day and night po-
sition. Pull the tab at the bottom of the mir-
ror toward you for the night position. Push
it away for the day position. The night po-
sition reduces glare from headlights.
y
Do not use sharp instruments or
window cleaner containing abra-
sives to clean the inner surface of
the rear window. They may dam-
age the conductors printed on the
window.yTo prevent the battery from being
discharged, do not operate the de-
fogger continuously for any long-
er than necessary.
300145

3-26 Instruments and controls

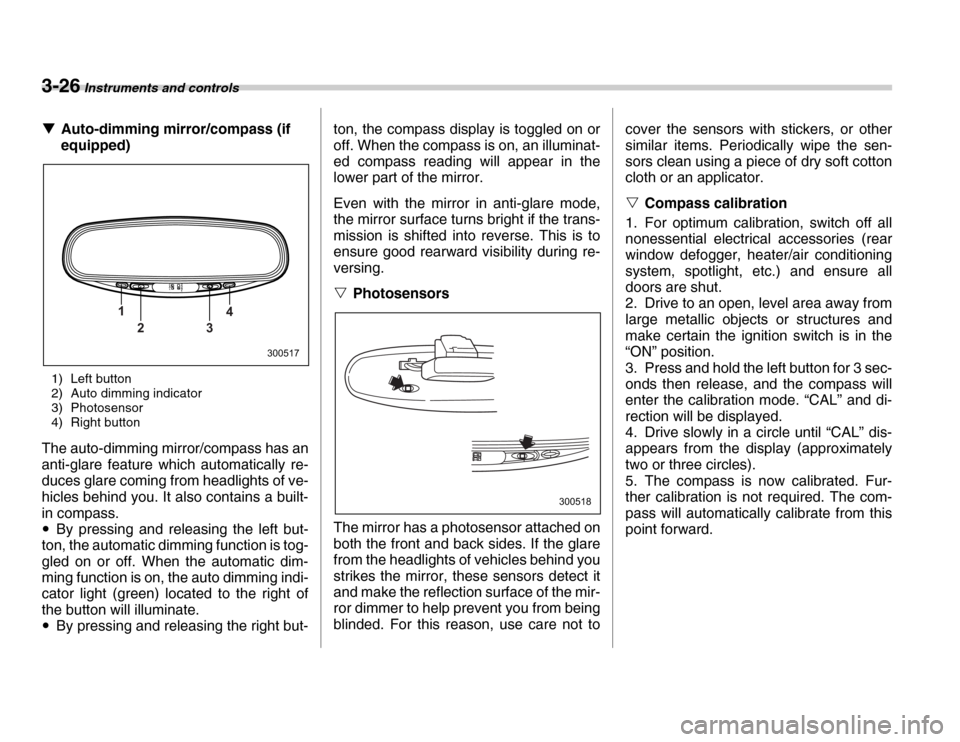

TAuto-dimming mirror/compass (if
equipped)
1) Left button
2) Auto dimming indicator
3) Photosensor
4) Right button
The auto-dimming mirror/compass has an
anti-glare feature which automatically re-
duces glare coming from headlights of ve-
hicles behind you. It also contains a built-
in compass. y By pressing and releasing the left but-
ton, the automatic dimming function is tog-
gled on or off. When the automatic dim-
ming function is on, the auto dimming indi-
cator light (green) located to the right of
the button will illuminate. y By pressing and releasing the right but- ton, the compass display is toggled on or
off. When the compass is on, an illuminat-
ed compass reading will appear in the
lower part of the mirror.
Even with the mirror in anti-glare mode,
the mirror surface turns bright if the trans-
mission is shifted into reverse. This is to
ensure good rearward visibility during re-
versing. V
Photosensors
The mirror has a photosensor attached on
both the front and back sides. If the glare
from the headlights of vehicles behind you
strikes the mirror, these sensors detect it
and make the reflection surface of the mir-
ror dimmer to help prevent you from being
blinded. For this reason, use care not to cover the sensors with stickers, or other
similar items. Periodically wipe the sen-
sors clean using a piece of dry soft cotton
cloth or an applicator. V
Compass calibration
1. For optimum calibration, switch off all
nonessential electrical accessories (rear
window defogger, heater/air conditioning
system, spotlight, etc.) and ensure all
doors are shut.
2. Drive to an open, level area away from
large metallic objects or structures and
make certain the ignition switch is in the
“ON” position.
3. Press and hold the left button for 3 sec-
onds then release, and the compass will
enter the calibration mode. “CAL” and di-
rection will be displayed.
4. Drive slowly in a circle until “CAL” dis-
appears from the display (approximately
two or three circles).
5. The compass is now calibrated. Fur-
ther calibration is not required. The com-
pass will automatically calibrate from this
point forward.
1 23 4
300517
300518

Instruments and controls 3-27
– CONTINUED –
V

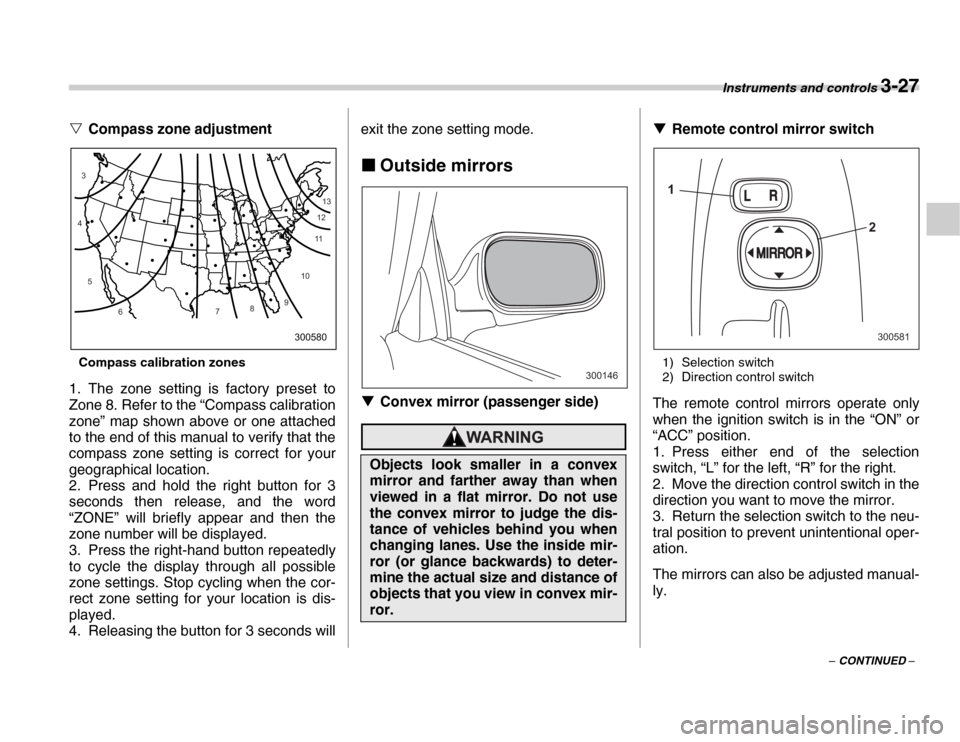

Compass zone adjustment
Compass calibration zones
1. The zone setting is factory preset to
Zone 8. Refer to the “Compass calibration
zone” map shown above or one attached
to the end of this manual to verify that the
compass zone setting is correct for your
geographical location.
2. Press and hold the right button for 3
seconds then release, and the word
“ZONE” will briefly appear and then the
zone number will be displayed.
3. Press the right-hand button repeatedly
to cycle the display through all possible
zone settings. Stop cycling when the cor-
rect zone setting for your location is dis-
played.
4. Releasing the button for 3 seconds will exit the zone setting mode.
„ Outside mirrors
T Convex mirror (passenger side)
T Remote control mirror switch
1) Selection switch
2) Direction control switch
The remote control mirrors operate only
when the ignition switch is in the “ON” or
“ACC” position.
1. Press either end of the selection
switch, “L” for the left, “R” for the right.
2. Move the direction control switch in the
direction you want to move the mirror.
3. Return the selection switch to the neu-
tral position to prevent unintentional oper-
ation.
The mirrors can also be adjusted manual-
ly.
10
9
8
7
6
5
4
3
1112
13
300580
Objects look smaller in a convex
mirror and farther away than when
viewed in a flat mirror. Do not use
the convex mirror to judge the dis-
tance of vehicles behind you when
changing lanes. Use the inside mir-
ror (or glance backwards) to deter-
mine the actual size and distance of
objects that you view in convex mir- ror.
300146
1
2
300581
