2007 SSANGYONG RODIUS Service Manual

01-5
ENGINE INFORMATION
RODIUS 2006.09
0000-00
NO. FUNCTION NO. FUNCTION
1 HFM sensor 12 Intake manifold
2 Intake air duct 13 Connecting rod
3 Resonance flap 14 Exhaust manifold
4 Cylinder head cover 15 Crankshaft
5 Exhaust camshaft 16 Engine mounting
6 Intake camshaft 17 Starter
7 Cylinder head 18 Crankcase
8 Spark plug connector 19 Oil pump sprocket
9 Valve tappet 20 Oil strainer
10 Injector 21 Oil pan
11 Exhaust valve 22 Drain plug
Front View ▶

01-6
RODIUS 2006.09
0000-00
ENGINE INFORMATION
2) SIDE VIEW
NO. FUNCTION NO. FUNCTION
23 Camshaft adjuster 27 Oil pump drive chain
24 Cooling fan and viscous clutch 28 Oil return pipe
25 Piston 29 Timing chain
26 Flywheel of drive plate

01-7
ENGINE INFORMATION
RODIUS 2006.09
0000-00
2. DESCRIPTION AND OPERATION
1) Cleanliness And Care
An automobile engine is a combination of many machined, honed, polished and lapped
surfaces with tolerances that are measured in the ten-thousanths of an inch. When any internal
engine parts are serviced, care and cleanliness are important. A liberal coating of enigne oil
should be applied to friction areas during assembly, to protect and lubricate the surfaces on
initial operation.
Proper cleaning and protection of machined surfaces and friction areas is part of the repai
r
procedure. This is considered standard shop practice even if not specifically stated.
Whenever valve train components are removed for service, they should be kept in order.
They should be installed in the same locations, and with the same mating surfaces, as when
they were removed. Battery cables should be disconnected before any major work is performed
on the engine. Failure to disconnect cables may result in damage to wire harness or othe
r
electrical parts.
2) On-Engine Service
Disconnect the negative battery cable before removing or installing any electrical unit, or
when a tool or equipment could easily come in contact with exposed electrical terminals.
Disconnecting this cable will help prevent personal injury and damage to the vehicle.
The ignition must also be in LOCK unless otherwise noted.
Notice Any time the air cleaner is removed, the intake opening -
Any time the air cleaner is removed, the intake opening should be covered. This will
protect against accidental entrance of foreign material, which could follow the intake
passage into the cylinder and cause extensive damage when the engine is started.g -

02-3
ENGINE ASSEMBLY
RODIUS 2006.09
0000-00
1113-01ENGINE ASSEMBLY
1. SPECIFICATIONS
1) ENGINE SPECIFICATIONS

02-4
RODIUS 2006.09
0000-00
ENGINE ASSEMBLY
2) PERFORMANCE CURVE

02-5
ENGINE ASSEMBLY
RODIUS 2006.09
0000-00

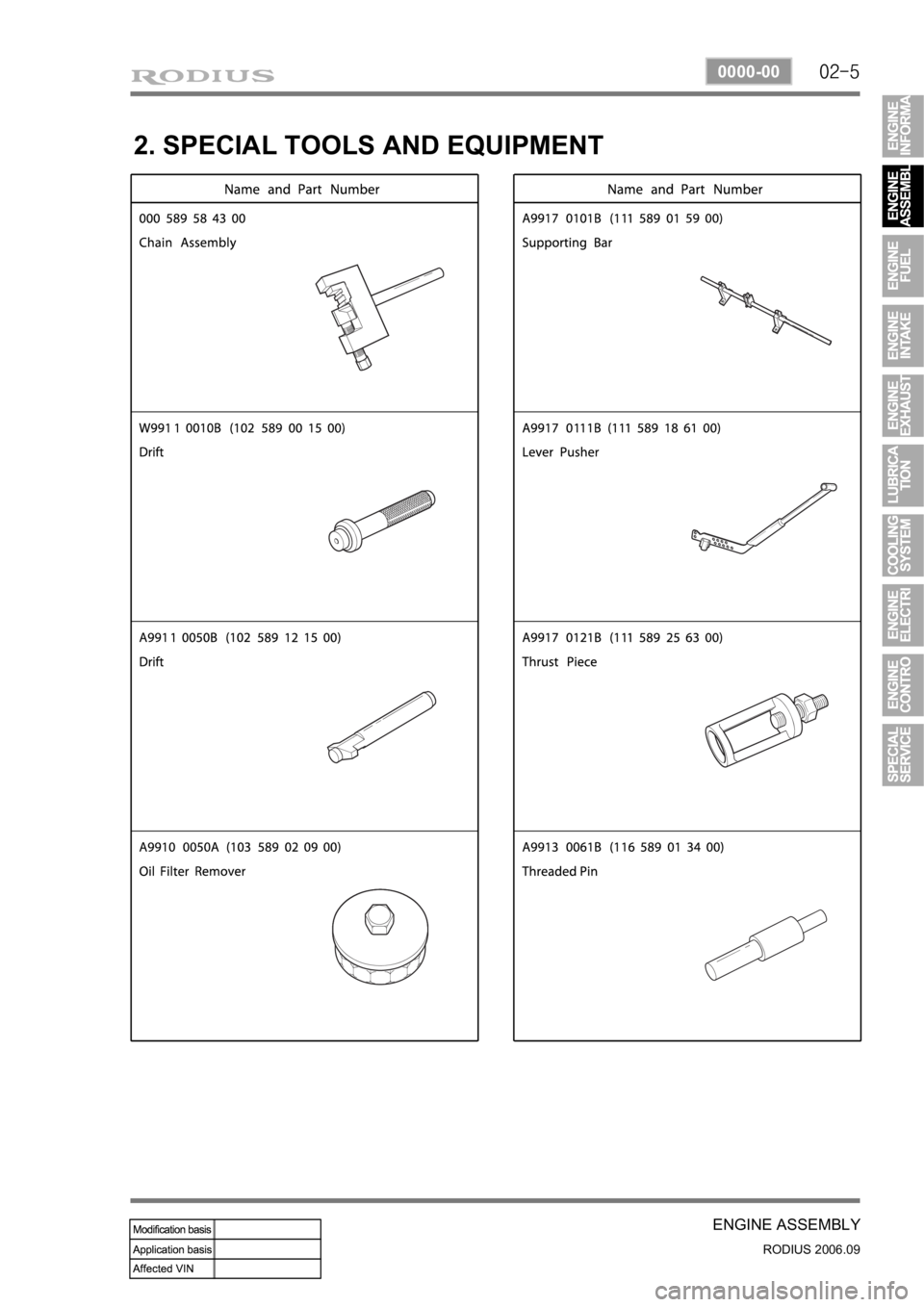

2. SPECIAL TOOLS AND EQUIPMENT

02-6
RODIUS 2006.09
0000-00
ENGINE ASSEMBLY

02-7
ENGINE ASSEMBLY
RODIUS 2006.09
0000-00
Name and Part Number
A9917 0012B (DW110-120)Holding Pin
